REVISION V
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .003[0.08] MAX.
3. PARTS TO BE MOLDED TO POSITION.
4. MINIMUM PULLOUT FORCE: 5 lbs [22.24 N].
V
5. CONTACT MUST BE INSERTED UNTIL RETENTION FEATURE LOCKS
INTO PLACE.
6. ALL FINISHED GOODS ARE TO BE ELECTRICAL TESTED INCLUDING
HI-POT TEST @ 1000 VOLTS DC. AFTER FINAL ELECTRICAL TEST,
LABEL EACH ASSEMBLY WITH 1 LABEL-ET.
7. TINNED COPPER WIRE CONTAINS LEAD.
8. PARTS ARE TO BE LAYER PACKAGED.
9. CONTACTS OFFSET FOR POLARIZATION.
10. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP
DIMENSIONS, TOLERANCES, AND TOOLING.
11. FOR LENGTHS LESS THAN 12 IN, TOLERANCE SHALL BE ±.125[3.18].
FOR OTHER LENGTHS, TOLERANCES SHALL BE ± 2%.
02 01
MMSSX-XX-XXX-X-XX.XX-X-X-XXX
FEP CABLE OPTION
-T: FEP INSULATION
(LEAVE BLANK FOR
STANDARD PVC INSULATION)
No OF POSITIONS
-02 THRU -25
WIRE GAUGE (AWG)
PVC:-20, -22, -24, -26, -28, -30
OPTION
SINGLE
-M: METAL LATCH (USE IPD1-XX-S-X-M)
(LEAVE BLANK FOR PLASTIC)
DOUBLE
[MUST BE USED ON -D END OPTION ONLY
& APPLIES TO END 2 HOUSING]
-LUS: PLASTIC LATCH UP, STRAIGHT
-LDS: PLASTIC LATCH DOWN, STRAIGHT
-MUS: METAL LATCH UP, STRAIGHT
-MDS: METAL LATCH DOWN, STRAIGHT
OPTION
-K: KEYED POLARIZATION
(USE IPD1-XX-S-K)
(SEE FIG 3, SHEET 2)
(LEAVE BLANK FOR NO POLARIZATION;
AVAILABLE TO EXISTING CUSTOMERS ONLY)
END OPTION
-S: SINGLE END
-D: DOUBLE END(MUST CHOOSE XUS OR XDS OPTIONS.)
ASSEMBLED LENGTH
SPECIFY IN INCHES [USE DWCX-XX-XX]
(SINGLE END: 03.00[76.2] INCH MINIMUM,
DOUBLE END: 03.25[82.6] INCH MINIMUM)
FEP:-20, -24, -28, 30
(No OF POS x .100[2.54])
+ .055[1.40] REF
C
L
.200 5.08
REF
.300 7.62
REF
COLOR CODE
C (SEE TABLE 2)
(LEAVE BLANK FOR
STANDARD BLACK CABLE)
(NOT AVAILABLE WITH FEP OPTION)
PLATING SPECIFICATION
-F: FLASH SELECTIVE (USE C-179-XX-F)
-L: LIGHT SELECTIVE (USE C-179-XX-L)
-S: SELECTIVE (USE C-179-XX-S)
.010 0.25 REF
(SEE NOTE 9)
"A"
IPD1-XX-S
.505 12.83
REF
C-179-XX-X
.285 7.24
REF
C1
XX.XX
(SEE NOTE 11)
DWC-XX-10-300
C2
XX.XX
(SEE NOTE 11)
FIG 1
"A"
MMSS-05-22-X-XX.XX-S SHOWN
SECTION "A"-"A"
FIG 2
MMSS-05-22-X-XX.XX-D-LUS SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [0.3]
2
.XXX: .005 [0.13]
.XXXX: .0020 [0.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
HOUSING: NYLON 6/6, COLOR: WHITE
CONTACT: PHOS BRONZE
CABLE; INSULATION: SEE CALLOUT
WIRE: TINNED COPPER
F:\DWG\MISC\MKTG\MMSSX-XX-XXX-X-XX.XX-X-X-XXX-MKT.SLDDRW

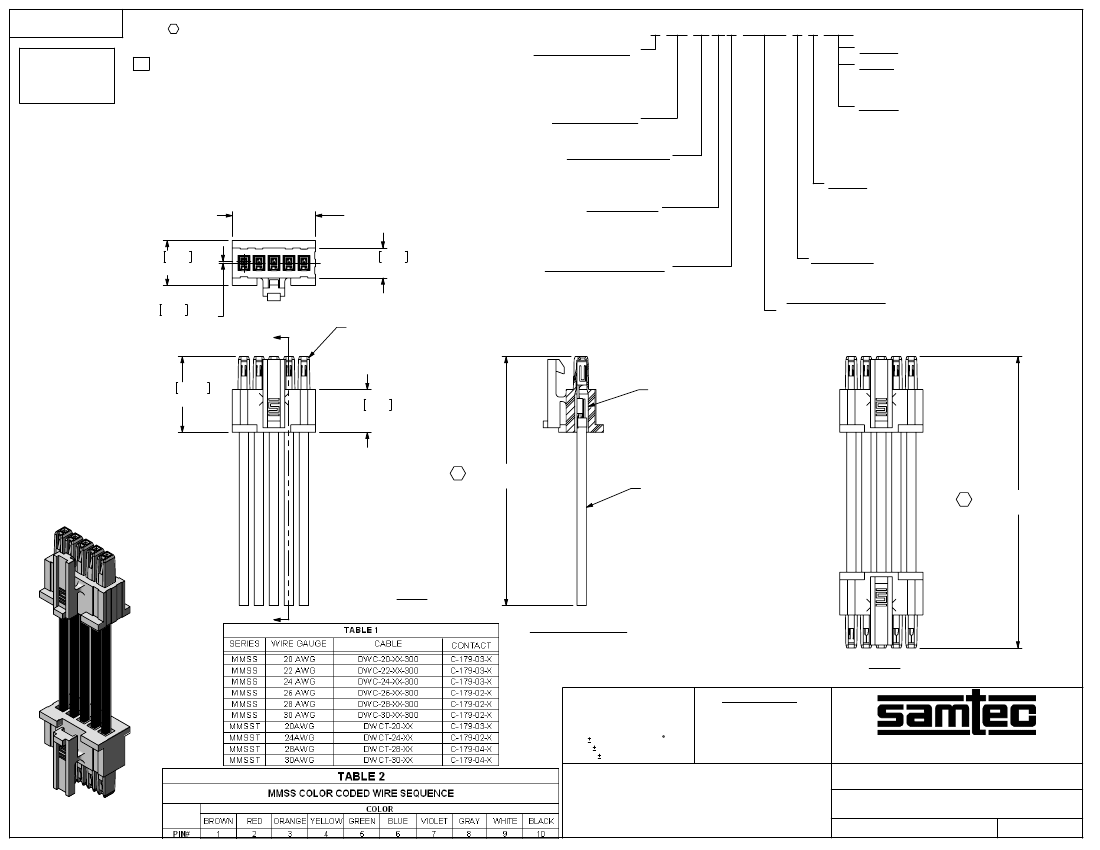

.100[2.54] SOCKET DISCREET CABLE ASSEMBLY
MMSSX-XX-XXX-X-XX.XX-X-X-XXX
BY:
DEAN P
05/03/2005
SHEET
1
