RBP12202B02CSS: DescriptionRotary Switch, 2 Positions, DPDT, Latched, 0.13A, 38.5VDC, Solder Terminal, Plastic Shaft Actuator, Through Hole-straight, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size412KB，4 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric View All

RBP12202B02CSS Overview

Rotary Switch, 2 Positions, DPDT, Latched, 0.13A, 38.5VDC, Solder Terminal, Plastic Shaft Actuator, Through Hole-straight, ROHS COMPLIANT

RBP12202B02CSS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	PLASTIC SHAFT
body height	9.2 mm
Body length or diameter	19.4 mm
Contact (AC) maximum rated R load	.13A@38.5VAC
Maximum contact current (AC)	0.13 A
Maximum contact current (DC)	0.13 A
Contact (DC) maximum rated R load	.13A@38.5VDC
Maximum contact voltage (AC)	38.5 V
Maximum contact voltage (DC)	38.5 V
Electrical life	15000 Cycle(s)
Graduation angle	30 deg
JESD-609 code	e4
Manufacturer's serial number	RBP12
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	2
Number of switching segments	1
surface mount	NO
Switch action	LATCHED
switch function	DPDT
Switch type	ROTARY SWITCH
Terminal surface	Silver (Ag)
Termination type	SOLDER

Preview

Download Datasheet

View All

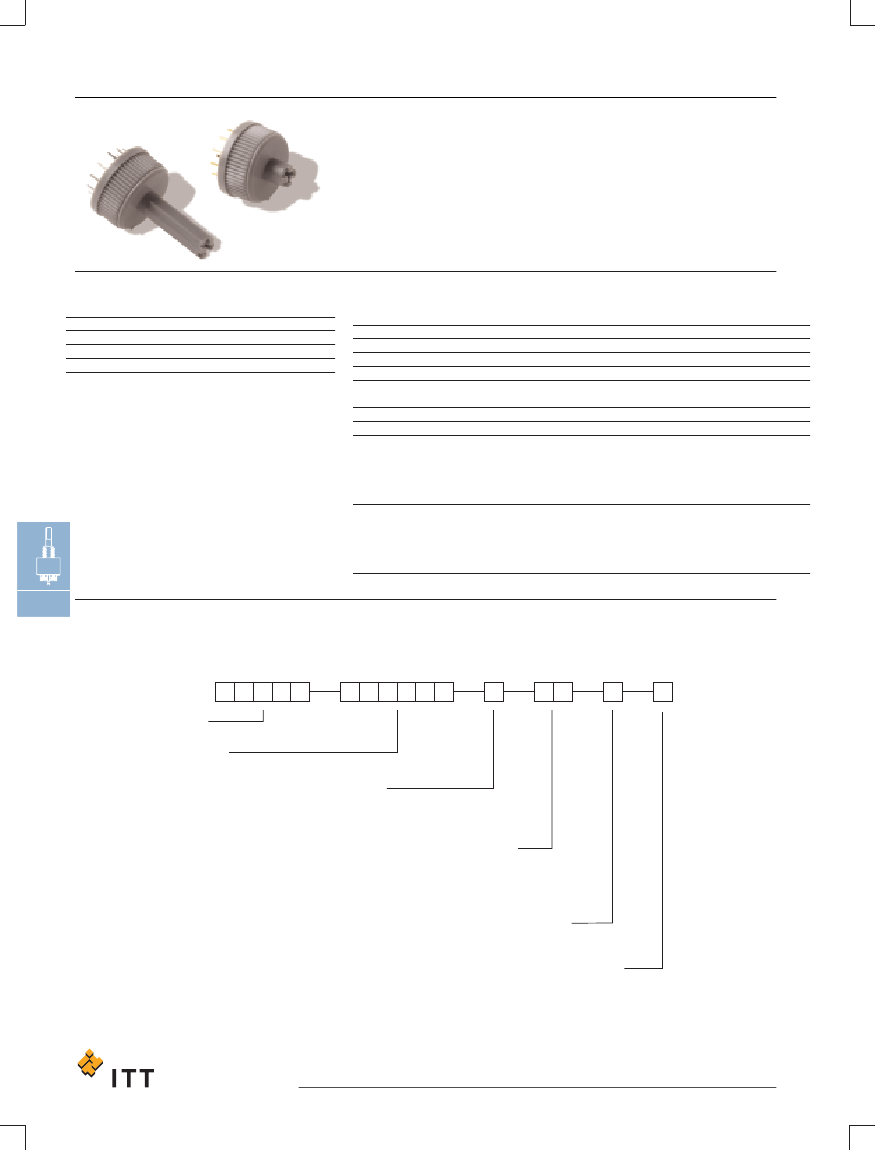

C&K RBP12 Series

1-6 Pole Miniature Rotary Switches

Features/Benefits

•

Rotary switch for low current

•

Shaft perpendicular to PCB

•

Index mechanism included in

thickness of switch

•

Several actuation modes

Typical Applications

•

Medical

•

Instrumentation

•

Appliances

•

Low profile

Mechanical Data

Max. number of banks

Operating torque

Stop strength

End stop

Contact material

Insulating material

2.5 Ncm ± 25% (1 pole)

> 40 Ncm

With/without or mobile

Silver, Gold

Thermoplastic

Gold (G)

Silver (S)

MBB-BBM

Switching mode

Make Before Break, Break Before Make

5 VA (resistive)

0.5 VA (resistive)

Max. switching power

Max. switching current

130 mA

20 mA

Max. carrying current

Contact resistance

15 m ohms

25 m ohms

Dielectric strength

between contacts 1000 V

1000 V

at 50 Hz

or contacts and ground 1000 V

1000 V

Nominal voltage

150 V rms

Number of operations

15 ,000

20 ,000

Insulation resistance between contacts

ohms

and contacts and frame (500 Vcc)

Environmental data

Storage temperature

Salt spray

Further data

Solderability

Cleaning

Electrical Data

NOTE:

For the latest information regarding RoHS compliance,

please go to: www.ittcannon.com/rohs.

NOTE:

Specifications and materials listed above are for switches

with standard options. For informationon specific and custom

switches, consult Customer Service Center.

– 25°C to + 70°C

– 25°C to + 85°C

48 H

Hand:

Wave:

350°C/5 s

260°C/5 s max.

Cleaning of modules prohibited

Rotary

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages L-19 thru L-21. For additional options not shown in catalog, consult Customer Service Center.

Designation

RBP12

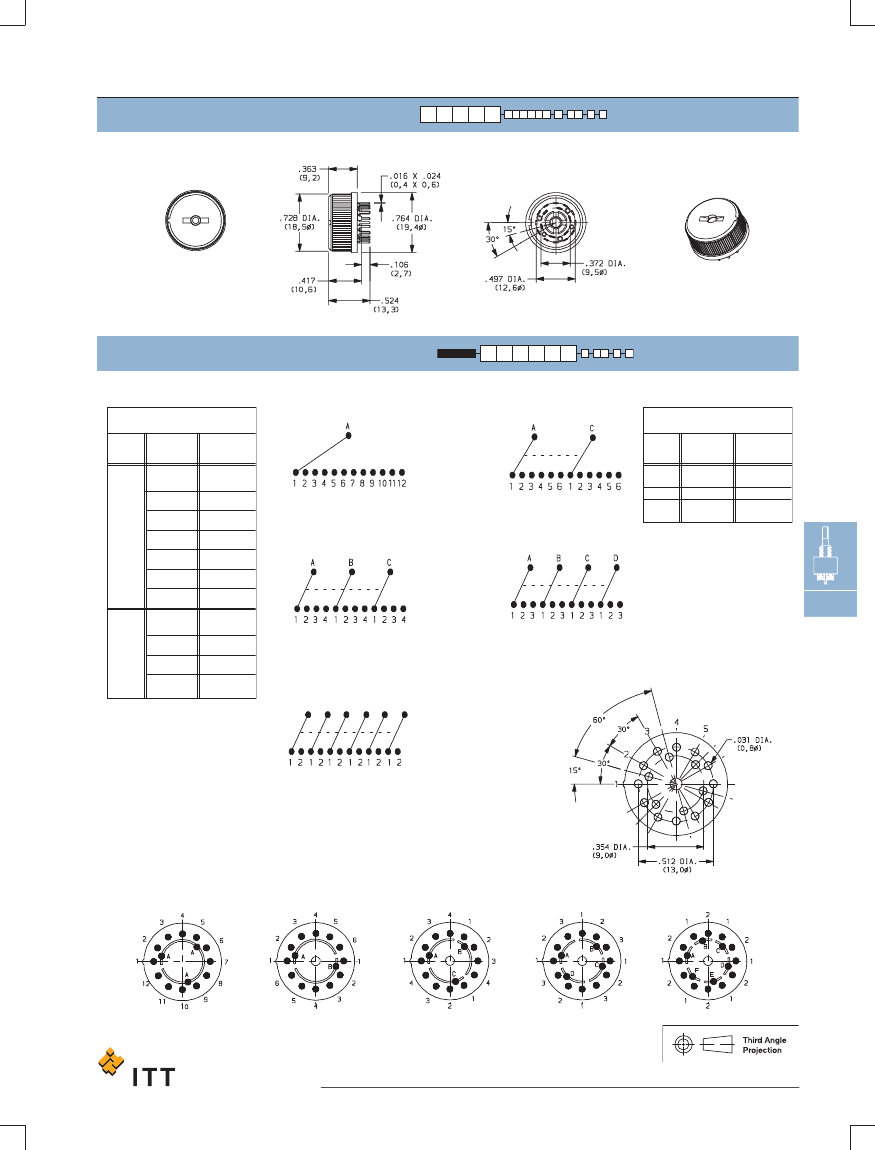

Switch Function

112S

SP, 30° Index, 12 pos. no stop

103B03

SP, 30° Index, 3 pos.

Switching Mode

105B05

SP, 30° Index, 5 pos.

Non-shorting BBM (break-before-make)

107B07

SP, 30° Index, 7 pos.

Shorting, MBB (make-before-break)

108B08

SP, 30° Index, 8 pos.

110B10

SP, 30° Index, 10 pos.

112B12

SP, 30° Index, 12 pos.

Actuator

206S

DP, 30° Index, 6 pos. no stop

Screwdriver slot*

202B02

DP, 30° Index, 2 pos.

Plastic shaft, <20mm (.787)*

203B03

DP, 30° Index, 3 pos.

Plastic shaft, 6mm (.236)*

205B05

DP, 30° Index, 5 pos.

Thumbwheel

304B04

3P, 30° Index, 4 pos.

403B03

4P, 30° Index, 3 pos.

Option

602B02

6P, 30° Index, 2 pos.

(NONE)

Lateral PCB adaptation

Contact Material

Silver

Gold

*Option: Metallic shaft available by request

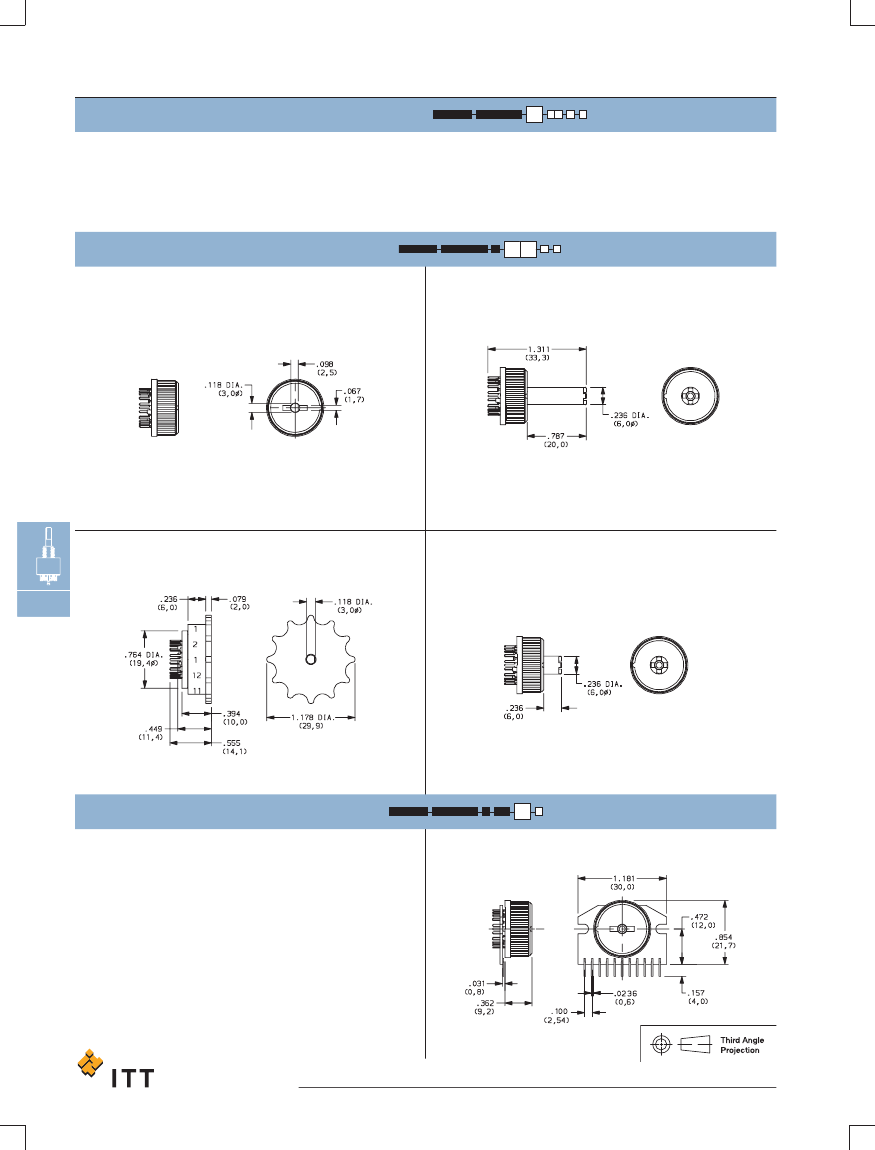

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

L–18

www.ittcannon.com
