1xN Optical Switch
SCN Series
Key Features
• Low insertion loss
• Built-in position monitor
• Latching and non-latching configurations
• High durability
Applications
• Configurable optical add/drop
multiplexing
• Optical network protection and
restoration
• Network monitoring
• Transmitter and receiver equipment
protection

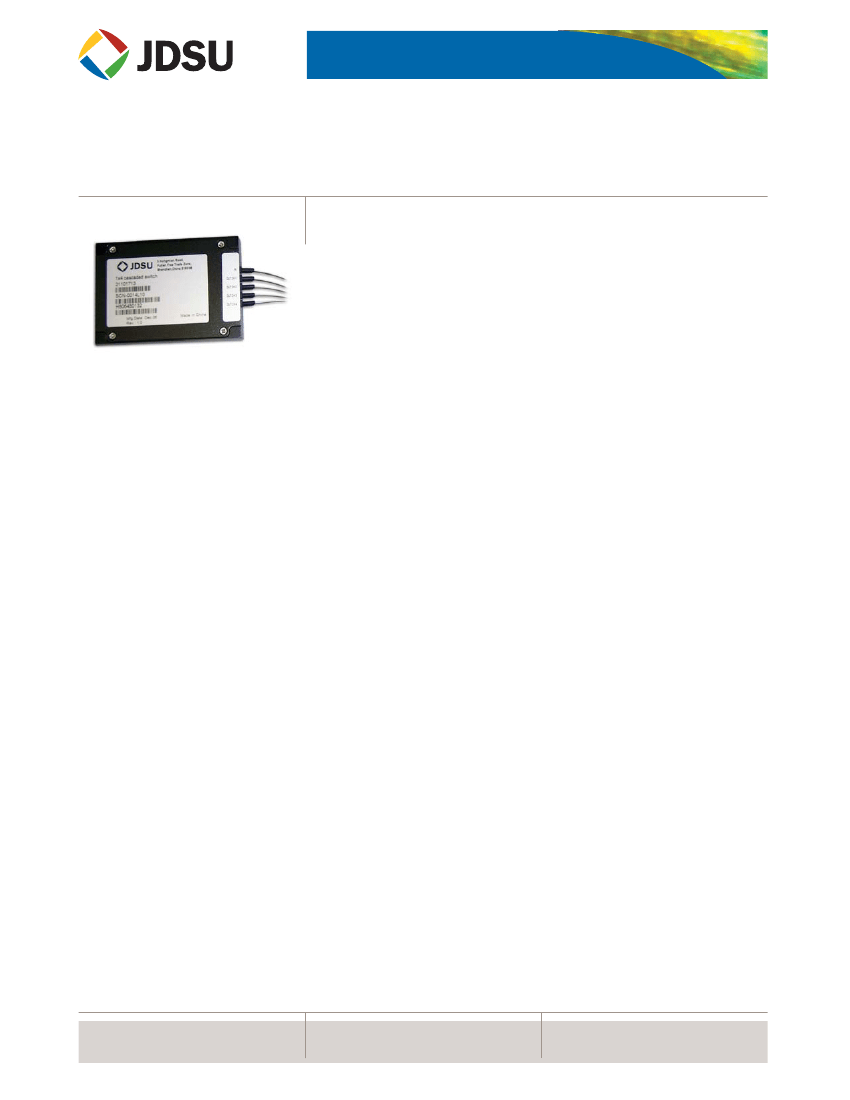

JDSU SCN series 1XN Optical Switch is the ideal switching solution to increase
network flexibility. The switch can be mounted directly on printed circuit boards
(PCBs). Its advanced mirror and prism design minimizes insertion loss and
provides maximum reliability under demanding central office conditions. The
switch is also equipped with status contacts, providing an electrical readout of the
switch position to facilitate monitoring, and a latching configuration to ensure the
switch remains in position following a power loss.
On request, JDSU provides customized modular assemblies that incorporate taps,
WDMs, splitters, and other components.
Compliance
• Telcordia GR-1073
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com

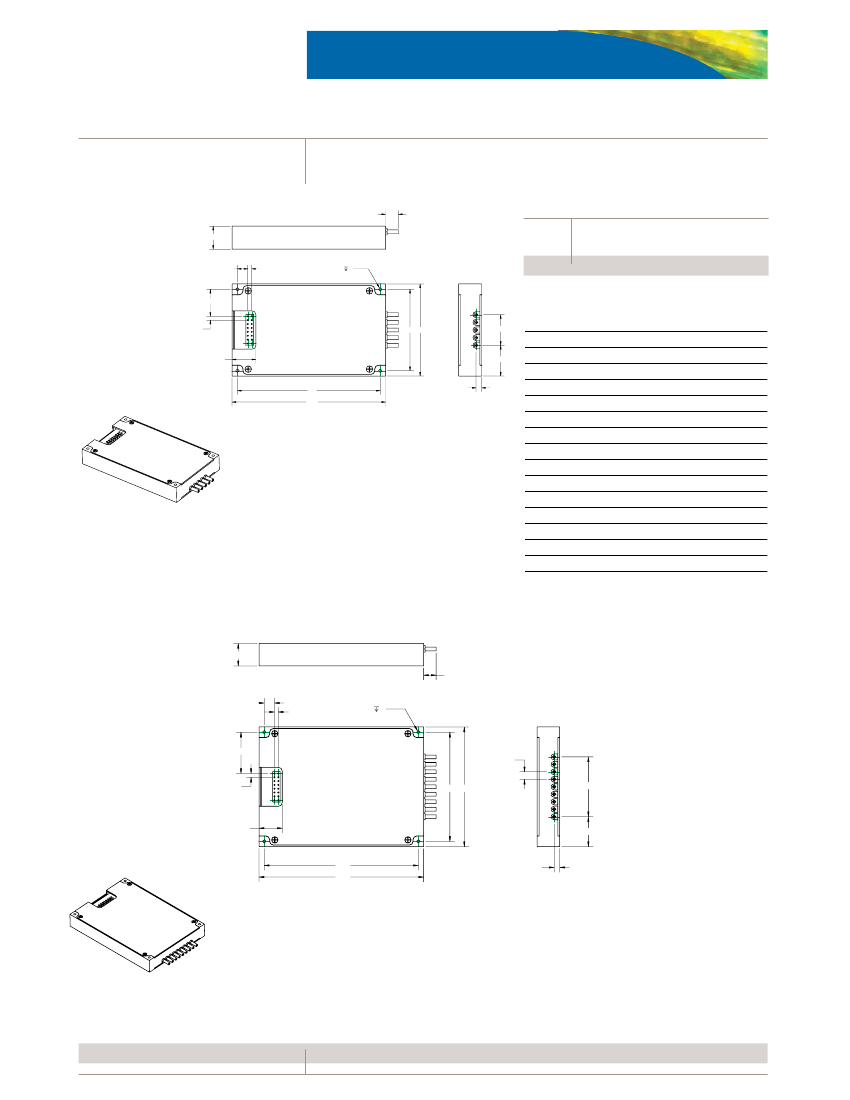

1XN OPTICAL SWITCH
3
Configurations
Selected Port
Control Signals
A2
A1
A0
Status Signals
B2
B1
B0
1
2
3
4
5
6
7
8
0
0
0
0
0
0
0
0
1
0
0
1
0
1
0
0
1
0
0
1
1
0
1
1
1
0
0
1
0
0
1
0
1
1
0
1
1
1
0
1
1
0
1
1
1
1
1
1
Specifications
Parameter
Wavelength range
Insertion loss
1,2
Switching time
Crosstalk
1
Return loss
1
Polarization dependent loss (PDL)
1
Repeatability
Supply voltage
Drive frequency
Operating temperature
Storage temperature
Fiber type
Dimensions
1. Excluding connectors.
1x4 Switch
1x5, 1x6, 1x7, 1x8 Switch
Maximum
Maximum
Minimum
Minimum
Maximum
Maximum
Maximum
1290 to 1330 nm and/or 1525 to 1610 nm
0.9 dB
1.3 dB
6 ms
8 ms
55 dB
55 dB
50 dB
50 dB
0.1 dB
0.2 dB
0.05 dB
0.05 dB
4.5 to 5.5 V DC
4.5 to 5.5 V DC
10 Hz
10 Hz
0 to 70 °C
0 to 70 °C
-40 to 85 °C
-40 to 85 °C
900
µ
m tight buffer
900
µ
m tight buffer
100 x 60 x 15 mm
110 x 80 x 15 mm
2. Defined at room temperature and 1310/1550 nm. Add additional 0.5 dB over whole temperature and wavelength range.
1XN OPTICAL SWITCH
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at
customer.service@jdsu.com.
Sample: SCN-0013L10
SCN-00 1
Code
1
Input Port Number
1
Code
L
N
Switching Type
Latching
Non-latching
Code
1
2
Fiber Length
1 meter
2 meters
Code
0
1
2
3
4
5
6
Connector Type
No
connector
FC/PC
FC/APC
SC/PC
SC/APC
LC/PC
MU
Code
3
4
5
6
7
8
Output Port Number
3
4
5
6
7
8
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
August 2007
Product specifications and descriptions in this document subject to change without notice. © 2007 JDS Uniphase Corporation 30149043 Rev. 002 08/07 SCNSWITCH.DS.CC.AE
Telcordia is a registered trademark of Telcordia Technologies Incorporated.
