D25XB80TY Overview

Bridge Rectifier Diode,

D25XB80TY Parametric

Parameter Name	Attribute value
Maker	Fagor Electrónica
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSFM-T4
JESD-609 code	e3
Maximum non-repetitive peak forward current	300 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	3.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	800 V
surface mount	NO
Terminal surface	MATTE TIN
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

D25XB40 ........ D25XB100

25 Amp. Glass Passivated Single Phase In Line Bridge Rectifier

Voltage

400 V to 1000 V

Current

25 A

IN LINE BIG

FEATURES

UL recognition file number

E320541

Ideal for printed circuit board

High case dielectric strength of 2000 Vrms

High surge current capability

Solder dip 260ºC, 10s

Component in accordance to RoHS 2011/65/EU

and WEEE 2002/96/EC

MECHANICAL DATA

Case

IN LINE BIG. Epoxy meets UL 94V-0 flammability rating.

Polarity

As marked on body

Mounting

Torque

5.5cm-kg (5 in.- Ibs.)

Terminals

Matte tin plated leads, solderable per

MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.

Consumer grade, meets JESD 201 class 1A whisker test

TYPICAL APPLICATIONS

Used in ac-to-dc bridge full wave rectification for monitor,

TV, printer, switching mode power supply, adapter, audio

equipment, and home appliances applications.

Maximum Ratings and Electrical Characteristics at 25 ºC

D25XB40

D25XB60

600

420

D25XB80

800

560

(Note 1)

(Note 2)

D25XB100

1000

700

Marking Code

RRM

RMS

F(AV)

FSM

DIS

stg

Peak recurrent reverse voltage (V)

Maximum RMS Voltage (V)

Max. Average forward current

Peak forward surge current 10ms single half

sine-wave superimposed on rated load

(

Jedec Method

)

Dielectric strength (terminals to case, AC 1 min.)

Current squared time (rating for fusing)

(1ms.<t<10ms. Tc = 25º C)

Operating temperature range

Storage temperature range

D25XB40

400

280

25 A at Tc: 75 °C

3.2 A at 25 °C

300 A

2000 V

373 A

sec

-55 to +150 °C

Electrical Characteristics at Tamb = 25 °C

th (j-c)

th (j-a)

Max. forward voltage drop per diode at I

= 25 A

Max. instantaneous reverse current at V

RRM

Typical Thermal Resistance

Junction-case

Junction-Ambient

1.10 V

5 µA

1.0 °C/W

35 °C/W

(Note 1)

(Note 2)

Notes: 1. Unit case mounted on aluminum plate heatsink

2. Units mounted on P.C.B. without heatsink

www.fagorelectronica.com

Document Name: d25xb

Version: May-12

Page Number: 1/4

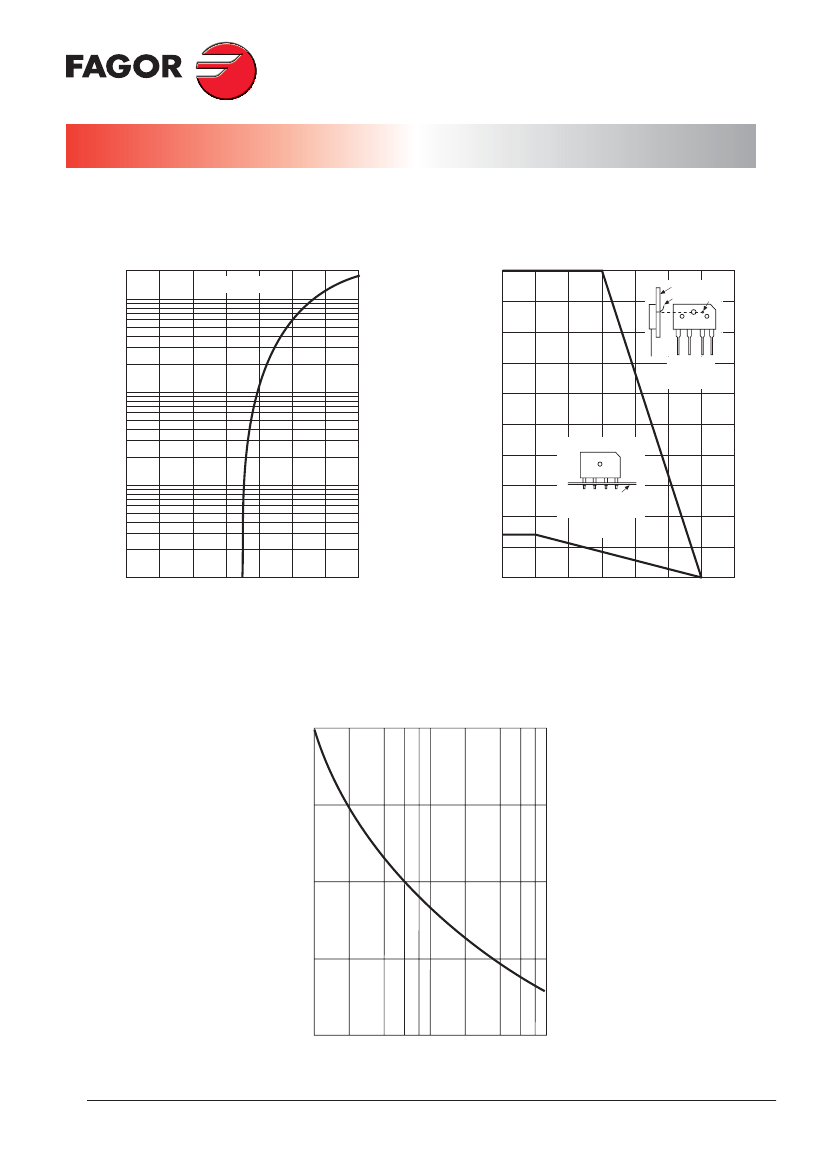

D25XB40 ........ D25XB100

25 Amp. Glass Passivated Single Phase In Line Bridge Rectifier

Disclaimer

All product, product specifications and data are subject to change without notice to improve reliability,

function or design or otherwise.

Fagor Electrónica, S.Coop., its affiliates, agents, and employees, and all persons acting on its or their

behalf (collectively, "Fagor"), disclaim any and all liability for any errors, inaccuracies or incompleteness contained

in any datasheet or in any other disclosure relating to any product.

Fagor makes no warranty, representation or guarantee regarding the suitability of the products for any particular

purpose or the continuing production of any product. To the maximum extent permitted by applicable law,

Fagor disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all

liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied

warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Fagor's knowledge

of typical requirements that are often placed on Fagor products in generic applications. Such statements are not

binding statements about the suitability of products for a particular application. It is the customer's responsibility

to validate that a particular product with the properties described in the product specification is suitable for use in a

particular application. Parameters provided in datasheets and/or specifications may vary in different applications

and performance may vary over time. All operating parameters, including typical parameters, must be validated

for each customer application by the customer's technical experts. Product specifications do not expand or

otherwise modify Fagor's terms and conditions of purchase, including but nos limited to the warranty expressed

therein.

Except as expressly indicated in writing. Fagor products are not designed for use in medical, life-saving, or

life-sustaining applications or for any other application in which the failure of the Fagor product could result in

personal injury or death. Customers using or selling Fagor products not expressly indicated for use in such

applications do so at their own risk and agree to fully indemnify and hold Fagor and its distributors harmless from

and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use

or sale, including attomeys fees, even if such claim alleges that Fagor or its distributor was negligent regarding

the design or manufacture of the part. Please contact authorized Fagor personnel to obtain written terms and

conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this

document or by any conduct of Fagor, Product names and markings noted herein may be trademarks of their

respective owners.

www.fagorelectronica.com

Document Name: d25xb

Version: May-12

Page Number: 4/4
