6.2mm (0.25INCH) FOUR DIGIT NUMERIC
DISPLAY
Part Number: CA25-12SEKWA
Super Bright Orange
Features
0.25 inch digit height
Low current operation.
Excellent character appearance.
Easy mounting on P.C. boards or sockets.
Categorized for luminous intensity.
Mechanically rugged.
Standard : gray face, white segment.
RoHS compliant.
Description
The Super Bright Orange device is made with AlGaInP (on
GaAs substrate) light emitting diode chip.

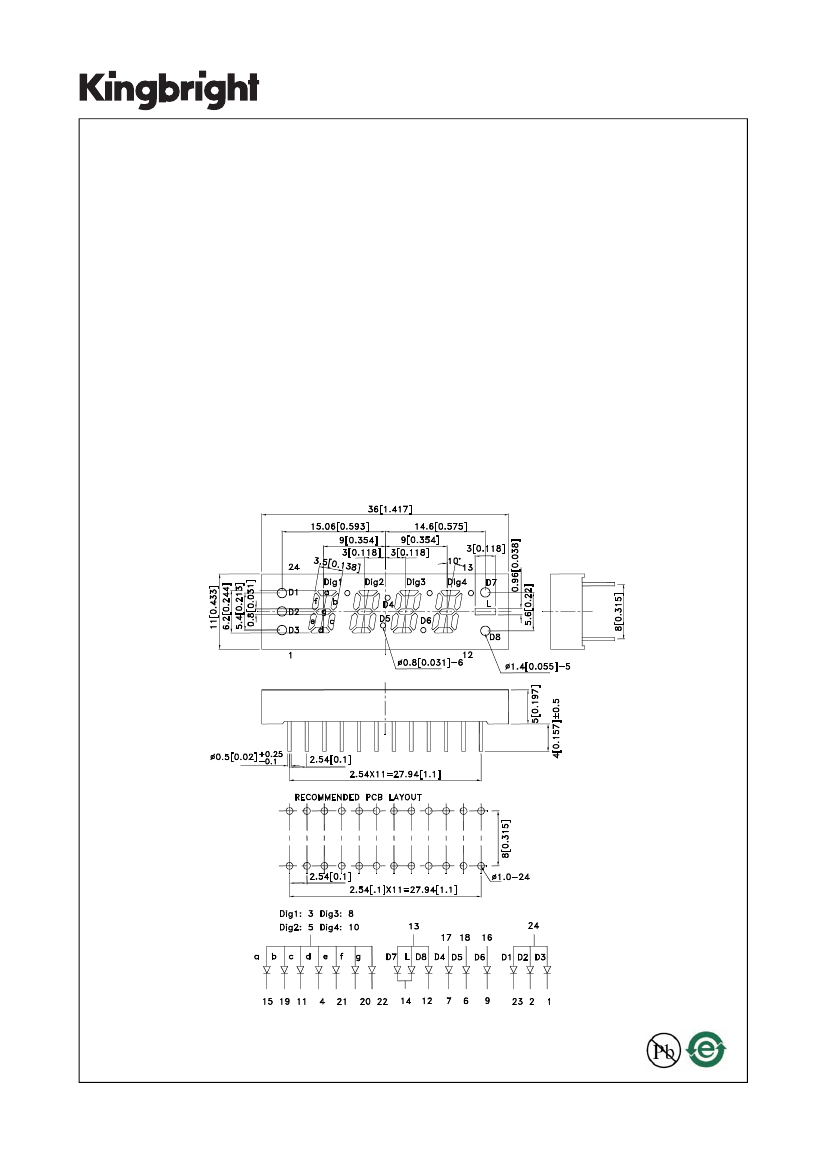

Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAK2803
APPROVED: WYNEC
REV NO: V.5A
CHECKED: Joe Lee
DATE: APR/20/2013
DRAWN: Y.Liu
PAGE: 1 OF 7
ERP: 1304000559
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd) [1]
@ 10mA
Min.
52000
CA25-12SEKWA
Super Bright Orange (AlGaInP)
White Diffused
*21000
Note:
1. Luminous intensity/ luminous Flux: +/-15%.
* Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Description
Typ.
160000
Common Anode
*55000
Electrical / Optical Characteristics at TA=25°C
Symbol
λ
peak
λ
D [1]
Δλ
1/2
C
Forward
Voltage
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Dig1'8,'Dig2'8',Dig3'8',Dig4'8'
D1,D2,D3D4,D5,D6,D8
D7,L
Reverse
Current
Dig1'8,'Dig2'8',Dig3'8',Dig4'8'
D1,D2,D3D4,D5,D6,D8
D7,L
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
Device
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Typ.
610
601
29
15
Max.
Units
nm
nm
nm
pF
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
V
F
[2]
Super Bright Orange
2.1
2.5
V
I
F
=20mA
10
Super Bright Orange
20
uA
V
R
= 5V
I
R
Absolute Maximum Ratings at TA=25°C
Parameter
Power
dissipation
Dig1'8,'Dig2'8',Dig3'8',Dig4'8'
D1,D2,D3D4,D5,D6,D8
D7,L
DC Forward
Current
Reverse
Voltage
Dig1'8,'Dig2'8',Dig3'8',Dig4'8'
D1,D2,D3D4,D5,D6,D8
D7,L
Dig1'8,'Dig2'8',Dig3'8',Dig4'8'
D1,D2,D3D4,D5,D6,D8
D7,L
Peak Forward
Current [1]
Dig1'8,'Dig2'8',Dig3'8',Dig4'8'
D1,D2,D3D4,D5,D6,D8
D7,L
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Super Bright Orange
75
Units
mW
150
30
mA
60
5
V
195
mA
390
-40°C To +85°C
260°C For 3~5 Seconds
SPEC NO: DSAK2803
APPROVED: WYNEC
REV NO: V.5A
CHECKED: Joe Lee
DATE: APR/20/2013
DRAWN: Y.Liu
PAGE: 2 OF 7
ERP: 1304000559

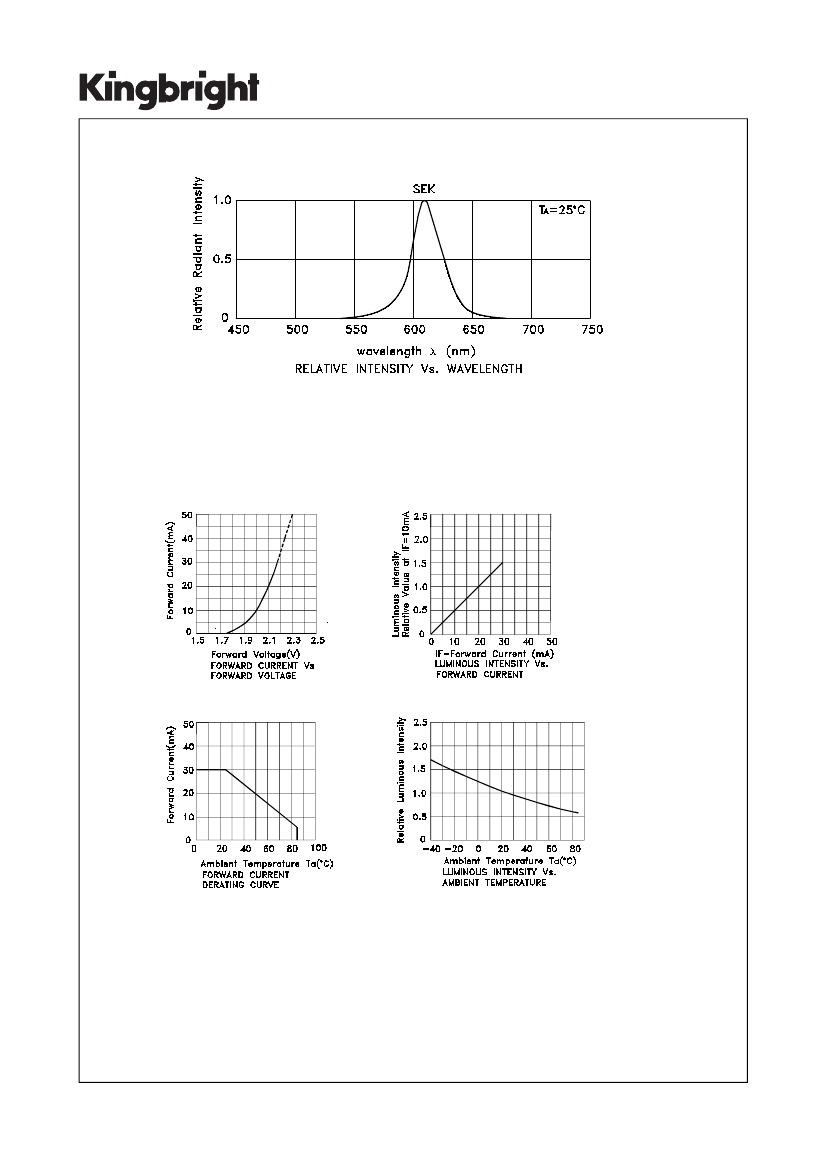

Super Bright Orange
CA25-12SEKWA
SPEC NO: DSAK2803
APPROVED: WYNEC
REV NO: V.5A
CHECKED: Joe Lee
DATE: APR/20/2013
DRAWN: Y.Liu
PAGE: 3 OF 7
ERP: 1304000559
Super Bright Orange
SPEC NO: DSAK2803
APPROVED: WYNEC
REV NO: V.5A
CHECKED: Joe Lee
DATE: APR/20/2013
DRAWN: Y.Liu
PAGE: 4 OF 7
ERP: 1304000559

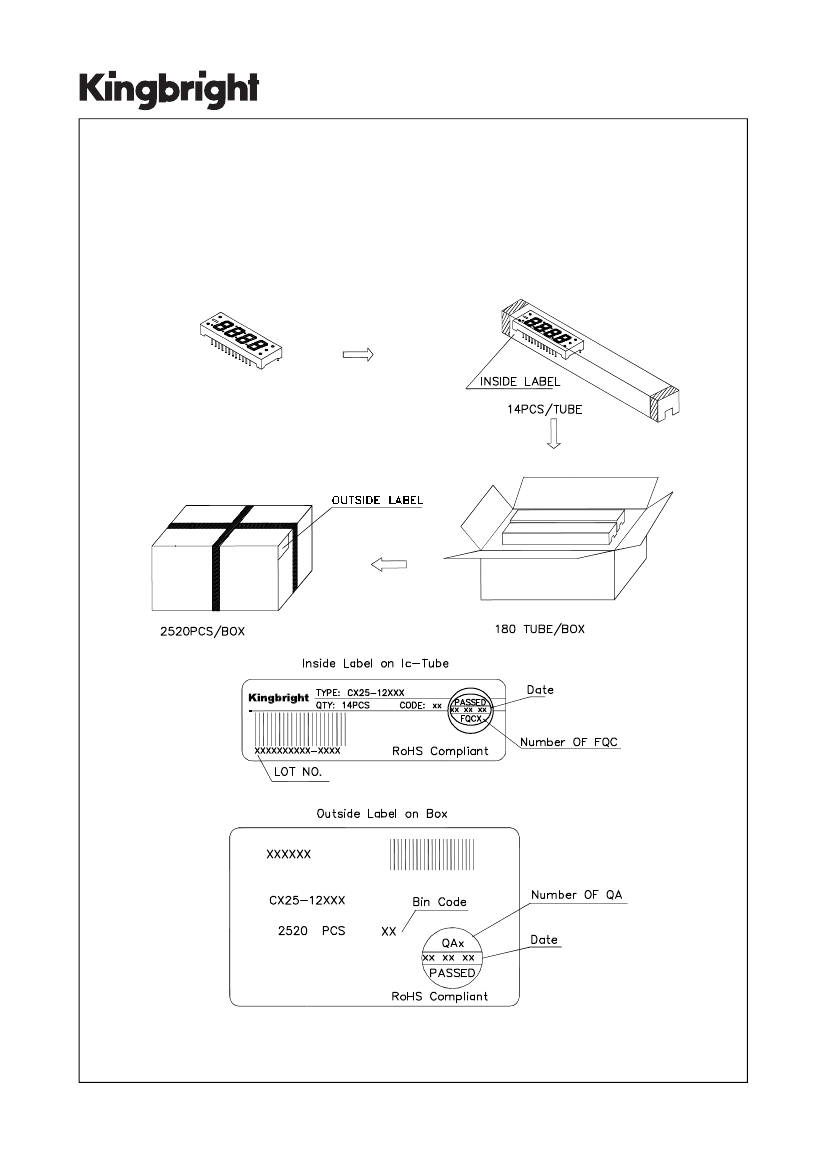

PACKING & LABEL SPECIFICATIONS
CA25-12SEKWA
SPEC NO: DSAK2803
APPROVED: WYNEC
REV NO: V.5A
CHECKED: Joe Lee
DATE: APR/20/2013
DRAWN: Y.Liu
PAGE: 5 OF 7
ERP: 1304000559
