FDC15-48S05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> FDC15-48S05

FDC15-48S05: DescriptionAnalog Circuit; CategoryAnalog mixed-signal IC The signal circuit; File Size239KB，2 Pages; ManufacturerKAGA ELECTRONICS CO.,LTD; Websitehttp://www.volgen.com/

Download Datasheet Parametric View All

FDC15-48S05 Overview

Analog Circuit

FDC15-48S05 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	KAGA ELECTRONICS CO.,LTD
package instruction	, MODULE,7LEAD,1.8
Reach Compliance Code	unknown
Maximum input voltage	75 V
Minimum input voltage	18 V
Number of terminals	7
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	3 A
Nominal output voltage	5 V
Package body material	METAL
Encapsulate equivalent code	MODULE,7LEAD,1.8
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Temperature level	INDUSTRIAL

Preview

Download Datasheet

View All

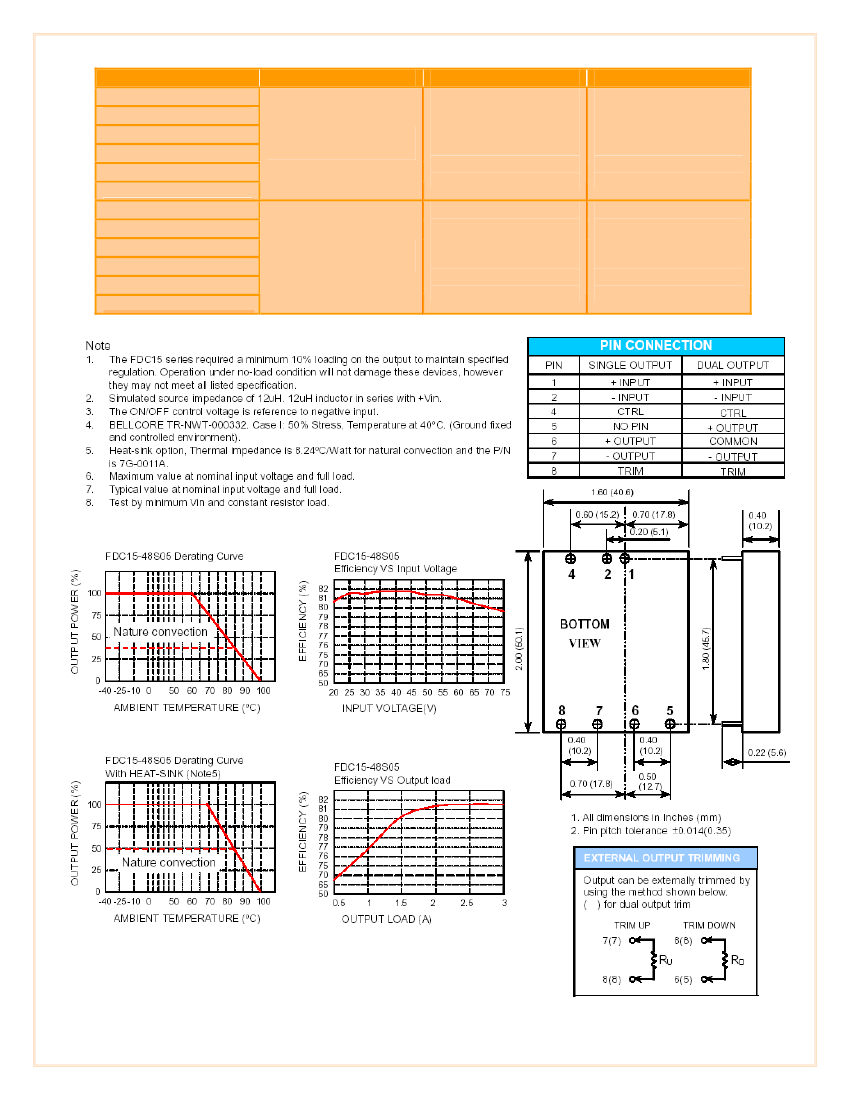

FDC15 Series

15 WATT DC/DC CONVERTER,

SINGLE & DUAL OUTPUTS

ELECTRICAL SPECIFICATIONS

All specifications are typical at nominal input, full load

INPUT SPECIFICATIONS

Input Voltage Range.........................4 : 1

Input Filter........................................ PI-Network

OUTPUT SPECIFICATIONS

FEATURES

15 WATT OUTPUT POWER

4 : 1 INPUT VOLTAGE RANGE

EXTREMELY RELIABLE

SIX SIDED CONTINOUS SHIELD

HIGH EFFICIENCY UP TO 82%

SHORT CIRCUIT PROTECTION

DIRECT PCB-SOLDERING

INDUSTRY STANDARD 2 X 1.6 X.04 PACKAGE

INTERNATIONAL SAFETY STANDARD

APPROVALS

Output Voltage Accuracy...... ..... ±2

Voltage Adjustability……………..±10%

Minimum Load……………………±10%

Efficiency.....................................Up to 82%

Over-Current Protection...………150% max

Ripple ......................................…75Vp-p (20Mhz

Bandwidth)

Line Regulation............................±0.5%

Line Filter.................................... Built-in

Load Regulation……………….....Single

output:

±1%

Dual output:

±5%

(Load Rate 10% ~ 100%)

GENERAL SPECIFICATIONS

Isolation Voltage…………...1600VDC min

MTBF................................. >2.041 x 10

6 hours

Isolation Resistance.......….10

ohms min

Isolation Capacitance………300pF

Switching Frequency……….270Khz typical

SAFETIES/APPROVALS

UL, TUV, CE

UL1950

EN60950

GENERAL SPECIFICATIONS

Operating Temperature ...................-40°C ~ +85°C

Temperature Coefficient...................±0.05%/ °C

Humidity.......................................... 5%~95% RH

Storage Temperature...................... -55°C ~ +105°C

PHYSICAL SPECIFICATIONS

Case Material..........................Nickel-Coated Copper

Base Material..........................Non-Conductive

Black Plastic
