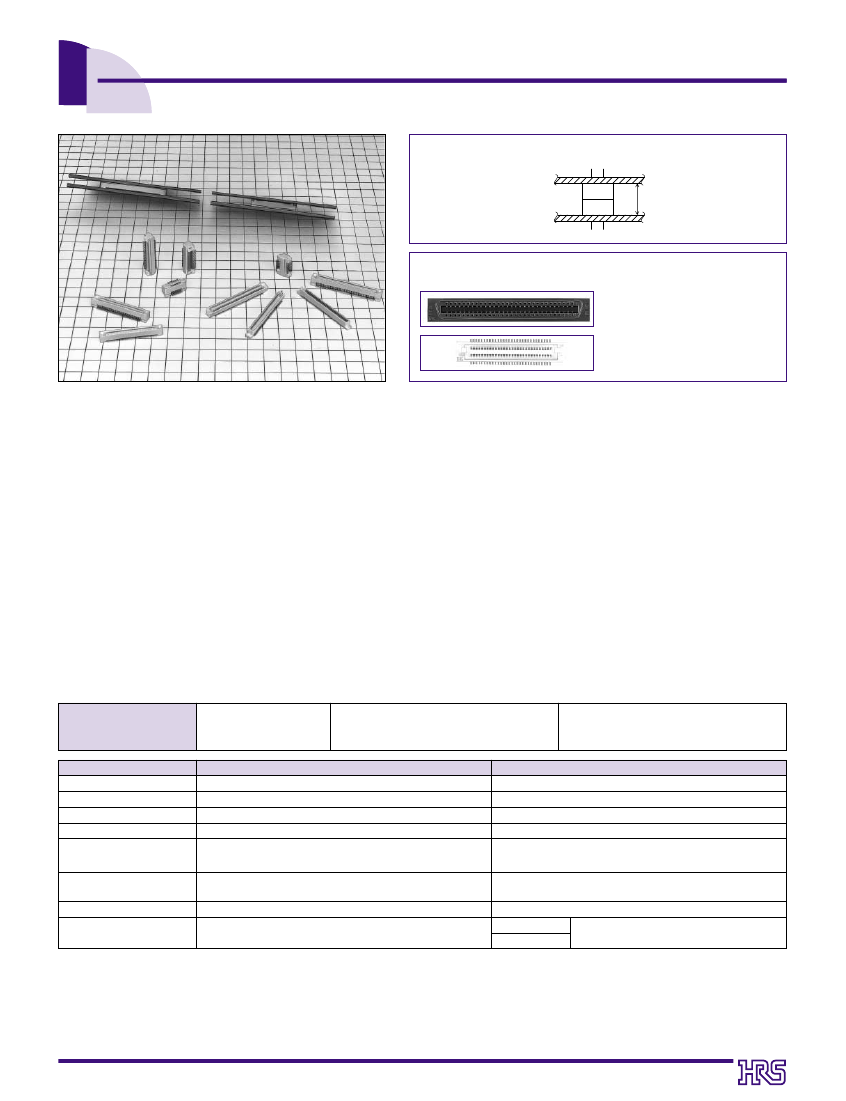

0.8mm Pitch Stacking Height 5~9mm Connector
FX6 Series
Stacking Height: 5~9mm
5~9mm
Mounting area 50% OFF, compared with the half pitch connector
Half pitch connector
(FX2 series)
FX6 series
(If compared with 60 contacts)
sFeatures
1. Stacking Height 5~9mm
The board to board stacking height can be set at every
millimeter between 5 and 9mm.
4. Automatic Mounting
The standard packaging specification specifies the stick
package, considering the automatic mount, while the emboss
package can also correspond to the connector with less than
80 contacts. (However, the product is limited to 80 contacts.)
2. Effective Contact Length 1.7mm
3. Mating Guide
Despite the low profile type connector, the connector has the
1.7mm long effective contact length and provides a margin
5. SMT Coplanarity
The lead coplanarity on the SMT soldered area is maintained
sufficient to contact.
with the high accuracy of less than 0.1mm.
The self-alignment for mating action exhibits a high guide
level at
±
1mm, and makes the mating process easier by
providing the guide rib.
sApplications
Note PC, business equipments such as handy terminals, and other equipment which require miniaturization or light-weight.
sProduct
Specifications
Rating
Rated Current 0.5A
Operating Temperature Range -55ç~+85ç Note 1. Storage Temperature Range -10ç~+60ç Note 2.
Storage Humidity Range 40%~70%
Rated Voltage 100V AC Operating Humidity Range 40%~80%
Specification
100Mø min
Neither short or insulation breakdown
40mø max.
Electrical discontinuity, 1µS max.
Contact resistance: 50mø max.
Insulation resistance: 100mø min.
Contact resistance: 50mø max:
Insulation resistance: 100mø min.
Contact resistance: 50mø max.
No resin area fusion to degrade performance
Item
1. Insulation Resistance
2. Withstand voltage
3. Contact Resistance
4. Vibration
5. Moisture Resistance
6. Temperature Cycle
7. Operating Life
8. Resistance to Soldering
heat
Condition
Measured at 250V DC
300V AC for 1 minute
Measured at 100mA
10~55Hz and single amplitude 0.75mm in 3 directions for 10 cycles,respectively
Exposed to temperature 40±2ç and humidity 90~95% for 96 hours
(-55ç: 30 minutes 15~35ç: 2~3 minutes 85ç: 30 minutes 15~35ç: 2~3minutes)5 cycles
100 cycles
SMT type
DIP Type
Reflow: According to the recommended temperature profile
Soldering iron temperature: 300ç for 3 seconds
Note 1. Temperature rise included when energized
Note 2. This storage indicates a long-term storage state for the unused product before the board mounted.
The operating temperature and humidity ranges are applied to the non-energized state after the connector is installed in the
board.In addition, the operating temperature and humidity ranges can be set up to+85ç in the temporal storage state for a
transportation period.
Note 3. The above standards represent this series. Individual formalagreement should be based on the "Specification".
A213
sMaterial
Part
Insulation
Header Contact
Receptacle Contact
PPS
Phosphor bronze
Material
Light brown
Contact area
Lead area
Gold plating
Solder plating
Finish
Remarks
UL94V-0
————
————
sOrdering
Information
Please determine the specific product. If needed, select and order the products from the product No. as listed on catalog
A215~214.
FX 6 (A) -
π
P - 0.8 SV 1 (21)
1
q
Series Name: FX
w
Series No. : 6
e
None: With boss
A
: Without boss
r
Number of Contacts : 20,40,50,60,80,100
t
Connector Type
P: Header
S: Receptacle
y
Contact Pitch: 0.8mm
o
Packaging Style
None
: Stick packaging (No pick & place tape)
(21) : Stick packaging (Pick & place tape)
(22) : Embossed tape packaging (No pick & place tape)
(23) : Embossed tape packaging (Pick & place Stick tape)
2
3
4
5
6
u
Contact type
7
8
9
SV: Board vertical type
2 : +2mm
i
Product Height Variable None : Standard, 1: +1mm
Note: Note that the header specification (21), (23) and receptacle
specification (22) can't be applied.
sStacking
Height Variation
Unit: mm

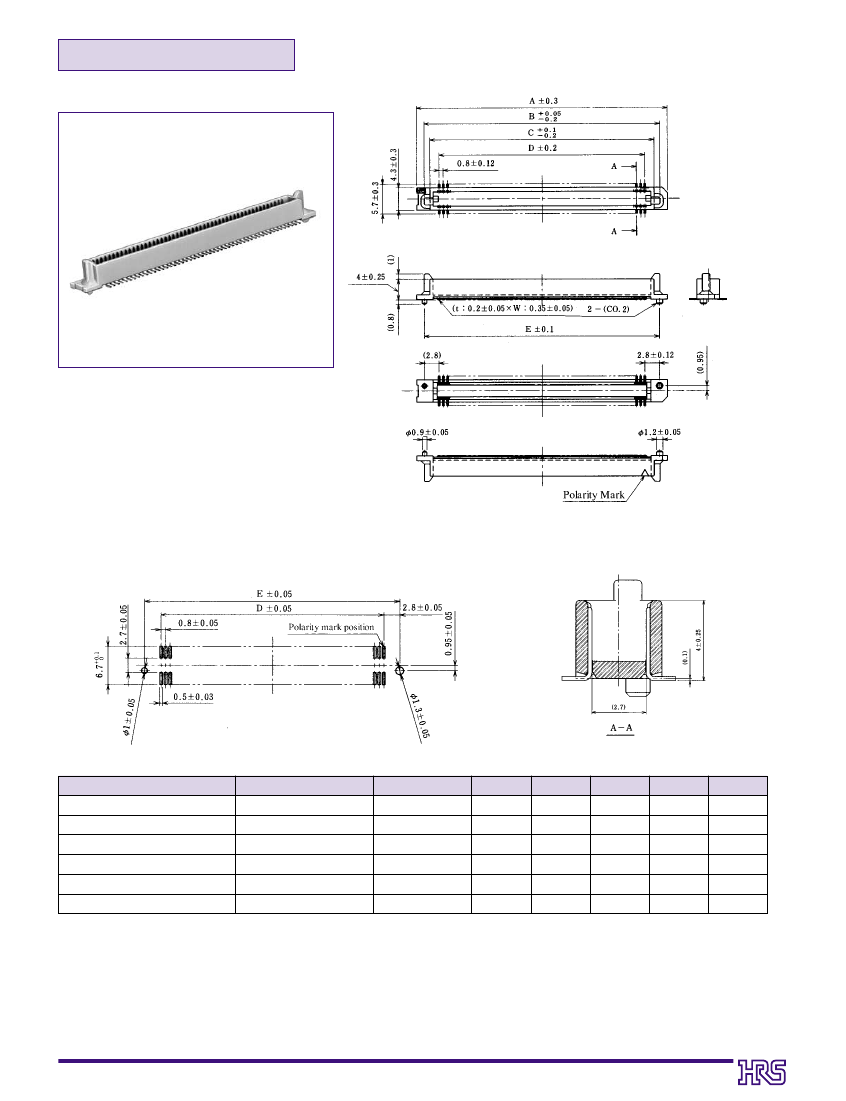

FX6(A)-πP-0.8SV
FX6(A)-πP-0.8SV0

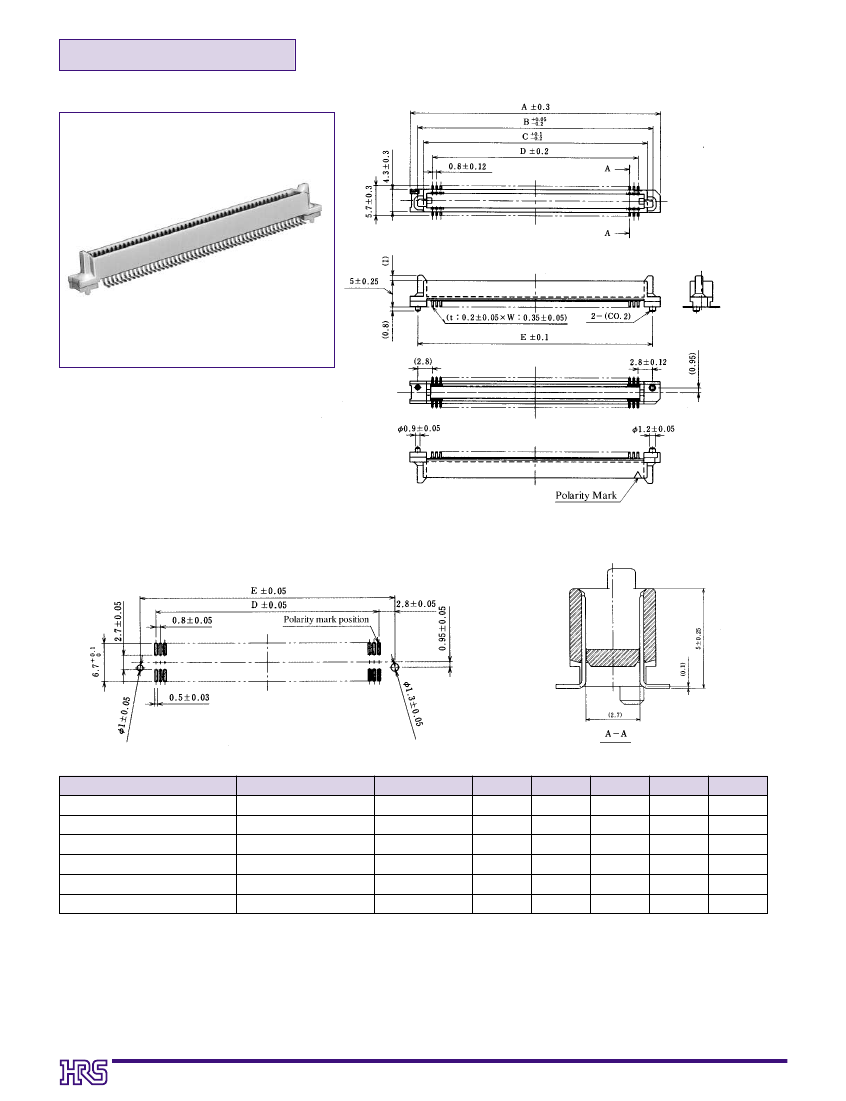

FX6(A)-πP-0.8SV1

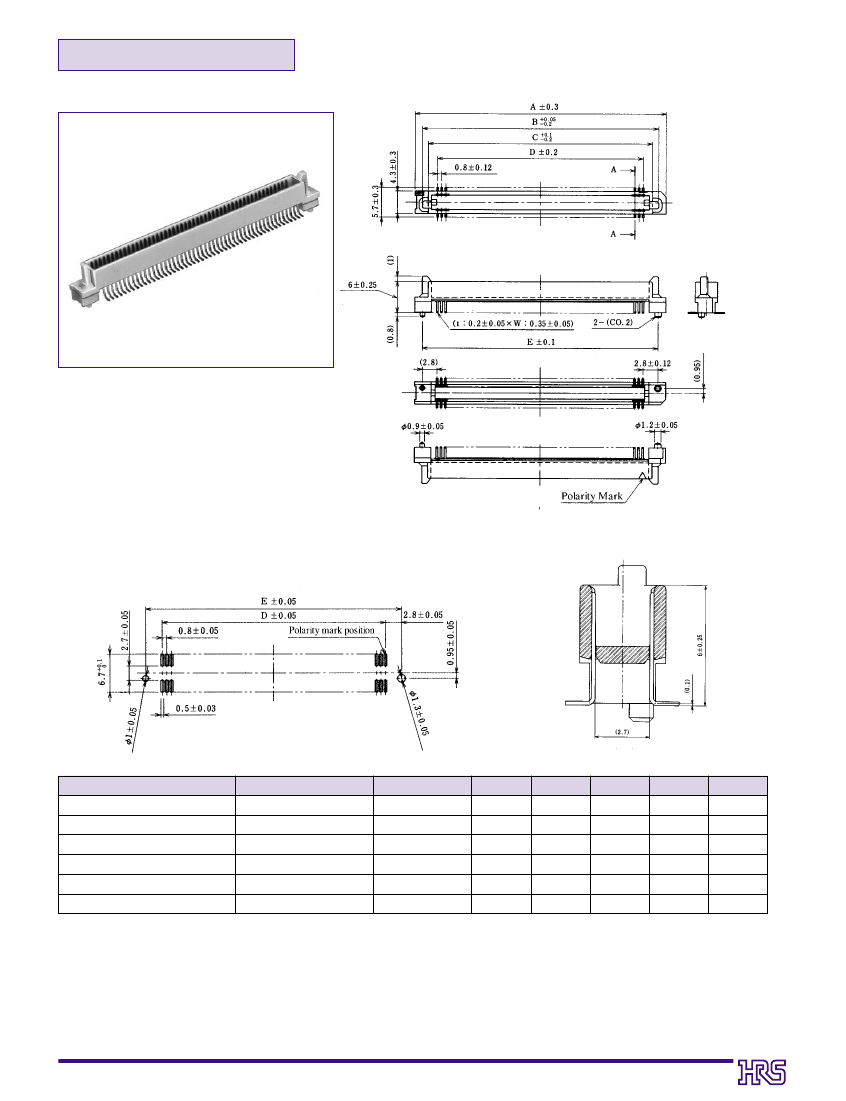

FX6(A)-πP-0.8SV2
5
6
7
FX6(A)-πS-0.8SV2
8
9
5~9
7
(
π
indicates 20, 40, 50, 60, 80, and 100 contacts.)
sPackaging
Type
Packaging Type
Stick Packaging
Number of Contacts
Packaged Product Pieces
Sales Unit
Tape Width
Product Pitch
Embossed Tape Packaging
Emboss Reel Diameter
Packaged Product Pieces
Sales Unit
20 contacts 40 contacts 50 contacts
33 pieces
24mm
22 pieces
44mm
19 pieces
44mm
12mm
FX6(A)_*S-0.8SV
……………………………………………Ø330mm
FX6(A)_*P_0.8SV.FX6(A)_*S-0.8SV2
…………………Ø360mm
FX6(A)_*P_0.8SV1.FX6(A)_*P-0.8SV2
………………Ø380mm
1000 pieces packaged per reel
Per reel
60contacts
16 pieces
44mm
80 contacts 100 contacts
13 pieces
56mm
11 pieces
Order by doubling the number of pieces contained in the product. (Example) In case of 20 contacts,33 pieces, 66 pieces,...
A214
