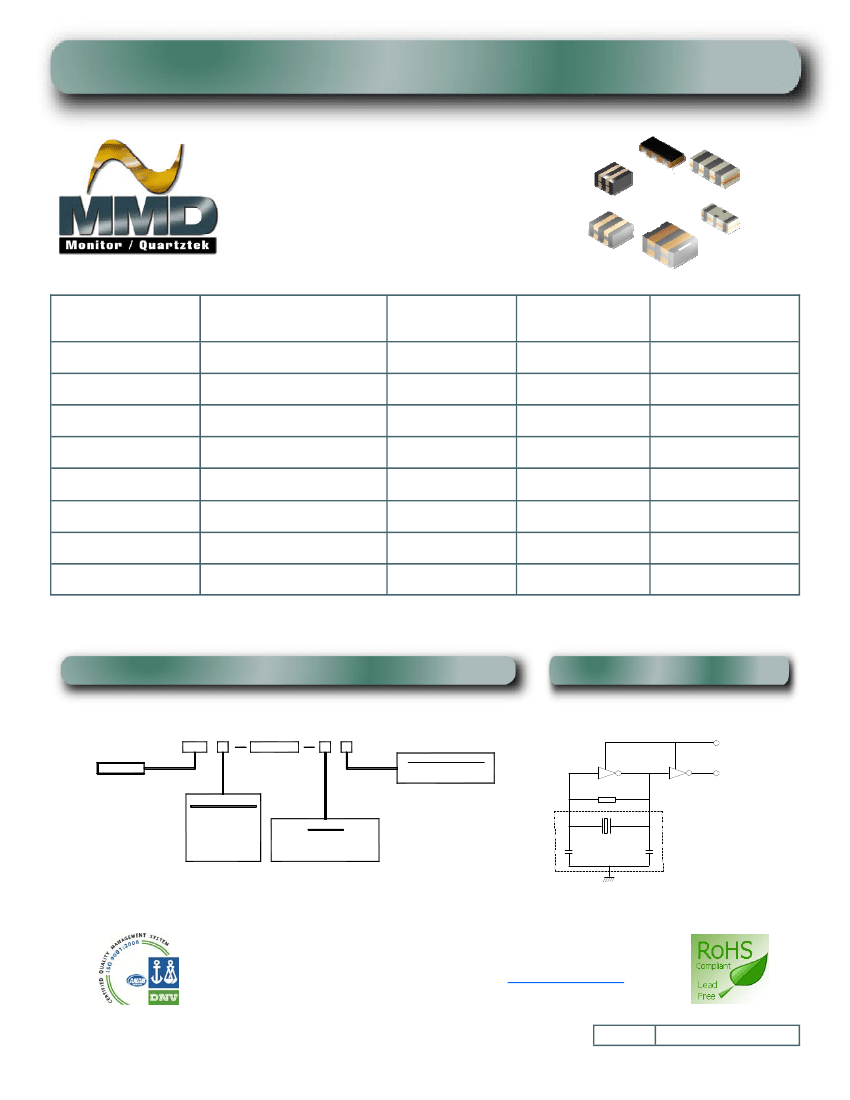

MZTTC Series Ceramic Resonator
6 Package Options
Ceramic SMD
RoHS Compliant
Part Number
= MHz
MZTTCCMG
MZTTCRMG
MZTTCSMT
MZTTCVMT
MZTTCEMG
MZTTCSMX
MZTTCVMX
MZTTCWMX
Frequency
Range
2.00 MHz to 8.00 MHz
4.00 MHz to 8.00 MHz
6.00 MHz to 13.00 MHz
8.00 MHz to 13.00 MHz
8.00 MHz to 12.00 MHz
13.01 MHz to 50.00 MHz
16.00 MHz to 50.00 MHz
20.00 MHz to 50.00 MHz
Frequency
Accuracy
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
Temperature
Stability
(-25°C to +85°C
)
±0.3%
±0.3%
±0.4%
±0.4%
±0.3%
±0.3%
±0.3%
±0.3%
Aging for
10 Years
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
±0.3%
Part Number Guide
Schematic
MZTT
3 Lead Part
Frequency
Value Added Options
Blank = No Added Options
T = Tape & Reel
V
DD
: +5V
IC
1MO
IC
Package Case Size
CC = 7.4 X 3.4 X 1.8
CE = 3.2 X 1.3 X 1.0
CS = 4.7 X 4.1 X 1.7
CV = 3.7 X 3.1 X 1.6
CW = 2.5 X 2.0 X 1.2
CR = 4.5 X 2.0 X 1.2
Schematic
MG = IC: TC4069UBP
MT = IC: TC4069UBP
MX = IC: TC74HCU04
C
1
15pF
C
2
15pF
IC
TC4069UBP
X
CERAMIC RESONATOR
C1, C2 INTERNAL
Please Consult with MMD Sales Department for any other Parameters or Options
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Specifications are subject to change without notice.
07/29/11 H
Pg 1 of 2

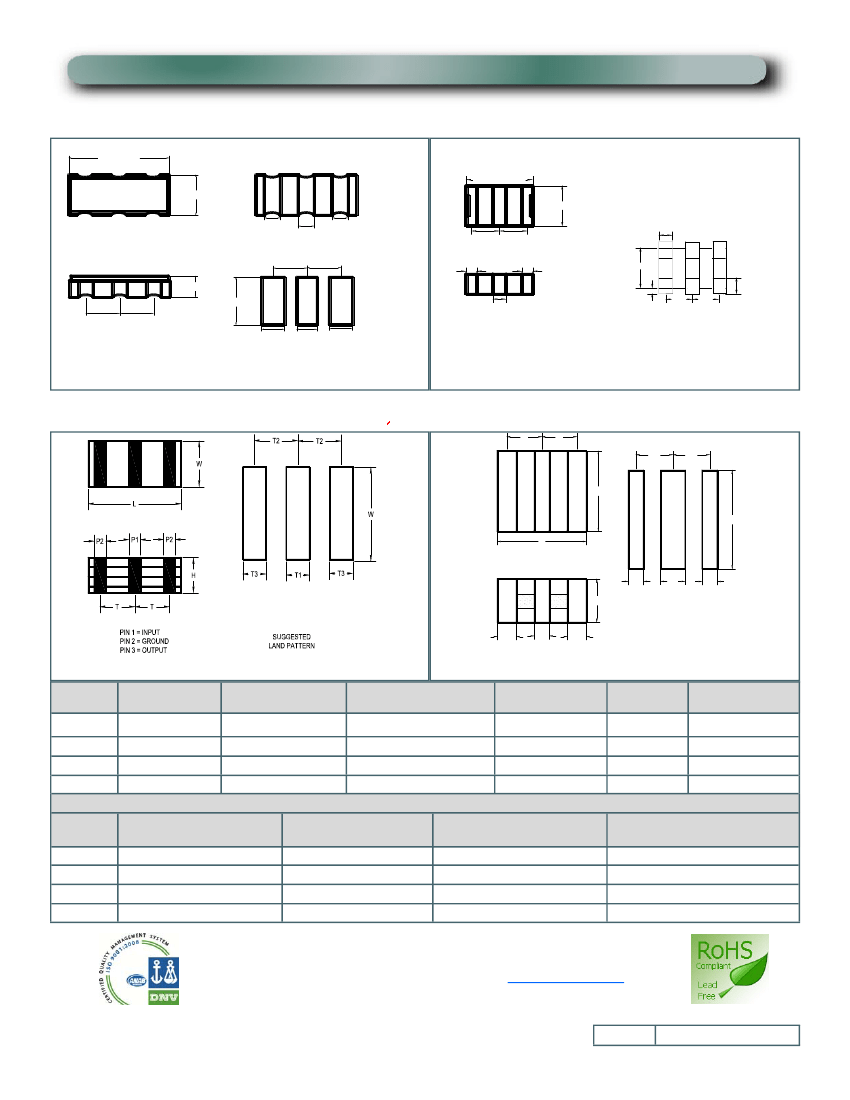

Package Dimensions
CC
7.40 [0.29]
CW
2 .5 0 [ 0 .1 0 ]
3.40 [0.13]
1
2
3
1
1.20 [0.05]
1.20 [0.05]
1.20 [0.05]
2
3 2 .0 0 [0 .0 8 ]
0 .5 0 [0 .0 2 ]
1 .0 5 [0 .0 4 ]
2.50 [0.10]
1.80 [0.07]
2.50 [0.10]
1 .0 5 [0 .0 4 ]
0 . 4 0 [0 . 0 2 ]
2 . 0 ± 0 .2
0 .8 0 [0 . 0 3 ]
0 .3 0 [0 .0 1 ]
0 .4 0 [0 .0 2 ]
4.00 [0.16]
2.50 [0.10]
2.50 [0.10]
1.70 [0.07]
PIN 1 = IN PU T
P IN 2 = G RO U N D
PIN 3 = O U TP U T
1.70 [0.07]
1.50 [0.06]
1 .0
1 .0
0 . 5 0 [0 .0 2 ]
P IN 1 = IN P U T
P IN 2 = G R O U N D
P IN 3 = O U T P U T
SUG G ESTED
LAND PATTER N
SU G G ESTED
LAN D P ATTER N
CE/CR
T
T
CS/CV
T3
T3
1
2
3
W
W1
L
T2
H
T1
T2
P2
P1
P2
SUGGESTED
LAND PATTERN
PIN1 = INPUT
PIN2 = GROUND
PIN3 = OUTPUT
Model
CR
CE
CS
CV
Model
L
4.5±0.2
3.2±0.1
4.7±0.2
3.7±0.2
W
2.0±0.2
1.3±0.1
4.1±0.2
3.1±0.2
H
1.2 MAX
1.0 MAX
1.7±0.2
1.6±0.2
LAND PATTERN DIMENSIONS
P1
0.8±0.2
0.4±0.1
1.0±0.2
0.9±0.2
P2
0.8±0.2
0.4±0.1
0.8±0.2
0.7±0.2
T
1.5±0.2
1.2±0.1
1.95±0.2
1.5±0.2
T1
0.8±0.2
0.4±0.2
1.3±0.2
0.9±0.2
T2
0.8±0.2
0.4±0.2
0.8±0.2
0.7±0.2
T3
1.5±0.2
1.2±0.2
1.95±0.2
1.5±0.2
W
2.6±0.2
2.0±0.2
5.1±0.2
4.1±0.2
CR
CE
CS
CV
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Specifications are subject to change without notice.
07/29/11 H
Pg 2 of 2
