DV74HC240AD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74HC240AD

DV74HC240AD: DescriptionBus Driver, HC/UH Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20, PLASTIC, SOP-20; Categorylogic logic; File Size727KB，5 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74HC240AD Overview

Bus Driver, HC/UH Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20, PLASTIC, SOP-20

DV74HC240AD Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDSO-G20
length	12.8 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	120 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm

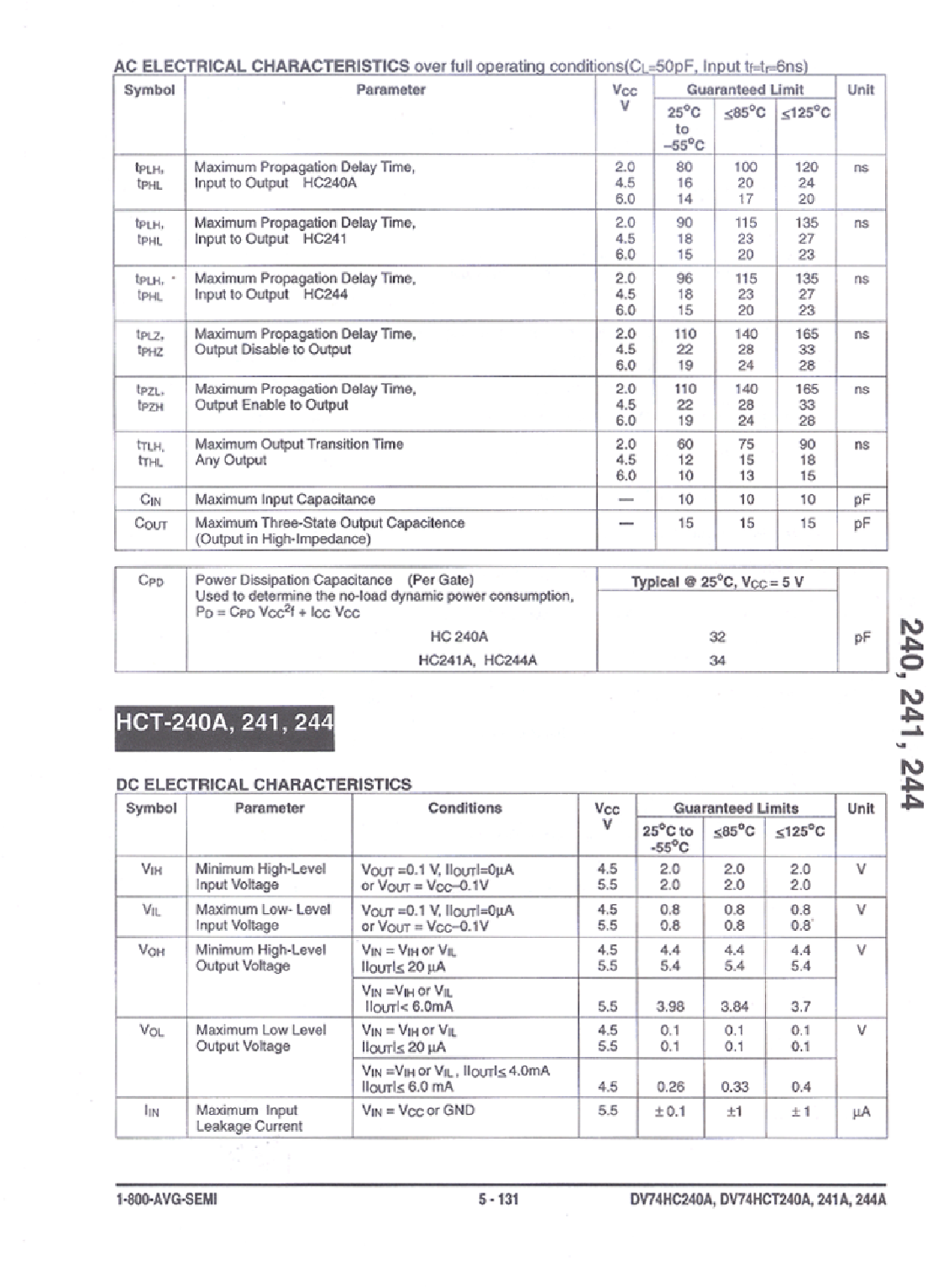

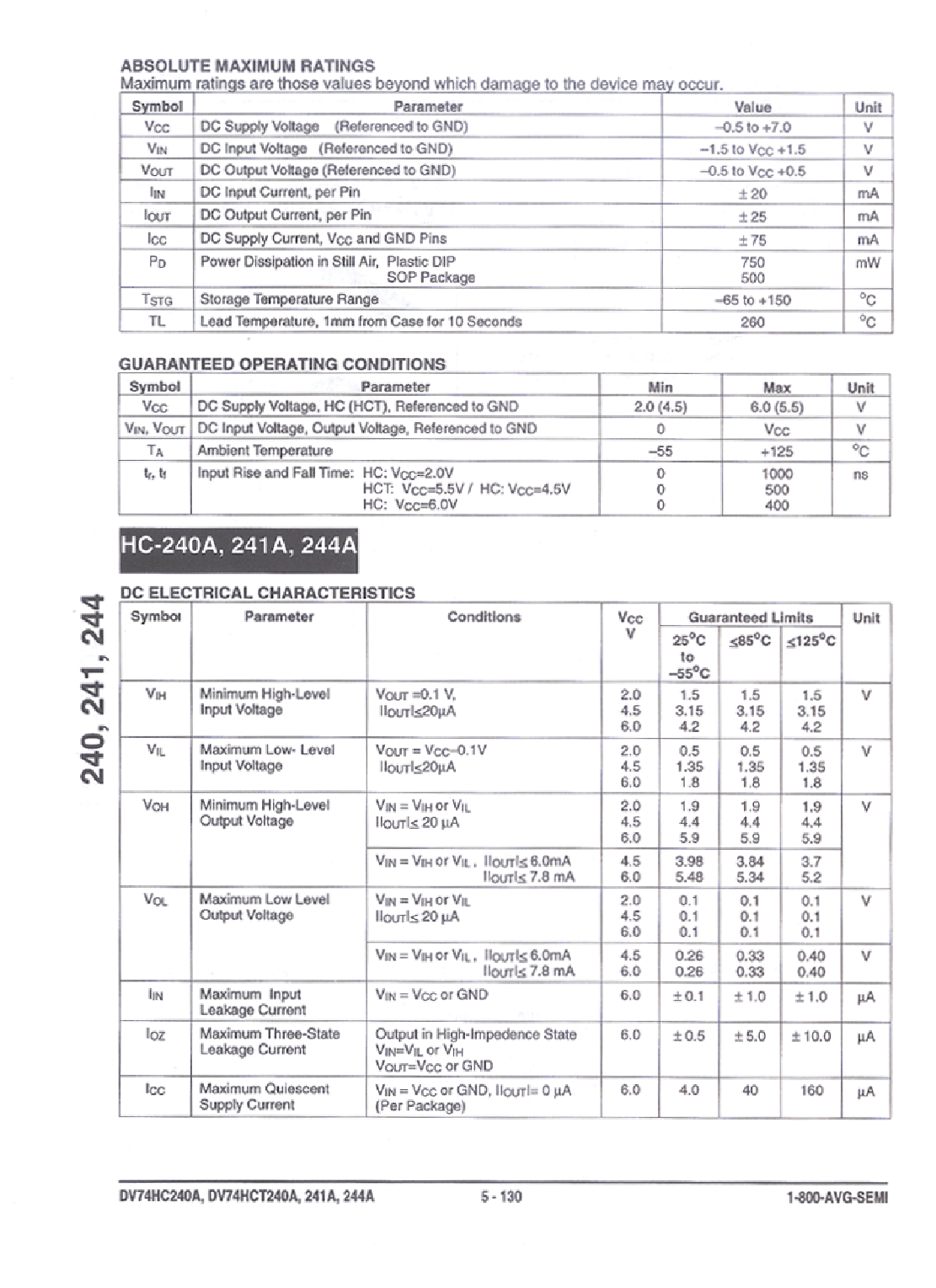

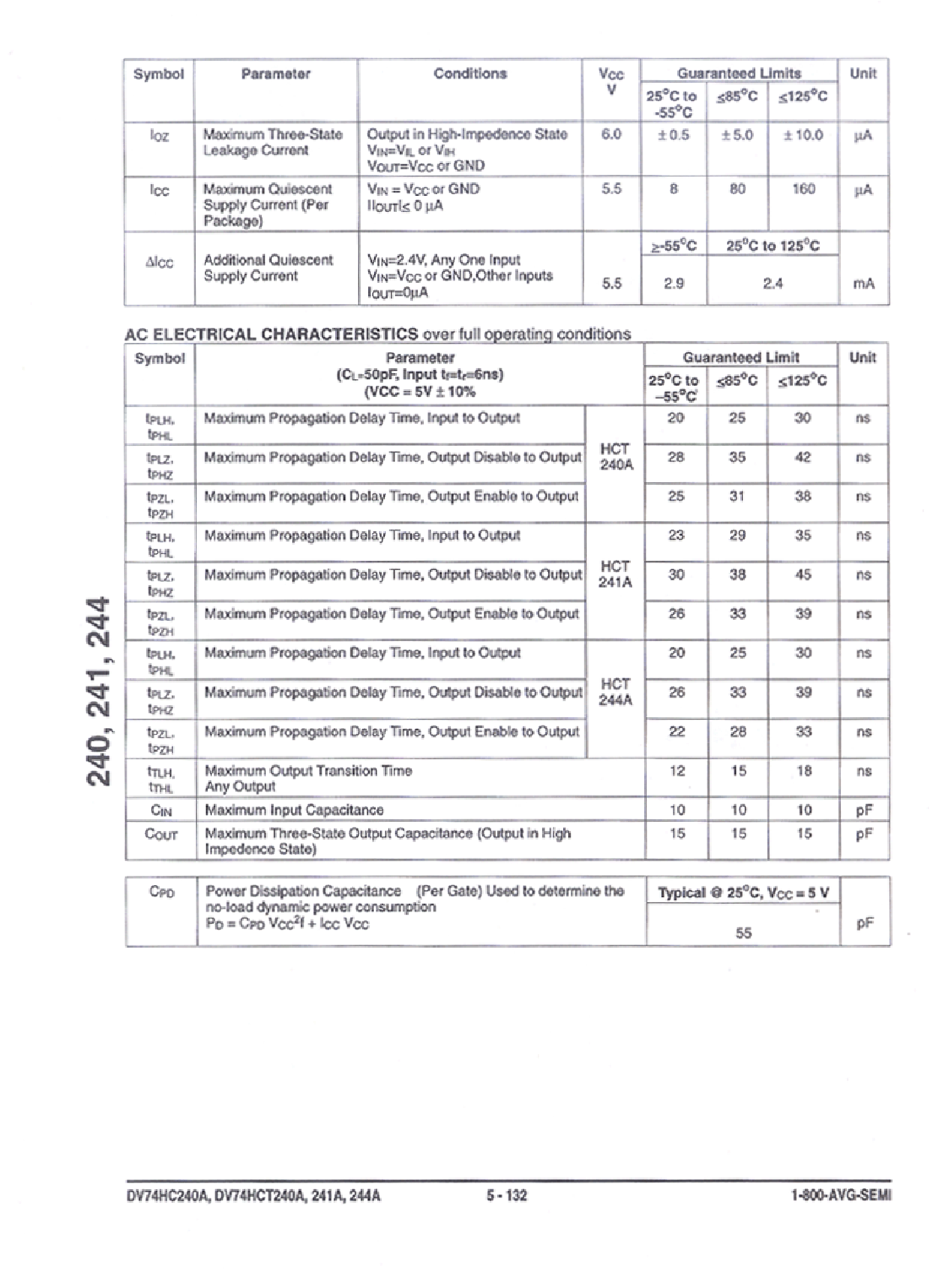

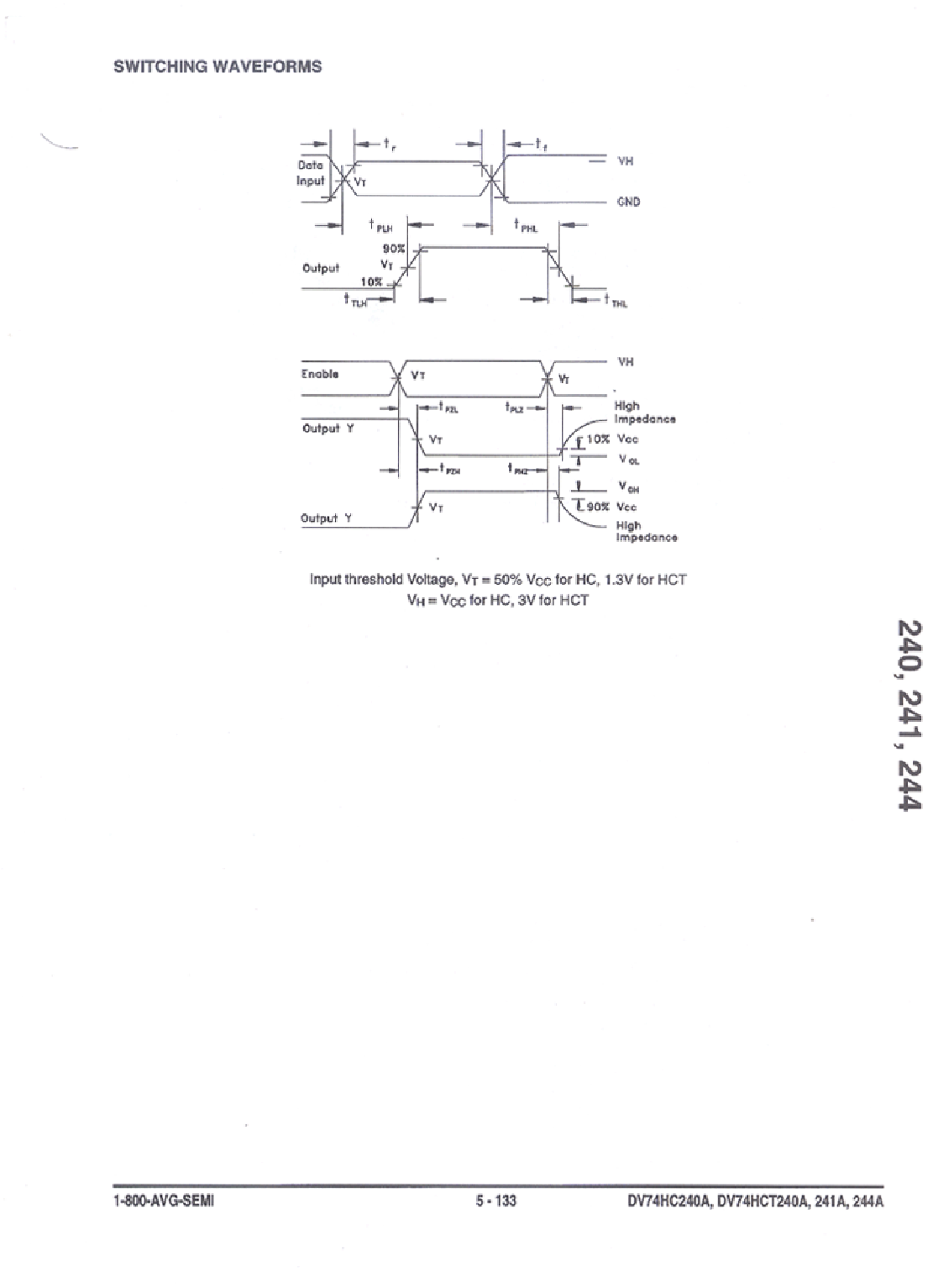

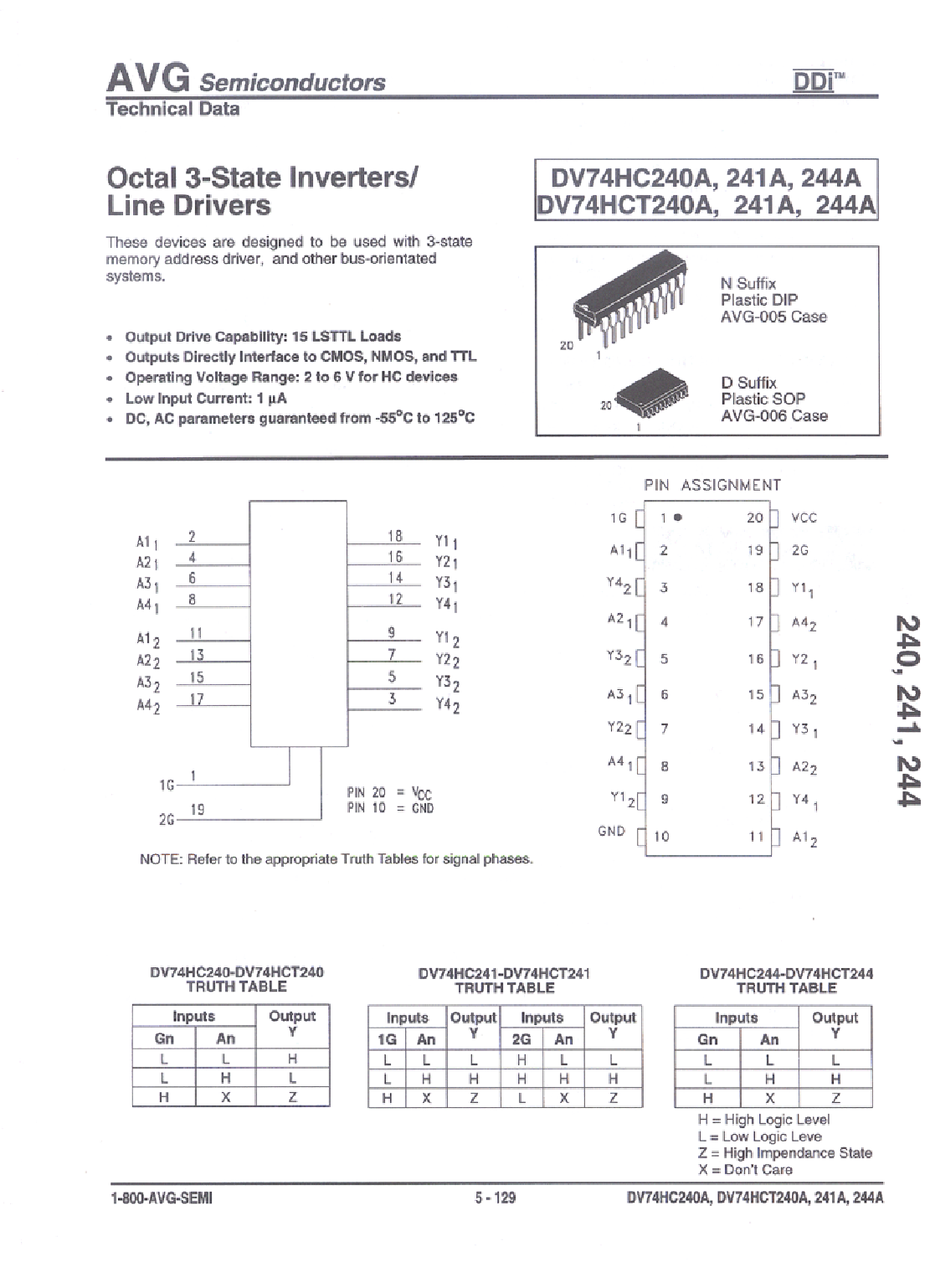

Preview

Download Datasheet

View All

DV74HC240AD Related Products

	DV74HC240AD	DV74HCT241AD	DV74HCT240AD
Description	Bus Driver, HC/UH Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20, PLASTIC, SOP-20	Bus Driver, HCT Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20, PLASTIC, SOP-20	Bus Driver, HCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20, PLASTIC, SOP-20
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	SOIC	SOIC
package instruction	SOP,	PLASTIC, SOP-20	PLASTIC, SOP-20
Contacts	20	20	20
Reach Compliance Code	unknown	unknown	unknown
series	HC/UH	HCT	HCT
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
length	12.8 mm	12.8 mm	12.8 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4
Number of functions	2	2	2
Number of ports	2	2	2
Number of terminals	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	TRUE	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	120 ns	35 ns	30 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	2.65 mm	2.65 mm
Maximum supply voltage (Vsup)	6 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	4.5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	7.5 mm	7.5 mm	7.5 mm
Other features	-	OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION; VOH SPECIFIED @ VCC=5.5V	VOH SPECIFIED @ VCC=5.5V
Base Number Matches	-	1	1
