UPD42S4210LE-60-A datasheet, PDF

Datasheet> All Categories > storage> storage> UPD42S4210LE-60-A

UPD42S4210LE-60-A: DescriptionEDO DRAM, 256KX16, 60ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40; Categorystorage storage; File Size704KB，46 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD42S4210LE-60-A Overview

EDO DRAM, 256KX16, 60ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40

UPD42S4210LE-60-A Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	SOJ,
Reach Compliance Code	unknown
access mode	FAST PAGE WITH EDO
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
JESD-30 code	R-PDSO-J40
length	26.29 mm
memory density	4194304 bit
Memory IC Type	EDO DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	40
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
refresh cycle	512
Maximum seat height	3.7 mm
self refresh	YES
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	10.16 mm

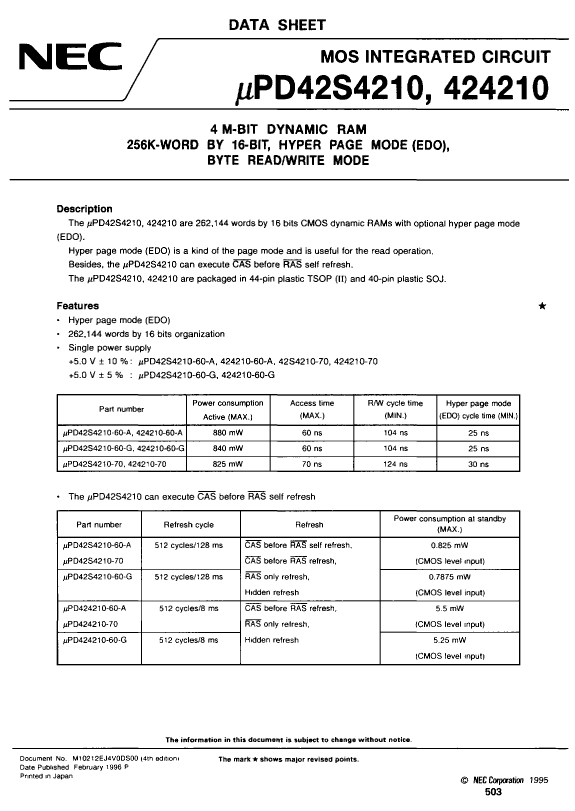

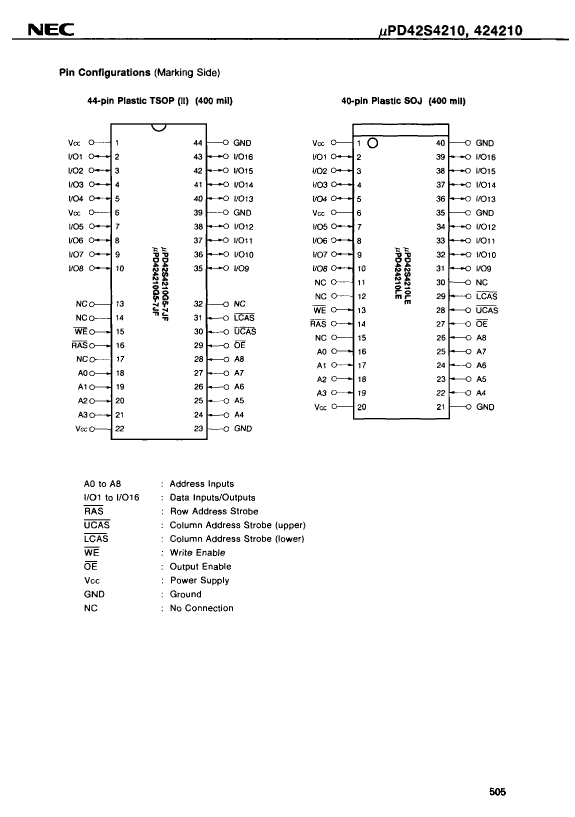

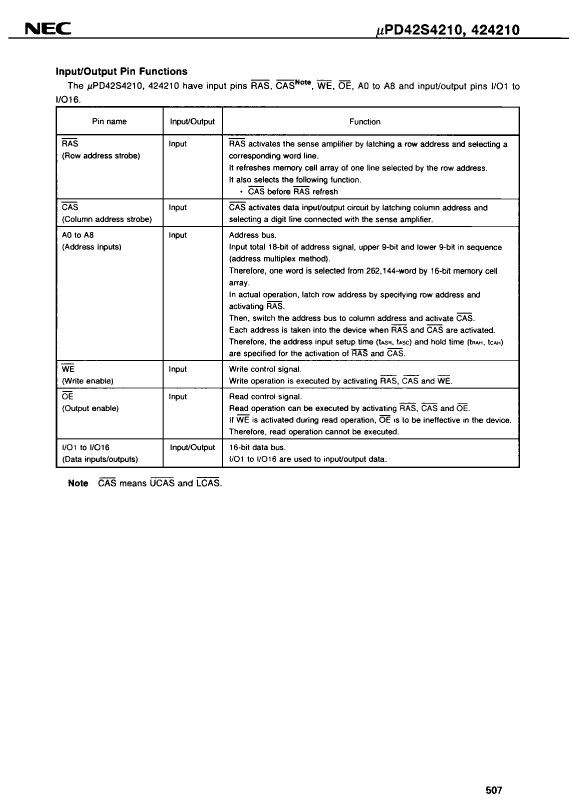

UPD42S4210LE-60-A Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

UPD42S4210LE-60-A Related Products

	UPD42S4210LE-60-A	UPD424210LE-60-A	UPD42S4210G5-60-7JF-A
Description	EDO DRAM, 256KX16, 60ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	EDO DRAM, 256KX16, 60ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	EDO DRAM, 256KX16, 60ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP2-44
Maker	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	SOJ,	0.400 INCH, PLASTIC, SOJ-40	TSOP2,
Reach Compliance Code	unknown	unknown	unknown
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	60 ns	60 ns	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
JESD-30 code	R-PDSO-J40	R-PDSO-J40	R-PDSO-G44
length	26.29 mm	26.29 mm	18.41 mm
memory density	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	EDO DRAM	EDO DRAM	EDO DRAM
memory width	16	16	16
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	40	40	44
word count	262144 words	262144 words	262144 words
character code	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	256KX16	256KX16	256KX16
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified
refresh cycle	512	512	512
Maximum seat height	3.7 mm	3.7 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	GULL WING
Terminal pitch	1.27 mm	1.27 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm
self refresh	YES	-	YES
