MC10H171L

Description
10H SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDIP16, CERAMIC, DIP-16
Categorylogic    logic
File Size117KB,4 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric View All

MC10H171L Overview

10H SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDIP16, CERAMIC, DIP-16

MC10H171L Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerON Semiconductor
Parts packaging codeDIP
package instructionDIP, DIP16,.3
Contacts16
Reach Compliance Codeunknown
ECCN codeEAR99
series10H
Input adjustmentSTANDARD
JESD-30 codeR-GDIP-T16
JESD-609 codee0
length19.49 mm
Logic integrated circuit typeOTHER DECODER/DRIVER
Number of functions2
Number of terminals16
Maximum operating temperature75 °C
Minimum operating temperature
Output characteristicsOPEN-EMITTER
Output polarityINVERTED
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum supply current (ICC)85 mA
Prop。Delay @ Nom-Sup2.2 ns
propagation delay (tpd)2.1 ns
Certification statusNot Qualified
Maximum seat height5.08 mm
surface mountNO
technologyECL
Temperature levelCOMMERCIAL EXTENDED
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm

MC10H171L Preview

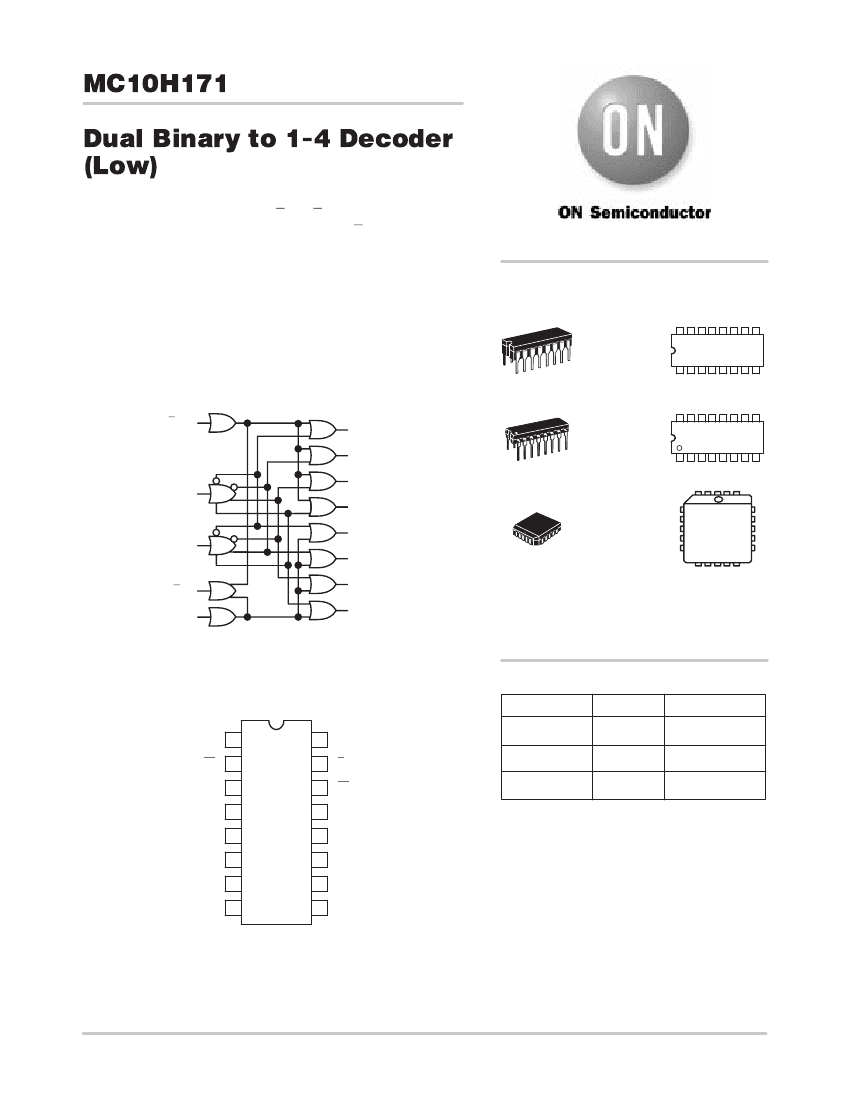

MC10H171
Dual Binary to 1-4 Decoder
(Low)
The MC10H171 is a binary coded 2 line to dual 4 line decoder with
selected outputs low. With either E0 or E1 high, the corresponding
selected 4 outputs are high. The common enable E, when high, forces
all outputs high.
Propagation Delay, 2 ns Typical
Power Dissipation 325 mW Typical (same as MECL 10K)
Improved Noise Margin 150 mV (over operating voltage and
temperature range)
Voltage Compensated
MECL 10K–Compatible
LOGIC DIAGRAM
E0 14
10 Q0 3
11 Q0 2
12 Q0 1
A9
13 Q0 0
3 Q1 3
B7
4 Q1 2
E 15
E1 2
VCC1 = PIN 1
VCC2 = PIN 16
VEE = PIN 8
5 Q1 1
6 Q1 0
A
WL
YY
WW
= Assembly Location
= Wafer Lot
= Year
= Work Week
PLCC–20
FN SUFFIX
CASE 775
PDIP–16
P SUFFIX
CASE 648
1
1
10H171
AWLYYWW
http://onsemi.com
MARKING
DIAGRAMS
16
CDIP–16
L SUFFIX
CASE 620
1
16
MC10H171P
AWLYYWW
MC10H171L
AWLYYWW
DIP
PIN ASSIGNMENT
VCC1
E1
Q13
Q12
Q11
Q10
B
VEE
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
VCC2
E
E0
Q00
Q01
Q02
Q03
A
ORDERING INFORMATION
Device
MC10H171L
MC10H171P
MC10H171FN
Package
CDIP–16
PDIP–16
PLCC–20
Shipping
25 Units/Rail
25 Units/Rail
46 Units/Rail
Pin assignment is for Dual–in–Line Package.
For PLCC pin assignment, see the Pin Conversion Tables on page 18
of the ON Semiconductor MECL Data Book (DL122/D).
©
Semiconductor Components Industries, LLC, 2000
1
March, 2000 – Rev. 6
Publication Order Number:
MC10H171/D
MC10H171
MAXIMUM RATINGS
Symbol
VEE
VI
Iout
TA
Tstg
Power Supply (VCC = 0)
Input Voltage (VCC = 0)
Output Current – Continuous
– Surge
Operating Temperature Range
Storage Temperature Range – Plastic
– Ceramic
Characteristic
Rating
–8 to 0
0 to VEE
50
100
0 to +75
–55 to +150
–55 to +165
Unit
Vdc
Vdc
mA
°C
°C
ELECTRICAL CHARACTERISTICS
(VEE = –5.2 V
±5%)
(See Note 1.)
Symbol
IE
IinH
IinL
VOH
VOL
VIH
VIL
Characteristic
Power Supply Current
Input Current High
Input Current Low
High Output Voltage
Low Output Voltage
High Input Voltage
Low Input Voltage
Min
0.5
–1.02
–1.95
–1.17
–1.95
Max
85
425
–0.84
–1.63
–0.84
–1.48
Min
0.5
–0.98
–1.95
–1.13
–1.95
25°
Max
77
265
–0.81
–1.63
–0.81
–1.48
Min
0.3
–0.92
–1.95
–1.07
–1.95
75°
Max
85
265
–0.735
–1.60
–0.735
–1.45
Unit
mA
µA
µA
Vdc
Vdc
Vdc
Vdc
AC PARAMETERS
Symbol
tpd
Characteristic
Propagation Delay
Data
Select
Rise Time
Fall Time
Min
0.5
0.5
0.5
0.5
Max
2.0
2.6
1.7
1.7
Min
0.5
0.5
0.5
0.5
25°
Max
2.1
2.7
1.8
1.8
Min
0.5
0.5
0.5
0.5
75°
Max
2.2
2.8
1.9
1.9
ns
ns
Unit
ns
tr
tf
1. Each MECL 10H series circuit has been designed to meet the dc specifications shown in the test table, after thermal equilibrium has been
established. The circuit is in a test socket or mounted on a printed circuit board and transverse air flow greater than 500 Iinear fpm is
maintained. Outputs are terminated through a 50–ohm resistor to –2.0 volts.
TRUTH TABLE
Enable Inputs
E
L
L
L
L
L
L
H
E0
L
L
L
L
L
H
X
E1
L
L
L
L
H
L
X
A
L
L
H
H
L
L
X
Inputs
B
L
H
L
H
L
L
X
Q10
L
H
H
H
H
L
H
Q11
H
L
H
H
H
H
H
Q12
H
H
L
H
H
H
H
Outputs
Q13
H
H
H
L
H
H
H
Q00
L
H
H
H
L
H
H
Q01
H
L
H
H
H
H
H
Q02
H
H
L
H
H
H
H
Q03
H
H
H
L
H
H
H
http://onsemi.com
2
MC10H171
PACKAGE DIMENSIONS
PLCC–20
FN SUFFIX
PLASTIC PLCC PACKAGE
CASE 775–02
ISSUE C
B
–N–
Y BRK
D
–L–
–M–
W
D
X
V
A
Z
R
0.007 (0.180)
M
T L–M
S
0.007 (0.180)
M
T L–M
U
S
N
S
S
0.007 (0.180)
M
T L–M
N
S
Z
20
1
G1
0.010 (0.250)
S
T L–M
S
N
S
VIEW D–D
0.007 (0.180)
M
T L–M
S
N
N
S
H
0.007 (0.180)
M
T L–M
S
N
S
S
K1
K
C
E
0.004 (0.100)
G
G1
0.010 (0.250)
S
T L–M
J
–T–
SEATING
PLANE
F
VIEW S
NOTES:
1. DATUMS –L–, –M–, AND –N– DETERMINED
WHERE TOP OF LEAD SHOULDER EXITS PLASTIC
BODY AT MOLD PARTING LINE.
2. DIMENSION G1, TRUE POSITION TO BE
MEASURED AT DATUM –T–, SEATING PLANE.
3. DIMENSIONS R AND U DO NOT INCLUDE MOLD
FLASH. ALLOWABLE MOLD FLASH IS 0.010 (0.250)
PER SIDE.
4. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
5. CONTROLLING DIMENSION: INCH.
6. THE PACKAGE TOP MAY BE SMALLER THAN THE
PACKAGE BOTTOM BY UP TO 0.012 (0.300).
DIMENSIONS R AND U ARE DETERMINED AT THE
OUTERMOST EXTREMES OF THE PLASTIC BODY
EXCLUSIVE OF MOLD FLASH, TIE BAR BURRS,
GATE BURRS AND INTERLEAD FLASH, BUT
INCLUDING ANY MISMATCH BETWEEN THE TOP
AND BOTTOM OF THE PLASTIC BODY.
7. DIMENSION H DOES NOT INCLUDE DAMBAR
PROTRUSION OR INTRUSION. THE DAMBAR
PROTRUSION(S) SHALL NOT CAUSE THE H
DIMENSION TO BE GREATER THAN 0.037 (0.940).
THE DAMBAR INTRUSION(S) SHALL NOT CAUSE
THE H DIMENSION TO BE SMALLER THAN 0.025
(0.635).
0.007 (0.180)
M
T L–M
S
N
S
VIEW S
S
N
S
DIM
A
B
C
E
F
G
H
J
K
R
U
V
W
X
Y
Z
G1
K1
INCHES
MIN
MAX
0.385
0.395
0.385
0.395
0.165
0.180
0.090
0.110
0.013
0.019
0.050 BSC
0.026
0.032
0.020
–––
0.025
–––
0.350
0.356
0.350
0.356
0.042
0.048
0.042
0.048
0.042
0.056
–––
0.020
2
_
10
_
0.310
0.330
0.040
–––
MILLIMETERS
MIN
MAX
9.78
10.03
9.78
10.03
4.20
4.57
2.29
2.79
0.33
0.48
1.27 BSC
0.66
0.81
0.51
–––
0.64
–––
8.89
9.04
8.89
9.04
1.07
1.21
1.07
1.21
1.07
1.42
–––
0.50
2
_
10
_
7.88
8.38
1.02
–––
http://onsemi.com
3
MC10H171
CDIP–16
L SUFFIX
CERAMIC DIP PACKAGE
CASE 620–10
ISSUE T
–A–
16
9
–B–
1
8
C
L
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. DIMENSION L TO CENTER OF LEAD WHEN
FORMED PARALLEL.
4. DIMENSION F MAY NARROW TO 0.76 (0.030)
WHERE THE LEAD ENTERS THE CERAMIC
BODY.
DIM
A
B
C
D
E
F
G
H
K
L
M
N
INCHES
MIN
MAX
0.750
0.785
0.240
0.295
–––
0.200
0.015
0.020
0.050 BSC
0.055
0.065
0.100 BSC
0.008
0.015
0.125
0.170
0.300 BSC
0
_
15
_
0.020
0.040
MILLIMETERS
MIN
MAX
19.05
19.93
6.10
7.49
–––
5.08
0.39
0.50
1.27 BSC
1.40
1.65
2.54 BSC
0.21
0.38
3.18
4.31
7.62 BSC
0
_
15
_
0.51
1.01
–T–
SEATING
PLANE
N
E
F
D
G
16 PL
K
M
J
16 PL
0.25 (0.010)
M
M
T B
S
0.25 (0.010)
T A
S
–A–
16
9
PDIP–16
P SUFFIX
PLASTIC DIP PACKAGE
CASE 648–08
ISSUE R
B
1
8
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. DIMENSION L TO CENTER OF LEADS WHEN
FORMED PARALLEL.
4. DIMENSION B DOES NOT INCLUDE MOLD FLASH.
5. ROUNDED CORNERS OPTIONAL.
DIM
A
B
C
D
F
G
H
J
K
L
M
S
INCHES
MIN
MAX
0.740
0.770
0.250
0.270
0.145
0.175
0.015
0.021
0.040
0.70
0.100 BSC
0.050 BSC
0.008
0.015
0.110
0.130
0.295
0.305
0
_
10
_
0.020
0.040
MILLIMETERS
MIN
MAX
18.80
19.55
6.35
6.85
3.69
4.44
0.39
0.53
1.02
1.77
2.54 BSC
1.27 BSC
0.21
0.38
2.80
3.30
7.50
7.74
0
_
10
_
0.51
1.01
F
S
C
L
–T–
H
G
D
16 PL
SEATING
PLANE
K
J
T A
M
M
0.25 (0.010)
M
ON Semiconductor
and
are trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes
without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular
purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability,
including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or
specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be
validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others.
SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications
intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or
death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold
SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable
attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim
alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer.
PUBLICATION ORDERING INFORMATION
North America Literature Fulfillment:
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone:
303–675–2175 or 800–344–3860 Toll Free USA/Canada
Fax:
303–675–2176 or 800–344–3867 Toll Free USA/Canada
Email:
ONlit@hibbertco.com
N. American Technical Support:
800–282–9855 Toll Free USA/Canada
EUROPE:
LDC for ON Semiconductor – European Support
German Phone:
(+1) 303–308–7140 (M–F 2:30pm to 5:00pm Munich Time)
Email:
ONlit–german@hibbertco.com
French Phone:
(+1) 303–308–7141 (M–F 2:30pm to 5:00pm Toulouse Time)
Email:
ONlit–french@hibbertco.com
English Phone:
(+1) 303–308–7142 (M–F 1:30pm to 5:00pm UK Time)
Email:
ONlit@hibbertco.com
ASIA/PACIFIC:
LDC for ON Semiconductor – Asia Support
Phone:
303–675–2121 (Tue–Fri 9:00am to 1:00pm, Hong Kong Time)
Toll Free from Hong Kong 800–4422–3781
Email:
ONlit–asia@hibbertco.com
JAPAN:
ON Semiconductor, Japan Customer Focus Center
4–32–1 Nishi–Gotanda, Shinagawa–ku, Tokyo, Japan 141–8549
Phone:
81–3–5740–2745
Email:
r14525@onsemi.com
Fax Response Line:
303–675–2167
800–344–3810 Toll Free USA/Canada
ON Semiconductor Website:
http://onsemi.com
For additional information, please contact your local
Sales Representative.
http://onsemi.com
4
MC10H171/D
Kewei PLC chipset development example (10)
[font=宋体]Actual Combat! [/font] [font=Times New Roman] [/font] [font=宋体]Next, let's talk about what code to write in the [/font][font=Times New Roman]TMS[/font][font=宋体]user driver subroutine. [/font]...
断琴残风 MCU
Is it better to choose C or advanced .NET (Java) for general application development under CE?
The company has a certain amount of common application development that involves Socket or other network communications rather than driver development. Is C/C++ a common solution in this case?...
pcwe Embedded System
Do you prefer to use foreign equipment or domestic equipment?
When using oscilloscopes, multimeters, and other development tools, do you prefer imported foreign products or authentic domestic products? ? Do you have a tendency to worship foreign things? Come and...
gaoyang9992006 Analog electronics
About Internet Communication of MC52i
After I connected to the internet, about 2 minutes later, my GPRS could not receive the data sent by the server. However, the data sent within these 2 minutes could be received. Can anyone help me und...
l0700830216 Microcontroller MCU
Ultrasonic power supply
Ultrasonic power supply, which we often call ultrasonic generator, is used to convert the mains electricity ( 220V or 380V , 50 or 60Hz ) into high-frequency AC signal that matches the ultrasonic tran...
rain MCU
Notice on the retest of the 2011 National Undergraduate Electronic Design Competition
[i=s]This post was last edited by paulhyde on 2014-9-15 03:48[/i]...
剑雪紫轩 Electronics Design Contest

Technical ResourceMore

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 1015  1512  1678  2767  2865  21  31  34  56  58
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
