DCMN21HA4PYK87 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DCMN21HA4PYK87

DCMN21HA4PYK87: DescriptionD Subminiature Connector, 21 Contact(s), Male, Solder Terminal, Plug,; CategoryThe connector The connector; File Size35KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DCMN21HA4PYK87 Overview

D Subminiature Connector, 21 Contact(s), Male, Solder Terminal, Plug,

DCMN21HA4PYK87 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACT: DM53745-110, EMI/RFI SHIELDED, PANEL MOUNT
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	DCMN
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	21
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

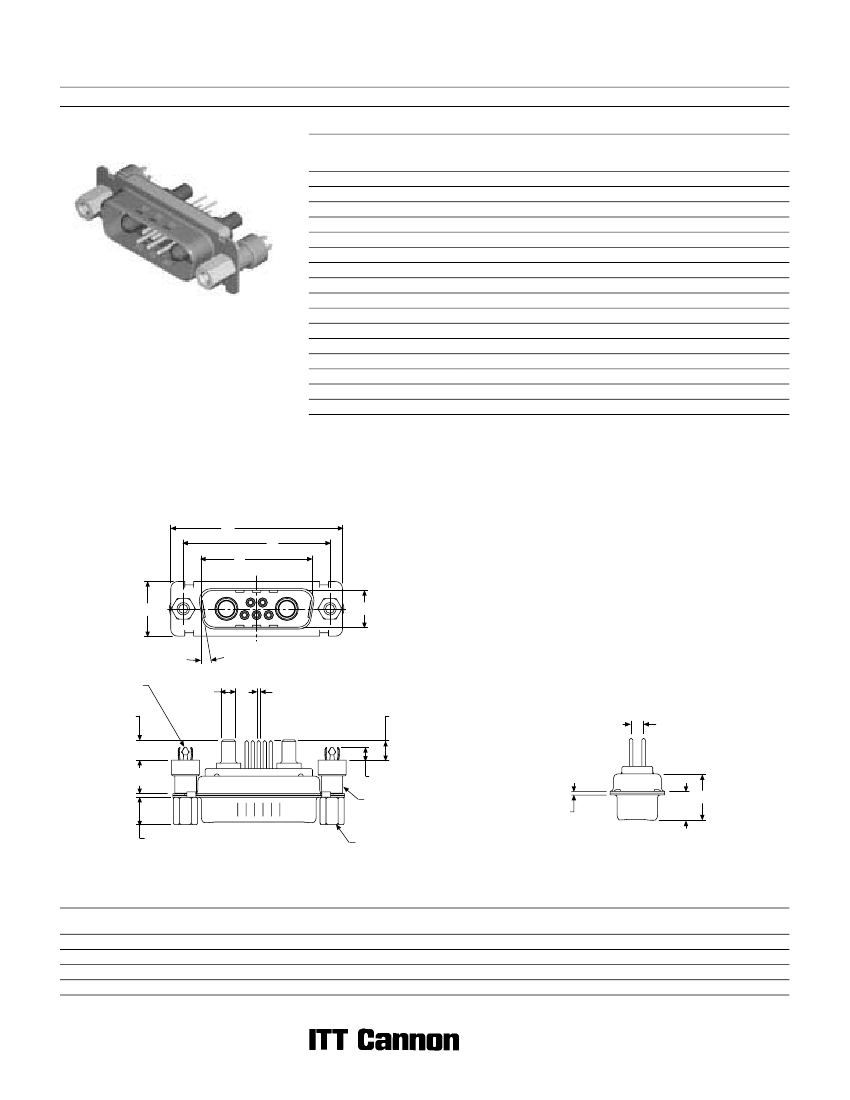

D Subminiature

40 A High Power Straight — European PC Tails (Sizes DE-DC)

Plug

Part Numbers with Standoff #4-40 UNC

Shell Size

Layout

5W1

7W2

11W1

3W3

3WK3

5W5

9W4

13W3

17W2

21W1

8W8

13W6

17W5

21WA4

25W3

27W2

Part Number

Without Screw Locks

Without Boardlocks

DEMV5H1PYK87

DAMV7H2PYK87

DAMV11H1PYK87

DAMV3H3PYK87

DAMV3HK3PYK87TM

DBMV5H5PYK87

DBMV9H4PYK87

DBMV13H3PYK87

DBMV17H2PYK87

DBMV21H1PYK87

DCMV8H8PYK87

DCMV13H6PYK87

DCMV17H5PYK87

DCMV21HA4PYK87

DCMV25H3PYK87

DCMV27H2PYK87

Part Number

Without Screw Locks

With Boardlocks

DEMZ5H1PYK87

DAMZ7H2PYK87

DAMZ11H1PYK87

DAMZ3H3PYK87

DAMZ3HK3PYK87TM

DBMZ5H5PYK87

DBMZ9H4PYK87

DBMZ13H3PYK87

DBMZ17H2PYK87

DBMZ21H1PYK87

DCMZ8H8PYK87

DCMZ13H6PYK87

DCMZ17H5PYK87

DCMZ21HA4PYK87

DCMZ25H3PYK87

DCMZ27H2PYK87

Combo D



Reader’s Resource

For contact cavity arrangements,

see page 222.

For P.C. hole patterns, see pages 254-255.

For panel cutouts, see page 221.

Part Number

With Screw Locks

With Boardlocks

DEMN5H1PYK87

DAMN7H2PYK87

DAMN11H1PYK87

DAMN3H3PYK87

DAMN3HK3PYK87TM

DBMN5H5PYK87

DBMN9H4PYK87

DBMN13H3PYK87

DBMN17H2PYK87

DBMN21H1PYK87

DCMN8H8PYK87

DCMN13H6PYK87

DCMN17H5PYK87

DCMN21HA4PYK87

DCMN25H3PYK87

DCMN27H2PYK87

For M3 threads replace MV with MT, MZ with MQ, MN with MU.

Notes: For tin plated PC tails add A226 (signal contacts only). Example: DEMV5H1PYK87A226

For performance class 2 substitute K127 for K87. Example: DEMV5H1PYK127

For DD shell sizes, see page 72.

Keyed.

Engaging Face

10°

BOARDLOCK

4,65

(.183)

Ø 3,18

(.125)

Ø 0,60

(.024)

4,52 (.178)

2,84

(.112)

7.62

0,25

(.300

.010)

2,92

(.115)

STANDOFF

#4-40 UNC

6,50

0,25

(.256

.010)

SCREW LOCK

#4-40 UNC

Screw lock, boardlock, and high power contact

removed for clarity

Dimensions

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

±0,13

(.005)

16,92 (.666)

25,25 (.994)

38,96 (1.534)

55,42 (2.182)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

±0,13

(.005)

8,36 (.329)

±0,38

(.015)

12,55 (.494)

±0,25

(.010)

10,72 (.422)

10,82 (.426)

±0,368

(.0145)

6,693 (.2635)

—

±0,41

(.016)

—

6,84 (.269)

±0,25

(.010)

0,76 (.030)

0,99 (.039)

Dimensions are shown in mm (inch)
