SI5315-DS(B) Overview

LAMP,IRED,875NM PEAK WAVELENGTH,LED-2B

SI5315-DS(B) Parametric

Parameter Name	Attribute value
Maker	KODENSHI AUK
Reach Compliance Code	unknown
Maximum forward current	0.1 A
Maximum forward voltage	2 V
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	INFRARED LED
peak wavelength	875 nm
Maximum response time	1.5e-8 s
Maximum reverse voltage	4 V
Spectral bandwidth	4.5e-8 m
surface mount	NO
perspective	40 deg

SI5315-DS(B) Preview

Semiconductor

SI5315-DS / SI5315-DS(B)

High Speed IRED

Features

•

Colorless transparency lens type

• φ5mm

(T-13/4)

all plastic mold type

•

Low power consumption

•

High power, High speed type

Applications

•

Infrared remote control and free air transmission systems with low forward voltage and

comfortable radiation angle requirements in combination with PIN photodiodes or phototransistors.

Outline Dimensions

unit :

STRAIGHT TYPE

4.80~5.20

STOPPER

TYPE : (B)

4.80~5.20

0.05 Typ.

8.40~8.80

1.00 Max.

0.05 Typ.

1.20 Min.

8.40~8.80

1.00 Max.

2.90~3.90

1.27 Typ.

0.60 Max.

26.00 Min.

0.60 Max.

26.00 Min.

1.00 Min.

2.54 Typ.

1.00 Min.

0.55 Max.

5.60~6.60

PIN Connections

1. Cathode

2. Anode

KSD-O2S008-000

SI5315-DS / SI5315-DS(B)

Absolute Maximum Ratings

Characteristic

Power dissipation

Forward current

Peak forward current

Reverse voltage

Operating temperature range

Storage temperature range

(Ta=25℃)

Symbol

opr

stg

Rating

180

100

-25

∼

-30

∼

100

Unit

℃

Soldering temperature

sol

260

℃

for 10 seconds

*1.Duty ratio = 1/16, Pulse width = 0.1ms

*2.Keep the distance more than 2.0mm from PCB to the bottom of IRED package

Electrical / Optical Characteristics

Characteristic

Forward voltage

Radiant intensity

Peak wavelength

Spectrum bandwidth

Rise time

Reverse current

(Ta=25℃)

Symbol

Test Condition

= 50mA

=4V

= 50mA

Min.

Typ.

1.4

875

±20

Max.

1.8

Unit

mW/Sr

deg

∆

Half angle

*3.

1/2 is the off-axis angle where the luminous intensity is 1/2 the peak intensity

KSD-O2S008-000

SI5315-DS / SI5315-DS(B)

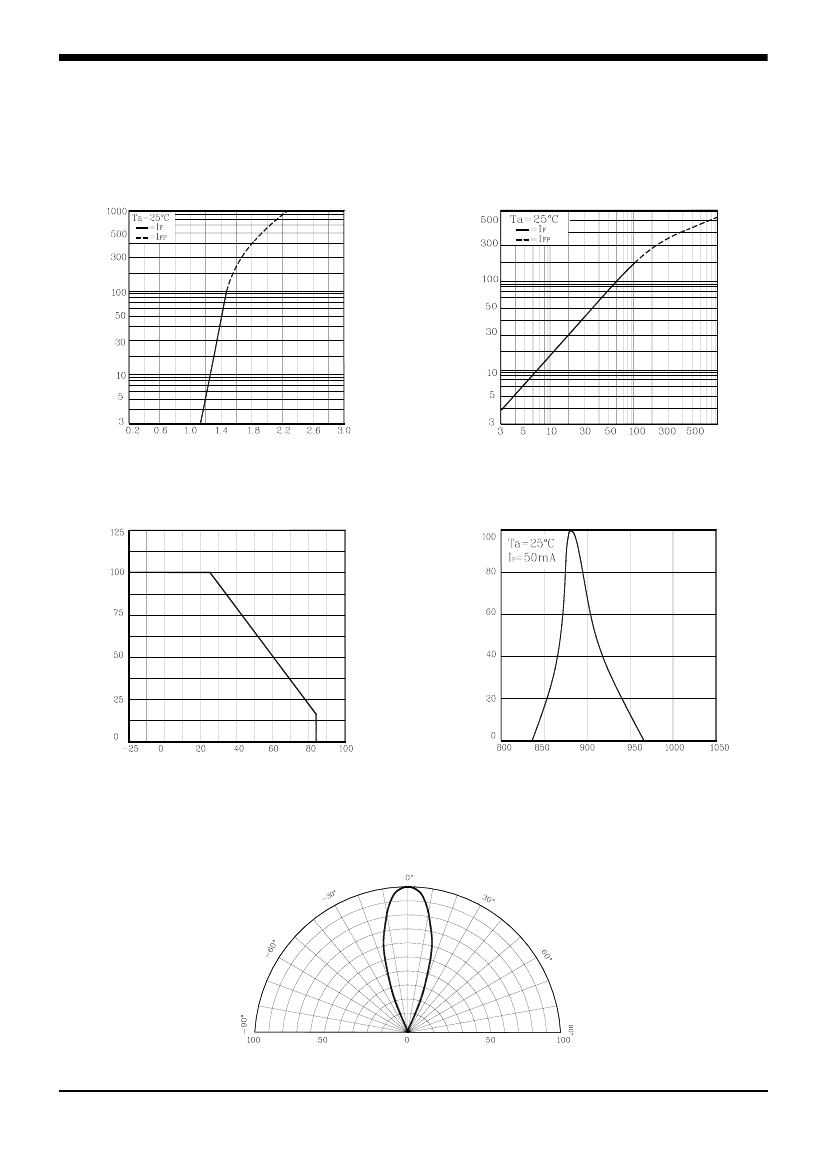

Characteristic Diagrams

Fig. 1 I

- V

Fig. 2 I

- I

Forward Voltage V

[V]

Radiant Intensity I

[mW/Sr]

Forward Current I

[mA]

Forward

Current I

[mA]

Fig. 3 I

– Ta

Fig.4 Spectrum Distribution

Current I

[mA]

Forward

Relative Intensity [%]

Ambient Temperature Ta [

℃

]

Wavelength

[nm]

Fig. 5 Radiation Diagram

Relative Radiant Intensity I

[%]

KSD-O2S008-000

SI5315-DS / SI5315-DS(B)

The AUK Corp. products are intended for the use as components in general electronic

equipment (Office and communication equipment, measuring equipment, home

appliance, etc.).

Please make sure that you consult with us before you use these AUK Corp. products

in equipments which require high quality and / or reliability, and in equipments which

could have major impact to the welfare of human life(atomic energy control, airplane,

spaceship, transportation, combustion control, all types of safety device, etc.). AUK

Corp. cannot accept liability to any damage which may occur in case these AUK Corp.

products were used in the mentioned equipments without prior consultation with AUK

Corp..

Specifications mentioned in this publication are subject to change without notice.

KSD-O2S008-000
