DATA SHEET
BIPOLAR ANALOG INTEGRATED CIRCUIT
μ
PC29xxB Series
THREE-TERMINAL LOW DROPOUT VOLTAGE REGULATOR
(OUTPUT CURRENT: 1.0 A)

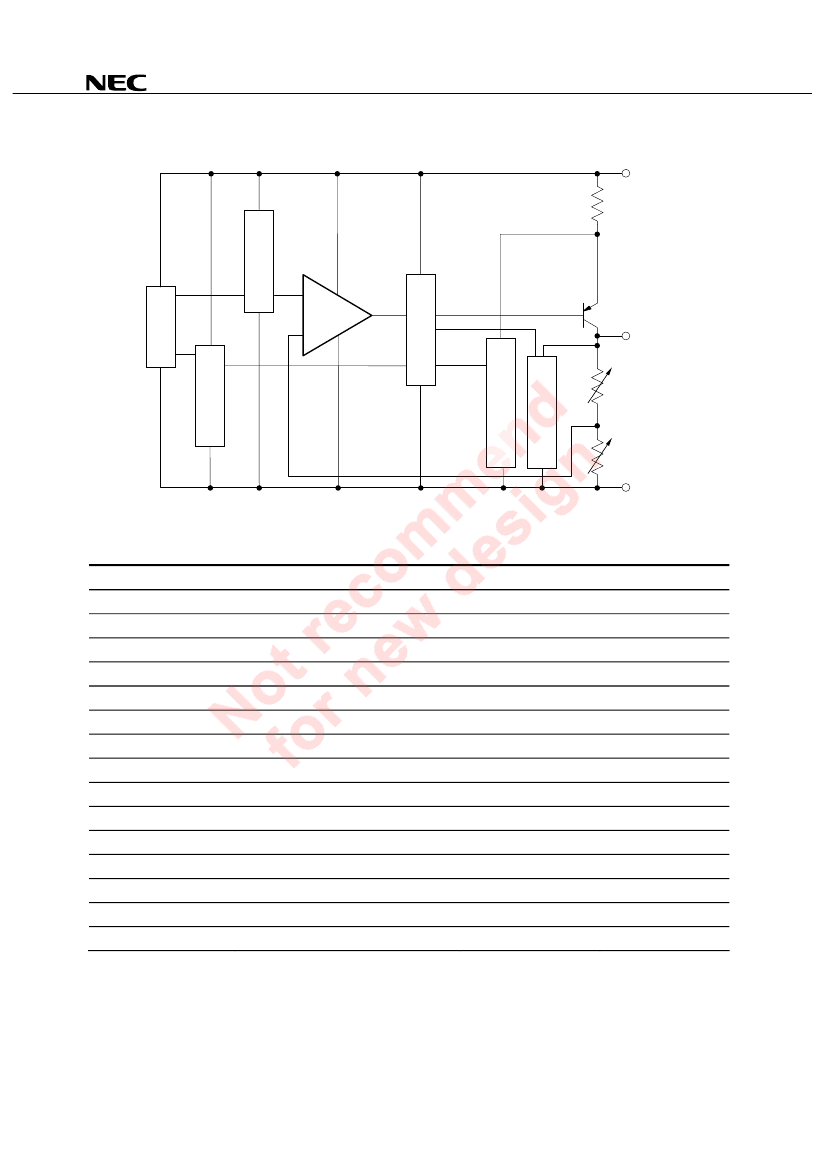

DESCRIPTION
The
μ
PC29xxB series is a series of three-terminal low dropout voltage regulators with 1.0 A output current. This
series is suitable for low voltage operated IC and has 4 output voltage types, 1.8 V, 2.5 V, 3.3 V and 5.0 V. Compared
with the
μ
PC29xx and
μ
PC29xxA series, this series has improved output voltage tolerance (V
O
±
2%), quiescent
current (1.8 mA TYP. (I
O
= 0 A)), and short-circuit current.
FEATURES
•
Output current capacity: 1.0 A
•
Output voltage tolerance: V
O
±
2% (T
A
= 25°C)
•
Low quiescent current: 1.8 mA TYP. (I
O
= 0 A)
•
Low short-circuit current: 0.3 A TYP. (
μ
PC2918B), 0.6 A TYP. (
μ
PC2925B,
μ
PC2933B), 0.65 A TYP. (
μ
PC2905B)
•
Low dropout voltage: V
DIF
= 0.6 V MAX. (I
O
= 0.5 A)
•
On-chip inrush current protection circuit at the time of input voltage rising (when input voltage is low)
•
On-chip over-current limiter
•
On-chip thermal shut down circuit
APPLICATIONS
Digital TV, DVD, LCD Monitors, Printers, Audio, Air Conditioners, and other applications.

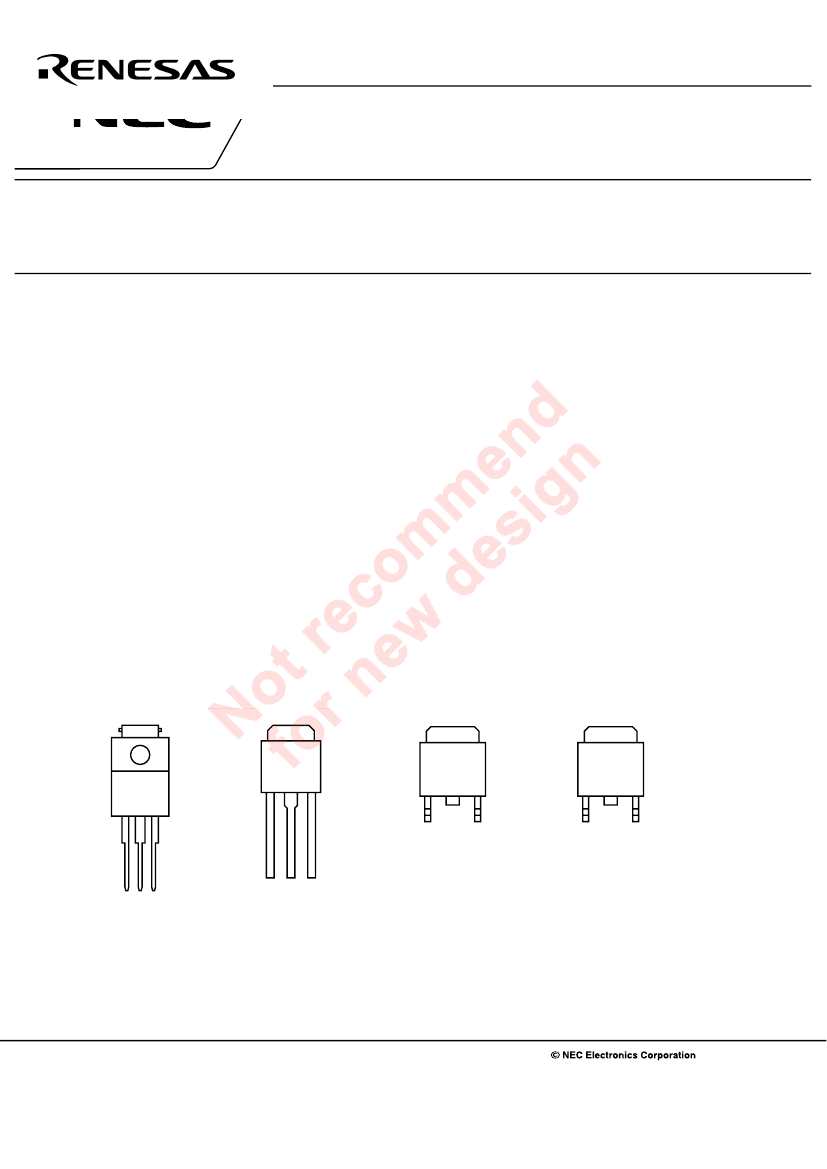

PIN CONFIGURATIONS (Marking Side)
Isolated TO-220 (MP-45G)
SC-64 (MP-3)
4
SC-63 (MP-3Z)
TO-252 (MP-3ZK)
4
4
1
1
2
3
2
3
1
2
3
1
2
3
1: INPUT
2: GND
3: OUTPUT
1: INPUT
Note1
2: GND
3: OUTPUT
4: GND (Fin)
1: INPUT
2: GND
Note2
3: OUTPUT
4: GND (Fin)
1: INPUT
2: GND
Note2
3: OUTPUT
4: GND (Fin)
Notes 1.
No.2 pin and No.4 fin are common GND.
2.
No.2 pin is cut. No.2 pin and No.4 fin are common GND.
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. G17567EJ4V0DS00 (4th edition)
Date Published August 2007 NS
Printed in Japan
2005, 2007
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
