OC62BL24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> OC62BL24

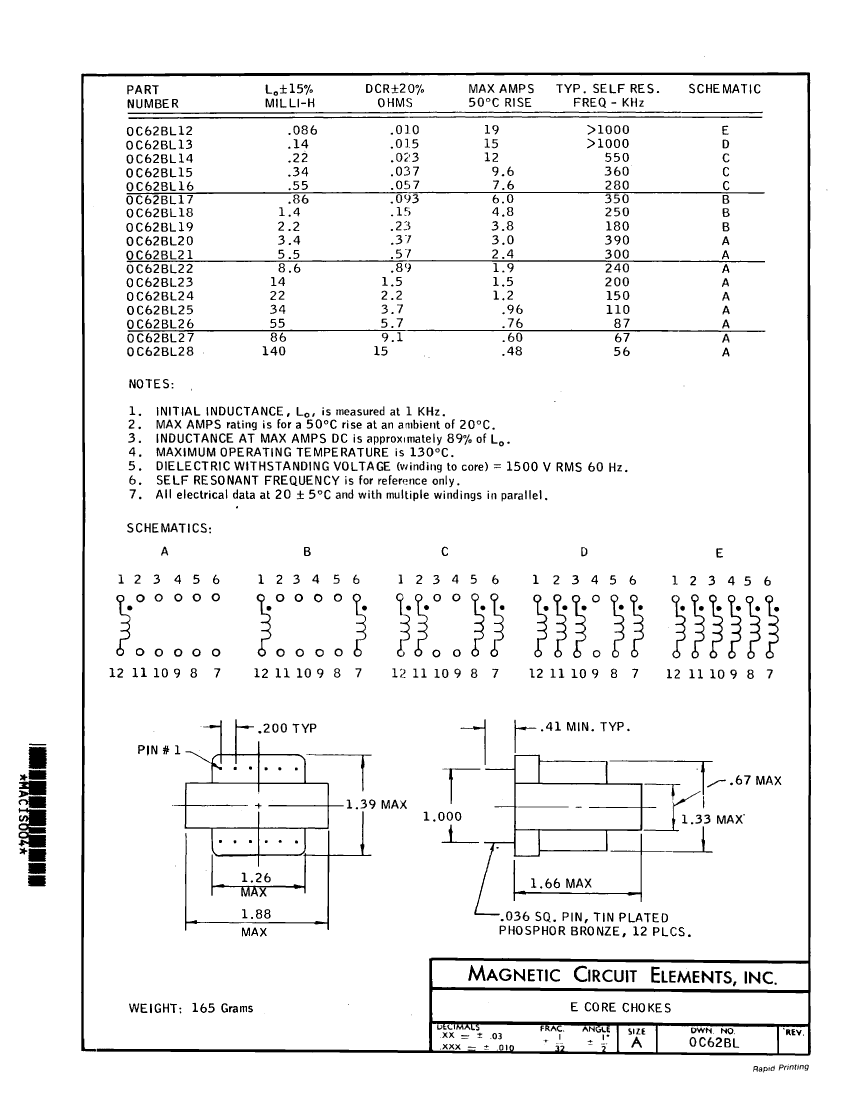

OC62BL24: DescriptionGeneral Purpose Inductor, 22000uH, 15%, 1 Element; CategoryPassive components inductor; File Size37KB，1 Pages; ManufacturerMagnetic Circuit Elements Inc

Download Datasheet Parametric Compare View All

OC62BL24 Overview

General Purpose Inductor, 22000uH, 15%, 1 Element

OC62BL24 Parametric

Parameter Name	Attribute value
Maker	Magnetic Circuit Elements Inc
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	2.2 Ω
Nominal inductance(L)	22000 µH
Inductor Applications	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	12
Maximum operating temperature	130 °C
Maximum rated current	1.2 A
self resonant frequency	0.15 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	SOLID LEAD
Test frequency	0.001 MHz
Tolerance	15%

Preview

Download Datasheet

View All

OC62BL24 Related Products

	OC62BL24	OC62BL19	OC62BL23	OC62BL21	OC62BL16	OC62BL13	OC62BL17	OC62BL22
Description	General Purpose Inductor, 22000uH, 15%, 1 Element	General Purpose Inductor, 2200uH, 15%, 2 Element	General Purpose Inductor, 14000uH, 15%, 1 Element	General Purpose Inductor, 5500uH, 15%, 1 Element	General Purpose Inductor, 550uH, 15%, 4 Element	General Purpose Inductor, 140uH, 15%, 5 Element	General Purpose Inductor, 860uH, 15%, 2 Element	General Purpose Inductor, 8600uH, 15%, 1 Element
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	2.2 Ω	0.23 Ω	1.5 Ω	0.57 Ω	0.057 Ω	0.015 Ω	0.093 Ω	0.89 Ω
Nominal inductance(L)	22000 µH	2200 µH	14000 µH	5500 µH	550 µH	140 µH	860 µH	8600 µH
Inductor Applications	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	2	1	1	4	5	2	1
Number of terminals	12	12	12	12	12	12	12	12
Maximum operating temperature	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C
Maximum rated current	1.2 A	3.8 A	1.5 A	2.4 A	7.6 A	15 A	6 A	1.9 A
self resonant frequency	0.15 MHz	0.18 MHz	0.2 MHz	0.3 MHz	0.28 MHz	1 MHz	0.35 MHz	0.24 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD
Test frequency	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz
Tolerance	15%	15%	15%	15%	15%	15%	15%	15%
Maker	Magnetic Circuit Elements Inc	-	-	Magnetic Circuit Elements Inc	Magnetic Circuit Elements Inc	Magnetic Circuit Elements Inc	Magnetic Circuit Elements Inc	Magnetic Circuit Elements Inc
