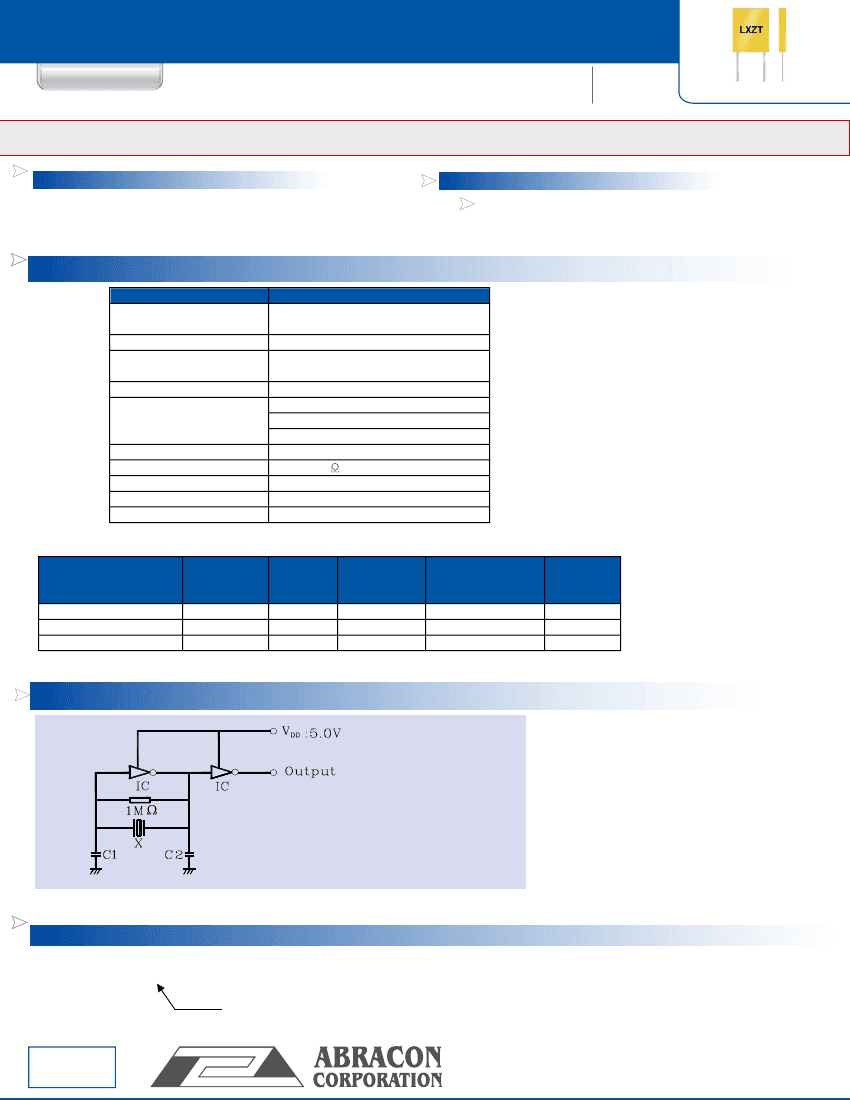

LEADED, LOW FR EQUENCY kHz BAND CERAMIC R ESONATORS
LXZT series
Pb in ceramic
(exempt per RoHS 2002/95/EC Annex (7))
RoHS
Compliant
| | | | | | | | | | | | | | |
Size varies
LXZT series is discontinued on February 28, 2011. Please contact Abracon for last buy.
FEATURES:
•
Standard frequency range from190kHz to 1250kHz.
•
Low cost timing solution.
•
Low resonant impedance.
•
Microprocessor clocks.
•
Electrical appliances.
•
Remote controls.
APPLICATIONS:
STANDARD SPECIFICATIONS:
Item
Oscillation Frequency
(Fosc)
Resonant Impedance
Frequency Tolerance and
stability
Withstanding Voltage (V)
Rating Voltage
(1) D.C.Voltage
(2) A.C. Voltage
Load Capacitance
Insulation Resistance
Operating Temperature
Requirement
430.00kHz ~ 455.00kHz
700.00kHz ~1250.00kHz
See Table 2.1
See Table 2.1
50 (DC , 1 min)
6 V.D.C. max
15 Vp-p. max
See Table 2.1
100MΩ min. (10V DC 1min)
o
o
-25 C to + 85 C
o
o
-40 C to +85 C
±0.3% (From initial value)
Table 2.1
* Please contact ABRACON for custom frequencies,
tighter stability and/or wider temperature range
Storage Temperature
Aging Rate (Fosc)
Frequency Range (kHz)
430 - 455
700 - 999
1000 - 1250
C1 (pF)
±20%
100
100
100
C2 (pF)
±20%
100
100
100
Resonant
Impedance
20Ω max.
70Ω max.
100Ω max.
Frequency
Stability at
-25°C to +85°C
± 0.3%
± 0.3%
± 0.3%
Freq.
Tolerance at
25°C
± 2.0 kHz
± 0.5%
± 0.5%
TEST CIRCUIT:
IC：1/6TC4069UBP×2
X：CERAMIC
RESONATOR
C1,C2: Load Capacitance
OPTIONS & PART IDENTIFICATION:
LXZT - Frequency
Frequency (kHz)
ABRACON IS
ISO9001:2008
CERTIFIED
CERTIFIED
Revised: 12.13.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
LEADED, LOW FR EQUENCY kHz BAND CERAMIC R ESONATORS
LXZT series

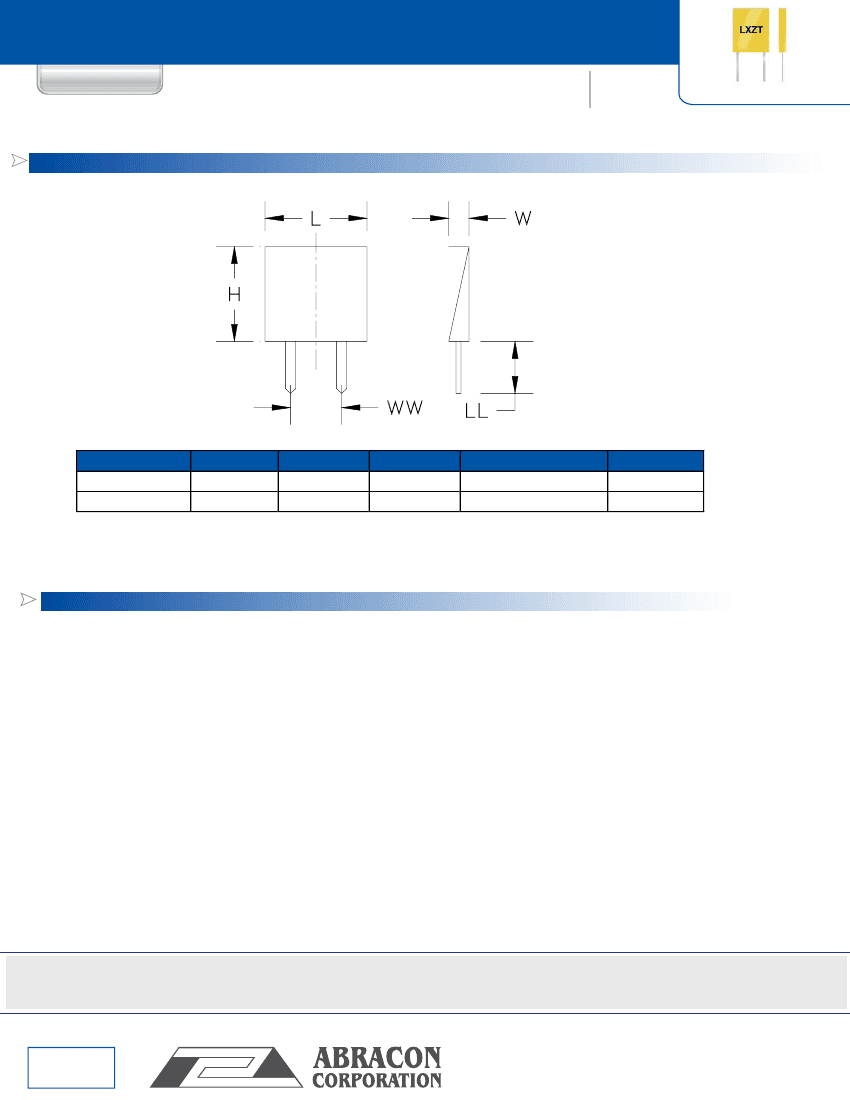

OUTLINE DIMENSIONS
Pb in ceramic
(exempt per RoHS 2002/95/EC Annex (7))
RoHS
Compliant
| | | | | | | | | | | | | | |
Size varies
Freq.
Dimension : Inches (mm)
Frequency Range
430-455 kHz
700-1250 kHz
L
0.28 (7.0) ref.
0.20 (5.1) ref.
W
0.14 (3.5) ref.
0.09 (2.2) ref.
H
0.35 (9.0) ref.
0.25 (6.3) ref.
LL
0.16 (4.0)/0.24 (6.0) ref.
0.16 (4.0) ref.
WW
0.20 (5.0) ref.
0.10 (2.5) ref.
CAUTION
• Do not apply excess mechanical stress to the component body or terminations. Do not attempt to re-form or bend the components as this will cause
damage to the component.
• This component is not hermetically sealed. Do not clean or wash the component.
• Reflow soldering: Do not use strong acidity flux,such as flux with chlorine content of greater than 0.2wt% during reflow Soldering.
• Do not expose the component to open flame.
• This specification applies to the functionality of the component as a single unit. Customers are advised to insure that the component is thoroughly
evaluated in the particular application.
• Shelf life: The warranted shelf life of this product is six months after the delivery date under the conditions of sealed, unopened, original packaging.
• Storage conditions: If the product is to be stored for a period greater than six months after the delivery date, it is recommended that customers confirm
the solderability and characteristics for the product prior to use.
• This product is not recommended for use in the following applications: Automotive, Medical, Military, Safety, or any other high-reliability, life-dependant
application. Contact Abracon Corporation prior to using this product when in doubt.
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not
specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For
applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for
more information.
ABRACON IS
ISO9001:2008
CERTIFIED
CERTIFIED
Revised: 12.13.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
