ML336RAA241JLC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> ML336RAA241JLC

ML336RAA241JLC: DescriptionGeneral Purpose Inductor, 0.24uH, 5%, 1 Element, Ceramic-Core, SMD, 0907, CHIP, 0805; CategoryPassive components inductor; File Size86KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance; Related ProductsFound2parts with similar functions to ML336RAA241JLC

Download Datasheet Parametric View All

ML336RAA241JLC Overview

General Purpose Inductor, 0.24uH, 5%, 1 Element, Ceramic-Core, SMD, 0907, CHIP, 0805

ML336RAA241JLC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	CHIP, 0805
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	0907
structure	Wirewound
core material	CERAMIC
DC Resistance	1 Ω
Nominal inductance(L)	0.24 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	ML336RAA
Number of functions	1
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	1.52 mm
Package length	2.29 mm
Package form	SMT
Package width	1.73 mm
method of packing	TR, 7 Inch
Minimum quality factor (at nominal inductance)	36
Maximum rated current	350 A
self resonant frequency	610 MHz
series	ML336RAA
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 250 MHZ
surface mount	YES
Terminal surface	Silver/Palladium/Platinum - with Glass fri
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

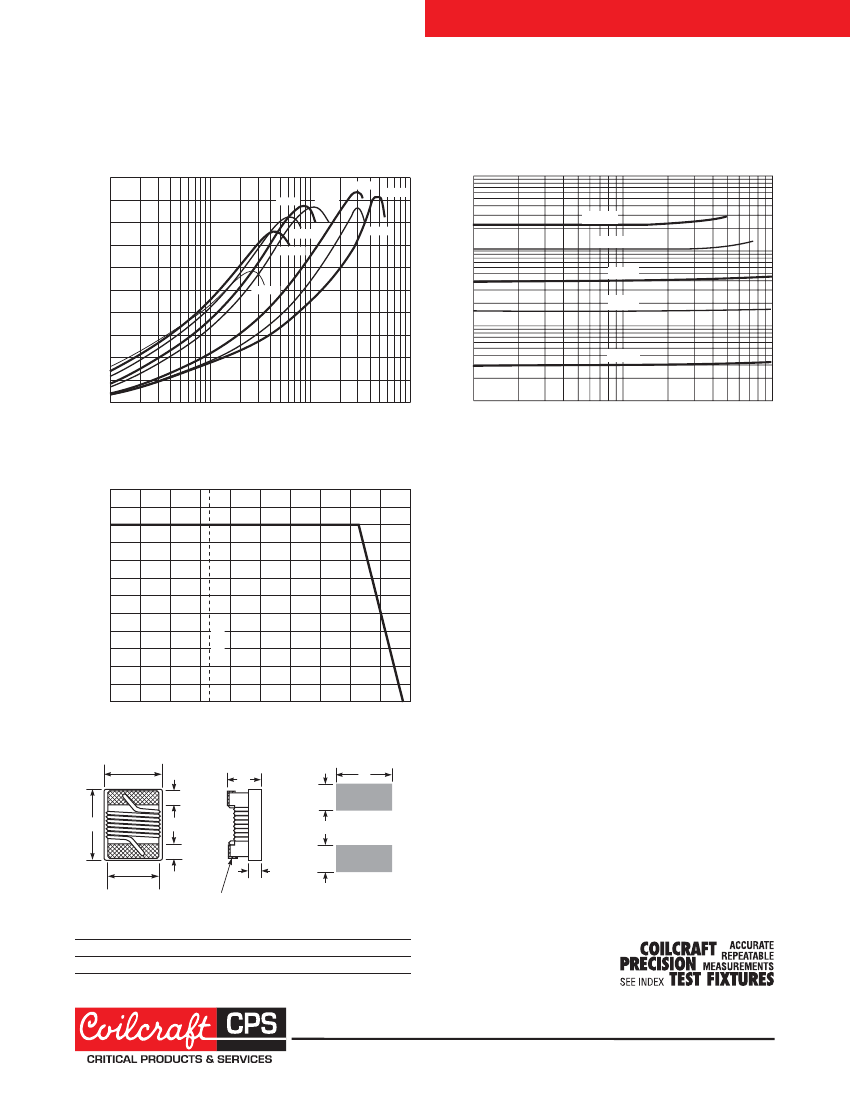

0805 CHIP INDUCTORS

High-Reliability Chip Inductors

ML336RAA

The ML336RAA inductors provide exceptional Q val-

ues, even at high frequencies. They have a ceramic

body and wire wound construction to provide the high-

est SRFs available in 0805 size.

Part number

ML336RAA020JLZ

ML336RAA3N0JLZ

ML336RAA030JLZ

ML336RAA050JLZ

ML336RAA060JLZ

ML336RAA070JLZ

ML336RAA080_LZ

ML336RAA100_LZ

ML336RAA120_LZ

ML336RAA150_LZ

ML336RAA180_LZ

ML336RAA220_LZ

ML336RAA240_LZ

ML336RAA270_LZ

ML336RAA330_LZ

ML336RAA360_LZ

ML336RAA390_LZ

ML336RAA430_LZ

ML336RAA470_LZ

ML336RAA560_LZ

ML336RAA680_LZ

ML336RAA820_LZ

ML336RAA910_LZ

ML336RAA101_LZ

ML336RAA111_LZ

ML336RAA121_LZ

ML336RAA151_LZ

ML336RAA181_LZ

ML336RAA221_LZ

ML336RAA241_LZ

ML336RAA271_LZ

ML336RAA331_LZ

ML336RAA391_LZ

ML336RAA471_LZ

ML336RAA561_LZ

ML336RAA681_LZ

ML336RAA821_LZ

This robust version of Coilcraft’s standard 0805CS series

features high temperature materials that allow operation

in ambient temperatures up to 155°C.

Inductance

(nH)

2.8 @

3.0 @

3.3 @

5.6 @

6.8 @

7.5 @

8.2 @

10 @

12 @

15 @

18 @

22 @

24 @

27 @

33 @

36 @

39 @

43 @

47 @

56 @

68 @

82 @

91 @

100 @

110 @

120 @

150 @

180 @

220 @

240 @

270 @

330 @

390 @

470 @

560 @

680 @

820 @

250 MHz

200 MHz

150 MHz

100 MHz

50 MHz

25 MHz

Percent

tolerance

5,2

5,2,1

5,2

5,2,1

5,2

5,2,1

5,2

57 @

61 @

48 @

75 @

54 @

56 @

63 @

57 @

46 @

41 @

48 @

59 @

56 @

64 @

57 @

44 @

45 @

44 @

49 @

52 @

51 @

49 @

54 @

38 @

52 @

33 @

37 @

36 @

34 @

24 @

21 @

23 @

min

1000 MHz

500 MHz

250 MHz

100 MHz

50 MHz

SRF min

(MHz)

>5000

4760

4440

3840

3560

3460

3180

2560

2480

2080

1920

2060

1720

1520

1600

1440

1360

1280

1200

1060

1000

880

730

650

610

580

520

480

300

260

220

240

DCR max

(Ohms)

0.06

0.08

0.11

0.14

0.12

0.10

0.15

0.17

0.20

0.22

0.25

0.27

0.29

0.34

0.31

0.34

0.38

0.42

0.48

0.46

0.48

0.51

0.56

0.64

0.70

1.00

1.40

1.50

1.76

1.90

2.20

2.35

Imax

(mA)

800

600

500

400

350

310

290

320

310

220

200

Color

code

Gray

White

Black

Orange

Brown

Green

Red

Blue

Orange

Yellow

Green

Blue

Gray

Violet

Gray

Orange

White

Yellow

Black

Brown

Red

Orange

Black

Yellow

Brown

Green

Blue

Violet

Gray

Red

White

Black

Brown

Violet

Orange

Green

Blue

1. When ordering, please specify

tolerance

and

testing

codes:

ML336RAA821GLZ

Tolerance: F

= 1%

= 2%

= 5%

Testing:

= COTS

= Screening per Coilcraft CP-SA-10001

= Screening per Coilcraft CP-SA-10003

= Custom screening (please specify when ordering)

2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP 4286 impedance analyzer or equivalent with Coilcraft-provided correlation pieces.

3. Q measured at the same frequency as inductance using an Agilent/HP 4291A with an Agilent/HP 16197 test fixture or equivalents.

4. SRF measured using an Agilent/HP 8753ES network analyzer or equivalent and a Coilcraft SMD-D test fixture.

5. DCR measured on a Keithley 580 micro-ohmmeter or equivalent and a Coilcraft CCF858 test fixture.

6. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

Specifications subject to change without notice.

Please check our website for latest information.

Document ML100-1

Revised 06/15/10

1102 Silver Lake Road

Cary IL 60013

Phone 800-981-0363

Fax 847-639-1508

E-mail cps@coilcraft.com

Web www.coilcraft-cps.com

Recommended Resources

Apply LOGO! Automatic gating circuit b

Monolithic radar detector circuit diagram

T4163A single column coordinate boring machine electrical schematic circuit (2)

Battery powered flash circuit

Magnetic pendulum oscillation circuit

DC constant current drive of infrared light-emitting diodes

ML336RAA241JLC Similar Products

Part Number	Manufacturer	Description
ML336RAA241JLN	COILCRAFT	General Purpose Inductor, 0.24uH, 5%, 1 Element, Ceramic-Core, SMD, 0907, CHIP, 0805
ML336RAA241JLH	COILCRAFT	General Purpose Inductor, 0.24uH, 5%, 1 Element, Ceramic-Core, SMD, 0907, CHIP, 0805
