M83723/74W20287 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M83723/74W20287

M83723/74W20287: DescriptionMIL Series Connector, 28 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size179KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html

Download Datasheet Parametric View All

M83723/74W20287 Overview

MIL Series Connector, 28 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,

M83723/74W20287 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Aero-Electric Connector
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-83723 SERIES III, COMPATIBLE CONTACT: M39029/4-110, M39029/4-113
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	20
Termination type	CRIMP
Total number of contacts	28

Preview

Download Datasheet

View All

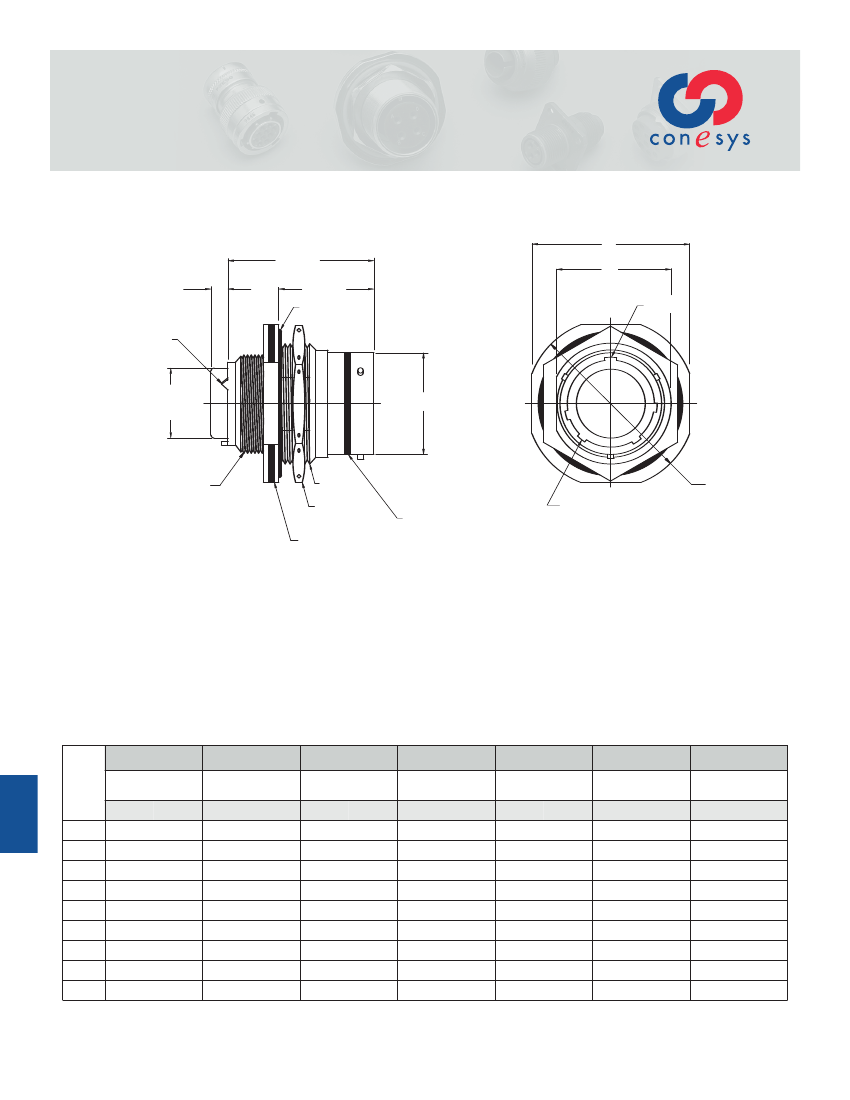

M83723/73, 74

Jam Nut Receptacle

AE83373, 74

Bayonet Coupling, Crimp Removable, Rear Release

MAX

1.300(33.02)

MAX

.190(4.83) GROMMET

.130(3.30) EXTENSION

.781(19.84)

.761(19.33)

"O" RING

MOUNTING FLAT

MASTER

KEYWAY

3 ACCESSORY TEETH

EQUALLY SPACED

MAX

GROMMET

ACCESSORY THREAD

JAM NUT

THREAD

HEX NUT

PER MS3186

BLUE COLOR BAND

PANEL THICKNESS:

.125(3.18)

.062(1.58)

4x MINOR KEYWAYS

BLUE COLOR BAND

MAX

Page 88

Page 104

Pages 107 108

Page 87

Page 106

Page 102

MIL–DTL–

83723 S III

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Speciﬁcations

Insert Availability and Contact Information

Polarization

Shell

Size

Maximum

inch

.979

1.104

1.291

1.391

1.516

1.641

1.766

1.954

2.079

24.87

28.04

32.79

35.33

38.51

41.68

44.86

49.63

52.81

Maximum

inch

1.068

1.192

1.380

1.505

1.630

1.756

1.860

2.086

2.160

27.13

30.28

35.05

38.23

41.40

44.60

47.24

52.98

54.86

Maximum

inch

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

7.75

10.29

13.49

16.89

20.07

22.07

25.25

28.42

31.60

+.000

-.005

inch

.536

.659

.829

.898

1.025

1.131

1.256

1.381

1.506

+.00

-.13

13.61

16.74

21.06

22.81

26.04

28.73

31.90

35.08

38.25

±.003

inch

.593

.718

.905

.968

1.093

1.217

1.342

1.467

1.592

±.08

15.06

18.24

22.99

24.59

27.76

30.91

34.09

37.26

40.44

Jam Nut Thread

Class 2A

5/8-20UN

3/4-20UNEF

15/16-20UNEF

1-20UNEF

1-1/8-20UN

1-1/4-18UNEF

1-3/8-18UNEF

1-1/2-18UNEF

1-5/8-18UNEF

Accessory Thread

Class 2A

1/2-20UNF

5/8-24UNEF

3/4-20UNEF

7/8-20UNEF

1-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

www.conesys.com

– 90 –

sales

aero-electric.com
