REVISION AT
HLE-1XX-02-XXX-DV-XX-XX-XX
OPTION

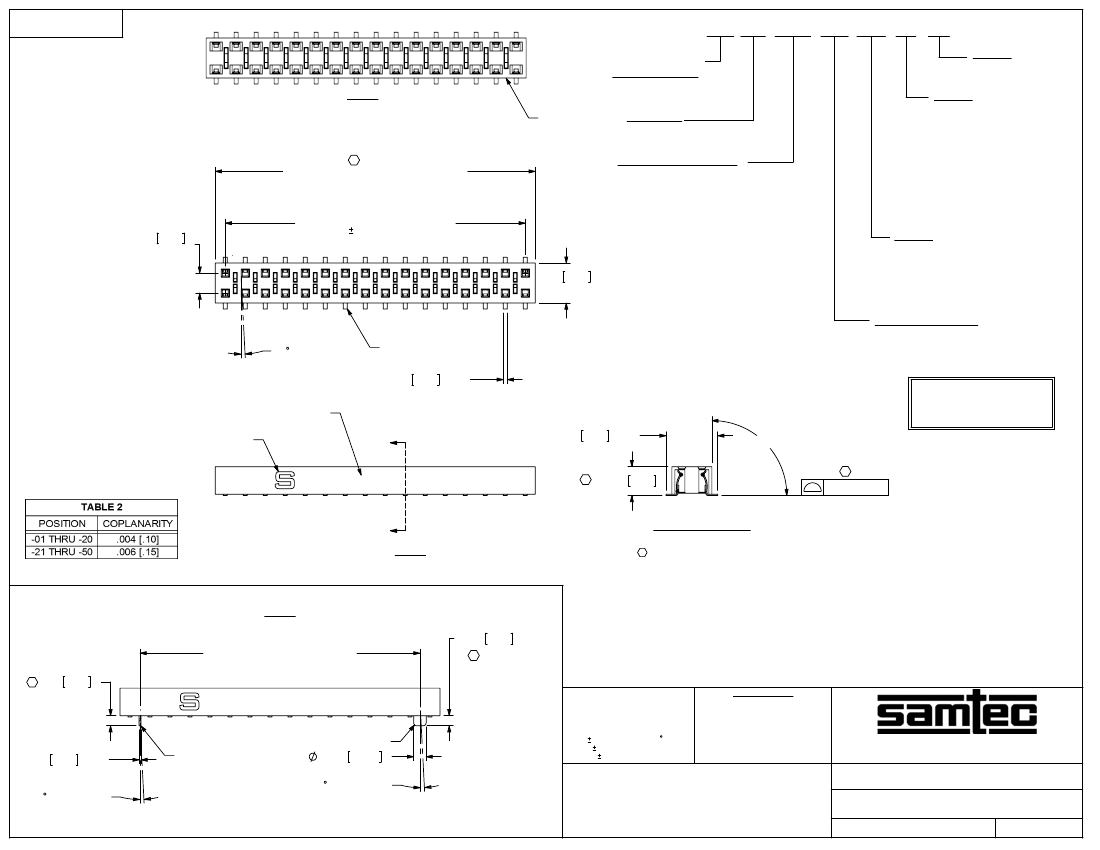

FIG 5
-BE OPTION
(SAME AS FIG 1 UNLESS OTHERWISE STATED)
C
No OF POSITIONS
-02 THRU -50
(PER ROW)
RHLE-50-DBE
LEAD STYLE
-02: SURFACE MOUNT
(USE C-132-12-X)
PLATING SPECIFICATION
-G: 20µ" GOLD IN CONTACT AREA
3µ" ON TAIL (USE C-132-12-G)
-S: 30µ" SELECTIVE GOLD IN CONTACT
AREA MATTE TIN ON TAIL
(USE C-132-12-S)
-F: 3µ" SELECTIVE FLASH GOLD IN CONTACT
AREA MATTE TIN ON TAIL
(USE C-132-12-F)
-L: 10µ" SELECTIVE LIGHT GOLD IN
CONTACT AREA MATTE TIN ON TAIL
(USE C-132-12-L)
-H: 30µ" HEAVY GOLD IN CONTACT AREA
3µ" ON TAIL (USE C-132-12-H)
-STL: 30µ" SELECTIVE GOLD IN CONTACT
AREA TIN/LEAD (90%/10 +/-5%)
(USE C-132-12-STL)
-SM: 30µ" SELECTIVE GOLD IN CONTACT
AREA MATTE TIN ON TAIL
(USE C-132-12-S)
-FM: 3µ" SELECTIVE FLASH GOLD IN CONTACT
AREA MATTE TIN ON TAIL (USE C-132-12-F)
-LM: 10µ" LIGHT GOLD IN CONTACT AREA
MATTE TIN ON TAIL (USE C-132-12-L)
No OF POS x .100 [2.54]
+.008 [.20]
-.005 [.13]
.100 2.54
REF
({No of POS - 1} x .100 [2.54])
.005 [.13]
02
-TR: TAPE & REEL
(2 - 29 POSITIONS ONLY)
OPTION
-P: PICK & PLACE PAD
(POS -03 THRU -50 ONLY)
-A: ALIGNMENT PIN (4 POS MIN)
-LC: LOCKING CLIP (2 POS MIN)
(SEE NOTE 9)
-K: USE K-DOT-.256-.375-.005
POLYAMIDE FILM PAD (AVAILABLE
ON POS -03 THRU -50; .005 [.13]
THICKNESS)
(SEE FIG 4)
OPTION
-BE: BOTTOM ENTRY
(USE RHLE-50-DBE)(SEE FIG. 5)
(LEAVE BLANK FOR STANDARD)
.200 5.08
REF
01
ROW SPECIFICATION
-DV: DOUBLE VERTICAL
(USE RHLE-50-D)
2 MAX SWAY
(EITHER DIRECTION)
C-132-12-XXX
.020 0.51 REF
RHLE-50-D
SEE NOTE 10
5713755 / 5961339
PATENT NUMBERS
"A"
.259 6.58 REF
90°±3°
C
C
.144 3.66
SEE TABLE 2
"A"
SECTION "A"-"A"
FIG 1
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. ALL IDENTIFICATION MARKS MUST NOT STAND GREATER THAN .002 [.05]
OFF THE SURFACE OF THE PART.
3. PULL OUT FORCE FOR -LC, -A, & CONTACT IS 12 oz MIN.
4. COPLANARITY: SEE TABLE 2.
5. BURR ALLOWANCE: .003 [.08] MAX
6. CUT ASSEMBLIES AFTER FILL. CUT FLASH TO BE .010 MAX WITH NO FLASH
ALLOWED IN HOLES OR EXTENDING BELOW LEADS. WILL LOSE A POSITION
FOR EVERY CUT MADE ON A SOCKET STRIP.
7. TUBE POSITIONS 03 THRU 50. LAYER PACKAGE POSITION 02.
8. ENDWALL THICKNESS: .030+/-.005[.76+/-.13] TO BE MEASURED FROM BOTTOM VIEW.
9. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC OPTION IS NOT
COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL PLACEMENT
FOR ALL ASSEMBLIES WITH THE –LC OPTION.
10. SAMTEC LOGO MAY NOT BE PRESENT ON CUT TO POSITION CONNECTORS.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
*
PROPRIETARY NOTE
*
HLE-116-02-XXX-DV SHOWN
-A & -LC OPTION
(No OF POS -2) x.1000 [2.540]
C
FIG 2
.050 1.27
C
.050 1.27
.010 0.25 REF
3 MAX SWAY
(EITHER DIRECTION)
LC-08-TM-01
SM-A10H
.0625 1.588
3 MAX SWAY
(EITHER DIRECTION)
DECIMALS
.XX: .01 [.3]
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
3
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
BODY: VECTRA E130i
CONTACT: BeCu
F:\DWG\MISC\MKTG\HLE-1XX-02-XXX-DV-XX-XX-XX-MKT.SLDDRW
[2.54] .100 TIGER BEAM SOCKET ASSEMBLY
HLE-1XX-02-XXX-DV-XX-XX-XX
ED MESSER 12/19/98
SHEET
1
OF
2
BY:
REVISION AT

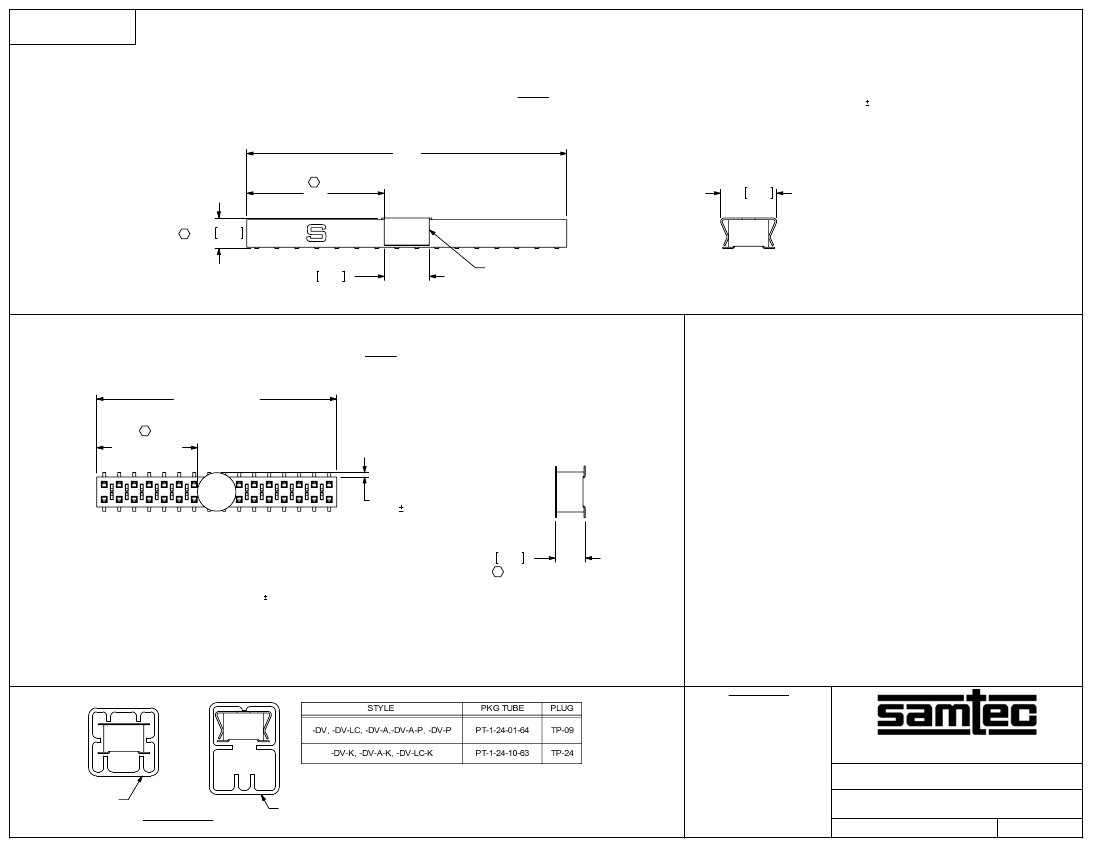

(-P: PICK AND PLACE PAD)
AVAILABLE ON POSITIONS 03 THRU 50
"R"
"S"
.152 3.86
LMP-02
C
FIG 3
NOTE: "R" = USE MEASURED DIM (REF)
"S" = {("R" - .225 [5.72])/2} .020 [.51]
.280 7.11
C
.225 5.72
-K: POLYMIDE FILM PAD
AVAILABLE ON POS 03 THRU 50
"R" (SEE NOTE)
C
FIG 4
"S"
(SEE NOTE)
.028±.020
[.71 .25]
.149 3.78
C
NOTE: "R" = USE MEASURED DIM (REF)
"S" = {("R" - .2559 [6.500])/2} .020 [.51]
F:\DWG\MISC\MKTG\HLE-1XX-02-XXX-DV-XX-XX-XX-MKT.SLDDRW
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
.100 TIGER BEAM SOCKET ASSEMBLY
PT-1-24-10-63
TUBE VIEWS
PT-1-24-01-64
SHEET SCALE: 2:1
HLE-1XX-02-XXX-DV-XX-XX-XX
SHEET
2
OF
2
BY:
ED MESSER 12/19/98
