5707.2 Overview

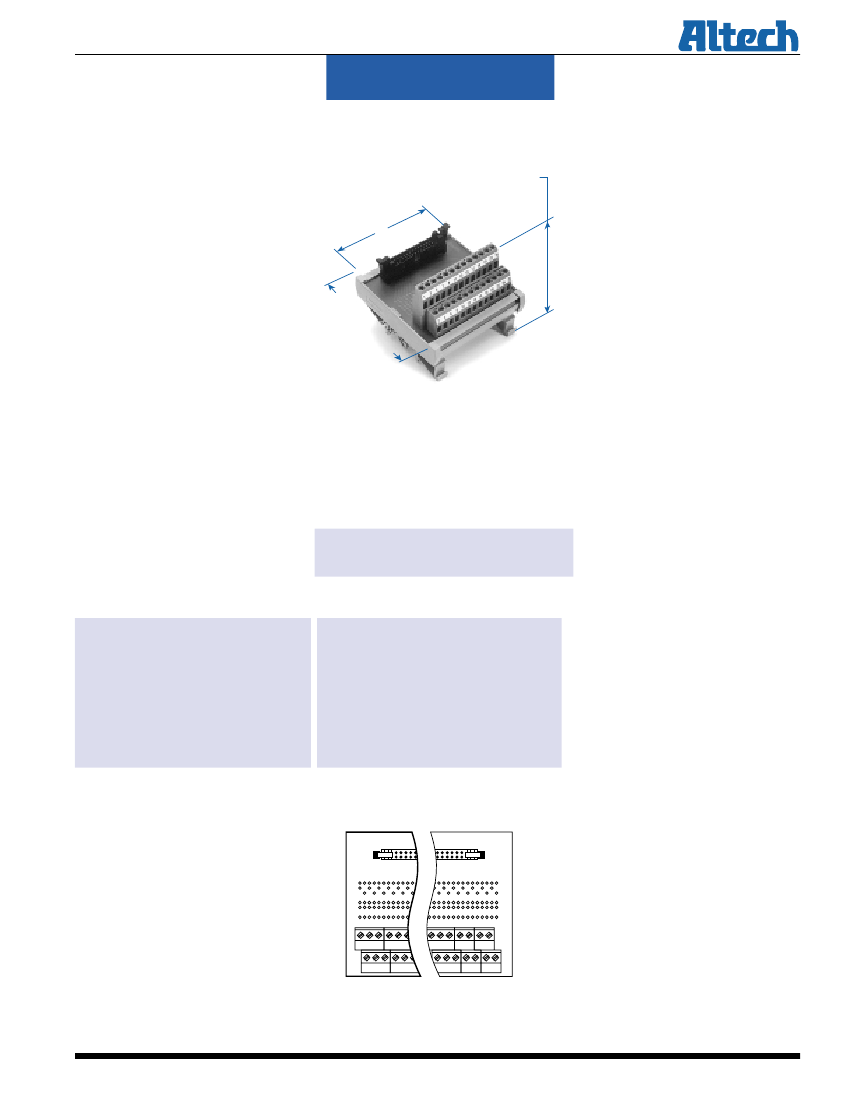

INTERFACES CONNECTOR-TO-WIRE Ribbon Cable Module 35 or 32mm DIN Rail

Preview

Download Datasheet

View All

ONNECTOR

ERMINAL

LOCK

ODULES

FBK

Ribbon Cable

INTERFACES

CONNECTOR-TO-WIRE

Ribbon Cable Module

35 or 32mm DIN Rail

Compact Ribbon Connector Modules

provide an interface between multi-wire flat

cables outfitted with IDC connectors and

discrete wires. Up to 64 conductors can be

terminated saving time and eliminating

wiring mistakes.

No special wiring or tools are required.

Ribbon Cable

Interface Modules are

typically used in communications, data pro-

cessing, process control and other industrial

applications.

FBK Ribbon Cable Modules are supplied

with short strain relief ejector latches (long

ejector latches are available), screw-cage

clamp terminal blocks and component solder

pads for easy insertion of circuit building

components. All terminal blocks are

individually marked to correspond to the

numbers on the header pins.

•

Screw-Cage Clamp Connections

Up to 64 Poles

4 to 5 Component Solder Pads Per Line

.9mm (.035 in.) Component Mtg. Holes

DIN Rail Mount, Panel Mount Available

No. of

Poles

TS35x7.5 70mm (2.75 in.)

TS32x15 75mm (2.95 in.)

Wire Range

0.5-4mm

22-12 AWG

Type

FBK10

FBK14

FBK16

FBK20

FBK26

FBK34

FBK40

FBK50

FBK60

FBK64

Cat. No.

5720.2

5721.2

5722.2

5723.2

5724.2

5725.2

5726.2

5727.2

5728.2

5729.2

Current

Module Length (L)

mm (in.)

47 (1.85)

69 (2.72)

80 (3.15)

103 (4.06)

114 (4.49)

148 (5.83)

170 (6.68)

Voltage

250V AC

Std.

Pk.

Ordering Information

Ribbon Cable Module with

Short Ejector Latches

To order long ejector latches, specify Cat. No.

with /L suffix. Example: Cat. No. 5727.2/L.

2 46 8

1 35 7 9

1 3 5 7 9 11

2 4 6 8 10 12

51 53 55 57 59 61 63

52 54 56 58 60 62 64

Model FBK64

Altech Corp.

• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
