Programmable optical
absolute multi-turn shaft encoders
BMC/BMD parallel
features
BMC

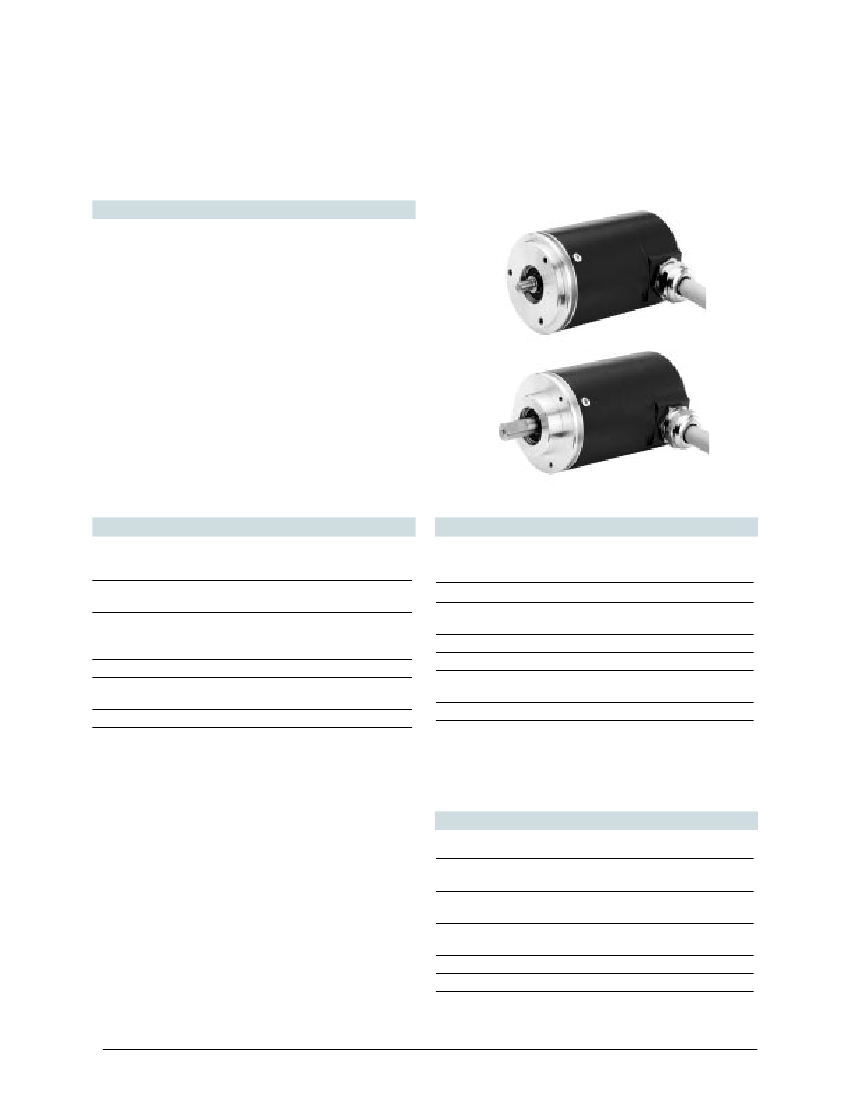

• high-resolution multi-turn encoder
• parallel interface
• resolution up to 24 Bit
• Gray-, BCD- and Binary-Code
• high protection class
BMD
general data
voltage supply
max. supply current
no load
max. resolution
10 - 30 VDC
with reverse polarity protection
50 mA (at 24 VDC)
from 2 up to 4096 steps/rev
any and from 1 up to 4096 steps/rev
programmable in Base 2
±
1/2 step
F/R-input, STORE/ENABLE,
zero set input
400 kHz
mechanical data
max. revolutions
rotor inertia
torque
max. shaft load
max. protection class
material
weight
mechanical 10,000 /min
electrical 6000 /min
2 x 10
-6
kgm
2
<0.010 Nm (no clamping ring)
<0.015 Nm (with clamping ring
axial: 20 N
radial: 40 N
IP 65
housing: steel
flange: aluminum
approx. 600 g
pulse tolerance
input signal
code switching speed
ambient conditions
temperature range
relative humidity
vibration
shock
noise immunity
emitted interference
-20 to +70
°C
max. 95%
non condensing
DIN EN 60068-2-6
(≤ 100 m/s
2
/ 16-2000 Hz)
DIN EN 60068-2-27
(≤ 2000 m/s
2
/ 6 ms)
DIN EN 61000-6-2
DIN EN 61000-6-4
www.baumerelectric.com
Programmable optical
absolute multi-turn shaft encoders
BMC/BMD parallel
assignment
signals for parallel input interface
1 - 24
24 parallel output signals.
Data lines D0 to D23. With PNP, pull down;
with NPN, 4.7 kΩ pull up resistors recom-
mended for each data line.
Zero setting input for setting a zero at any point
within the programmed encoder resolution.
The zero setting process is triggered by a HIGH
pulse and should take place after direction of
rotation selection (F/R). For maximum interfer-
ence immunity after zero setting, connect to
GND. Pulse duration
≥
100 ms.
If this input is at LOW level, the output drivers
will be activated. On application of HIGH po-
tential (or unconnected), the output drivers
assume a HIGH-resistance state.
By applying a LOW level, the data of the
absolute encoder will be buffered. If this input
is connected to HIGH potential or remains
open, the current position data of the abso-
lute encoder will be switched through to the
output drivers. For reliable readout of the
data, this line must be used in the case of
Binary-Code.
By applying a HIGH potential, ascending val-
ues will be output when the shaft rotates cw
(looking at shaft). If LOW potential is applied,
descending values will be output.
Designation parallel
cable
connector signal
cable color
37-pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
WH
BN
GN
YE
GY
PK
BK
VT
GY/PK
RD/BU
WH/GN
BN/GN
WH/YE
YE/BN
WH/GY
GY/BN
WH/PK
PK/BN
WH/BK
BN/BK
GY/GN
YE/GY
PK/GN
YE/PK
-
-
YE/BU
BN/BU
BN/RD
GN/BU
-
-
-
GND-Sense
WH/BU
V
S
-Sense WH/RD
RD
+V
S
BU
GND
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
-
-
ZERO
ENABLE
STORE
F/R
-
-
-
white
brown
green
yellow
grey
pink
black
violet
grey/pink
red/blue
white/green
brown/green
white/yellow
yellow/brown
white/grey
grey/brown
white/pink
pink/brown
white/black
brown/black
grey/green
yellow/grey
pink/green
yellow/pink
-
-
yellow/blue
brown/blue
brown/red
green/blue
-
-
-
white/blue
white/red
red
blue
D0 - D23
27 ZERO
28 ENABLE
29 STORE
30 F/R
34 GND-
Sense
This contact is connected internally to GND
and assists, together with V
s
-sense, to meas-
ure the supply voltage at the encoder via the
follow-up electronic.
35 V
s
-
Sense
This contact is connected internally to +V
s
.
If the sensor line is not to be used, this contact
must be isolated (danger of short circuit).
Supply voltage.
Ground connection to encoder.
36 +V
s
37 GND
Screen: In the case of encoders with cable output, the
screen is connected to the housing.
www.baumerelectric.com
BMC
BMD
inputs
One control signal each ENABLE for activation of the
output driver, STORE for storing the output data, F/R for
selection at positive direction of rotation and ZERO for
zeroing in any position.
input voltage
level HIGH
level LOW
(V
S
= 10 - 30 VDC)
0.7 V
S
up to V
S
0 up to 0.3 V
S

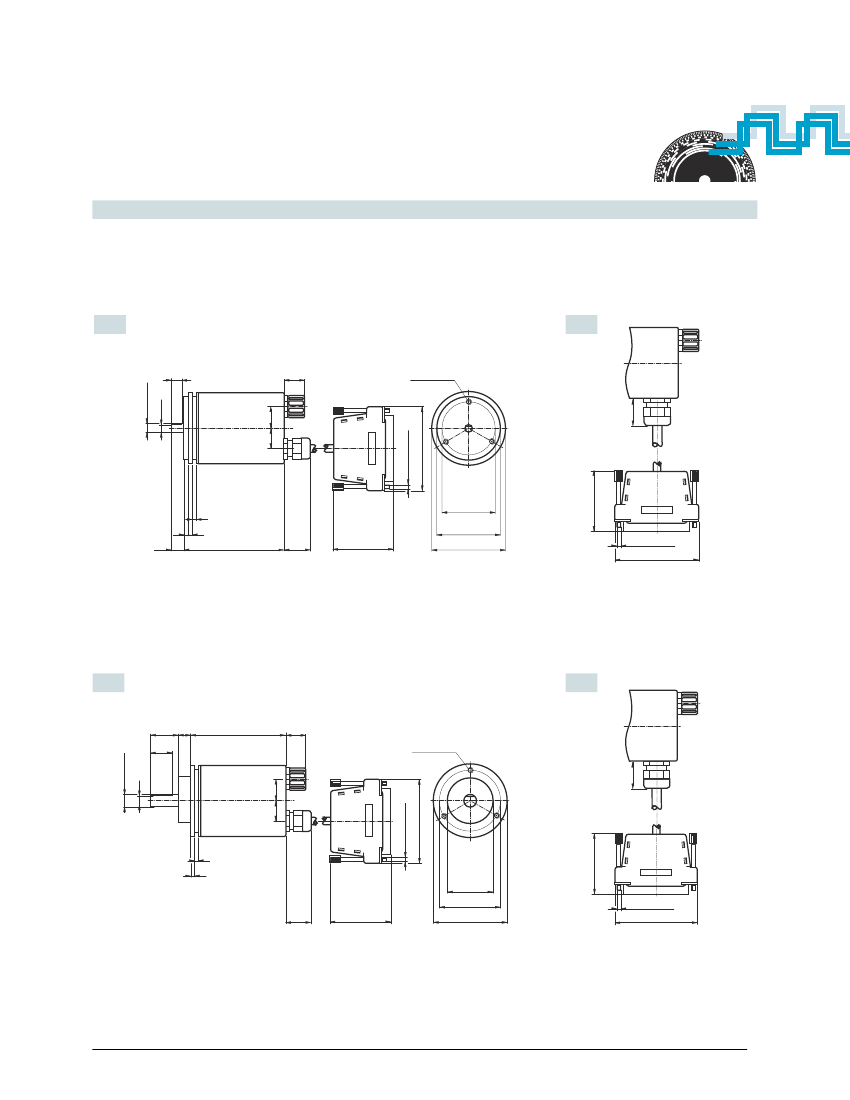

order designation
BM
3P . 24
4096
connection cable
J
K
axial with D-Sub connector
cable length 1 m
radial with D-Sub connector
cable length 1 m
shaft
Wiring:
Inputs with 10 kΩ to V
S
, except zero set input with 10 kΩ
to GND.
C6
6 mm IP 65 (BMC)
C0
10 mm IP 65 (BMD)
signal characteristic STORE/ENABLE
ENABLE
t2
STORE
t1
t3
t4
Tristate
output signals
N
NPN (short-circuit protection), OC
P
PNP (short-circuit protection), OC
housing
C
D
servo flange
clamping flange
Signals
ENABLE
STORE
time typically
t1/t2
t3/t4
10 - 30 VDC
60
µs
200
µs
needed for programming
- PC with RS 232-interface and Windows-operating system
- Progeber software and handbook
- programming cable, connects encoder with PC
outputs
24 parallel output signals with STORE and tristate function
(ENABLE).
All outputs with short circuit protection PNP or NPN
output stages (OC).
level HIGH (PNP)
level LOW (NPN)
load HIGH (PNP)
load LOW (NPN)
tristate
≥
+V
S
- 4.5 V (at I = -15 mA)
≤
3.5 V (at I = 15 mA)
≤
-20 mA
≤
20 mA
≤
200
µA
accessories
mounting adapter
fixing screws and servo clamps
mounting bracket
programming software
with cable and user manual
