MPM-01V
Series
Ultra Wide Input, 1W
Miniature, Board Mount
AC/DC Power Supplies
Electrical Specifications
Key Features:
•
1W Output Power
•
Universal 85-305 VAC Input
•
EN 60950 Approved (UL)
•
Meets IEC Safety Class II
•
-25ºC to +70ºC Operation
•
Single Regulated Output
•
>300 kHour MTBF
•
Ultra-Miniature DIP Case
Specifications typical @ +25°C, 230 VAC input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice.
Input
Parameter
Input Voltage Range
Input Frequency
Input Current
Inrush Current
Leakage Current
Conditions
Min.
Typ.
85
120
47
See Model Selection Guide
110 VAC
5.0
230 VAC
11.0
110/230 VAC
Max.
305
430
63
Units
VAC
VDC
Hz
A Pk
0.15
Max.
mA
Units
Output
Parameter
Output Voltage
Output Current
Output Voltage Accuracy
Line Regulation
Load Regulation
Ripple & Noise (20 MHz)
Hold-Up Time
Temperature Coefficient
Short Circuit Protection
Over Current Protection
Conditions
Min.
Typ.
See Model Selection Guide
See Model Selection Guide
See Note 1
V
IN
= Min to Max
See Note 2
100
115 VAC
70
230 VAC
300
±0.02
Continuous (Autorecovery)
>110% With Autorecovery
Conditions
Input to Output
Conducted
Radiated
Electrostatic Discharge (ESD)
RF Field Susceptibility
Electrical Fast Transients/Bursts On Mains
Surge
CS
PFM
Volt. Dips, Short & Inter. Immunity
Min.
3,000
Typ.
±5.0
±2.0
±5.0
200
%
%
%
mV Pk - Pk
mSec
%/°C
General
Parameter
Isolation Voltage
EMI/RFI, See Note 3
Units
VAC
CISPR22/EN 55022 Level B
CISPR22/EN 55022 Level B
EN 61000-4-2 Level B 4 kV/8 kV
EN 61000-4-3 Level A 10V/m
EN 61000-4-4 Level B 2 kV
EN 61000-4-5 Level B 1 kV/2 kV
EN 61000-4-6 Level A 10V rms
EN 61000-4-8 Level A 10A/m
EN 61000-4-11 Level B 0 - 70%
100
kHz
Units
°C
°C
%
Max.
EMC Compliance
Switching Frequency
Environmental
MicroPower Direct
292 Page Street
Suite D
Stoughton, MA 02072
USA
T:
(781) 344-8226
F:
(781) 344-8481
E:
sales@micropowerdirect.com
W:
www.micropowerdirect.com
Parameter
Operating Temperature Range
Storage Temperature Range
Cooling
Humidity
Physical
Case Size
Case Material
Weight
Conditions
Min.
Typ.
Max.
Ambient
-25
+25
+70
-40
+85
Free Air Convection (See Derating Curve)
RH, Non-condensing
90
1.327 x 0.874 x 0.708 Inches (33.7 x 22.2 x 18.0 mm)
Non-Conductive Black Plastic (UL94-V0)
0.70 Oz (20g)
Conditions
Min.
Typ.
MIL HDBK 217F, 25°C, Gnd Benign
300
UL 60950, EN 60950
IEC 61140 Class II
Max.
Units
kHours
Reliability Specifications
Parameter
MTBF
Safety Approvals
Safety Class
www.micropowerdirect.com
Model Selection Guide
Input
Model
Number
MPM-01SV-03
MPM-01SV-05
MPM-01SV-09
MPM-01SV-12
MPM-01SV-15
MPM-01SV-24
Current
(mA)
115
VAC
30
30
30
30
30
30
230
VAC
17
17
17
17
17
17
Output
Voltage
(VDC)
www.micropowerdirect.com
Current
(mA)
Standby
Power
(W Typ)
Capacitive
Load
(µF, Max)
Efficiency
(%, Typ)
3.3
5.0
9.0
12.0
15.0
24.0
300
200
111
83
67
42
0.1
0.1
0.1
0.1
0.1
0.1
4,000
4,000
2,200
2,200
1,000
680
63
68
72
73
74
75
N
Notes:
1. Output voltage accuracy for 3.3V output models is ±6%
Max.
2. Load regulation is measured for an output change of 10%
to 100% at nominal input line.
3. The
MPM-01V
meets EN 55022 Class B without external
components. For applications where noise sensitivity is
critical, a recommended circuit is given below.
4. It is recommended that a fuse be used on the input of a
power supply for protection. For the
MPM-01V
series, a
0.5A/250 VAC slow blow should be used.

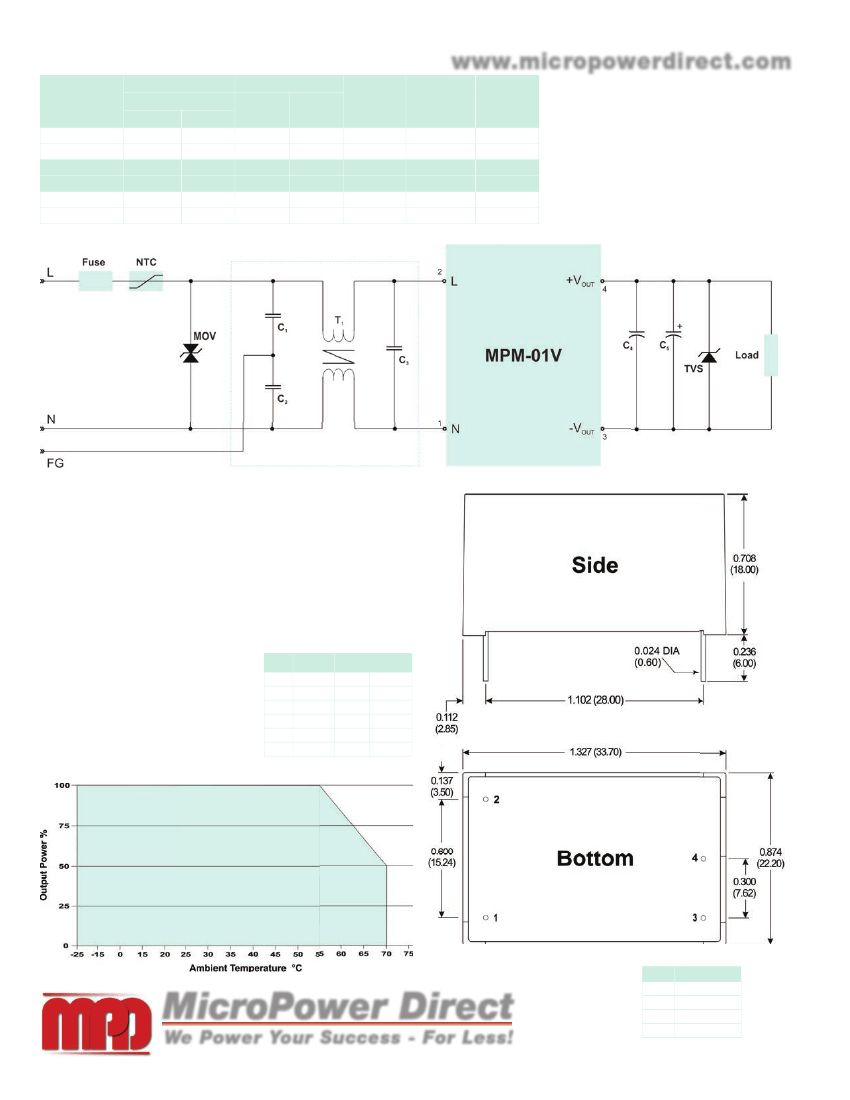

Typical Connection
The diagram above illustrates a typical application connection of the
MPM-01V
series. Notes on this
circuit (starting with the input circuit) are:
1. To maintain clearance and creepage distances (for Class I & Class II devices) the board layout should
guarantee the following spacing between the L and N inputs (before the fuse):
Clearance - 2 mm
Creepage - 2.5 mm
2. The recommended fuse is a 0.5A/250V slow blow. Additionally, a thermistor (NTC) may be used on
the input line. A 5D-9 is recommended.
3. For EMI sensitive applications, the input filtering circuit (inside the dotted boxes) may be added. The
filter consists of:
C
x
: Capacitor C
3
is 0.1
µF/300V
to 0.33
µF/300V
C
Y
: Capacitors C
1
and C
2
are 2200 pF/400V
T
1
: Common mode choke. Inductance is
about 10 mH to 30 mH.
4. The MOV is required for surge protection. Recommended
is a 561KD14.
5. The output filtering capacitor (C
5
) is a high frequency,
low resistance electrolytic capacitor. A ceramic capacitor
(C
4
) is used to filter high frequency noise. Recommended
values are given in the table at right.
6. The TVS is recommended to protect application circuitry
in the event of a fault. Recommended values are given in
the table at right.
V
OUT
3.3
5.0
9.0
12.0
15.0
24.0
C
4
1
µF/50V
1
µF/50V
1
µF/50V
1
µF/50V
1
µF/50V
1
µF/50V
C
5
220
µF
220
µF
120
µF
120
µF
120
µF
68
µF
TVS
SMBJ7.0A
SMBJ7.0A
SMBJ12A
SMBJ20A
SMBJ20A
SMBJ30A
Mechanical Dimensions
Derating Curve
Notes:
•
All dimensions are typical in inches (mm)
•
Tolerance x.xx =
±
0.01 (
±
0.25)
Pin Connections
Pin
1
2
3
4
•
MicroPower Direct
We Power Your Success - For Less!
292 Page Street Ste D Stoughton, MA 02072
•
Function
AC-Neutral
AC-Line
-Vout
+Vout
TEL: (781) 344-8226
•
FAX: (781) 344-8481
E-Mail: sales@micropowerdirect.com
