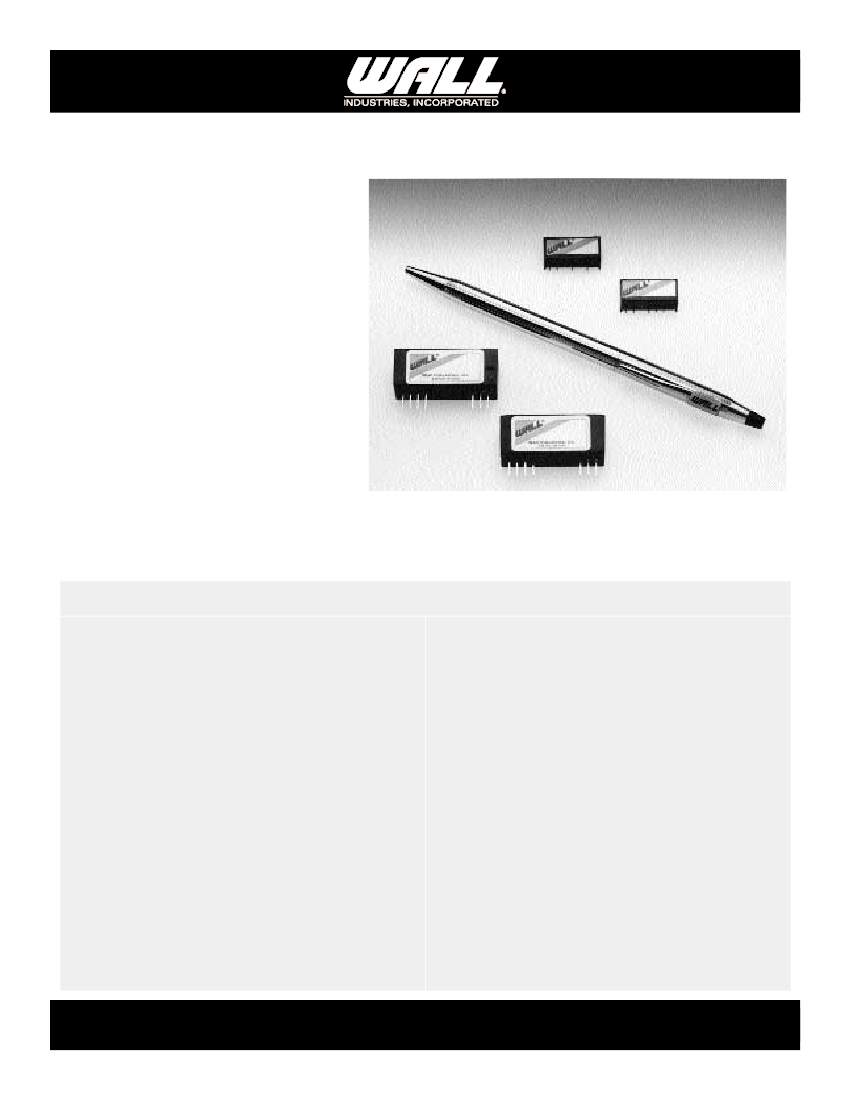

LAN E & F SERIES
1.8 watt SIP for LAN Applications
PRODUCT FEATURES
•
•
•
•
•
Ultra Miniature SIP: 7 and 12 Pin Compatible
Three levels of I/O Isolation Available
Single and Dual Outputs
Low Reflected Ripple Current
Regulated and Non-Regulated Versions
T O 1.8 WATTS
THE LAN E AND F SERIES
When board space is at a premium and volt-
age conversions require low power, the LAN E
and LAN F Series, miniature converters, offer
superior solutions for an economical cost.
Between the two series you have a multitude
of options and operational ratings to choose
from in custom-tailoring the converter to the
demands of the application. Populating 0.179
or 0.516 square inches of board space , the
LAN E and F Series, respectively, provide up
to 1.5 watts of power while maintaining speci-
fication over the entire commercial operation
temperature range.
SPECIFICATIONS: LAN E AND F SERIES
INPUT SPECIFICATIONS
All specifications apply @ +25 C ambient unless otherwise noted.
GENERAL SPECIFICATIONS
Efficiency (Typical) Regulated ....................55 to 65%
Non-Regulated ..................................70 to 85%
Isolation Voltage (input to output) LAN E......1000VDC
LAN F ................................500VDC or 3000VDC
Switching Frequency ........................20kHz minimum
Input Voltage Range 5,12,15,24VDC LANE ±5%
......................................................LANF ±10%
Input Filtering: LANE..................Low ESR Capacitors
LANF ................................Pi Network
OUTPUT SPECIFICATIONS
Output Current ..........................................See table
Voltage Tolerance..............±5%(nom. line 100% load)
Regulation:
Line: LAN E&F Non-Regulated ........±1.3%/% of Vin
Line: LAN F Regulated ..................................±0.5%
Load: LAN E&F Non-Regulated ..........(E=10%)±8%
........................................................(20-100% load)
Load: LAN F Regulated ................................±0.5%
Short Circuit Protection ............................Short Term
Ripple/Noise (20MHz BW) Regulated:50mV p-p max.
Non-Regulated ......100mV p-p max.
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature ............................0 to +71°C
Storage Temperature ..........................-40 to +100°C
Cooling ......................................Free Air Convection

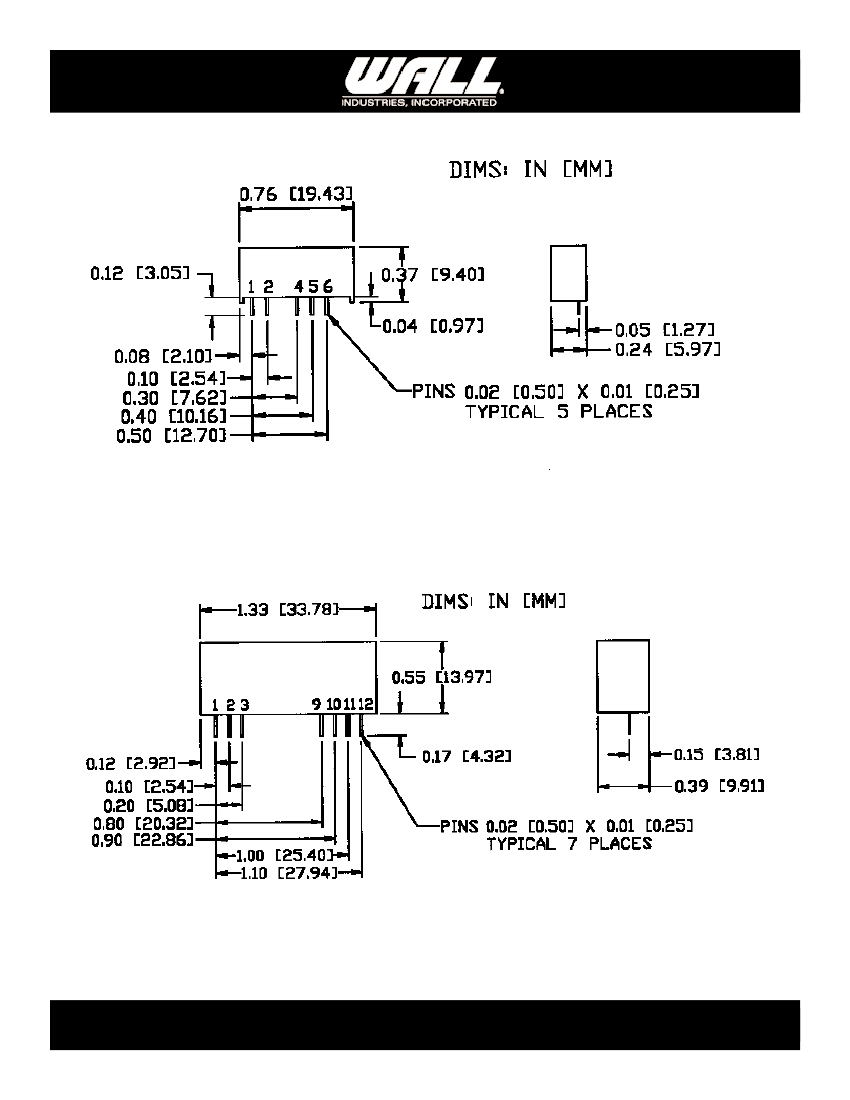

PHYSICAL SPECIFICATIONS
Dimensions LAN E ..................0.765 x 0.235 x 0.37”
Dimensions - LAN F ....................1.29 x 0.40 x 0.55”
Case Material ..............Non-Conductive Black Plastic
Due to advances in technology, specifications subject to change without
notice.
1
