69694-203 datasheet, PDF - EEWORLD Datasheet

69694-203: DescriptionTelecom and Datacom Connector, 18 Contact(s), Male, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size126KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

69694-203 Overview

Telecom and Datacom Connector, 18 Contact(s), Male, Straight, Solder Terminal, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	6 GROUND CONTACTS AVAILABLE IN 1 ROW, SHROUDED

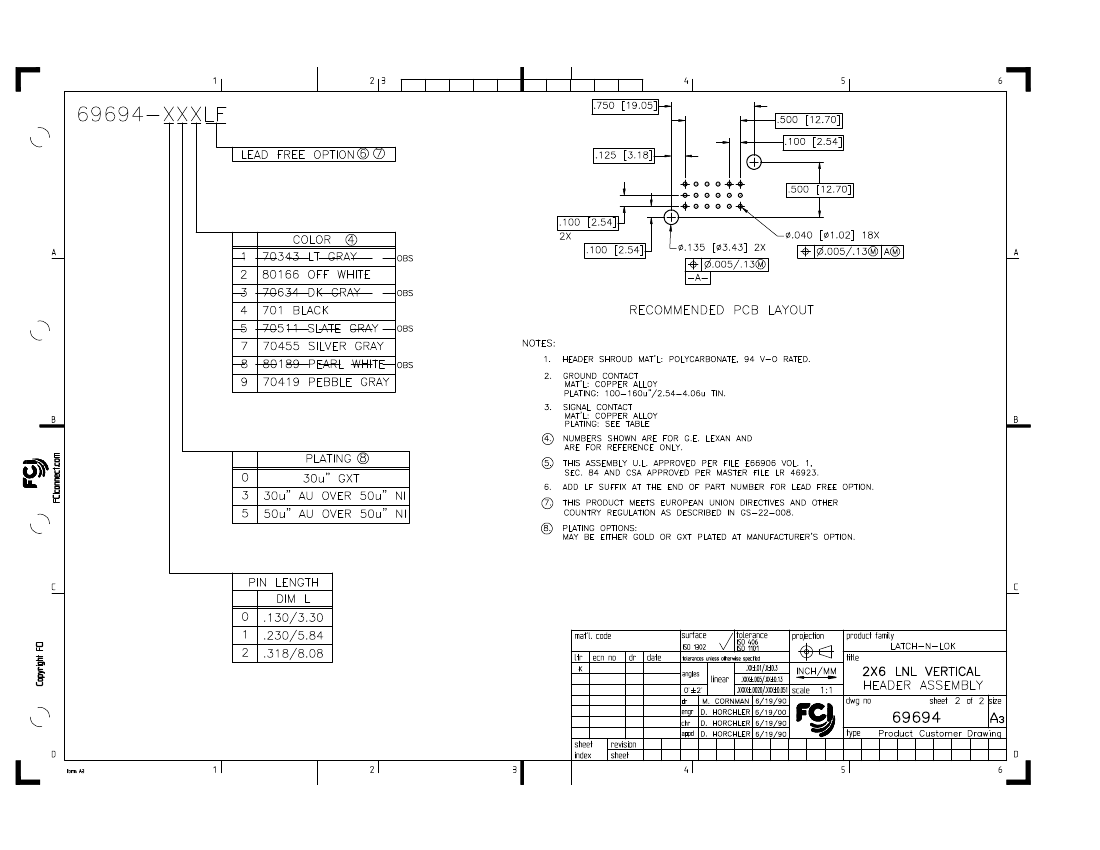

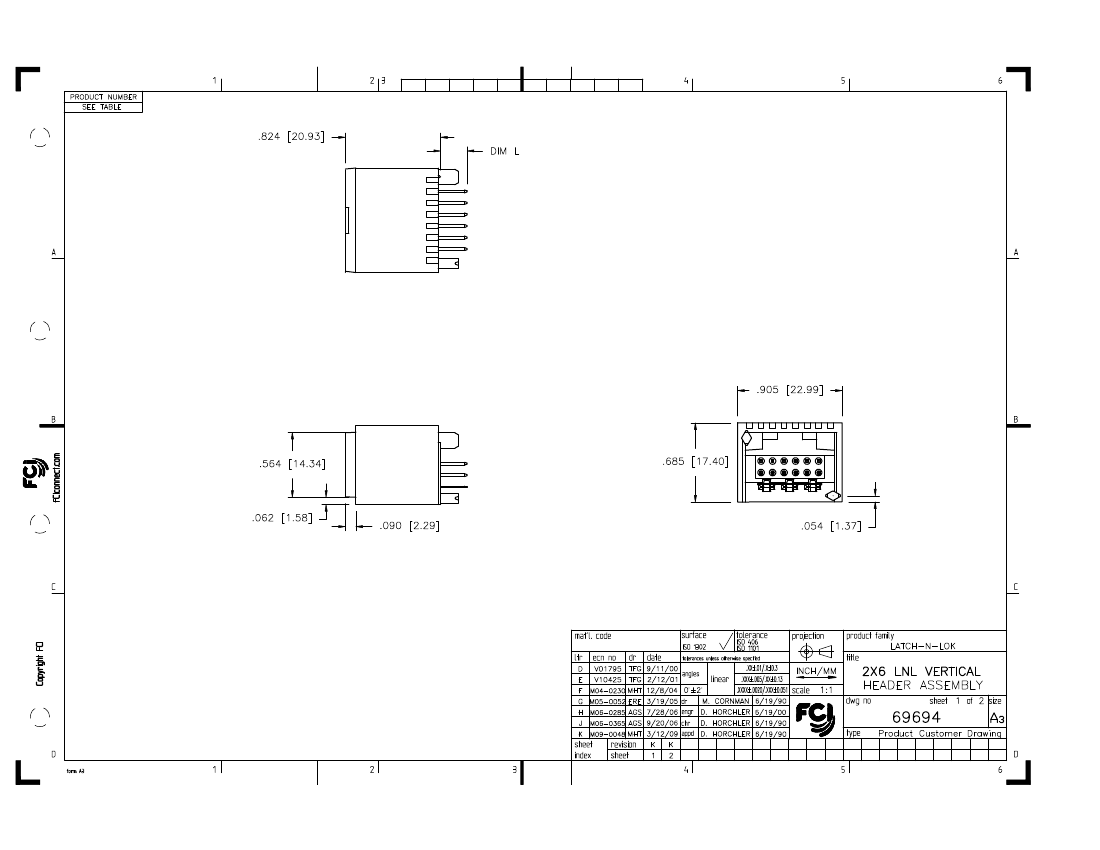

body width	0.685 inch
subject depth	0.824 inch
body length	0.905 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	TIN LEAD OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	1000 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulator color	GRAY
insulator material	POLYCARBONATE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYCARBONATE
Terminal length	0.318 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18
UL Flammability Code	94V-0
Evacuation force-minimum value	1.251 N

PDM: Rev:K

STATUS:

Released

Printed: Oct 13, 2010
