Not for New Design - End of Life - Last Available Purchase Date is 31-May-2011

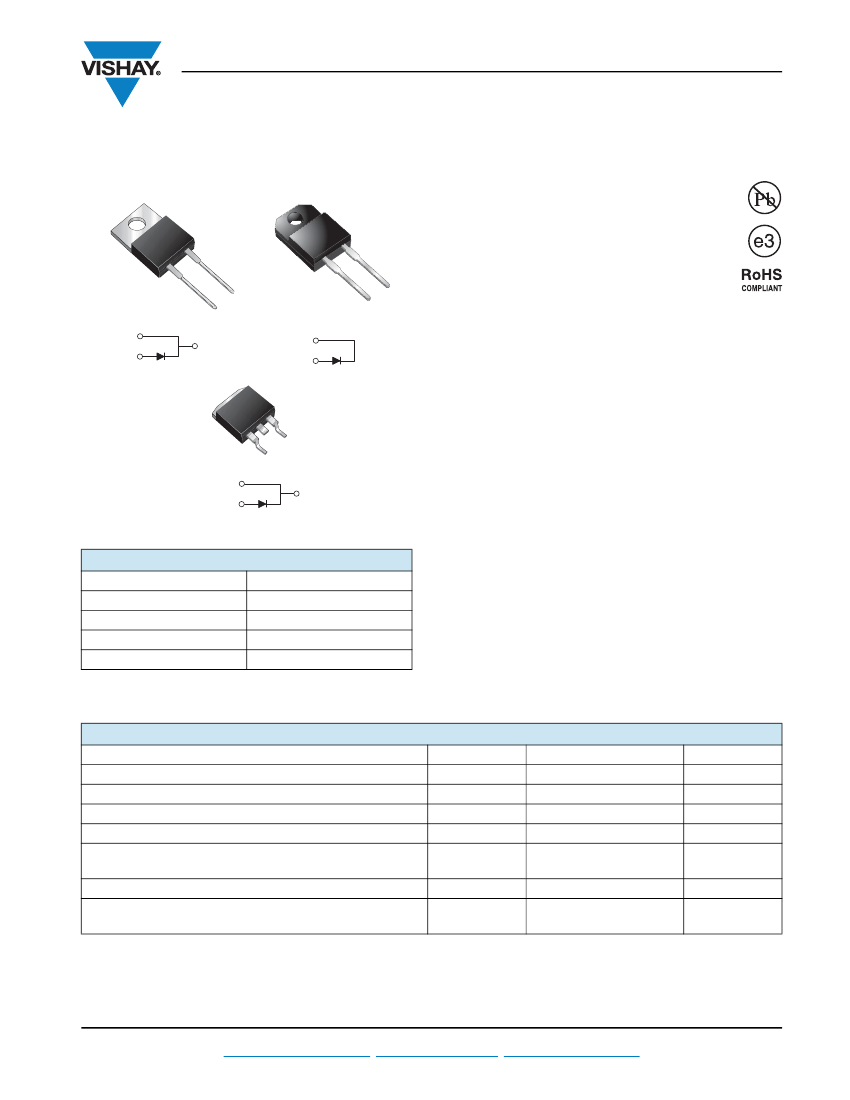

DTV32, DTV32F, DTV32B

Vishay General Semiconductor

High Voltage Damper Diodes

TO-220AC

ITO-220AC

FEATURES

• Glass passivated chip junction

• High breakdown voltage capability

• Very fast reverse recovery time

• Fast forward recovery time

DTV32

PIN 1

PIN 2

DTV32F

PIN 1

• High efficiency, low switching losses

• Meets MSL level 1, per J-STD-020, LF maximum

peak of 245 °C (for TO-263AB package)

• Solder dip 260 °C, 40 s (for TO-220AC and

ITO-220AC package)

• Compliant to RoHS Directive 2002/95/EC and in

accordance to WEEE 2002/96/EC

CASE

PIN 2

TO-263AB

DTV32B

PIN 1

PIN 2

HEATSINK

TYPICAL APPLICATIONS

For use in high resolution display TV and monitor

horizontal deflection application.

MECHANICAL DATA

10 A

1500 V

175 ns

280 ns

1.35 V

PRIMARY CHARACTERISTICS

F(AV)

RRM

Case:

TO-220AC, ITO-220AC, TO263AB

Epoxy meets UL 94 V-0 flammability rating

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3 suffix for consumer grade, meets JESD 201 class

1A whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs maximum

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current (fig. 1)

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Operating junction and storage temperature range

Isolation voltage (ITO-220AC only)

from terminal to heatsink t = 1 min

SYMBOL

RRM

RMS

F(AV)

FSM

, T

STG

VALUE

1500

1050

1500

130

- 55 to + 150

1500

UNIT

°C

Document Number: 88575

Revision: 14-Jan-11
