BSP50-BSP52
NPN Silicon Darlington Transistors
•
High collector current
•
Low collector-emitter saturation voltage
•
Complementary types: BSP60 - BSP52 (PNP)
•
Pb-free (RoHS compliant) package
1)
•
Qualified according AEC Q101
4
2
1
3
Type
BSP50
BSP51
BSP52
Maximum Ratings
Parameter
Marking
BSP50
BSP51
BSP52
1=B
1=B
1=B
2=C
2=C
2=C
Pin Configuration
3=E
3=E
3=E
4=C
4=C
4=C
-
-
-
-
-
-
Package
SOT223
SOT223
SOT223
Symbol
V
CEO
Value
45
60
80
Unit
V
Collector-emitter voltage
BSP50
BSP51
BSP52
Collector-base voltage
BSP50
BSP51
BSP52
Emitter-base voltage
Collector current
Peak collector current
Base current
Total power dissipation-
T
S
≤
124 °C
Junction temperature
Storage temperature
1
Pb-containing
V
CBO
60
80
90
V
EBO
I
C
I
CM
I
B
P
tot
T
j
T
stg
5
1
2
100
1.5
150
-65 ... 150
mA
W
°C
A
package may be available upon special request
1
2007-03-30
BSP50-BSP52
Thermal Resistance
Parameter
Junction - soldering point
1)
Symbol
R
thJS
Value
≤
17
Unit
K/W
Electrical Characteristics
at
T
A
= 25°C, unless otherwise specified
Symbol
Values
Parameter
min.
DC Characteristics
Collector-emitter breakdown voltage
I
C
= 10 mA,
I
B
= 0 , BSP50
I
C
= 10 mA,
I
B
= 0 , BSP51
I
C
= 10 mA,
I
B
= 0 , BSP52
V
(BR)CEO
Unit
max.
V
typ.
45
60
80
V
(BR)CBO
-
-
-
-
-
-
Collector-base breakdown voltage
I
C
= 100 µA,
I
E
= 0 , BSP50
I
C
= 100 µA,
I
E
= 0 , BSP51
I
C
= 100 µA,
I
E
= 0 , BSP52
60
80
90
V
(BR)EBO
I
CES
I
EBO
h
FE
-
-
-
-
-
-
-
-
-
-
10
10
µA
µA
-
Emitter-base breakdown voltage
I
E
= 100 µA,
I
C
= 0
5
-
-
Collector-emitter cutoff current
V
CE
=
V
CE0max
,
V
BE
= 0
Emitter-base cutoff current
V
EB
= 4 V,
I
C
= 0
DC current gain
2)
I
C
= 150 mA,
V
CE
= 10 V
I
C
= 500 mA,
V
CE
= 10 V
1000
2000
V
CEsat
-
-
-
-
-
-
-
-
V
1.3
1.8
1.9
2.2
Collector-emitter saturation voltage
2)
I
C
= 500 mA,
I
B
= 0.5 mA
I
C
= 1 A,
I
B
= 1 mA
-
-
V
BEsat
Base emitter saturation voltage
2)
I
C
= 500 mA,
I
B
= 0.5 mA
I
C
= 1 mA,
I
B
= 1 A
1
For
2
Pulse
-
-
calculation of
R
thJA
please refer to Application Note Thermal Resistance
test: t < 300µs; D < 2%
2
2007-03-30
BSP50-BSP52
Electrical Characteristics
at
T
A
= 25°C, unless otherwise specified
Symbol
Values
Parameter
min.
AC Characteristics
Transition frequency
I
C
= 100 mA,
V
CE
= 5 V,
f
= 100 MHz
Tum-on time
I
C
= 500 mA,
I
B1
=
I
B2
= 0.5 mA
Tum-off time
I
C
= 500 mA,
I
B1
=
I
B2
= 0.5 mA
t
(off)
-
1500
-
t
(on)
-
400
-
ns
f
T
-
200
-
MHz
typ.
max.
Unit
3
2007-03-30
BSP50-BSP52

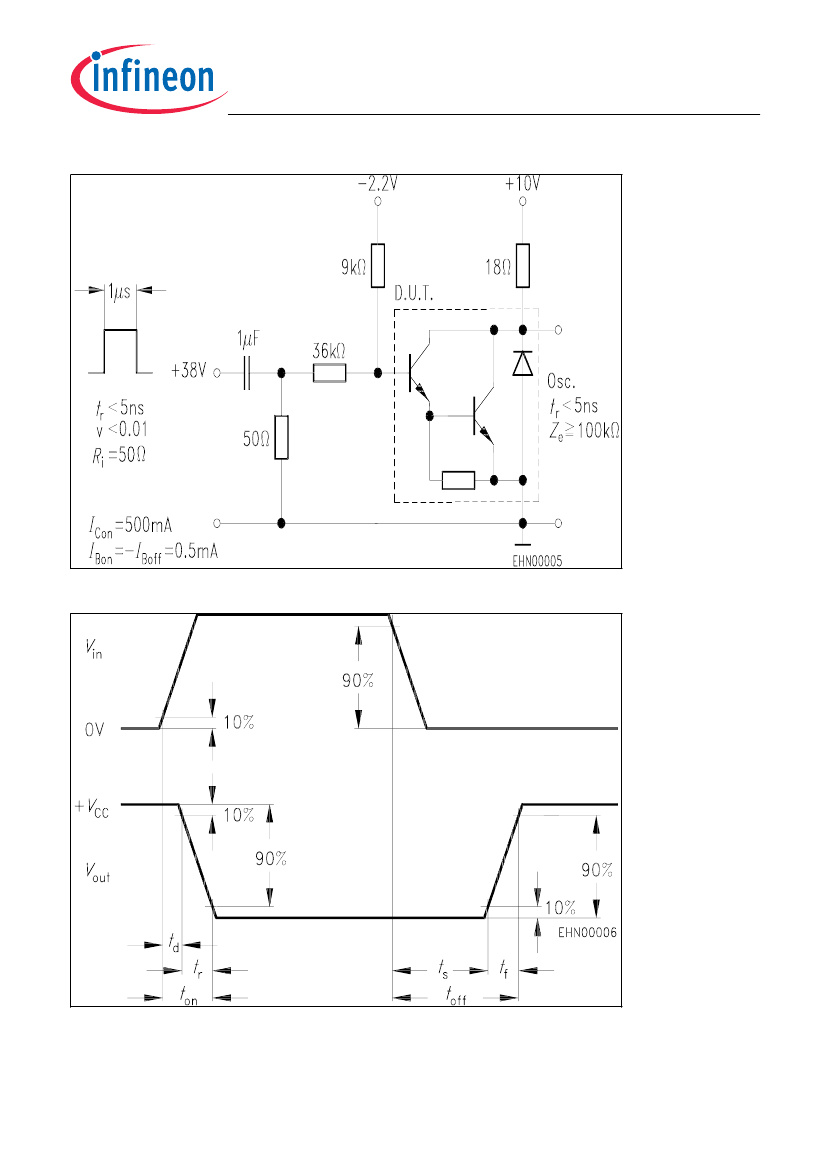

Switching time test circuit
Switching time waveform
4
2007-03-30
BSP50-BSP52
DC current gain
h
FE
=
ƒ
(I
C
)
V
CE
= 10 V
10
5
h
FE
5
BSP 50...52
EHP00661
Collector-emitter saturation voltage
I
C
=
ƒ
(V
CEsat
),
I
B
= Parameter
10
3
BSP 50...52
EHP00663
Ι
C
mA
5
10
4
5
Ι
B
= 0.5 mA
4 mA
10
2
10
3
5
5
10
2
10
1
10
2
10
3
mA 10
4
10
1
0
1
V
V
CE sat
2
Ι
C
Base-emitter saturation voltage
I
C
=
ƒ
(V
BEsat
),
I
B
= Parameter
10
3
BSP 50...52
EHP00664
Transition frequency
f
T
=
ƒ
(I
C
)
V
CE
= 5 V,
f
= 100 MHz
10
3
MHz
f
T
BSP 50...52
EHP00662
Ι
C
mA
5
Ι
B
= 0.5 mA
4 mA
10
2
10
2
5
5
10
1
0
1
2
V
V
BE sat
3
10
1
10
1
5
10
2
mA
10
3
Ι
C
5
2007-03-30
