54174/BFA: DescriptionD Flip-Flop, TTL/H/L Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, TTL, CDFP16; Categorylogic logic; File Size204KB，6 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54174/BFA Overview

D Flip-Flop, TTL/H/L Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, TTL, CDFP16

54174/BFA Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
series	TTL/H/L
JESD-30 code	R-CDFP-F16
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Number of digits	6
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	65 mA
propagation delay (tpd)	51 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	25 MHz

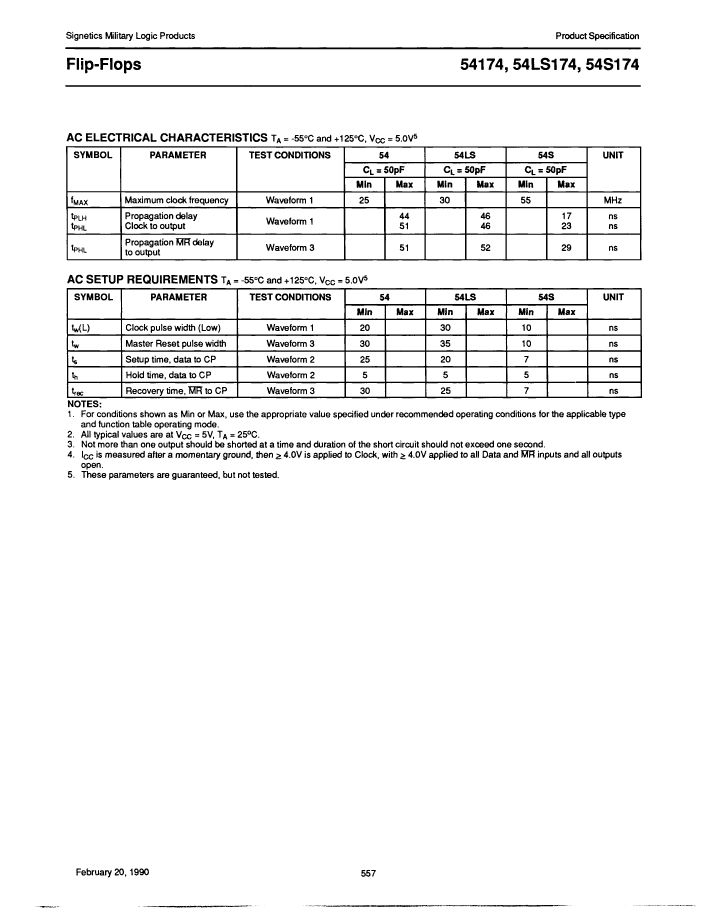

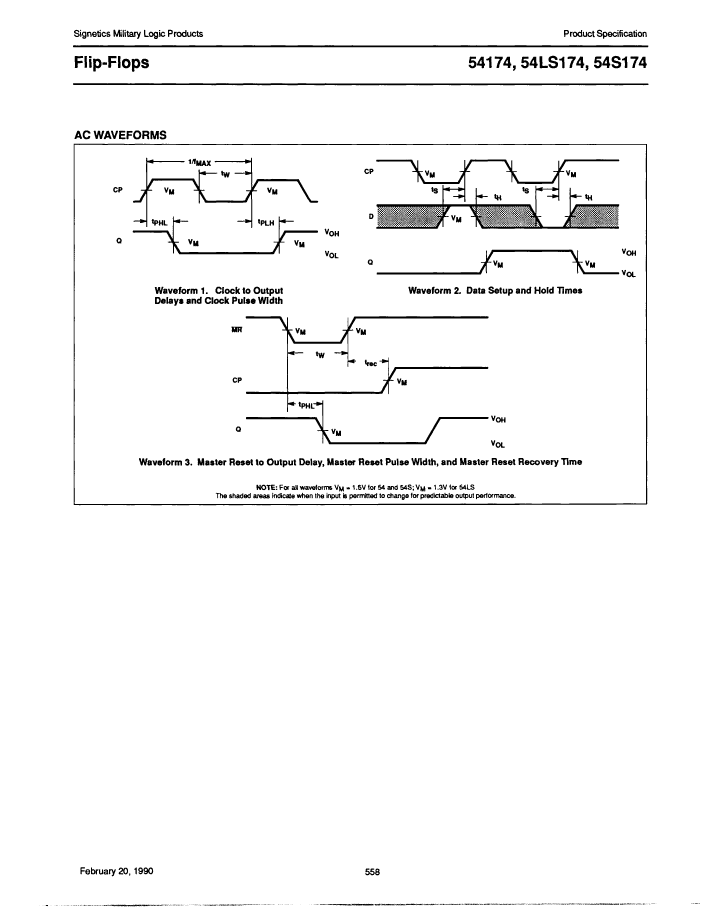

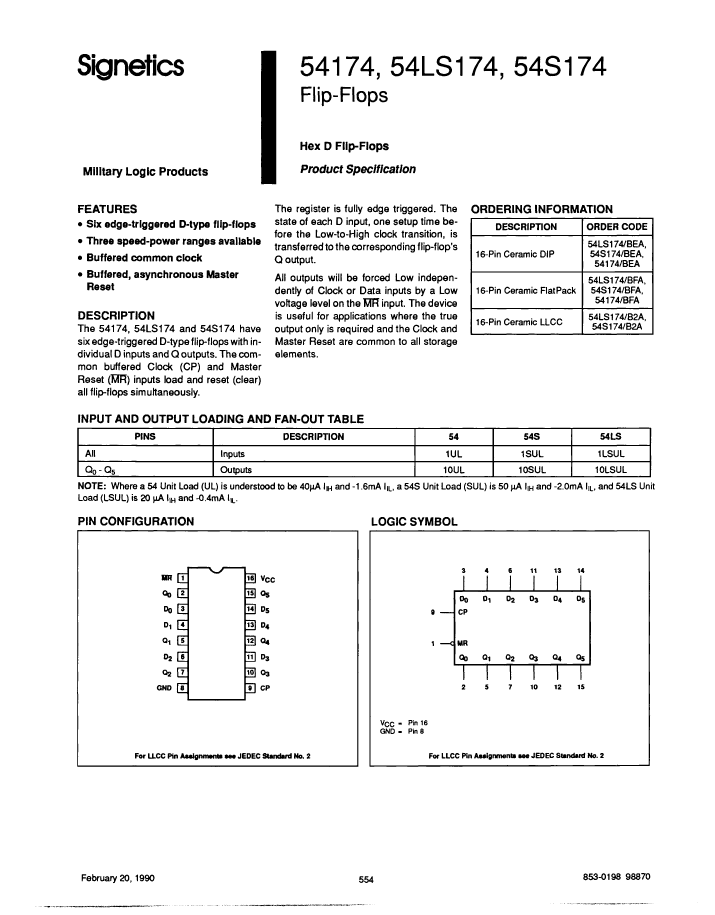

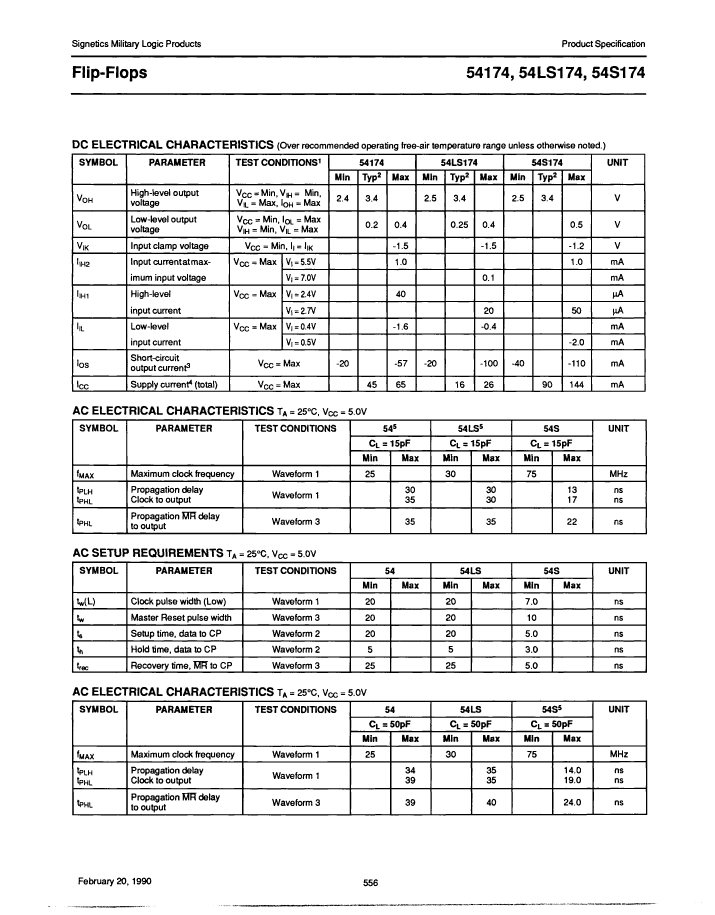

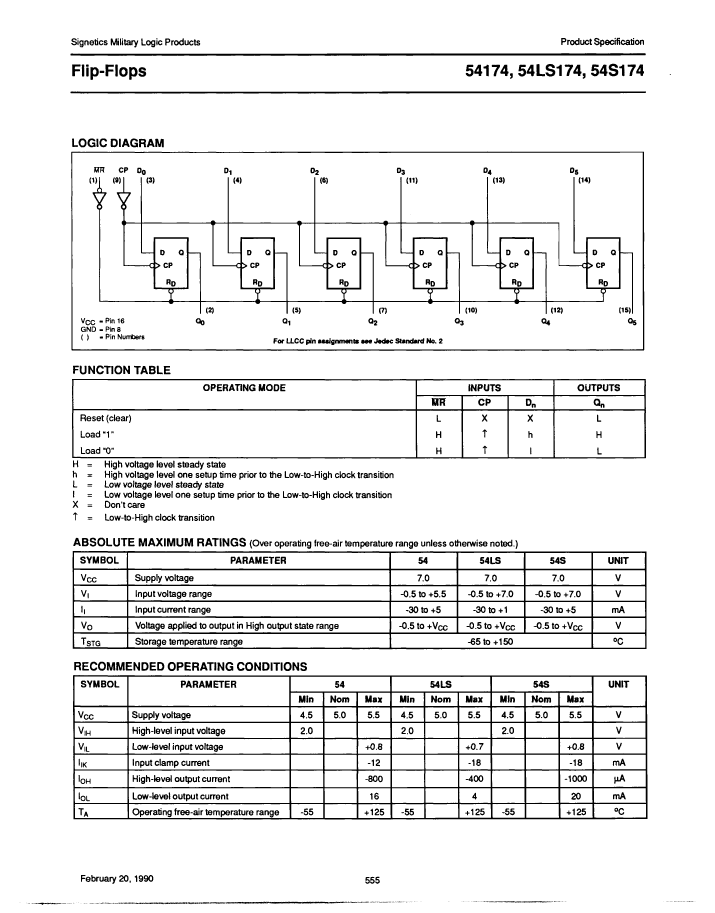

Preview

Download Datasheet

View All

54174/BFA Related Products

	54174/BFA	54S174/BEA	54LS174/B2A	54LS174/BEA	54LS174/BFA	54S174/B2A	DIP1987031841DD	54174/BEA
Description	D Flip-Flop, TTL/H/L Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, TTL, CDFP16	D Flip-Flop, S Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, TTL, CDIP16	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, TTL, CDFP16, CERAMIC, FP-16	D Flip-Flop, S Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, TTL, CQCC20	Array/Network Resistor, Bussed, 0.1W, 1840ohm, 100V, 0.5% +/-Tol, -25,25ppm/Cel, 7025,	D Flip-Flop, TTL/H/L Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16
Reach Compliance Code	unknown	unknown	unknow	unknown	unknown	unknown	compliant	unknown
series	TTL/H/L	S	LS	LS	LS	S	1900	TTL/H/L
Number of terminals	16	16	20	16	16	20	14	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	150 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	FLATPACK	IN-LINE	CHIP CARRIER	IN-LINE	FLATPACK	CHIP CARRIER	DIP	IN-LINE
JESD-30 code	R-CDFP-F16	R-CDIP-T16	S-CQCC-N20	R-CDIP-T16	R-CDFP-F16	S-CQCC-N20	-	R-CDIP-T16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	-	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	-	D FLIP-FLOP
Number of digits	6	6	6	6	6	6	-	6
Number of functions	1	1	1	1	1	1	-	1
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	-	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	-	RECTANGULAR
Maximum supply current (ICC)	65 mA	144 mA	26 mA	26 mA	26 mA	144 mA	-	65 mA
propagation delay (tpd)	51 ns	23 ns	46 ns	46 ns	46 ns	23 ns	-	51 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	-	5 V
surface mount	YES	NO	YES	NO	YES	YES	-	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	-	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	-	MILITARY
Terminal form	FLAT	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	FLAT	NO LEAD	-	THROUGH-HOLE
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	QUAD	-	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	-	POSITIVE EDGE
minfmax	25 MHz	55 MHz	30 MHz	30 MHz	30 MHz	55 MHz	-	25 MHz
Base Number Matches	-	1	1	1	1	1	-	1
