8601-5-68-1: DescriptionSCSI Connector Terminator, 68 Contact(s), Female, 0.05 inch Pitch; CategoryThe connector The connector; File Size358KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

8601-5-68-1 Overview

SCSI Connector Terminator, 68 Contact(s), Female, 0.05 inch Pitch

8601-5-68-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.406 inch
body length	2.521 inch
Connector type	SCSI CONNECTOR TERMINATOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	8601
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	68

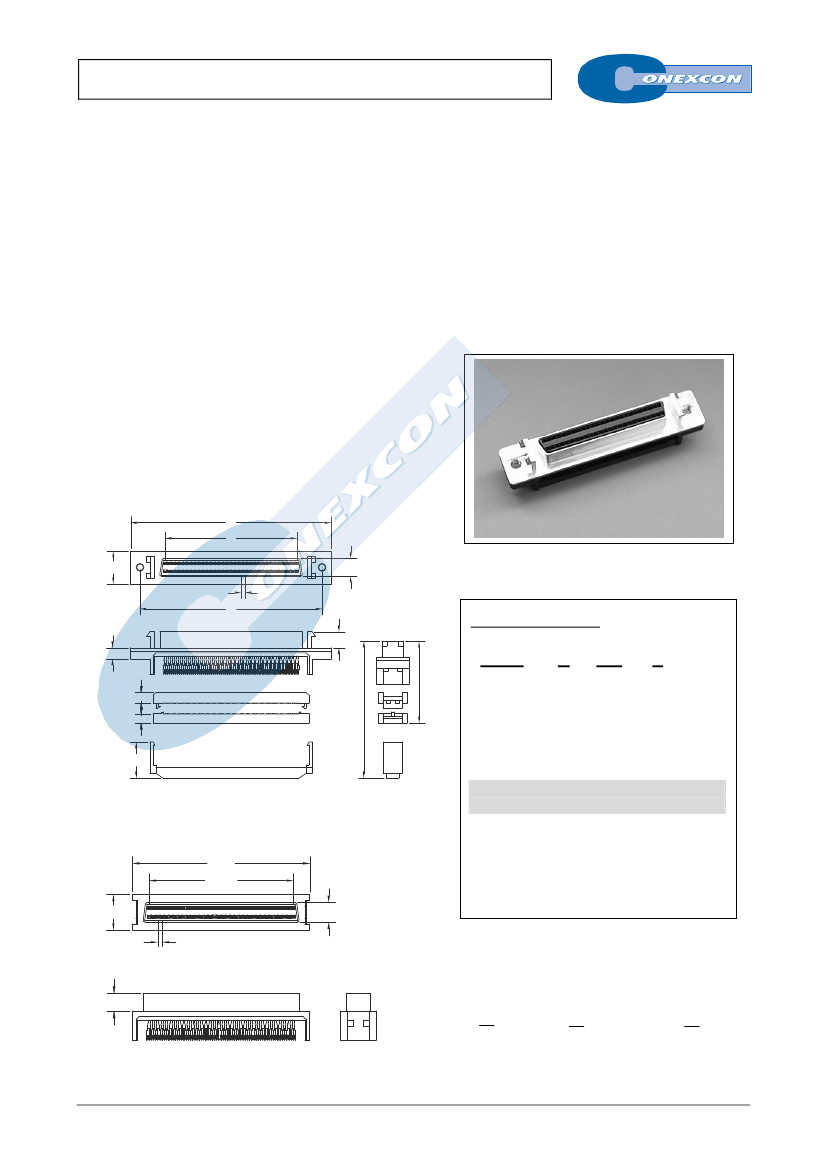

8601-5-68-1 Preview

SCSI-III D-SUB IDC FEMALE

8601 SERIES.

2.54 x 1.27 mm. (0.100 x 0.050”) pitch.

General Features

Electrical Features



Available in 50 and 68 circuits

Mates with male connector SCSI-III 8600 series

Wires range : 30 AWG

Accept cable 0.635 mm pitch 9063 Series

With strain relief



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: PBT, glass reinforced, rated UL 94V-0

Contact: Phosphor Bronze

Operating temperature. -40ºC to +105ºC

RoHS compliant

Mechanical features

Durability: 50 cycles

Dimension Information

METALLIC

B

A

10.3

1.27

C

3.5

5.0

18.0 (Terminated)

5.6

Ordering Information:

8601 -

1

T-

2

XX-

3

1

4

3.5

3.0

13.6 (Terminated)

1. Connector Series

2. (T) Contact Plating

11.5



51.8

41.91

T =

2.

Tin plated

T =

3.

Gold flash over nickel

Recommended Finish

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel

PLASTIC

3. (XX) Number of circuits



5.4

Available in 50 and 68 circuits

10.3

1.27

5.0

Dimensions:

(In mm.)

A

½

1.27





XX





1





2



XX



B

½

1.27









20.85



2



XX



C

½

1.27









14.75



2



(XX) = Number of circuits

A-XX

FULL LINE CATALOGUE

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

8601-5-68-1 Related Products

	8601-5-68-1	8601-3-50-1
Description	SCSI Connector Terminator, 68 Contact(s), Female, 0.05 inch Pitch	SCSI Connector Terminator, 50 Contact(s), Female, 0.05 inch Pitch
Is it Rohs certified?	conform to	conform to
Maker	Conexcon Group	Conexcon Group
Reach Compliance Code	unknown	unknown
body width	0.406 inch	0.406 inch
body length	2.521 inch	2.071 inch
Connector type	SCSI CONNECTOR TERMINATOR	SCSI CONNECTOR TERMINATOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ
Contact style	CENTRONIC	CENTRONIC
Dielectric withstand voltage	500VAC V	500VAC V
Durability	50 Cycles	50 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	8601	8601
Plug contact pitch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING
Number of rows loaded	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C
Plating thickness	15u inch	FLASH inch
Rated current (signal)	1 A	1 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Total number of contacts	68	50
