SP310AED datasheet, PDF - EEWORLD Datasheet

SP310AED: DescriptionLine Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, CDIP18, CERDIP-18; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size540KB，6 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric View All

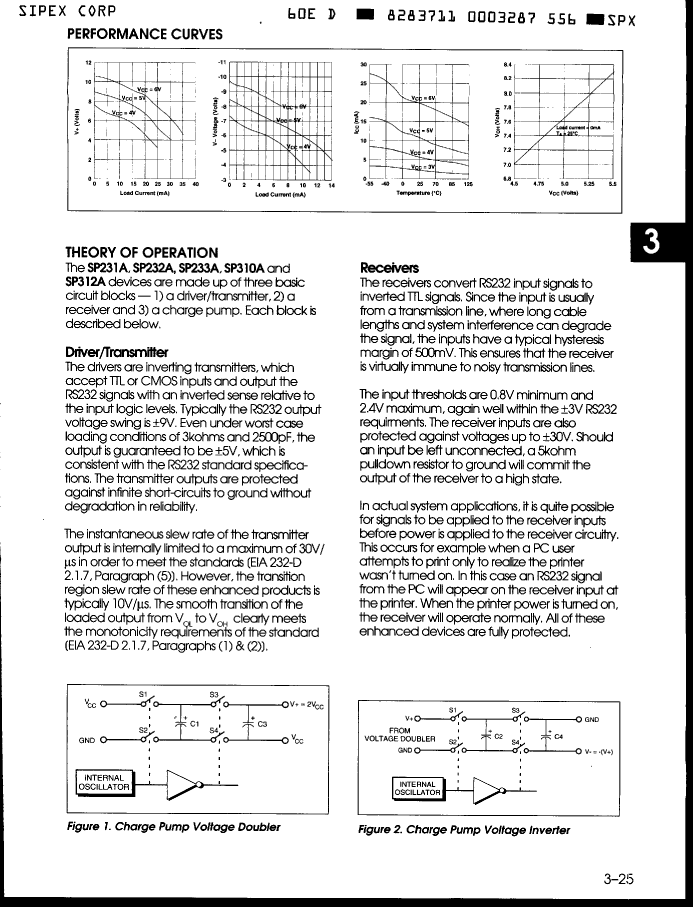

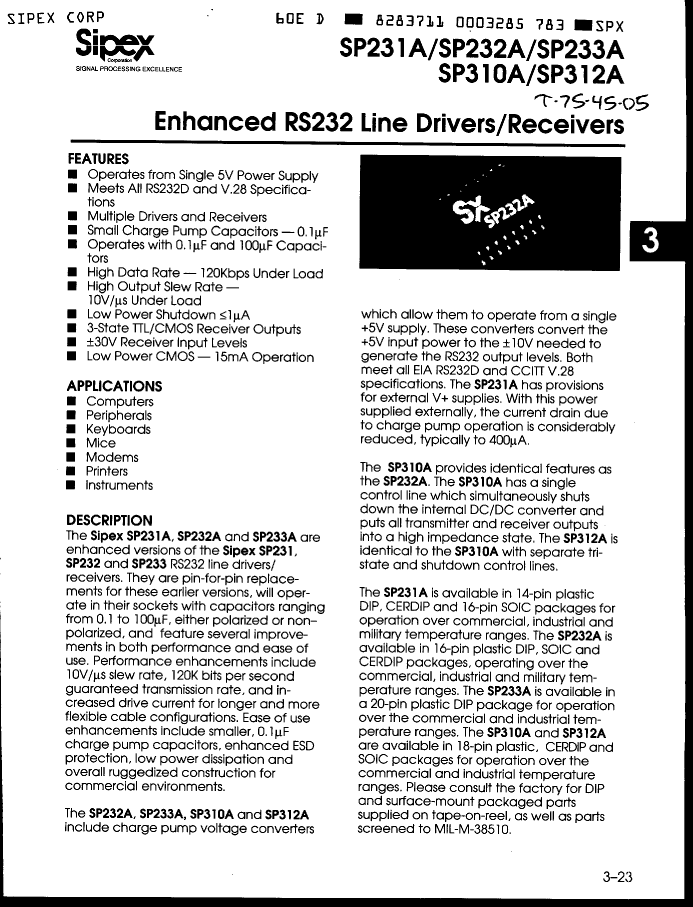

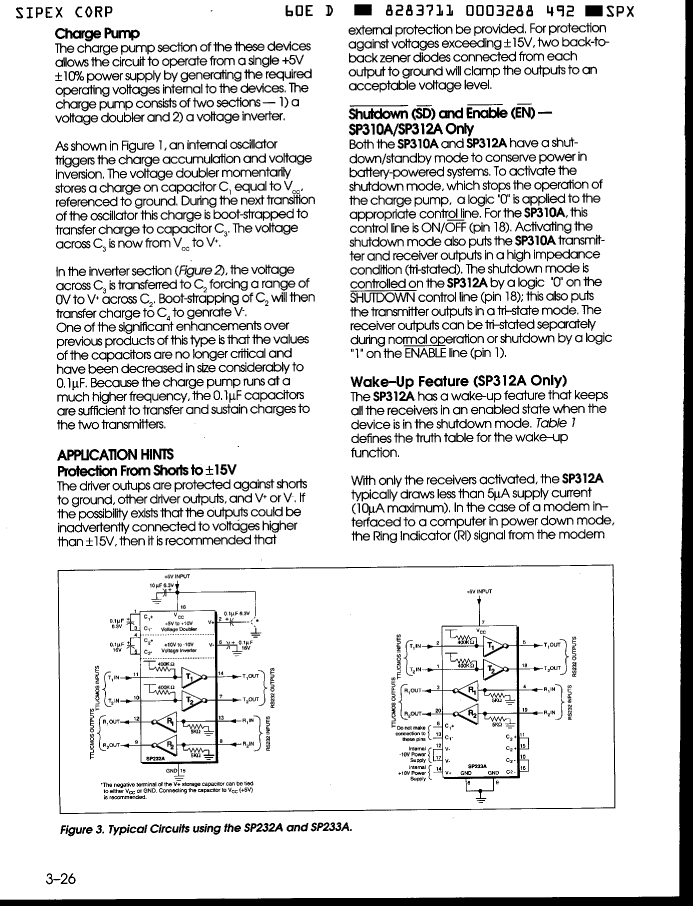

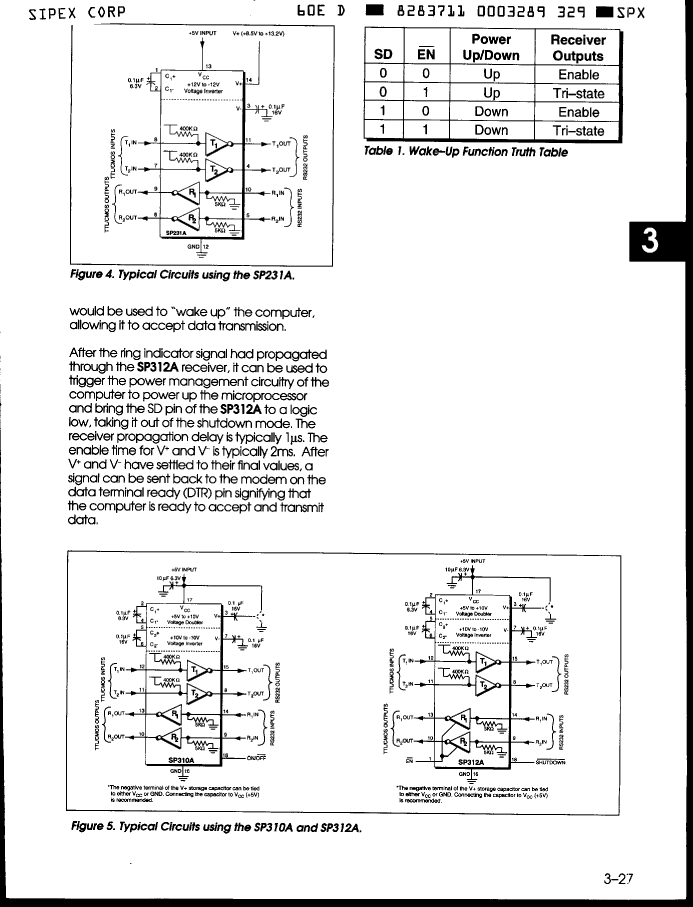

SP310AED Overview

Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, CDIP18, CERDIP-18

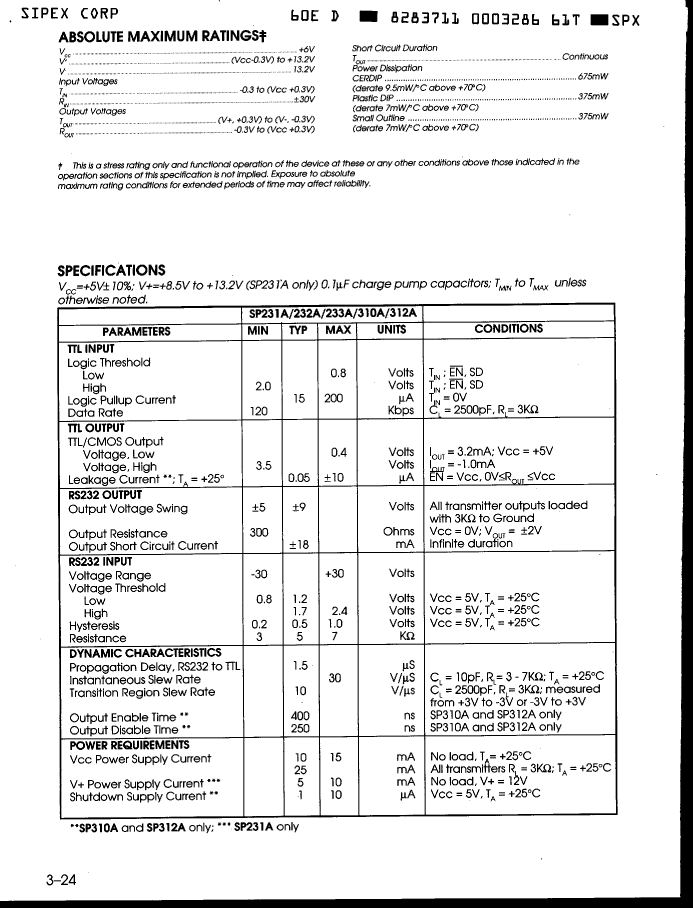

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIPEX
package instruction	CERDIP-18
Reach Compliance Code	unknown
Other features	EXTERNAL CHARGE PUMP
Differential output	NO
Number of drives	2
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232-D; V.28
JESD-30 code	R-GDIP-T18
JESD-609 code	e0
length	24.892 mm
Number of functions	1
Number of terminals	18
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum output swing	10 V
Output characteristics	3-STATE
Maximum output low current	0.0032 A
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum receive delay
Number of receiver bits	2
Maximum seat height	3.937 mm
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
