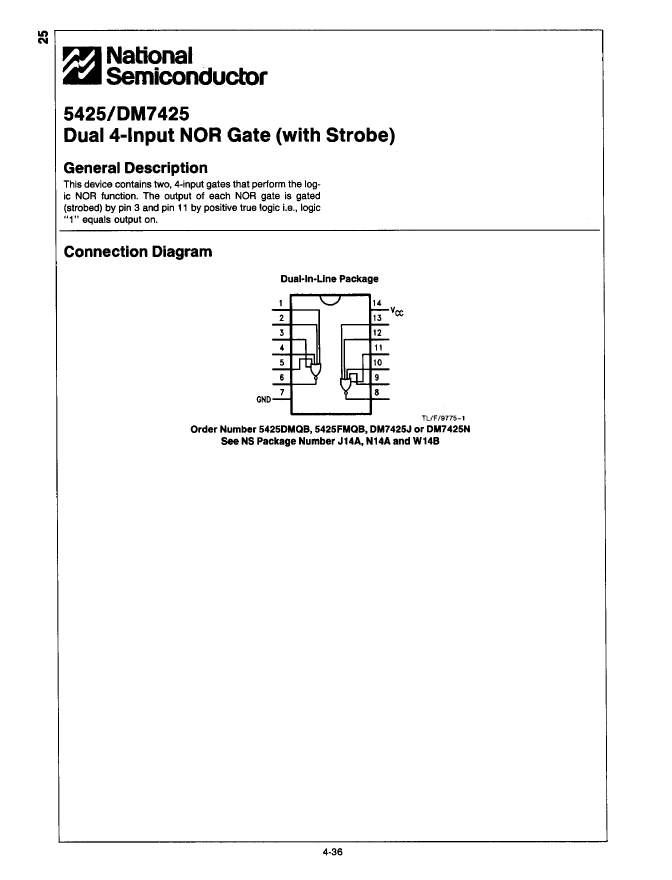

DM7425N

Description
NOR Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, DIP-14
Categorylogic    logic
File Size94KB,2 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric View All

DM7425N Overview

NOR Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, DIP-14

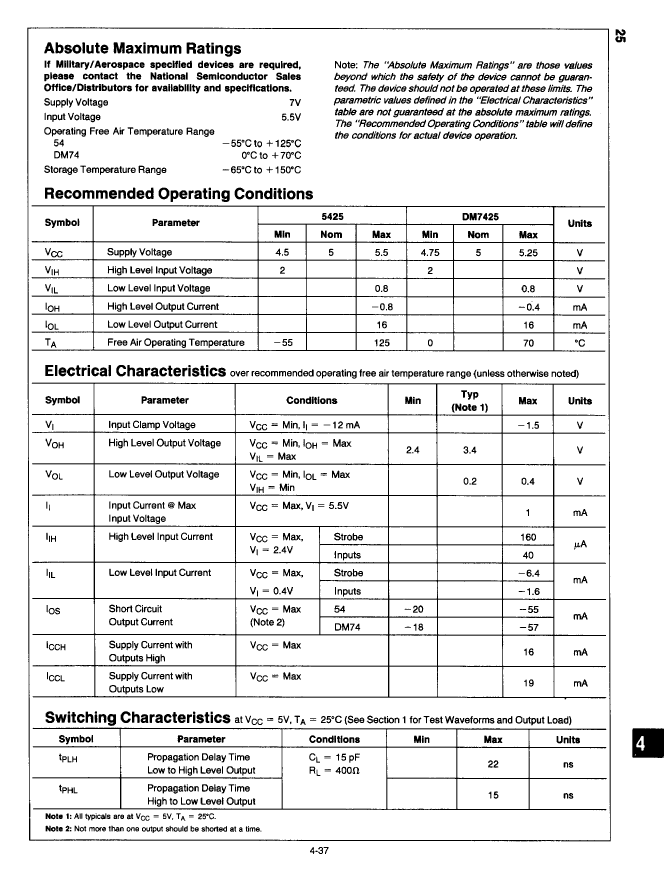

DM7425N Parametric

Parameter NameAttribute value
MakerRochester Electronics
package instructionDIP,
Reach Compliance Codeunknown
Other featuresSTROBED OUTPUTS
seriesTTL/H/L
JESD-30 codeR-PDIP-T14
length19.18 mm
Logic integrated circuit typeNOR GATE
Number of functions2
Number of entries4
Number of terminals14
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
propagation delay (tpd)15 ns
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
width7.62 mm
