Product Datasheet
www.Applied-Motion.com

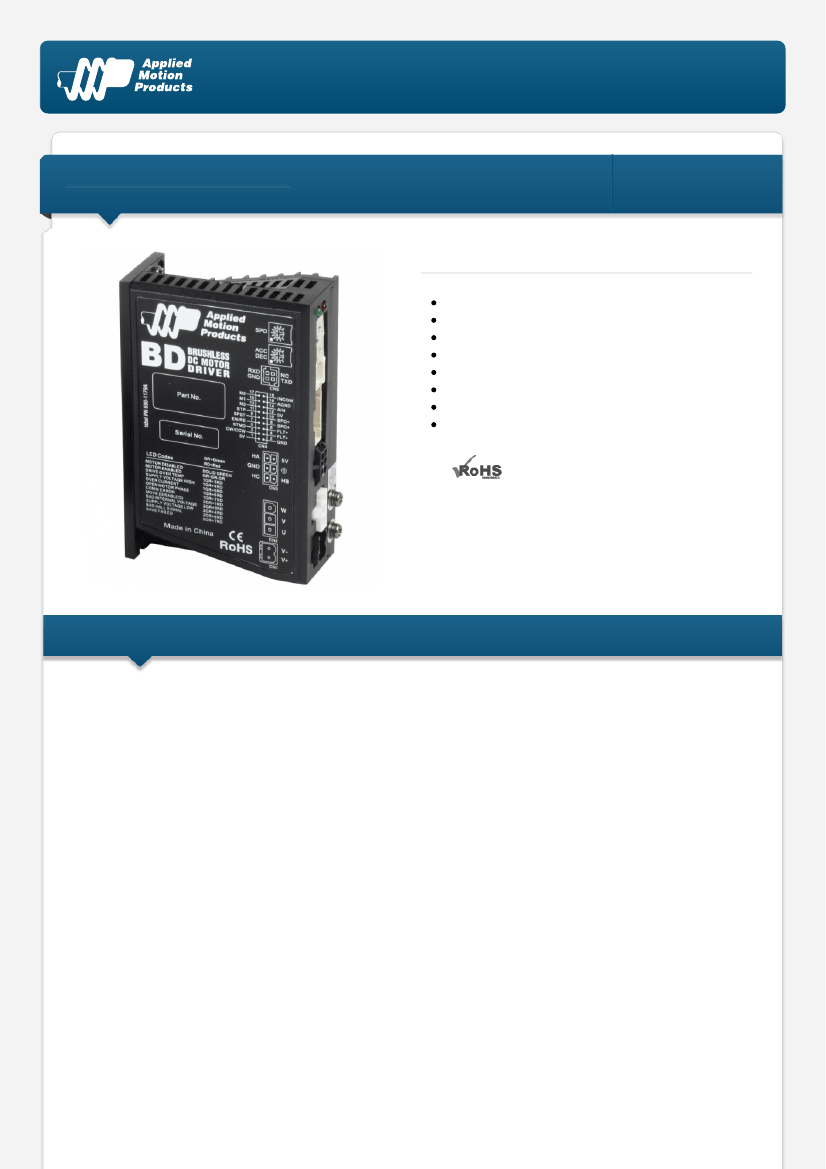

BD10-I7-AH
Brushless DC Drive for 200W 80mm 48V motor
1pc. - 223.00
50pc. - 167.25
Product Features
Velocity control
Simple setup
Compact design
5 A rms cont., 10 A rms peak
Runs on 12-48 VDC
8 digital inputs, 1 analog input
2 digital outputs
Performance-matched motors available
Description
The BD10-I7-AH is a compact and efficient drive for use with Applied Motion's BL200-H04-I series 80mm 200W brushless DC motors. It provides
stable velocity control over a wide speed range. Motor speed can be controlled by an on-board trimpot, a 0-5 volt analog input, or via the drive's
digital inputs. Dedicated stop and enable inputs are available, along with a dynamic braking feature that brings the motor to zero speed in a
quick and controlled fashion. Each drive comes pre-configured for use with the matching brushless DC motor.
The mating I/O connector, populated with connector pins and 12" flying leads, is included with each drive. The mating DC power connector is
also included.
The BL motors can plug directly into the BD drives. Extension cables are also available for longer distances between the drive and motor. Part
number 3004-272-1M is a 1 meter extension cable and 3004-272-3M is a 3 meter extension cable.
Downloads
Manuals:
Datasheet:
2D Drawing:
3D Drawing:

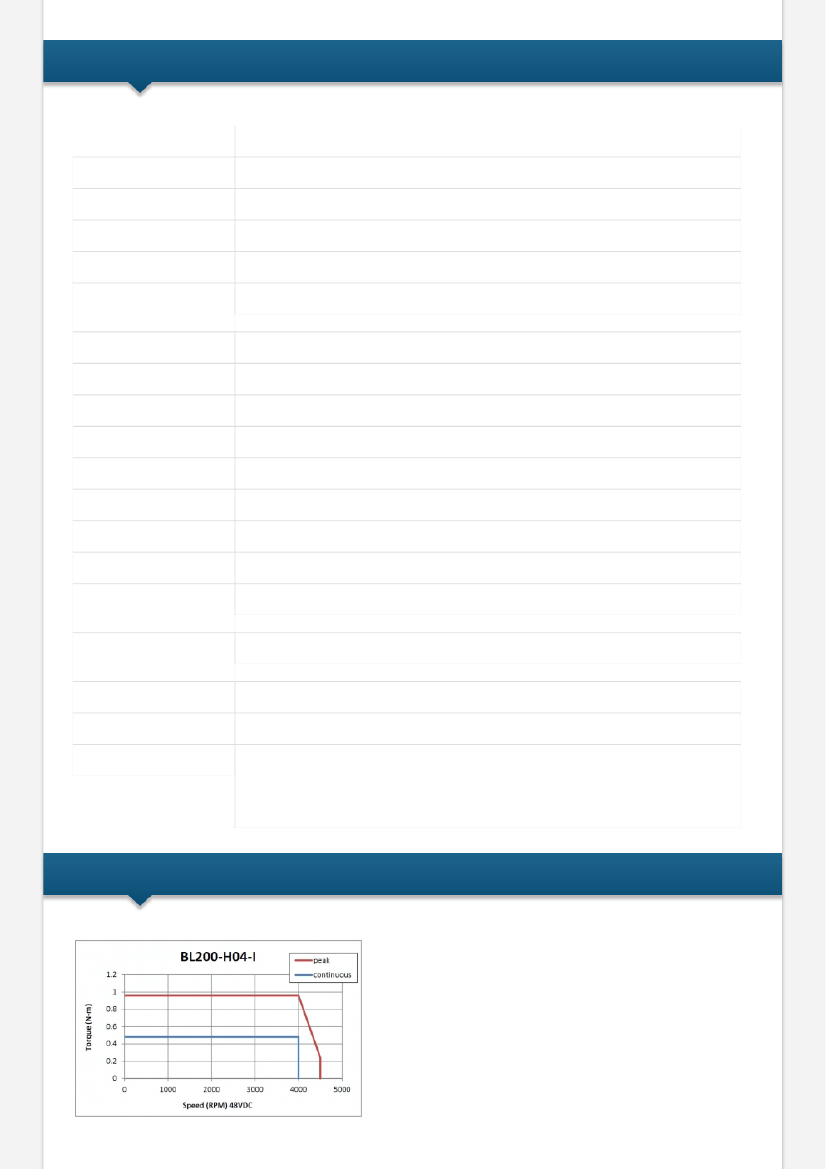

Speed-Torque Curves:
BD5-10 QuickSetup Guide 920-0066C.pdf
BD_HardwareManual_920-0065D.pdf
http://s3.amazonaws.com/applied-motion-pdf/BD10-I7-AH.pdf
BLDC_Controller_RevA.pdf
BLDC_Controller_3D-PDF.pdf
BD5_Drive_SimpleModel.igs
speed torque curves BL200-H04-I_80mm updated 2-19-14.pdf
Pricing
BD10-I7-AH
Part No. 5000-260-003
1pc.
25pc.
50pc.
100pc.
$223.00
$191.78
$167.25
Request a Quote
for 100+ piece pricing.
