BD5-G1-AH

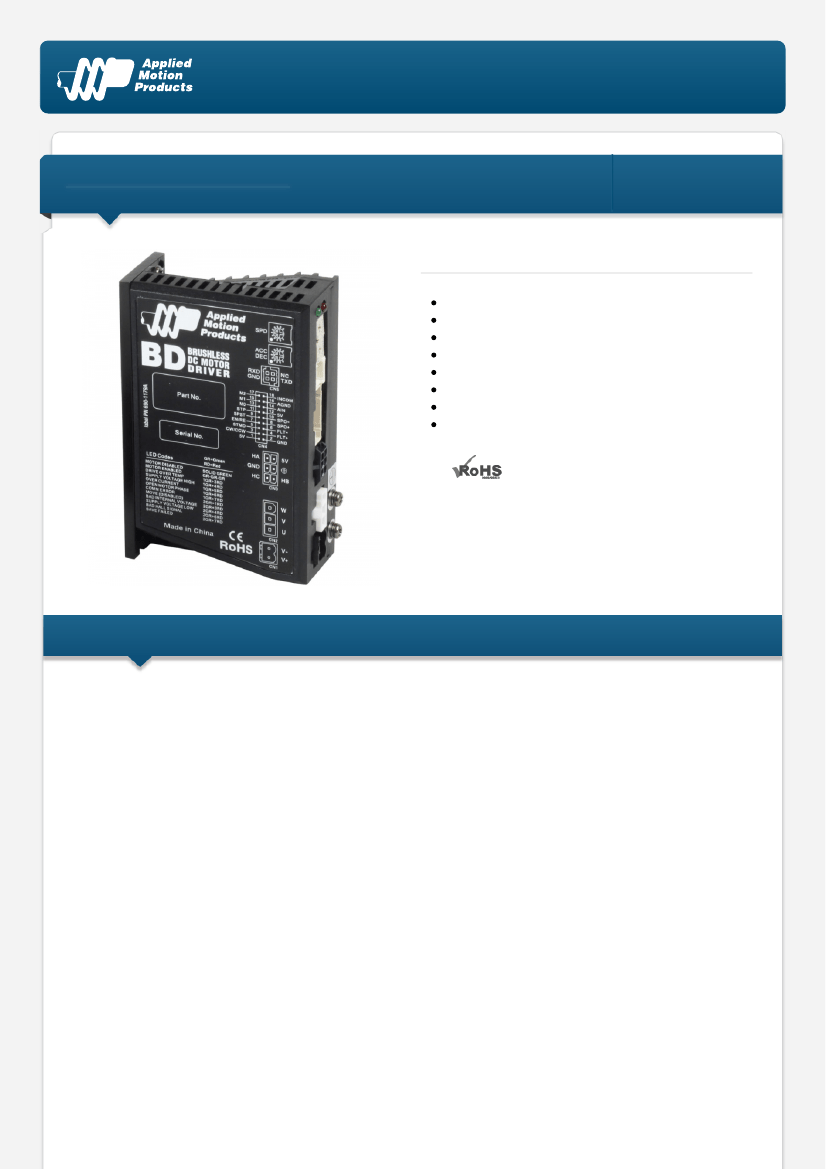

Brushless DC Drive for 30W 42mm motor
1pc. - 186.00
50pc. - 139.50
Product Features
Velocity control
Simple setup
Compact design
1.75 A rms cont., 3.5 A rms peak
Runs on 12-48 VDC
8 digital inputs, 1 analog input
2 digital outputs
Performance-matched motors available
Description
The BD5-G1-AH is a compact and efficient drive for use with Applied Motion's BL030-H03-G series 42mm 30W
brushless DC motors. It provides stable velocity control over a wide speed range. Motor speed can be controlled
by an on-board trimpot, a 0-5 volt analog input, or via the drive's digital inputs. Dedicated stop and enable inputs
are available, along with a dynamic braking feature that brings the motor to zero speed in a quick and controlled
fashion. Each drive comes pre-configured for use with the matching brushless DC motor.
The mating I/O connector, populated with connector pins and 12" flying leads, is included with each drive. The
mating DC power connector is also included.
The BL motors can plug directly into the BD drives. Extension cables are also available for longer distances
between the drive and motor. Part number 3004-272-1M is a 1 meter extension cable and 3004-272-3M is a 3
meter extension cable.
Downloads
Manuals:
Datasheet:
Family Datasheet:
2D Drawing:
3D Drawing:
Speed-Torque Curves:
BD5-10 QuickSetup Guide 920-0066C.pdf
BD_HardwareManual_920-0065D.pdf
http://s3.amazonaws.com/applied-motion-pdf/BD5-G1-AH.pdf
BLDC_Datasheet_925-0013A.pdf
BLDC_Controller_RevA.pdf
BLDC_Controller_3D-PDF.pdf
BD5_Drive_SimpleModel.igs
BLDC_speed-torque.pdf
Pricing
BD5-G1-AH
Part No. 5000-255-001
1pc.
25pc.
50pc.
100pc.
$186.00
$159.96
$139.50
Request a Quote
for 100+ piece pricing.
