NHI-1561RTFP datasheet, PDF - EEWORLD Datasheet

NHI-1561RTFP: DescriptionMil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, QFP-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size82KB，2 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

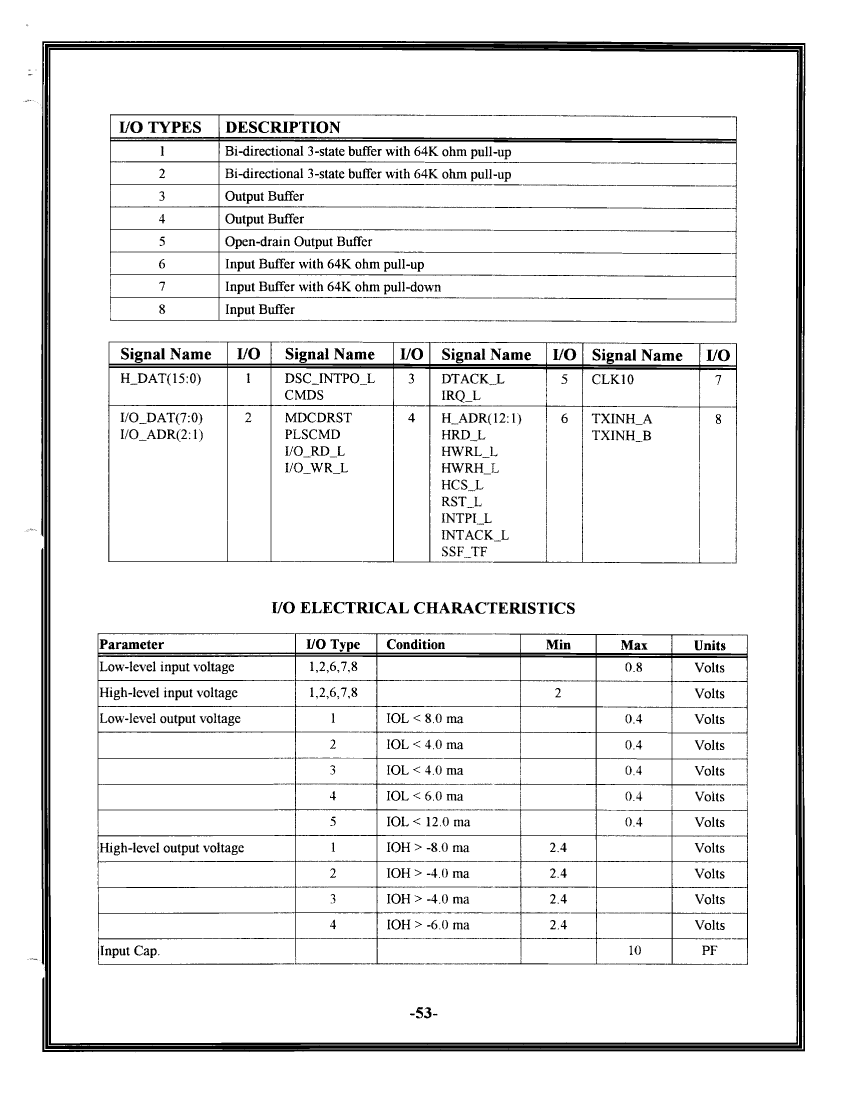

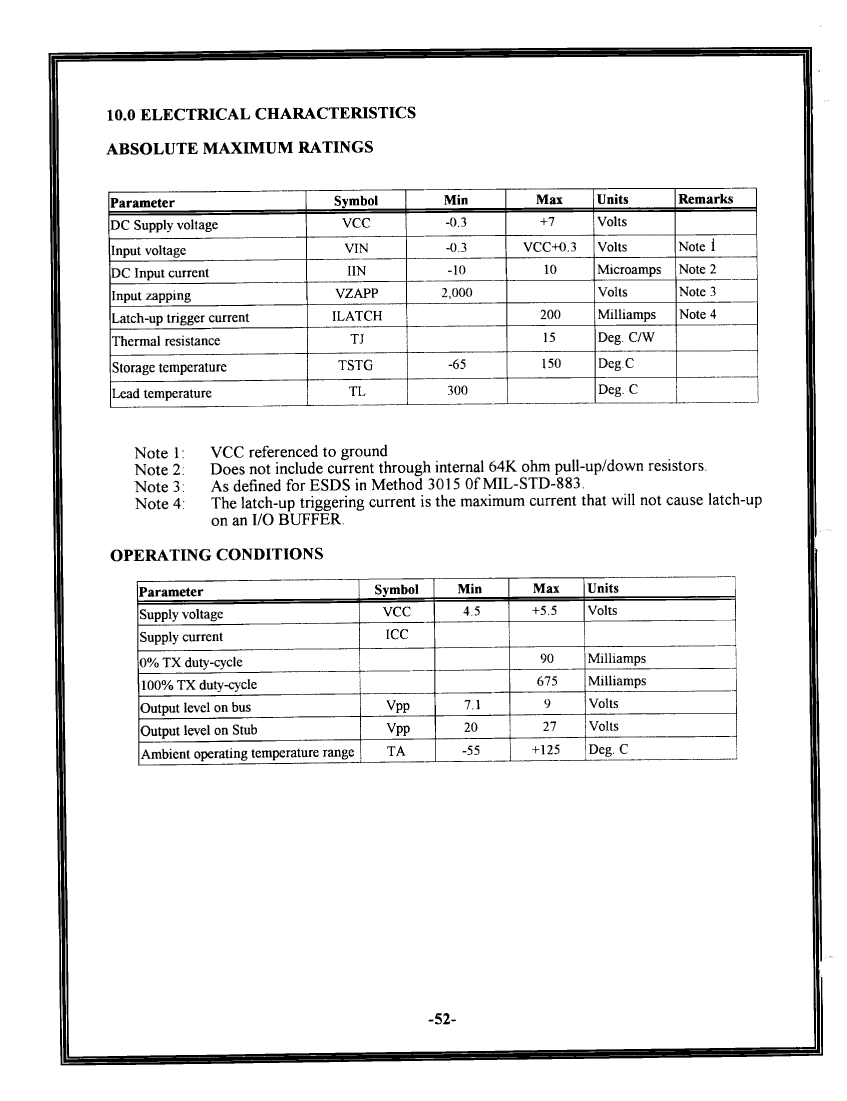

NHI-1561RTFP Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, QFP-68

Parameter Name	Attribute value
Maker	Data Device Corporation
package instruction	QFF,
Reach Compliance Code	compliant
Address bus width	12
boundary scan	NO
maximum clock frequency	10 MHz
letter of agreement	MIL-STD-1553B; MIL-STD-1760A
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps
External data bus width	16
JESD-30 code	S-XQFP-F68
length	27.94 mm
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	68
On-chip data RAM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	UNSPECIFIED
encapsulated code	QFF
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
RAM (number of words)	4096
Maximum seat height	3.556 mm
Maximum slew rate	675 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	QUAD
width	27.94 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
