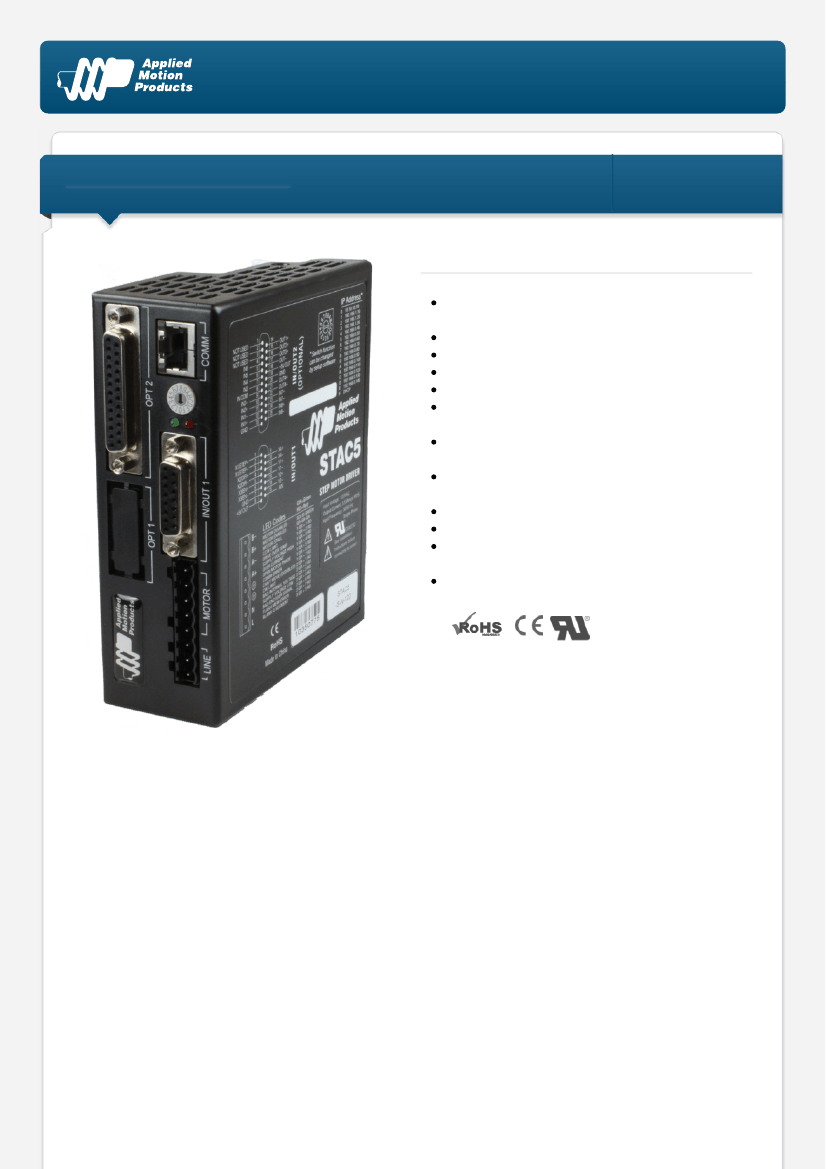

STAC5-IP-N120
AC EtherNet/IP Advanced Microstep Drive
1pc. - 659.00
50pc. - 494.25
Product Features
Programmable, microstepping digital step motor
driver in compact package
Advanced anti-resonance algorithm
Torque ripple smoothing
Microstepping to 51,200 steps/rev
Operates from 120 VAC
Provides motor current up to 5 A/phase (peak of
sine) with idle current reduction
Fast 10/100 Ethernet for programming and
communications
EtherNet/IP communication protocol for network
communications with PLCs and other devices
Supports all STAC5-S and STAC5-Q control modes
UDP & TCP support
12 digital inputs, 6 digital outputs, all optically
isolated
1 analog input, +/-10 volt range
Description
The STAC5-IP-N120 stepper drive employs sophisticated current control designed for optimal smoothness over a
wide speed range. Anti-resonance, torque ripple smoothing, and microstepping work together to bring step motor
performance to a new high. To complement the drive Applied Motion offers a specially matched set of low-loss
NEMA 23 and 34 frame motors (see Related and Recommended Products below), all specifically designed with
high voltage operation in mind. Power to the drive comes from single-phase 120 VAC, and the drive can output up
to 5.0 A/phase (peak-of-sine) to the step motor. Protection features like over-voltage, over-temperature, and over-
current prevent damage while running in adverse conditions.
The STAC5-IP-N120 incorporates EtherNet/IP network communications, the widely used industrial protocol for
manufacturing automation applications. With EtherNet/IP users can control, configure and query the drive using an
open, standards-based, industrial Ethernet connection at speeds up to 100 MBits/sec. The STAC5-IP drives run all
of the same control modes as STAC5-Q drives, with the addition that all drive features can be accessed over
EtherNet/IP, including more than 100 commands and 130 registers for controlling motion, I/O, configuration,
polling, math, register manipulation, and Q programming.
For connecting to external devices such as limit switches, proximity or photoelectric sensors, PLC I/O, lamps, and
other devices, the drive comes with 12 digital inputs, 6 digital outputs, and 1 analog input. In addition to
EtherNet/IP the drive supports Ethernet TCP and UDP protocols for sending commands from Applied Motion’s
proprietary Serial Command Language (SCL). The same 10/100 Mbit Ethernet port on the drive is also used for
configuring and programming the drive using the
ST Configurator™
and
Q Programmer™
software applications,
respectively.
This step motor drive is UL Recognized (File No. E332730), CE approved, and RoHS compliant.
Downloads
Manuals:
STAC5_Hardware_Manual_920-0026C.pdf
STAC5_QuickSetupGuide_920-0040_.pdf
Host Command Reference Rev I.pdf
http://s3.amazonaws.com/applied-motion-pdf/STAC5-IP-N120.pdf
STAC5_Datasheet_925-0003.pdf
EtherNet-IP-White-Paper_920-0050.pdf
EIP_EDS_FILES.zip
STAC5.dxf
STAC5-1.pdf
STAC5_simple_3D.pdf
STAC5.igs
STAC5_speed-torque.pdf
STAC5_SVAC3_CE_DOC.PDF
APPN0024_AOIs-for-RSLogix5000.zip
APPN0023_MicroLogix-to-EtherNet-IP-drive.zip
APPN0022_CompactLogix-to-EtherNet-IP-drive.zip
APPN0016_Simple-25-pin-mating-connections.pdf
Datasheet:
Family Datasheet:
2D Drawing:
3D Drawing:

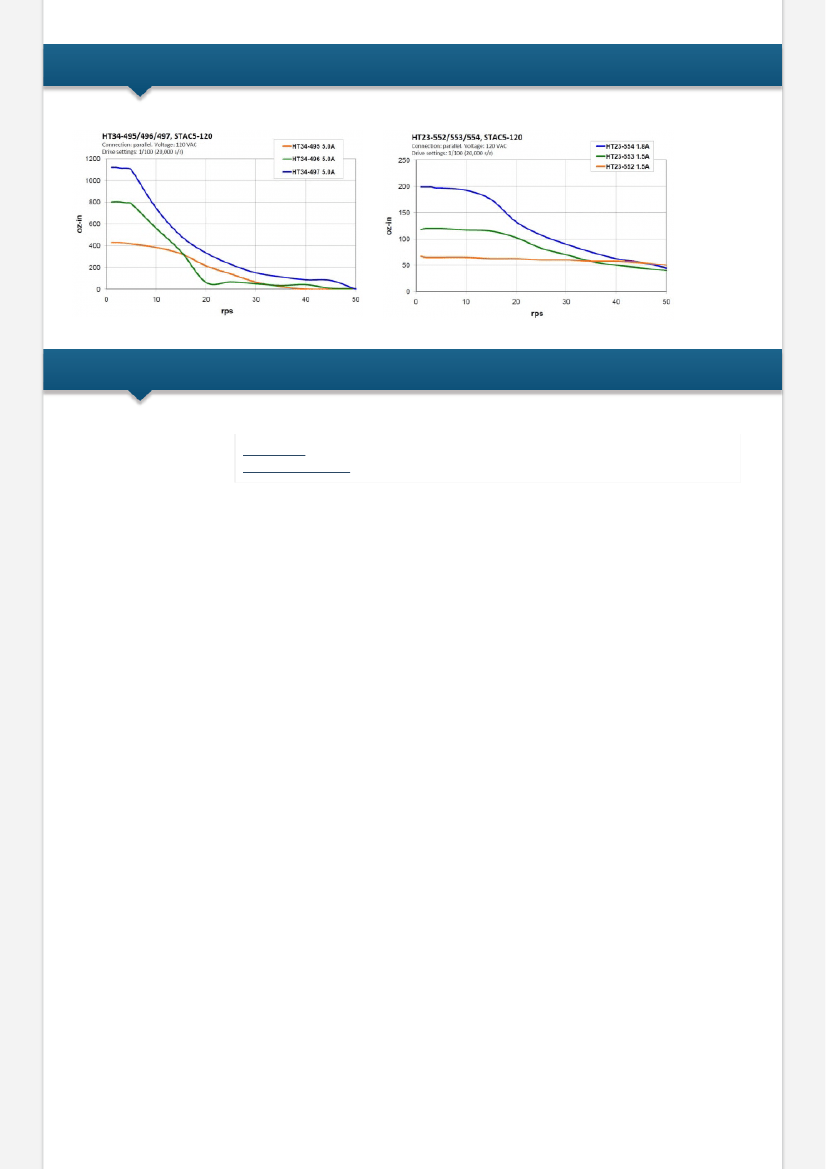

Speed-Torque Curves:
Agency Approvals:
Application Notes:
Pricing
STAC5-IP-N120
Part No. 5000-196
1pc.
25pc.
50pc.
100pc.
$659.00
$566.74
$494.25
Request a Quote
for 100+ piece pricing.
