EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DTR-095-002
REV :
PAGE :
1.0
1/8
1.9mm Infrared LED
MODEL NO :
Features :
Small
double-end package
Peak
wavelength
p=940nm
View
angle 25
High
reliability
IR95-21C/TR10
Low
forward voltage
Description :
IR95-21C/TR10 is an infrared emitting diode in miniature SMD package which is molded
in a water clear plastic with spherical top view lens. The device is spectrally matched
with silicon photodiode and phototransistor.
Applications :
PCB
mounted infrared sensor
Infrared
emitting for miniature light barrier
Floppy
disk drive
Smoke
detector
Optoelectronic
switch
CHIP
PART NO.
IR
MATERIAL
GaAlAs
LENS COLOR
Water Clear
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DTR-095-002
REV :
PAGE :
1.0
2/8
1.9mm Infrared LED
MODEL NO :
IR95-21C/TR10

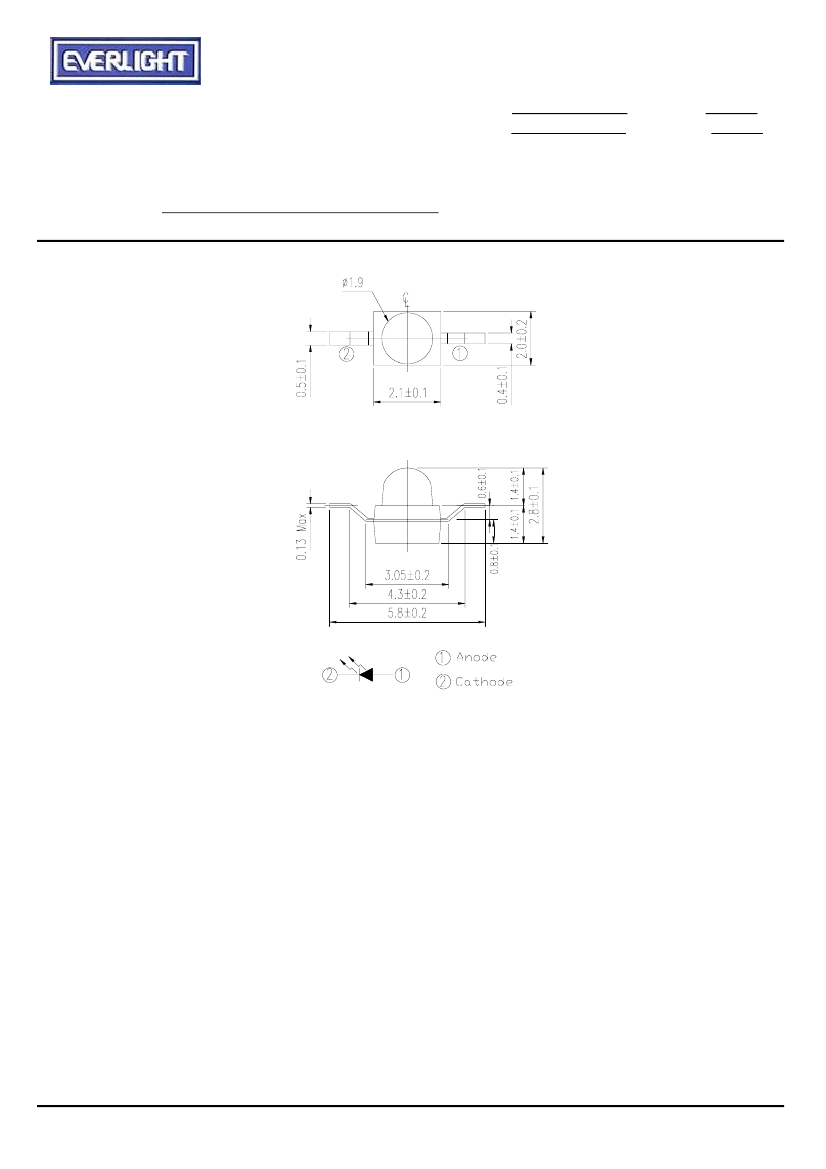

Package Dimensions :
Notes :
1.All dimensions are in millimeter.
2.General Tolerance:
0.1mm
3.Lens colorWater Clear.
4.Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification.
5.These specification sheets include materials protected under copyright of EVERLIGHT
corporation . Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s
consent.
6.When using this product , please observe the absolute maximum ratings and the instructions
for use outlined in these specification sheets. EVERLIGHT assumes no responsibility for any
damage resulting from use of the product which does not comply with the absolute maximum
ratings and the instructions included in these specification sheets.
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DTR-095-002
REV :
PAGE :
1.0
3/8
1.9mm Infrared LED
MODEL NO :
IR95-21C/TR10
Absolute Maximum Ratings at T
A
= 25
Parameter
Symbol
Rating
Continuous Forward Current
Peak Forward Current
Pulse width=100s, Duty cycle=1
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
Power Dissipation at(or below)
25Free Air Temperature
I
F
I
FP
V
R
Topr
Tstg
Tsol
Pd
65
1.0
5
-40 ~ +85
-40 ~ +85
260
130
Unit
mA
A
V
Notice
Electronic Optical Characteristics :
Parameter
Symbol Min. Typ. Max.
3.0
----
----
----
----
----
----
----
----
----
5.0
25
260
940
45
1.2
1.4
2.6
----
25
----
----
----
----
----
1.5
1.85
4.0
10
----
Unit
Condition
I
F
=20mA
I
F
=100mA,tp=100s, t
P
/T=0.01
I
F
=1A,tp=100s, t
P
/T=0.01
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=100mA,tp=100s, t
P
/T=0.01
I
F
=1A,tp=100s, t
P
/T=0.01
V
R
=5V
I
F
=20mA
Radiant Intensity
Peak Wavelength
Spectral
Bandwidth
Forward Voltage
Reverse Current
View Angle
Ee
P
mW/sr
nm
nm
V
F
I
R
2 1/2
V
A
deg
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DTR-095-002
REV :
PAGE :
1.0
4/8
1.9mm Infrared LED
MODEL NO :
IR95-21C/TR10

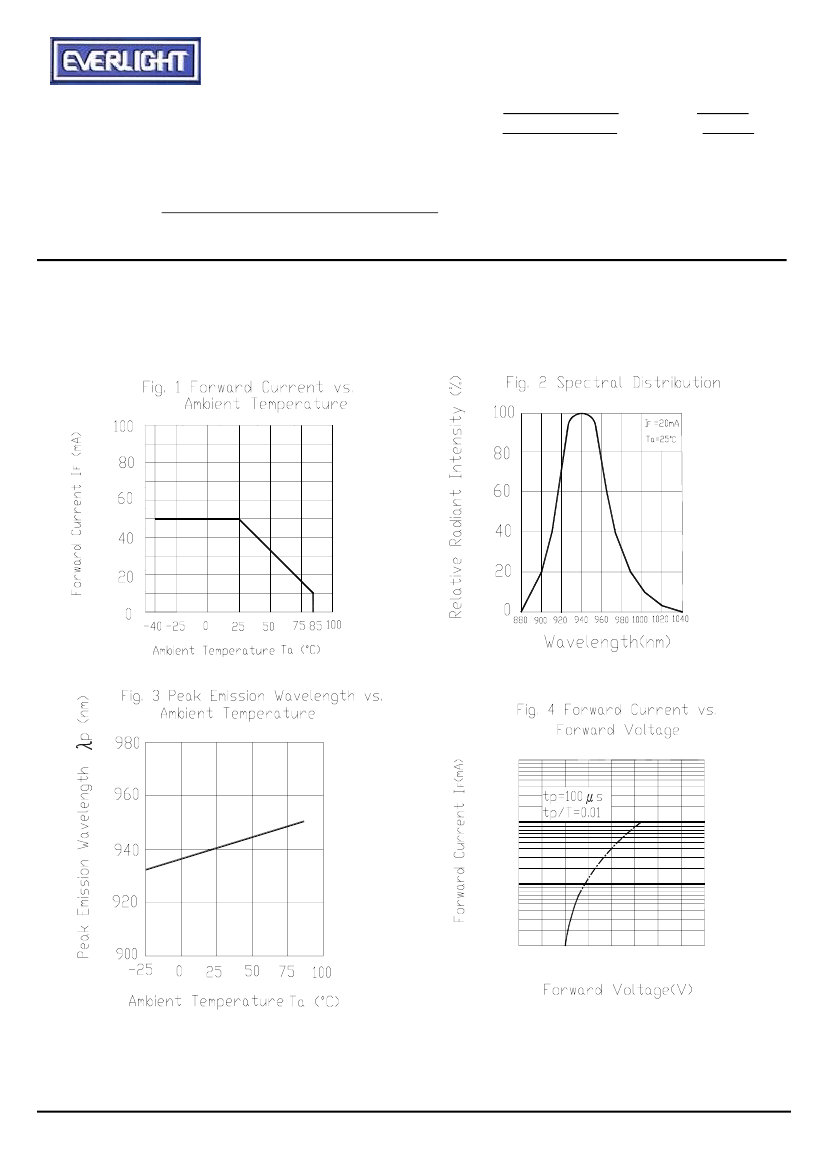

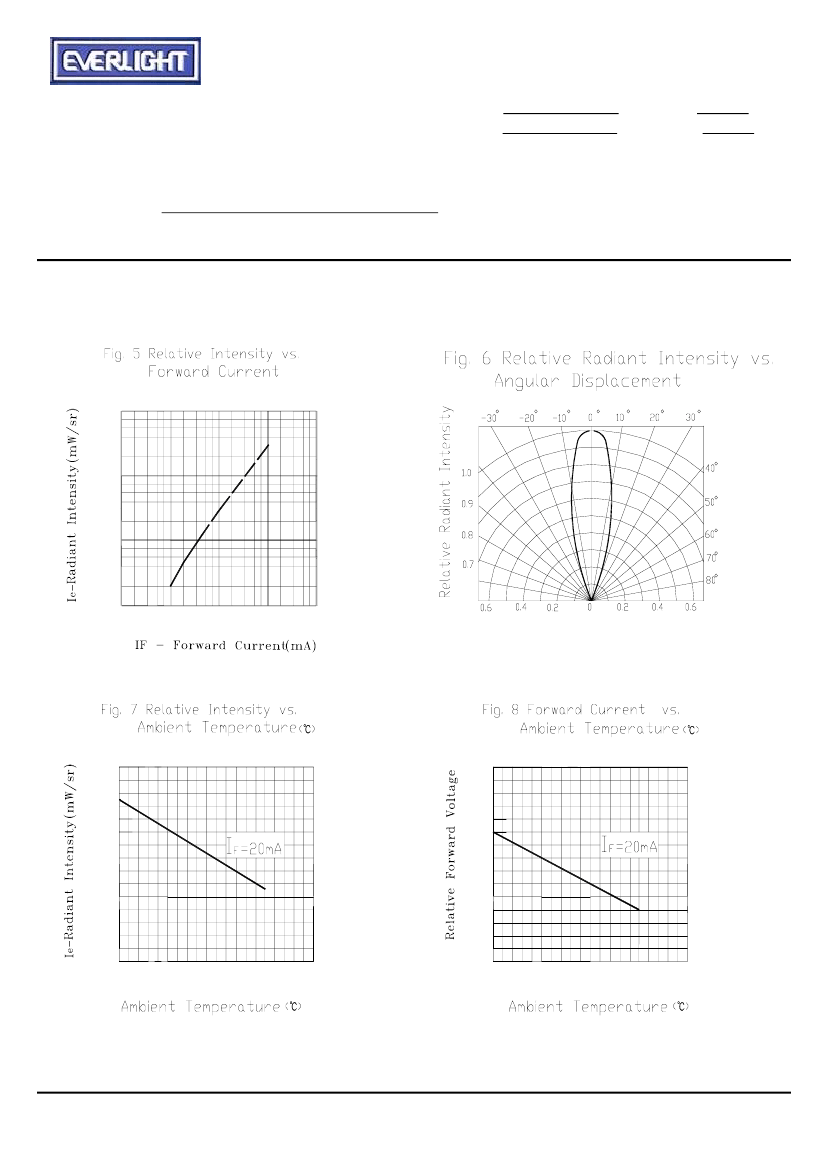

Typical Electrical/Optical/Characteristics Curves
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DTR-095-002
REV :
PAGE :
1.0
5/8
1.9mm Infrared LED
MODEL NO :
IR95-21C/TR10
Typical Electrical/Optical/Characteristics Curves
