ABC2-4.399MHZ-S-D-4 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> ABC2-4.399MHZ-S-D-4

Preview

ABC2-4.399MHZ-S-D-4: DescriptionSeries - Fundamental Quartz Crystal, 4.399MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size1MB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance; Related ProductsFound4parts with similar functions to ABC2-4.399MHZ-S-D-4

Download Datasheet Parametric View All

ABC2-4.399MHZ-S-D-4 Overview

Series - Fundamental Quartz Crystal, 4.399MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

ABC2-4.399MHZ-S-D-4 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compli
Other features	BULK
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
JESD-609 code	e4
Manufacturer's serial number	ABC2
Installation features	SURFACE MOUNT
Nominal operating frequency	4.399 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L11.8XB5.5XH1.9 (mm)/L0.465XB0.217XH0.075 (inch)
Series resistance	120 Ω
surface mount	YES
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

LOW FREQUENCY CERAMIC SURFACE MOUNT

MICROPROCESSOR CRYSTAL

ABC2

RoHS compliant with exemption of Pb in glass

(exempt per RoHS 2002/95/EC Annex (5))

Compliant

RoHS

11.8 x 5.5 x 1.9mm

| | | | | | | | | | | | | |

|

Not recommended for new designs >6MHz. Please consider our different package offerings.

FEATURES:

• Low frequency in small size SMD

• 2.0mm height ideal for high density circuit boards

• Ceramic package offers excellent environmental & heat resistance

• Extended temperature -40°C to +85°C for industrial applications

APPLICATIONS:

• Wide range in communication & measuring equipment

• Commercial & Industrial applications

• Automotive electronics applications

STANDARD SPECIFICATIONS:

Parameters

Frequency

Range

Operation Mode

Operating Temperature

Storage Temperature

Frequency Tolerance @+25°C

Frequency Stability over the

Operating

Temperature -10 °C to +60 °C

(

ref. to +25 °C)

Minimum

3.500

30.000

-40

-55

-50

-30

Typical

-----

Maximum

30.000

70.000

+85

+125

+50

+30

Units

MHz

Notes

Fundamental, AT

3rd Overtone, AT

Guaranteed oscillation only. For tighter

freq. stability over temp. option D, see

stability options below

Fundamental or 3rd Overtone

ºC

See options

ppm

Standard for below

6.0MHz

(-10 °C to

+60 °C) See options for other temperature

Standard for above 6.0MHz (-10 °C to

+60 °C) See options for other temperature

Equivalent series resistance (R1)

See table 1 below

Ω

7

pF

Shunt capacitance

(C0)

Load capacitance (CL)

Drive Level

Aging@25°C±3°C

Insulation Resistance

500

18

100

pF

µW

See options

ppm

MΩ

First year

@ 100Vdc ± 15V

±5

Table 1

Frequency Ranges

Table 1

3.200MHz

½

3.499MHz

3.500MHz

½

3.999MHz

4.000MHz

½

4.399MHz

4.400MHz

½

4.899MHz

4.900MHz

½

5.999MHz

6.000MHz

½

6.999MHz

7.000MHz

½

7.999MHz

8.000MHz

½

10.999MHz

11.000MHz

½

11.999MHz

12.000MHz

½

14.999MHz

15.000MHz

½

36.000MHz

27.000MHz

½

70.000MHz

Operation mode

Fundamental

3rd

OT

ESR (max)

200 Ω

140 Ω

120 Ω

100 Ω

80 Ω

60 Ω

50 Ω

45 Ω

40 Ω

35 Ω

30 Ω

100Ω

ABRACON IS

ISO 9001:2008

ISO 9001 / QS 9000

CE

RTIFIED

Revised: 10.21.10

30332 Esperanza, Rancho Santa Margarita, California92688

tel 949-546-8000

|

fax 949-546-8001

|

www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

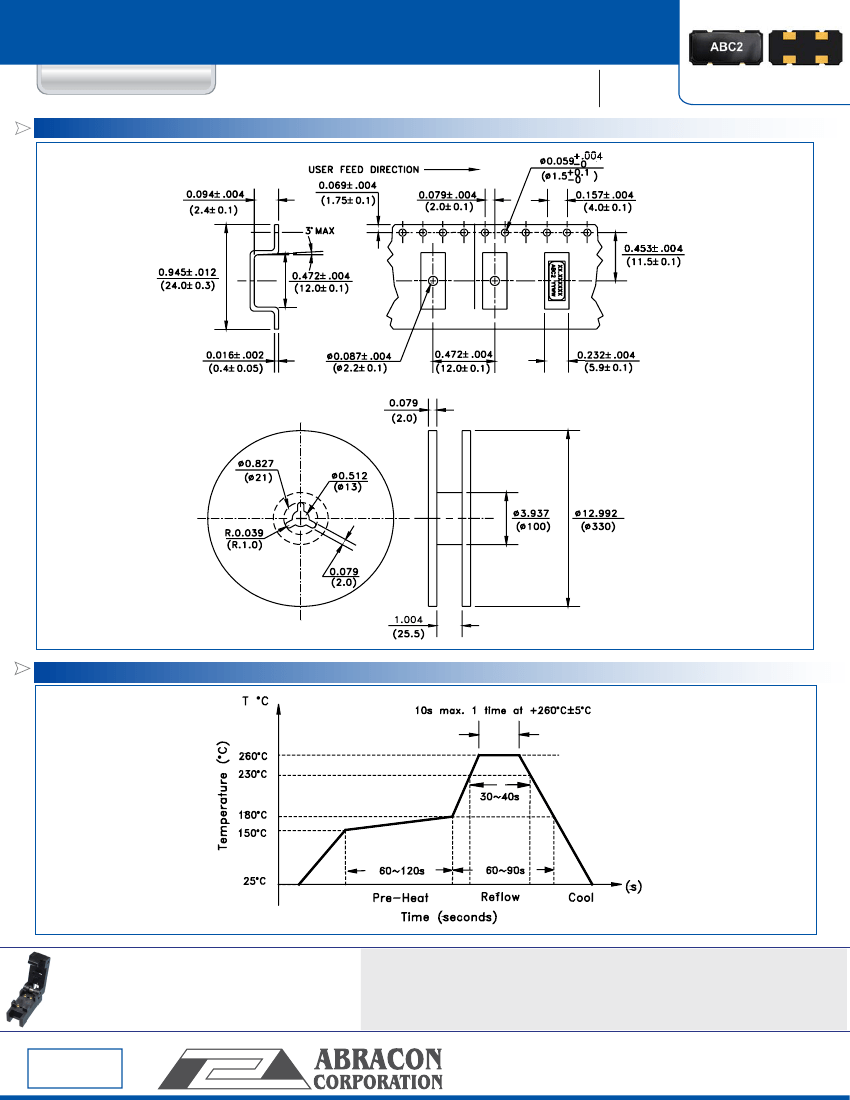

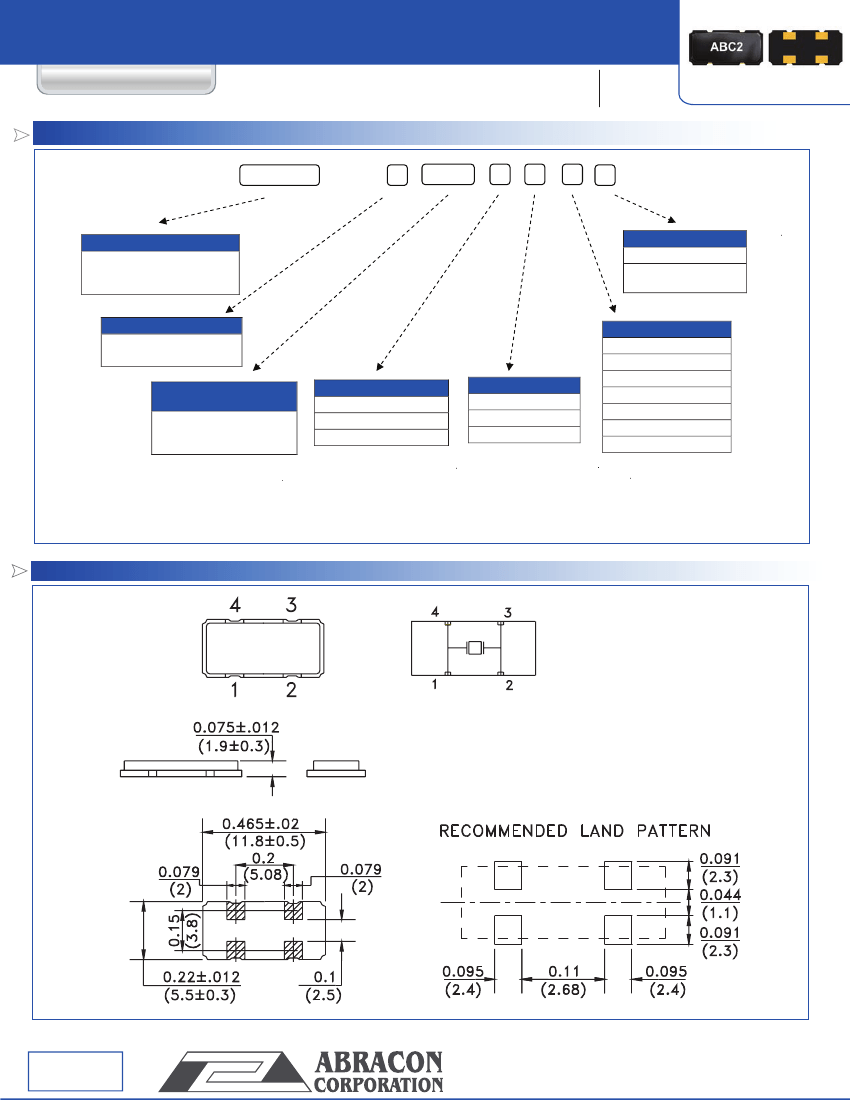

Recommended Resources

Motor DC energy consumption braking circuit

Time relay controlled Y- step-down starting circuit＿2

Japanese CB-802 hearing aid circuit

Thermocouple 10-bit serial I/O data acquisition system circuit

DC converter output voltage setting method Positive output voltage condition circuit diagram

Computer motherboard circuit diagram 815 3_33

ABC2-4.399MHZ-S-D-4 Similar Products

Part Number	Manufacturer	Description
ABC2-4.399MHZ-S-4-Z	Abracon	Series - Fundamental Quartz Crystal, 4.399MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 4 PIN
ABC2-4.399MHZ-S-B-4	Abracon	Series - Fundamental Quartz Crystal, 4.399MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 4 PIN
ABC2-4.399MHZ-S-4	Abracon	Series - Fundamental Quartz Crystal, 4.399MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 4 PIN
ABC2-4.399MHZ-S-4-T	Abracon	Series - Fundamental Quartz Crystal, 4.399MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 4 PIN
