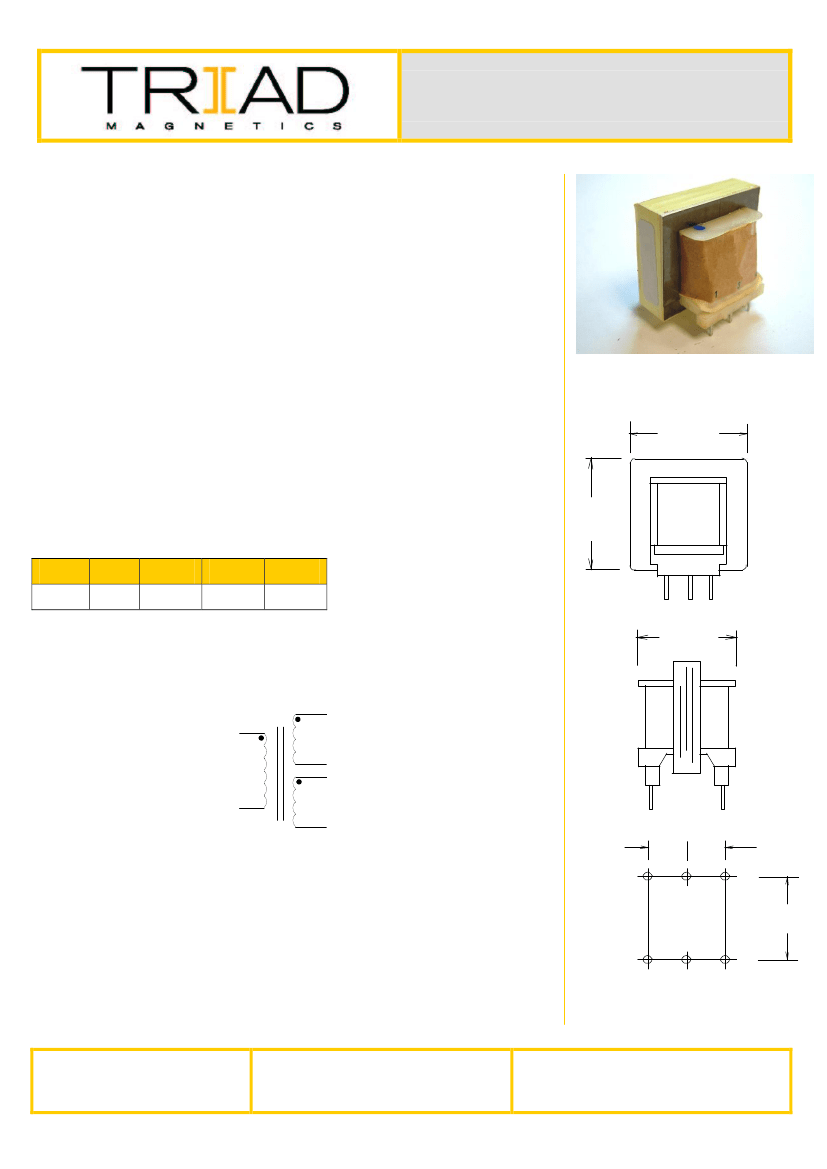

P
OWE R
T
RAN S FO R M E R
PC Mount: Single Primary
F-139P
Electrical Specifications (@25C)
1. Maximum Power: 1.5 VA
2. Primary: 115V 50/60 Hz
3. Secondary: Series: 12.6V CT @ 0.120 Amps
Parallel: 6.3V CT @ 0.240 Amps
Description:
The F-139P is part of a wide selection of plug-in types that meet the needs of PC
boards and solid state power supply design. This transformer can satisfy power as
well as control and instrumentation applications.
Construction:
Wound on a single channel nylon bobbin. Materials are UL recognized, Class B
(130º C) rated.
B
Safety:
These products are 100% hipot tested with an insulation of 1500V between
primary and secondary windings.
A
Dimensions:
A
1.187
B
1.390
C
1.562
Units: In inches
D
0.312
E
1.00
1 3 4
Pin length: 0.187 in.
Pin size: 0.20 x .041 in.
Weight: 3.5 oz
C
Schematic:
1
3
4
5
2
6
D
D
5
6
Primary:
Secondary:
1 to 2
Series - 3 to 6, Jumper 4 to 5
Parallel - 3 to 6, Jumper 3 to 5 and 4 to 6
2
E
RoHS Compliance:
As of manufacturing date February 2005, all standard products meet
the requirements of 2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact Triad
Magnetics’ website for the most current version.
1
3
4
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: December 4, 2013
