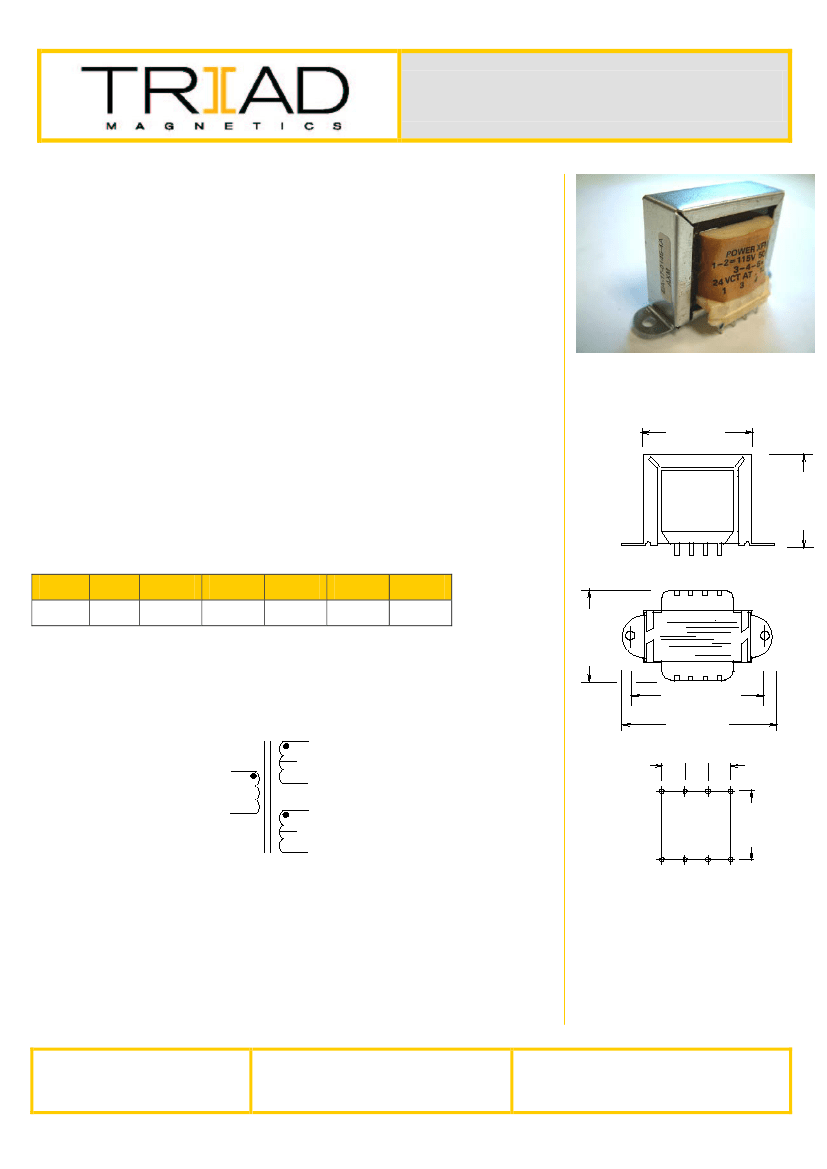

P
OWE R
T
RAN S FO R M E R
PC Mount: Single Primary
F-166XP
Electrical Specifications (@25C)
1. Maximum Power: 7.5 VA
2. Primary: 115V 50/60 Hz
3. Secondary No 1: 24.0V CT @ 0.125 Amps
Secondary No 2:
9.0V CT @ 0.500 Amps
Description:
The F-166XP is part of a wide selection of plug-in types that meet the needs of PC
boards and solid state power supply design. This transformer can satisfy power as
well as control and instrumentation applications.
Construction:
Wound on a single channel nylon bobbin. Materials are UL recognized, Class B
(130º C) rated.
D
Safety:
These products are 100% hipot tested with an insulation of 1500V between
primary and secondary windings.
1
3 4 5
A
Dimensions:
A
1.625
B
2.812
C
1.468
Units: In inches
D
1.953
E
.250
F
1.312
G
2.375
C
Mounting holes: 0.187 in.
Pin length: 0.187 in.
Pin size: 0.20 x .041 in.
Weight: 10.5 oz
G
B
3
4
Schematic:
1
E
5
2
6
E
7
E
8
2
7
6
F
8
1
3
4
5
Primary:
Secondary No.1:
Secondary No.2:
1 to 2
3 to 5
6 to 8
RoHS Compliance:
As of manufacturing date February 2005, all standard products meet
the requirements of 2011/65/EU, known as the RoHS initiative.
*Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics
website for the most current version.
For soldering and washing information please see
http://www.triadmagnetics.com/faq.html
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: June 7, 2016
