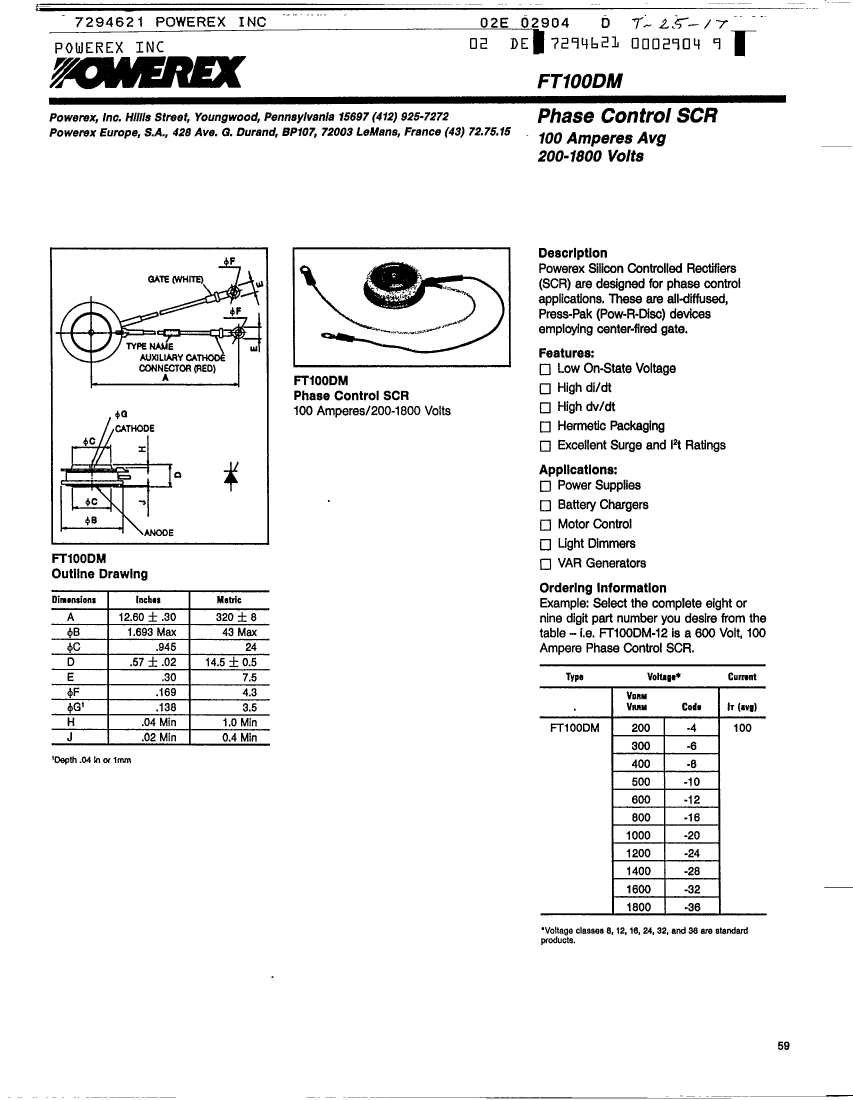

FT100DM28 Overview

Silicon Controlled Rectifier, 100000mA I(T), 1400V V(DRM)

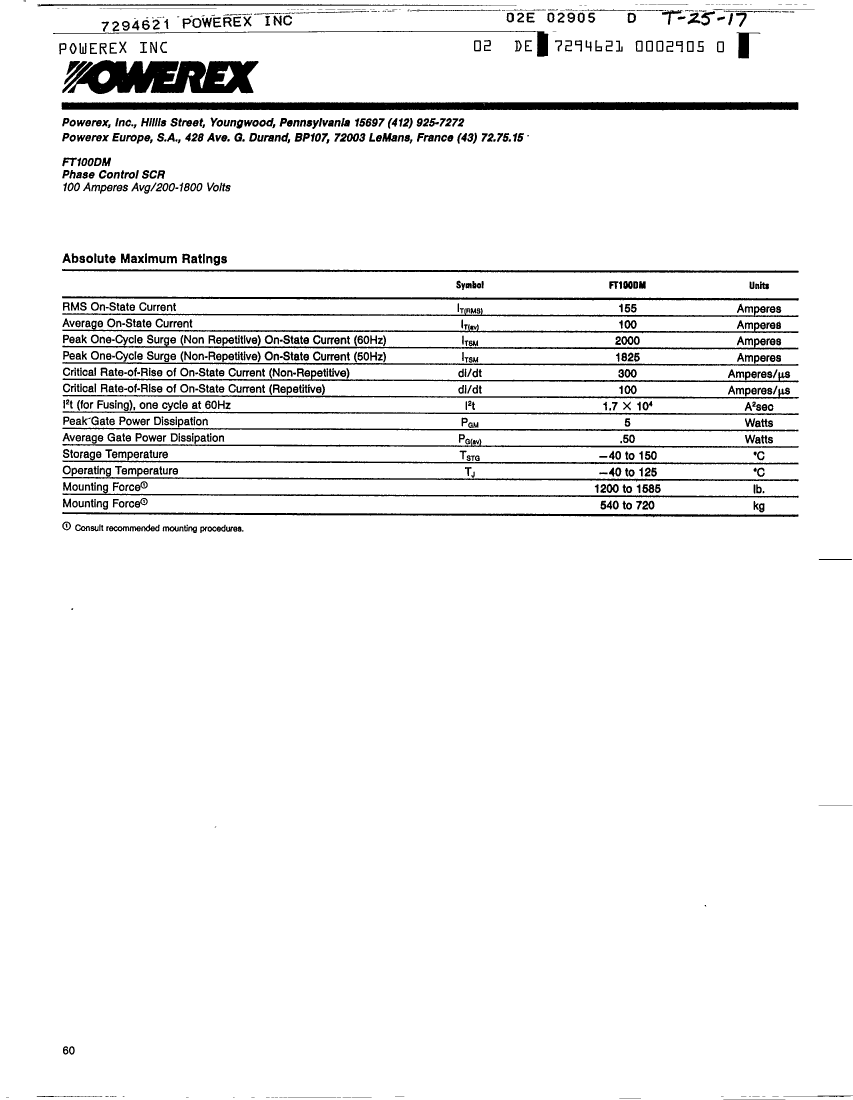

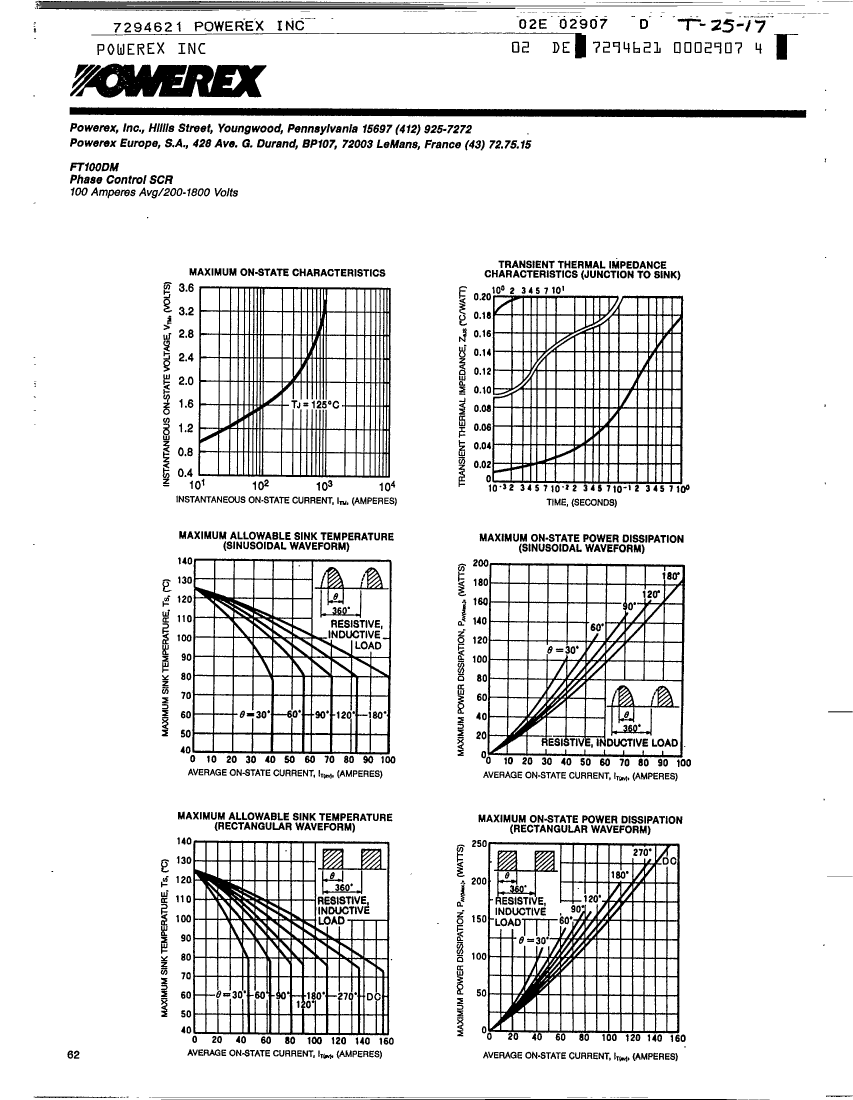

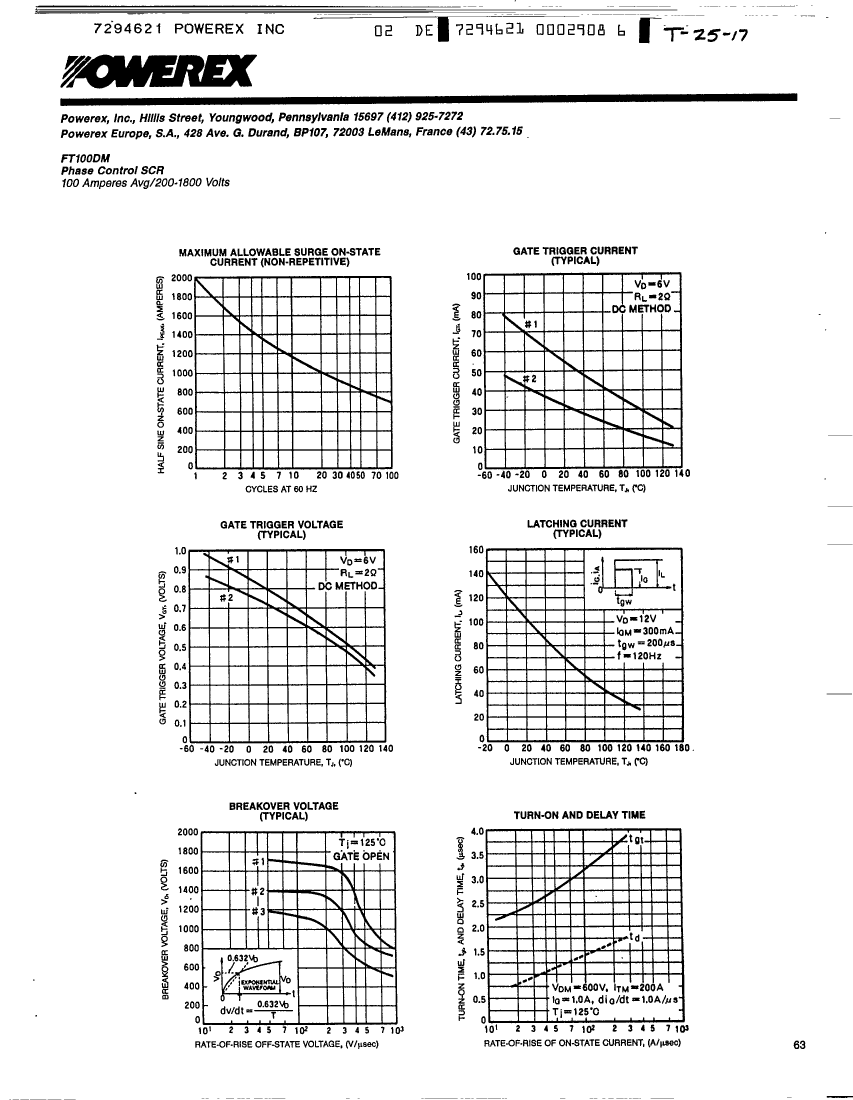

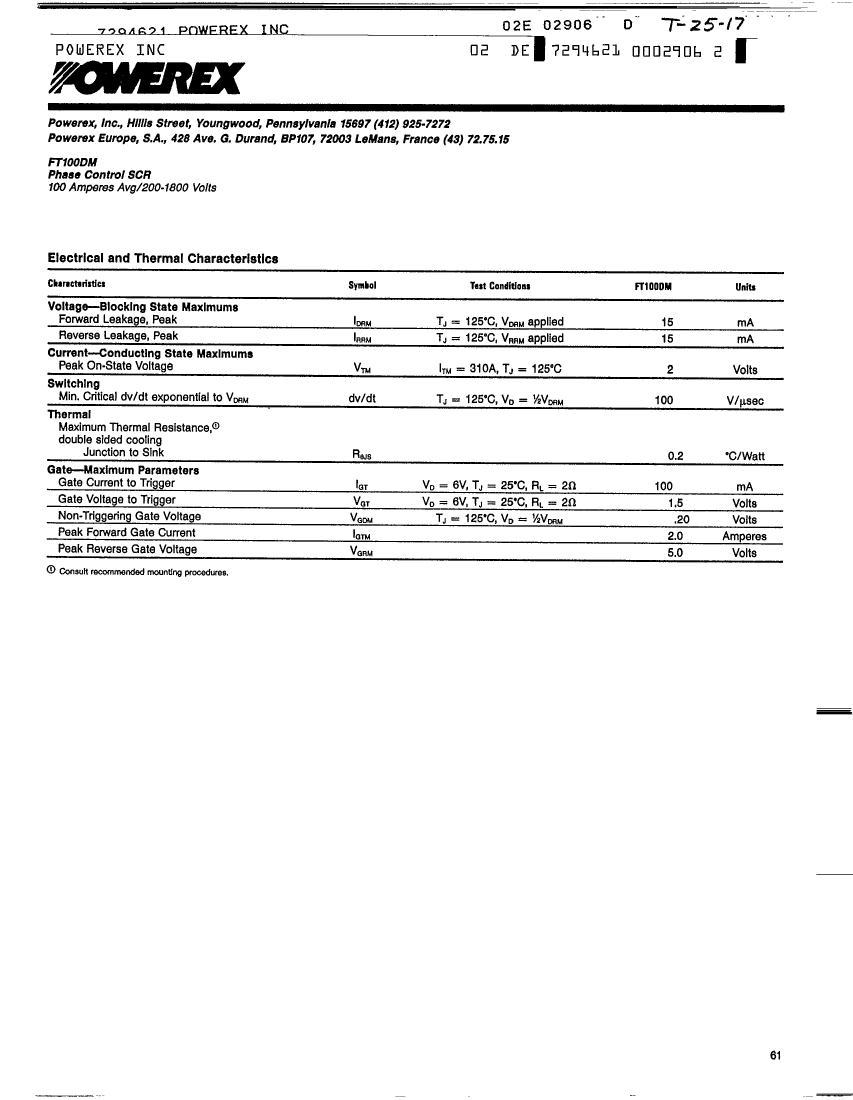

Parameter Name	Attribute value
Maker	POWEREX
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Critical rise rate of minimum off-state voltage	100 V/us
Maximum DC gate trigger current	100 mA
Maximum DC gate trigger voltage	1.5 V
Maximum leakage current	15 mA
On-state non-repetitive peak current	2000 A
Maximum on-state current	100000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C
Off-state repetitive peak voltage	1400 V
surface mount	NO
Trigger device type	SCR

	FT100DM28	FT100DM10	FT100DM12	FT100DM16	FT100DM20	FT100DM24	FT100DM32
Description	Silicon Controlled Rectifier, 100000mA I(T), 1400V V(DRM)	Silicon Controlled Rectifier, 100000mA I(T), 500V V(DRM)	Silicon Controlled Rectifier, 100000mA I(T), 600V V(DRM)	Silicon Controlled Rectifier, 100000mA I(T), 800V V(DRM)	Silicon Controlled Rectifier, 100000mA I(T), 1000V V(DRM)	Silicon Controlled Rectifier, 100000mA I(T), 1200V V(DRM)	Silicon Controlled Rectifier, 100000mA I(T), 1600V V(DRM)
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Critical rise rate of minimum off-state voltage	100 V/us	100 V/us	100 V/us	100 V/us	100 V/us	100 V/us	100 V/us
Maximum DC gate trigger current	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum leakage current	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
On-state non-repetitive peak current	2000 A	2000 A	2000 A	2000 A	2000 A	2000 A	2000 A
Maximum on-state current	100000 A	100000 A	100000 A	100000 A	100000 A	100000 A	100000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-45 °C	-45 °C	-45 °C	-40 °C	-45 °C	-45 °C	-45 °C
Off-state repetitive peak voltage	1400 V	500 V	600 V	800 V	1000 V	1200 V	1600 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	-	1	1	1	1	1	-
