Precision 1.85mm Female to 1.85mm Female Adapter
TECHNICAL DATA SHEET
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
1.85mm Female
50 Ohms
MIL-STD-348
1.85mm Female
50 Ohms
MIL-STD-348
Precision
Straight
PE91115
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
Frequency 1
Frequency, GHz
VSWR
Frequency 2
Frequency, GHz
VSWR
Frequency 3
Frequency, GHz
VSWR
DC to 67
1.25:1
DC to 18
1.1:1
18 to 40
1.15:1
40 to 50
1.18:1
Mechanical Specifications
Temperature
Operating Range,deg C

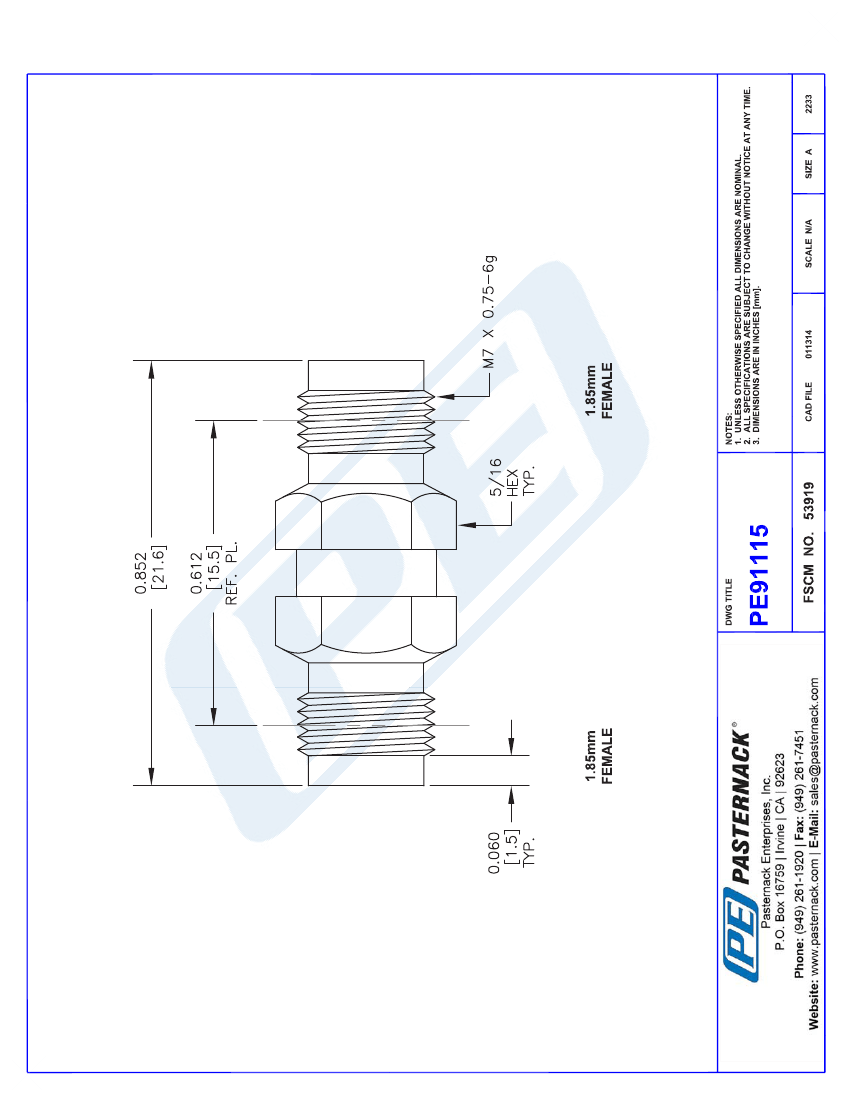

Size
Length, in [mm]
Width/Dia., in [mm]
.
-55 to +165
0.852 [21.64]
0.312 [7.92]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Outer Conductor Material and Plating
Body Material and Plating
Dielectric Type
Connector 2
Type
1.85mm Female
Beryllium Copper, Gold
MIL-STD-348
Passivated Stainless Steel
Passivated Stainless Steel
PTFE
1.85mm Female
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Precision 1.85mm Female to 1.85mm Female Adapter PE91115
PE91115 REV 1.0
1
Precision 1.85mm Female to 1.85mm Female Adapter
TECHNICAL DATA SHEET
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Outer Conductor Material and Plating
Body Material and Plating
Dielectric Type
Beryllium Copper, Gold
MIL-STD-348
Passivated Stainless Steel
Passivated Stainless Steel
PTFE
PE91115
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
Mode Free through 67 GHz
Precision 1.85mm Female to 1.85mm Female Adapter from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
