SMA Female Connector Solder Attachment 2 Hole Flange Mount Terminal

Preview

Download Datasheet

View All

SMA Female Connector Solder Attachment

2 Hole Flange Mount Terminal

TECHNICAL DATA SHEET

Configuration

Connector

Connector Specification

Connector Interface Type

Attachment Method (Shield/Contact)

Body Style

Mount Method

SMA Female

MIL-STD-348

Terminal

Solder

Straight

2 Hole Flange

PE45067

Electrical Specifications

Impedance

50 Ohms

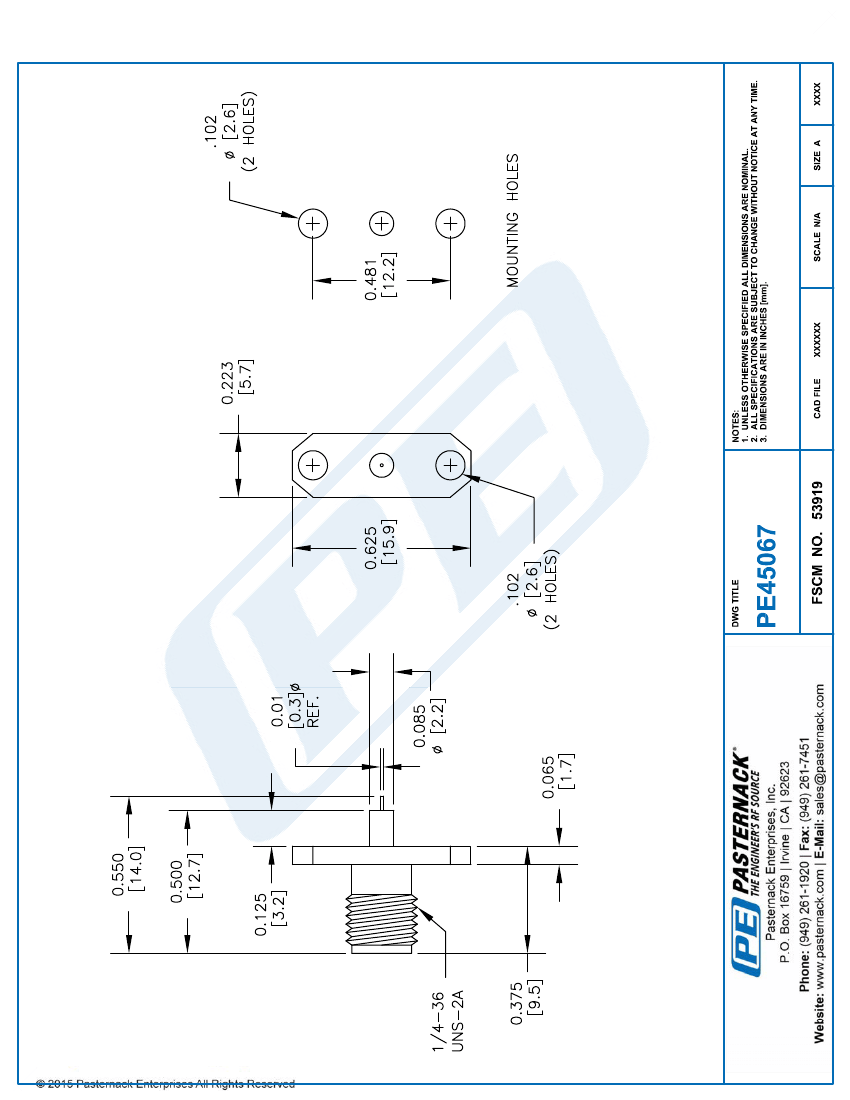

Mechanical Specifications

Size

Length

Width/Dia.

Height

0.55 in [13.97 mm]

0.625 in [15.88 mm]

0.223 in [5.66 mm]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

SMA Female

Beryllium Copper, Gold

MIL-G-45204

Steel, Gold

MIL-G-45204

Teflon

Compliance Certifications

(visit www.Pasternack.com for current document)

Not RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

SMA Female Connector Solder Attachment 2 Hole Flange Mount Terminal PE45067

PE45067 REV 1.0
