PHOTOMULTIPLIER TUBES
R9110
R9110P
(For Photon Counting)
High Sensitivity and Lower Dark Current, Lower Dark Count
Wide Spectral Range with Low ENI
FEATURES
G
Low Dark Current ...................................... 5 nA (after 30 minutes)
G
Low Dark Counts (R9110P) ...................... 500 s
-1
G
Wide Spectral Response .......................... 185 nm to 900 nm
G
High Cathode Sensitivity
Luminous ................................................ 525
µA/lm
Radiant at 450 nm .................................. 90 mA/W
QE at 450 nm .......................................... 24.8 %
G
High Anode Sensitivity (at 1000 V)
Luminous ................................................ 10 000 A/lm
G
High Signal to Noise Ratio

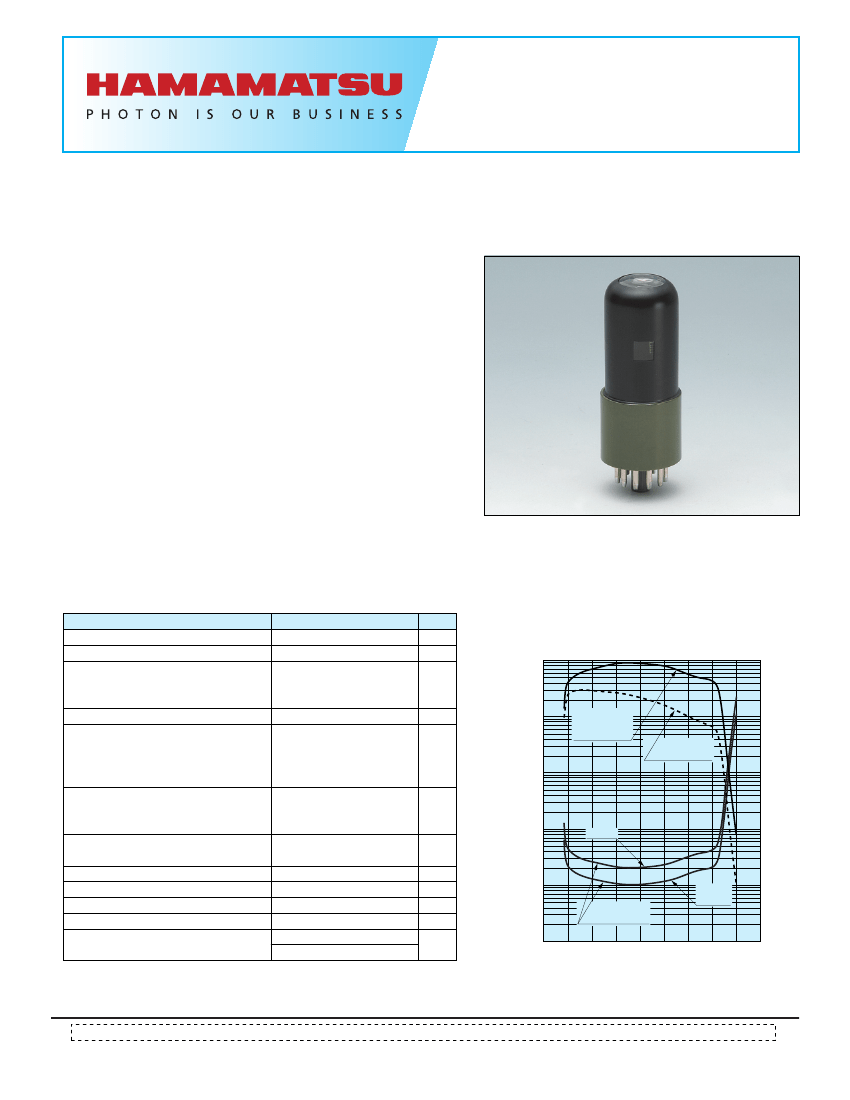

The R9110 is 28 mm (1-1/8 inch) diameter, 9-stage, side-on type pho-
tomultiplier tube having an extended red multialkali photocathode
same as the R3896. The R9110 features very low dark current, ex-
tremely high quantum efficiency, high gain, good S/N ratio and wide
spectral response from UV to near infrared.
The R9110P is a photon counting version of the R9110 with low dark
counts.
GENERAL
Parameter
Spectral Response
Wavelength of Maximum Response
Photocathode
Material
Minimum Effective Area
Window Material
Dynode
Secondary Emitting Surface
Structure
Number of Stages
Direct Interelectrode Capacitances
Anode to Last Dynode
Anode to All Other Electrodes
Base
Weight
Operating Ambient Temperature
Storage Temperature
Suitable Socket
Suitable Socket Assembly
Description / Value
185 to 900
450
Multialkali
8
×
6
UV glass
Multialkali
Circular-cage
9
4
6
11-pin base
JEDEC No. B11-88
46
-30 to +50
-30 to +50
E678-11A (Sold Separately)
E717-63 (Sold Separately)
E717-74 (Sold Separately)
Unit
nm
nm
—
mm
—
—
—
—
pF
pF
—
g
°C
°C
—
—
Figure 1: Typical Spectral Response
and Equivalent Noise Input
100
TPMSB0207EA
10
-12
CATHODE RADIANT SENSITIVITY (mA/W)
QUANTUM EFFICIENCY (%)
10
QUANTUM
EFFICIENCY
1
10
-14
0.1
R3896
10
-15
0.01
EQUIVALENT
NOISE INPUT
R9110
R9110P
10
-16
0.001
10
-17
100 200 300 400 500 600 700 800 900 1000
WAVELENGTH (nm)
Subject to local technical requirements and regulations, availability of products included in this promotional material may vary. Please consult with our sales office.
Information furnished by HAMAMATSU is believed to be reliable. However, no responsibility is assumed for possible inaccuracies or omissions. Specifications are
subject to change without notice. No patent rights are granted to any of the circuits described herein. ©2012 Hamamatsu Photonics K.K.
EQUIVALENT NOISE INPUT (W)
CATHODE
RADIANT
SENSITIVITY
10
-13
PHOTOMULTIPLIER TUBES
R9110, R9110P (For Photon Counting)
MAXIMUM RATINGS (Absolute Maximum Values at 25
°C)
Parameter
Supply Voltage
Between Anode and Cathode
Between Anode and Last Dynode
Average Anode Current
A
Value
1250
250
0.1
Unit
V
V
mA
CHARACTERISTlCS (at 25
°C)
Parameter
Cathode Sensitivity
Quantum Efficiency
at 254 nm
at 450 nm
at 633 nm
at 852 nm
B
Luminous
Radiant
at 254 nm
at 450 nm
at 633 nm
at 852 nm
C
Red / White Ratio
Blue Sensitivity Index
D
Anode Sensitivity
Luminous
E
Gain
E
Anode Dark Current
F
(After 30 min Storage in Darkness)
Anode Dark Counts
F
(for the R9110P)
ENI (Equivalent Noise Input)
G
Time Response
Anode Pulse Rise Time
H
Electron Transit Time
I
Transit Time Spread (TTS)
J
Anode Current Stability
K
Light Hysteresis
Voltage Hysteresis
Min.
—
—
—
—
400
—
—
—
—
0.2
—
4000
—
—
—
—
—
—
—
—
—
Typ.
29.3
24.8
14.3
0.73
525
60
90
73
5.0
0.4
15
10 000
1.9
×
10
7
5
500
1.0
×
10
-16
2.2
22
1.2
0.1
1.0
Max.
—
—
—
—
—
—
—
—
—
—
—
—
—
15
1000
—
—
—
—
—
—
Unit
%
%
%
%
µA/lm
mA/W
mA/W
mA/W
mA/W
—
—
A/lm
—
nA
s
-1
W
ns
ns
ns
%
%
NOTES
A: Averaged over any interval of 30 seconds maximum.
B: The light source is a tungsten filament lamp operated at a distribution
temperature of 2856K.
Supply voltage is 100 volts between the cathode and all other electrodes
connected together as anode.
C: Red/White ratio is the quotient of the cathode current measured using a
red filter (Toshiba R-68) interposed between the light source and the tube
by the cathode current measured with the filter removed under the same
conditions as Note B.
D: The value is cathode output current when a blue filter (Corning CS 5-58
polished to 1/2 stock thickness) is interposed between the light source
and the tube under the same condition as Note B.
E: Measured with the same light source as Note B and with the voltage
distribution ratio shown in Table 1 below.
Table 1:Voltage Distribution Ratio
Electrodes
Distribution
Ratio
K
1
Dy1 Dy2 Dy3 Dy4 Dy5 Dy6 Dy7 Dy8 Dy9
1
1
1
1
1
1
1
1
1
P
H: The rise time is the time for the output pulse to rise from 10% to 90% of
the peak amplitude when the entire photocathode is illuminated by a delta
function light pulse.
I: The electron transit time is the interval between the arrival of delta
function light pulse at the entrance window of the tube and the time when
the anode output reaches the peak amplitube. In measurement, the whole
photocathode is illuminated.
J: Also called transit time jitter. This is the fluctuation in electron transit time
between individual pulses in the single photoelectron mode, and may be
defined as the FWHM of the frequency distribution of electron transit
times.
K: Hysteresis is temporary instability in anode current after light and voltage
are applied.
lmax.
lmin.
Hysteresis =
100 (%)
li
ANODE
CURRENT
l max.
l min.
TIME
0
5
6
7 (minutes)
SuppIy Voltage: 1000 V, K: Cathode, Dy: Dynode, P: Anode
li
F:
Measured at the voltage producing the gain of 1
×
10
6
and the voltage
distribution ratio shown in table 1 below.
G: ENI is an indication of the photon-limited signal-to-noise ratio. It refers to
the amount of light in watts to produce a signal-to-noise ratio of unity in
the output of a photomultiplier tube.
2q.ldb.G. f
(W)
S
where q = Electronic charge. (1.60
×
10
-19
coulomb)
ldb = Anode dark current (after 30 minute storage) in amperes.
G = Gain.
f = Bandwidth of the system in hertz. (usually 1 hertz)
S = Anode radiant sensitivity in amperes per watt at the
wavelength of peak response
ENI =
TPMSB0002EA
(1)Light Hysteresis
The tube is operated at 750 volts with an anode current of 1 microampere for
5 minutes. The light is then removed from the tube for a minute. The tube is
then re-illuminated by the previous light level for a minute to measure the
variation.
(2)Voltage Hysteresis
The tube is operated at 300 volts with an anode current of 0.1 micro-ampere
for 5 minutes. The light is then removed from the tube and the supply voltage
is quickly increased to 800 volts. After a minute, the supply voltage is then
reduced to the previous value and the tube is re-illuminated for a minute to
measure the variation.
Figure 2: Anode Luminous Sensitivity and
Gain Characteristics
10
5
TPMSB0206EB
Figure 3: Typical Time Response
10
8
100
80
TPMSB0157EB
TYPICAL GAIN
60
10
7
40
ANODE LUMINOUS SENSITIVITY (A/lm)
10
4
TRANSIT
10
3
TYPICAL ANODE
SENSITIVITY
10
2
MINIMUM ANODE
SENSITIVITY
10
1
10
4
4
10
5
10
6
20
TIME
TIME (ns)
GAIN
10
8
6
RISE TIM
E
10
0
10
3
2
10
-1
500
700
1000
10
2
1500
1
500
700
1000
1500
SUPPLY VOLTAGE (V)
SUPPLY VOLTAGE (V)
Figure 4: Typical Temperature Characteristics
of Dark Current (R9110)
(at 1000 V, after 30 min storage)
100
TPMSB0241EA
Figure 5: Typical Temperature Characteristics
of Dark Count (R9110P)
10
4
TPMSB0240EA
10
ANODE DARK CURRENT (nA)
10
3
1
DARK COUNT (s
-1
)
-20
-10
0
10
20
30
40
50
10
2
0.1
10
1
0.01
0.001
-30
10
0
-30
-20
-10
0
10
20
30
TEMPERATURE (°C)
TEMPERATURE (°C)
PHOTOMULTIPLIER TUBES
R9110, R9110P (For Photon Counting)

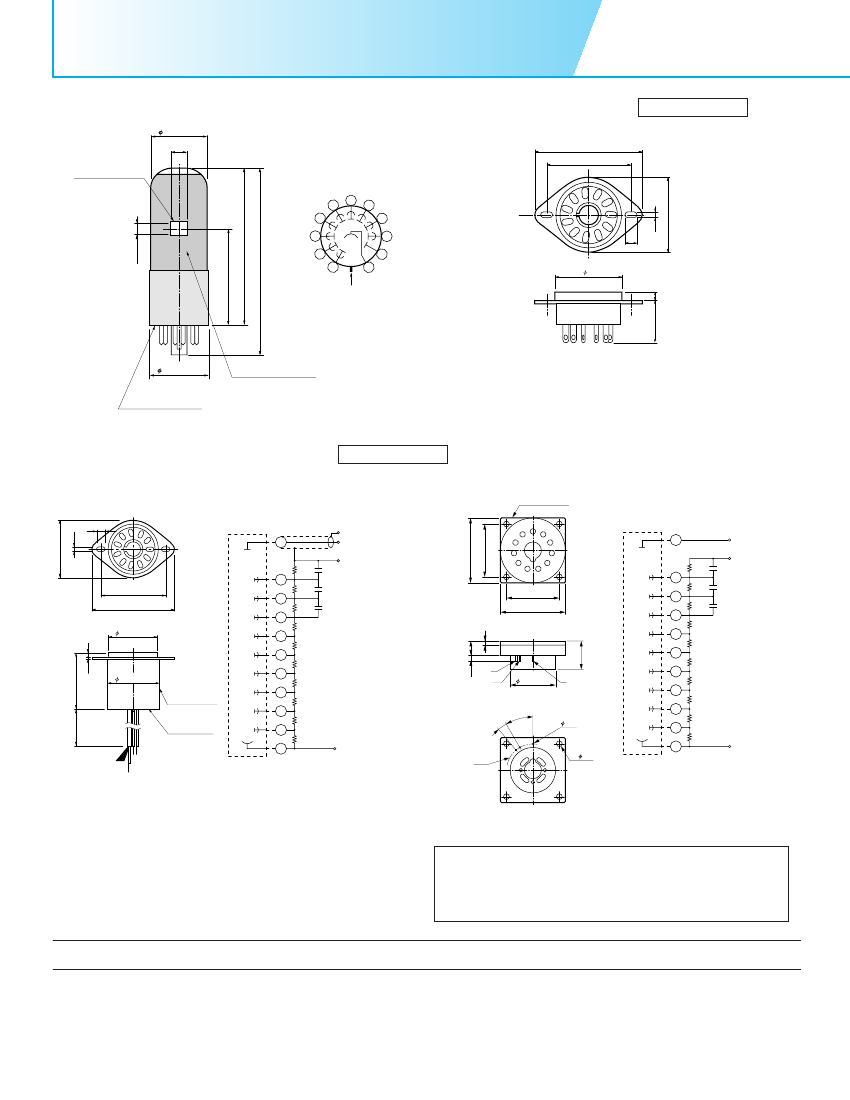

Figure 5: Dimensional Outline and Basing Diagram (Unit: mm)
29.0
±
1.7
8 MIN.
PHOTOCATHODE
DY5
DY4 4
80 MAX.
6 MIN.
DY3 3
94 MAX.
DY2
2
1
11
K
DY6
6
DY7
3.5
5
29
18
4
Figure 6: Socket (Unit: mm)
E678-11A
49
38
Sold Separately
5
7
8 DY8
9 DY9
10
P
49
±
1
DY1
DIRECTION OF LIGHT
32.2
±
0.5
11 PIN BASE
JEDEC No. B11-88
INSULATION COVER
TACCA0064EA
TPMSA0016EC
Figure 7: D Type Socket Assembly
(Unit: mm)
Sold Separately
E717-63
E717-74
HOUSING
(INSULATOR)
SOCKET
PIN No.
10
P
R10
DY9
9
R9
DY8
DY7
8
R8
7
R7
2
DY6
DY5
6
R6
5
R5
4
R4
3
R3
DY2
2
R2
DY1
K
1
R1
11
-HV
AWG22 (VIOLET)
R13
4- 2.8
* "Wiring diagram applies when -HV is supplied."
To supply +HV,connect the pin "G" to+HV, and the pin
"K" to the GND.
C1
C2
26.0±0.2
32.0±0.5
TOP VIEW
14.0±0.5
DY7
DY6
DY5
DY4
DY3
DY2
0.7
DY1
K
7
R7
6
R6
5
R5
4
R4
3
R3
2
R2
1
R1
11
-HV (K)
R1 to R10 : 330 kΩ
C1 to C3 : 10 nF
C3
SOCKET
PIN No.
10
P
R10
DY9
DY8
9
R9
8
R8
C1
C2
C3
SIGNAL
OUTPUT (A)
GND (G)
5
33.0
±
0.3
3.5
PMT
SIGNAL GND
SIGNAL OUTPUT
RG-174/U(BLACK)
POWER SUPPLY GND
AWG22 (BLACK)
PMT
32.0±0.5
26.0±0.2
38.0
±
0.3
49.0
±
0.3
29.0
±
0.3
4
R1 to R10 : 330 kΩ
C1 to C3 : 10 nF
0.7
7
30.0
31.0
±
0.5
HOUSING
(INSULATOR)
POTTING
COMPOUND
DY4
DY3
A
G
2.7
+0
-1
22.4±0.2
SIDE VIEW
K
450
±
10
°
10
30
°
BOTTOM VIEW
TACCA0002EH
TACCA0277EA
* Hamamatsu also provides C4900 series compact high voltage power
supplies and C6270 series DP type socket assemblies which incor-
porate a DC to DC converter type high voltage power supply.
