ID37P33E6GX96LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> ID37P33E6GX96LF

ID37P33E6GX96LF: DescriptionD Subminiature Connector, 37 Contact(s), Male, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

ID37P33E6GX96LF Overview

D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, LEAD FREE

ID37P33E6GX96LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	MATTE TIN (79) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	ID
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0

ID37P33E6GX96LF Preview

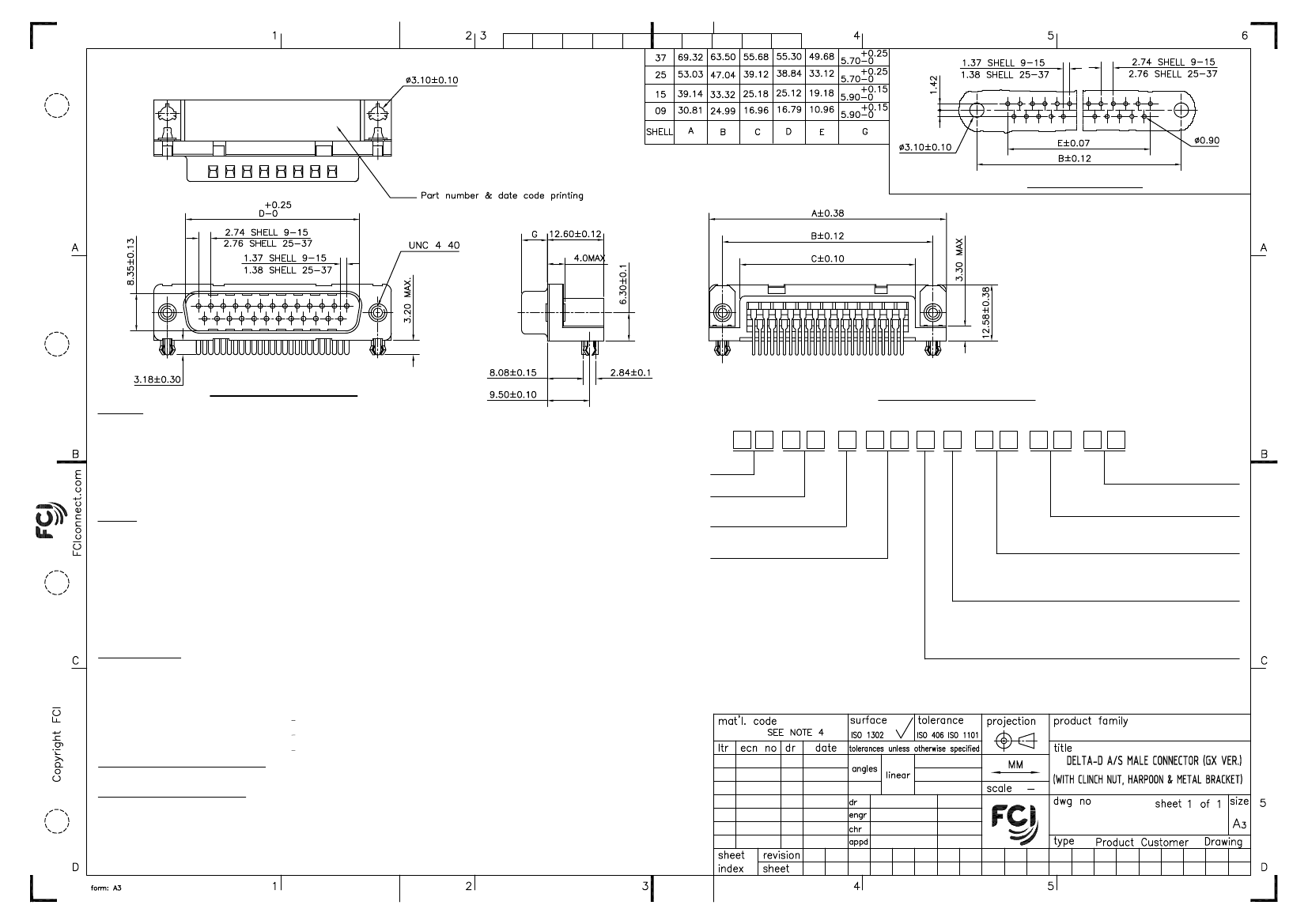

PCB DRILLING DETAILS

TECHNICAL SPECIFICATIONS

MATERIAL

SHELL

INSULATORS

STEEL TIN/Zinc Cr 3 PLATED.

SELF EXTINGUISHING BLACK POLYESTER UL CLASS 94V0

THE HOUSING WILL WITHSTAND EXPOSURE TO 260-265°C

IF WE USE PROTECTIVE ADHESIVE (type Kapton or Teflon)

OR PROTECTIVE METALLIC DEVICE

CONTACTS

COPPER ALLOY

ORDERING INFORMATION

SERIES

LEAD FREE

SPECIAL CODE

NO.OF CONTACTS

09,15,25,37

PLATING

ACTIVE ZONE

TERMINATION ZONE

FOR LEAD FREE PLATING

GOLD OVER NICKEL

TIN LEAD OVER NICKEL

2 m MIN.MATTE TIN TOP OVER

1.27 MIN.NICKEL UNDER PLATE(ON TERMINATION ZONE)

METAL BRACKET

HARPOON

CLINCH NUT

BRASS,TIN/Zinc Cr 3 PLATED.

BRASS,TIN PLATED.

BRASS,TIN/Zinc Cr 3 PLATED.

"This LF product meets European Union Directives and other country

regulations as described in GS-22-008"

1000V

300V

< 25m

< 5m W

> 5000M

TYPE OF CONTACTS

P-PIN

96->IMPRESSION PRINTING AND SPECIAL LABELING

TYPE OF TERMINATION

33-ANGLED SPILL

PITCH 2.84 USA

FOOT PRINT 8.08 USA

MOUNTING OPTIONS

GX->HARPOON+INSERT UNC 4 40+METAL BRACKET

PLATING

4->FLASH Au+Sn Pb

6->0.76

Au+Sn/Sn Pb

ELECTRICAL DATA

MAX.CURRENT RATING

TEST VOLTAGE

RATED VOLTAGE

CONTACT RESISTANCE

SHELL RESISTANCE

INSULATION RESISTANCE

HEIGHT OF TERMINATION

The housing will withstand exposure to 260°C peak temperature for 3.5 seconds

in a wave solder application with a 1.6mm minimum thick circuit board.

Packaging as per GS-14-920

DELTA-D

I06-0074

GVJ

2006/06/08

.00±0.1

0°±1°

.000±.00X

GEORGE.V.JOSEPH

K_V_SIVADAS

1998/12/16

2006/06/22

ENVIRONMENTAL CHARACTERISTICS.

OPERATING TEMPERATURE RANGE

-55°C +125°C

200 (FLASH Au); 500 (0.76µ Au)

MECHANICAL CHARACTERISTICS

MATING/UNMATING CYCLES (MIN)

INSERTION/EXTRACTION FORCE PER CONTACT 5 N Max./ 0.3 N Min.

C-DD-0065

PDM: Rev:D

STATUS:

Released

Printed: Jan 18, 2011

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
