BR-HG033-15V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BR-HG033-15V

BR-HG033-15V: DescriptionSingle Color LED, Yellow Green, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size78KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BR-HG033-15V Overview

Single Color LED, Yellow Green, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2

BR-HG033-15V Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown
color	YELLOW GREEN
Configuration	SINGLE WITH BUILT-IN RESISTOR
Maximum forward current	0.012 A
Lens type	WATER CLEAR
Nominal luminous intensity	15.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	BULK
peak wavelength	568 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	3.5 mm
perspective	140 deg

Preview

Download Datasheet

View All

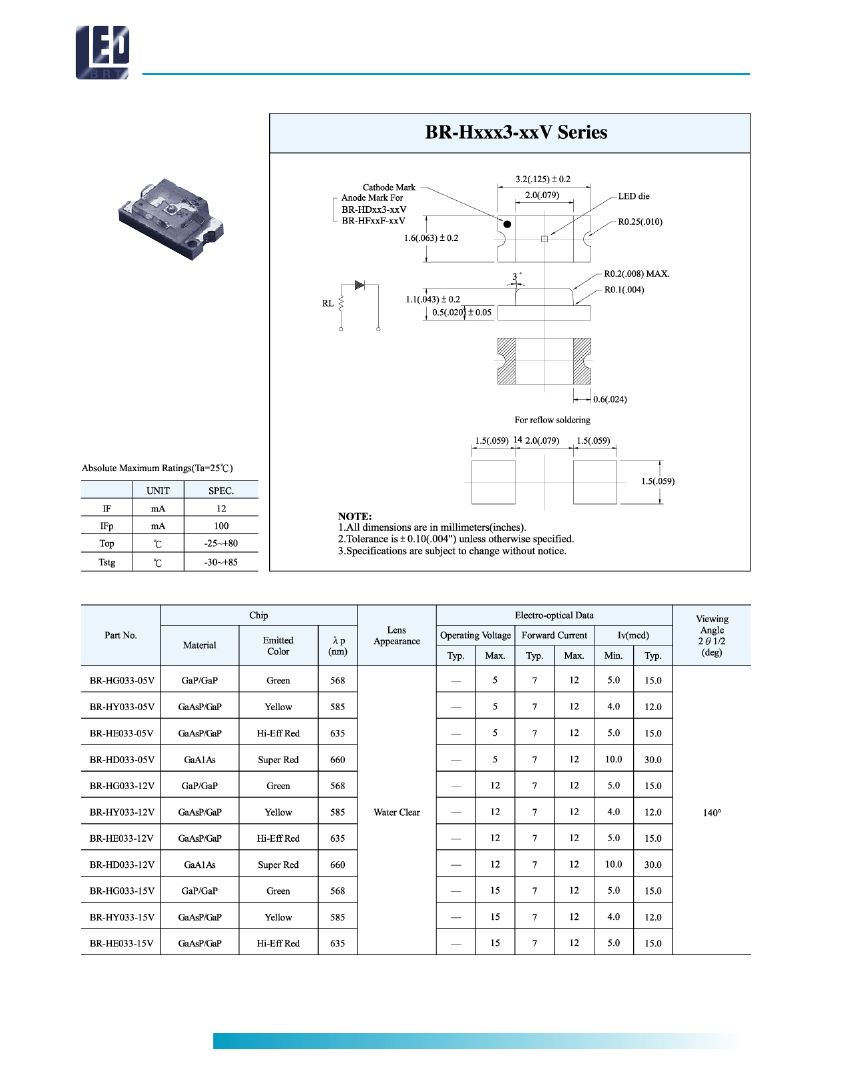

Surface Mount Resistor Chip LED Lamps

BR-H Series 1206

5V 12V 15V

AMERICAN BRIGHT

w w w. a m e r i c a n b r i g h t l e d . c o m

BR-HG033-15V Related Products

	BR-HG033-15V	BR-HY033-05V	BR-HD033-05V	BR-HE033-12V	BR-HD033-12V	BR-HE033-15V	BR-HY033-12V	BR-HY033-15V	BR-HE033-05V
Description	Single Color LED, Yellow Green, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Yellow, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Super Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED, High Efficiency Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Super Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED,	Single Color LED, Yellow, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Yellow, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
Maker	BRIGHT	-	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT
package instruction	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	-	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	-
color	YELLOW GREEN	YELLOW	SUPER RED	HIGH EFFICIENCY RED	SUPER RED	-	YELLOW	YELLOW	-
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	-	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	-
Maximum forward current	0.012 A	0.012 A	0.012 A	0.012 A	0.012 A	-	0.012 A	0.012 A	-
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	-	WATER CLEAR	WATER CLEAR	-
Nominal luminous intensity	15.0 mcd	12.0 mcd	30.0 mcd	15.0 mcd	30.0 mcd	-	12.0 mcd	12.0 mcd	-
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	-
Number of functions	1	1	1	1	1	-	1	1	-
Number of terminals	2	2	2	2	2	-	2	2	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	-	85 °C	85 °C	-
Minimum operating temperature	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-	-45 °C	-45 °C	-
total height	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm	-	1.1 mm	1.1 mm	-
method of packing	BULK	BULK	BULK	BULK	BULK	-	BULK	BULK	-
peak wavelength	568 nm	583 nm	660 nm	640 nm	660 nm	-	583 nm	583 nm	-
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-
size	2 mm	2 mm	2 mm	2 mm	2 mm	-	2 mm	2 mm	-
surface mount	YES	YES	YES	YES	YES	-	YES	YES	-
Terminal pitch	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	-	3.5 mm	3.5 mm	-
perspective	140 deg	140 deg	140 deg	140 deg	140 deg	-	140 deg	140 deg	-
