K4H561638N-LCB30 datasheet, PDF

Datasheet> All Categories > storage> storage> K4H561638N-LCB30

K4H561638N-LCB30: DescriptionDDR DRAM, 16MX16, 0.7ns, CMOS, PDSO66, 0.400 X 0.875 INCH, 0.65 MM PITCH, HALOGEN FREE AND ROHS COMPLIANT, TSOP2-66; Categorystorage storage; File Size589KB，24 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric View All

K4H561638N-LCB30 Overview

DDR DRAM, 16MX16, 0.7ns, CMOS, PDSO66, 0.400 X 0.875 INCH, 0.65 MM PITCH, HALOGEN FREE AND ROHS COMPLIANT, TSOP2-66

K4H561638N-LCB30 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMSUNG
Parts packaging code	TSOP2
package instruction	TSOP2, TSSOP66,.46
Contacts	66
Reach Compliance Code	compliant
ECCN code	EAR99
access mode	FOUR BANK PAGE BURST
Maximum access time	0.7 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	166 MHz
I/O type	COMMON
interleaved burst length	2,4,8
JESD-30 code	R-PDSO-G66
JESD-609 code	e3
length	22.22 mm
memory density	268435456 bit
Memory IC Type	DDR DRAM
memory width	16
Humidity sensitivity level	3
Number of functions	1
Number of ports	1
Number of terminals	66
word count	16777216 words
character code	16000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSSOP66,.46
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	260
power supply	2.5 V
Certification status	Not Qualified
refresh cycle	8192
Maximum seat height	1.2 mm
self refresh	YES
Continuous burst length	2,4,8
Maximum standby current	0.003 A
Maximum slew rate	0.12 mA
Maximum supply voltage (Vsup)	2.7 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	10.16 mm

Preview

Download Datasheet

View All

Rev. 1.01, May. 2010

K4H560438N

K4H560838N

K4H561638N

256Mb N-die DDR SDRAM

66TSOP-(II) with Lead-Free & Halogen-Free

(RoHS compliant)

datasheet

SAMSUNG ELECTRONICS RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND

SPECIFICATIONS WITHOUT NOTICE.

Products and specifications discussed herein are for reference purposes only. All information discussed

herein is provided on an "AS IS" basis, without warranties of any kind.

This document and all information discussed herein remain the sole and exclusive property of Samsung

Electronics. No license of any patent, copyright, mask work, trademark or any other intellectual property

right is granted by one party to the other party under this document, by implication, estoppel or other-

wise.

Samsung products are not intended for use in life support, critical care, medical, safety equipment, or

similar applications where product failure could result in loss of life or personal or physical harm, or any

military or defense application, or any governmental procurement to which special terms or provisions

may apply.

For updates or additional information about Samsung products, contact your nearest Samsung office.

All brand names, trademarks and registered trademarks belong to their respective owners.

ⓒ

-1-

K4H560438N

K4H560838N

K4H561638N

datasheet

Rev. 1.01

DDR SDRAM

Table Of Contents

256Mb N-die DDR SDRAM

1. Key Features................................................................................................................................................................. 4

2. Ordering Information ..................................................................................................................................................... 4

3. Operating Frequencies ................................................................................................................................................. 4

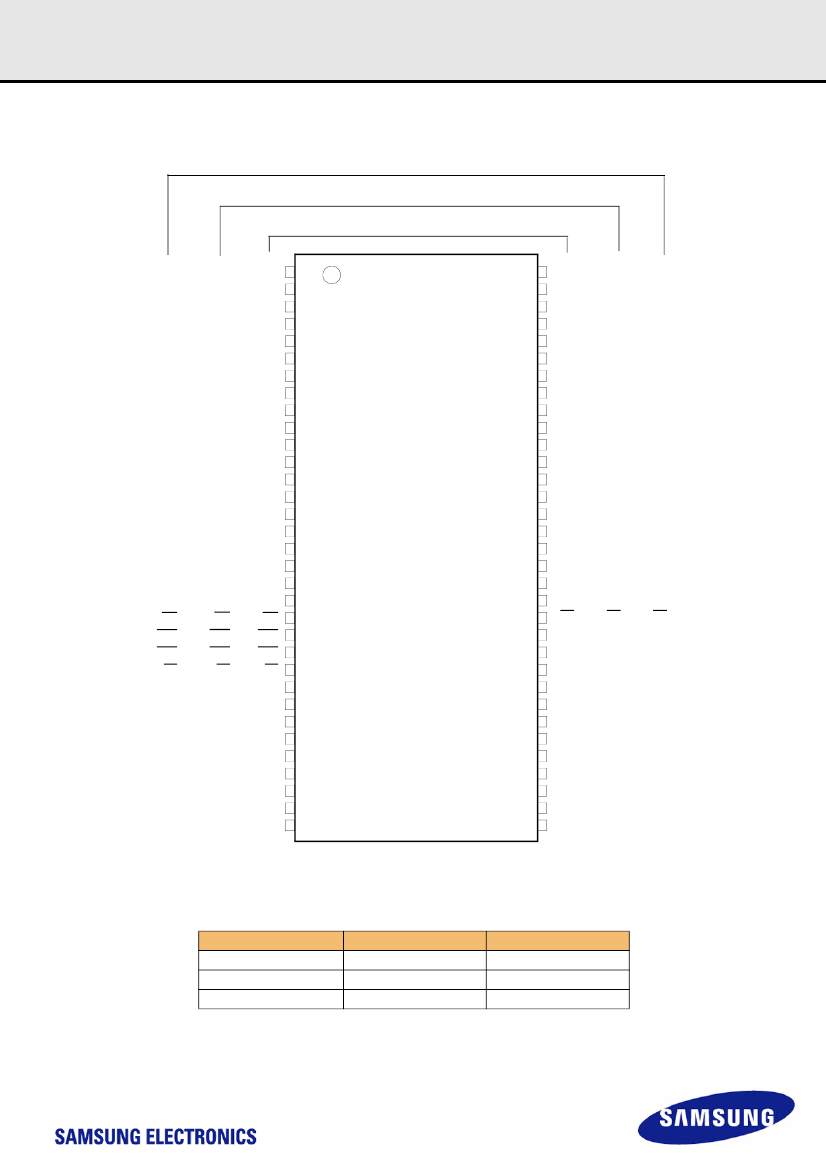

4. Pin / Ball Description ..................................................................................................................................................... 5

5. Package Physical Dimension........................................................................................................................................ 6

6. Block Diagram (16Mb x4 / 8Mbx8 / 4Mx16 I/O x4 Banks) ............................................................................................ 7

7. Input/Output Function Description ................................................................................................................................ 8

8. Command Truth Table .................................................................................................................................................. 9

9. General Description ...................................................................................................................................................... 10

10. Absolute Maximum Rating .......................................................................................................................................... 10

11. DC Operating Conditions ............................................................................................................................................ 10

12. DDR SDRAM Spec Items & Test Conditions .............................................................................................................. 11

13. Input/Output Capacitance ........................................................................................................................................... 11

14. Detailed test condition for DDR SDRAM IDD1 & IDD7A ............................................................................................ 12

15. DDR SDRAM IDD Spec Table .................................................................................................................................... 13

16. AC Operating Conditions ............................................................................................................................................ 14

17. AC Overshoot/Undershoot specification for Address and Control Pins ...................................................................... 14

18. Overshoot/Undershoot specification for Data, Strobe and Mask Pins ........................................................................ 15

19. AC Timing Parameters & Specifications ..................................................................................................................... 16

20. System Characteristics for DDR SDRAM ................................................................................................................... 17

21. Component Notes ....................................................................................................................................................... 18

22. System Notes.............................................................................................................................................................. 20

23. IBIS : I/V Characteristics for Input and Output Buffers................................................................................................ 21
