HX424C14SBK4-64 Overview

DDR4-2400 CL14 288-Pin DIMM Kit

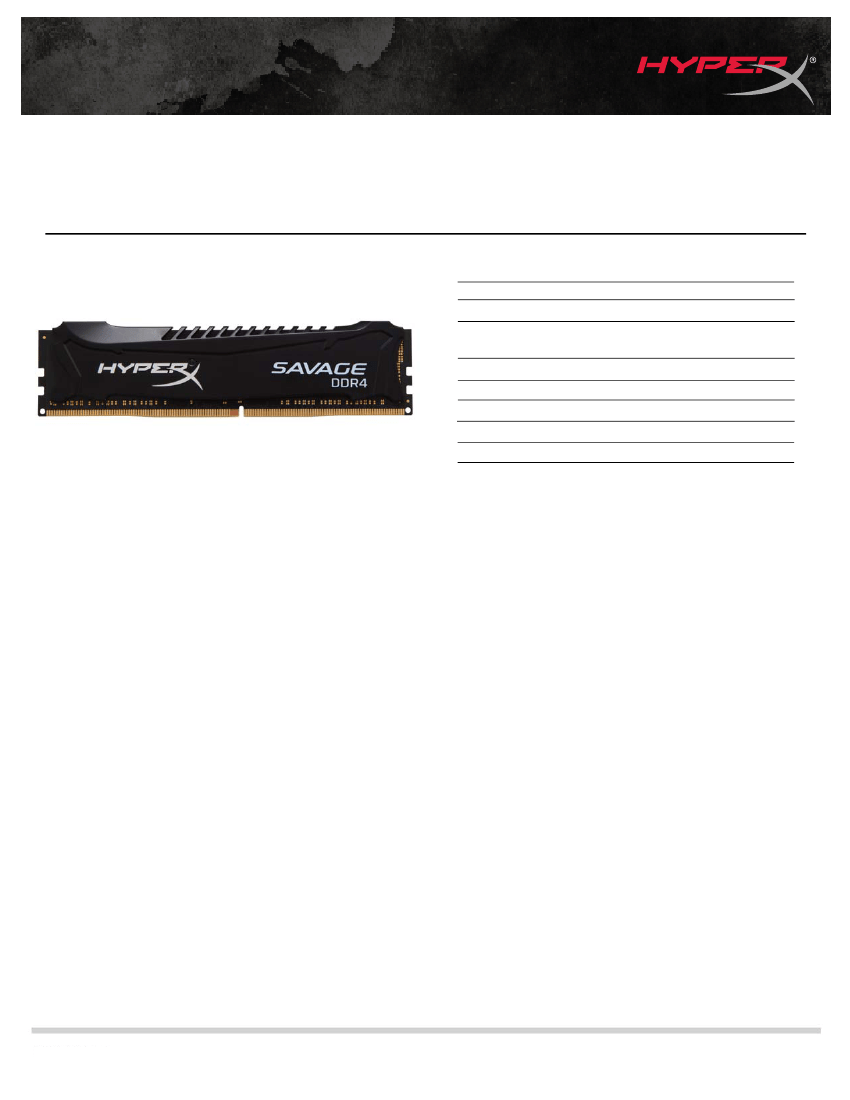

Memory Module Specifications
HX424C14SBK4/64
64GB (16GB 2G x 64-Bit x 4 pcs.)
DDR4-2400 CL14 288-Pin DIMM Kit
SPECIFICATIONS
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
Maximum Operating Power
UL Rating
Operating Temperature
Storage Temperature
15 cycles
46.5ns (min.)
350ns (min.)
33ns (min.)
TBD W*
94 V - 0
0
o
C to +85
o
C
-55
o
C to +100
o
C
*Power will vary depending on the SDRAM used.
DESCRIPTION
HyperX HX424C14SBK4/64 is a kit of four 2G x 64-bit (16GB)
DDR4-2400 CL14 SDRAM (Synchronous DRAM) 2Rx8, memory
modules, based on sixteen 1G x 8-bit FBGA components per
module. Total kit capacity is 64GB. Each module supports
Intel® XMP (Extreme Memory Profiles). Each module has
been tested to run at DDR4-2400 at a low latency timing of
14-14-14 at 1.2V. The SPDs are programmed to JEDEC
standard latency DDR4-2133 timing of 15-15-15 at 1.2V.
Each 288-pin DIMM uses gold contact fingers. The JEDEC
standard electrical and mechanical specifications are as
follows:
FEATURES
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD = 2.25V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)

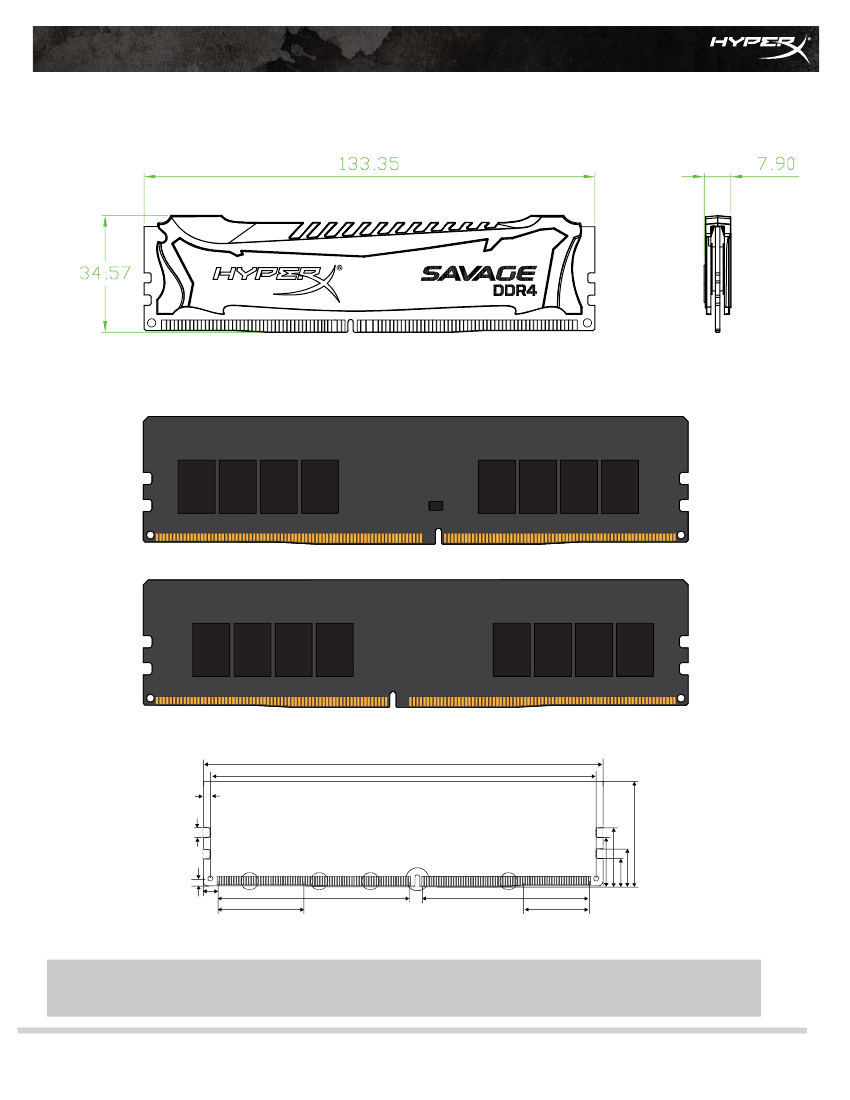

• Height 1.36” (34.57mm)
XMP TIMING PARAMETERS
JEDEC: DDR4-2133 CL15-15-15 @1.2V
XMP Profile #1: DDR4-2400 CL14-14-14 @1.2V
Continued >>
hyperxgaming.com
Document No. 4807470-001.A00
10/30/15
Page 1
