SPECIFICATIONS
Current Rating:
Contact Material:
Contact Resistance:
Insulation Material:
Insulation Resistance:
Contact Plating:
Withstanding:
Operating Temp:
2 Amps
Phosphor Bronze
20m ohms max.
Polyester, UL94V-0 Nylon-6T
1000 Megohms min
Gold Flash (standard)
AC 500V
-40ºC ~ +105ºC
C
D
D
E
E
Series
BRS
2mm Receptacle
Strip
F
Rows
02
02=02 rows
Profile
LPJ
LPJ=4.5mm
Contacts
XX
04-80
Tail
C
C=2.8
Custom Available
Plating
XX
TN=Tin
SGXX=Selective Gold
GDXX=Gold
XX=Flash if blank,10,15,30u”
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
F
Date
10/08/09
10/08/09
10/08/09 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
BRS-02-LPJ5-XX-C-XX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

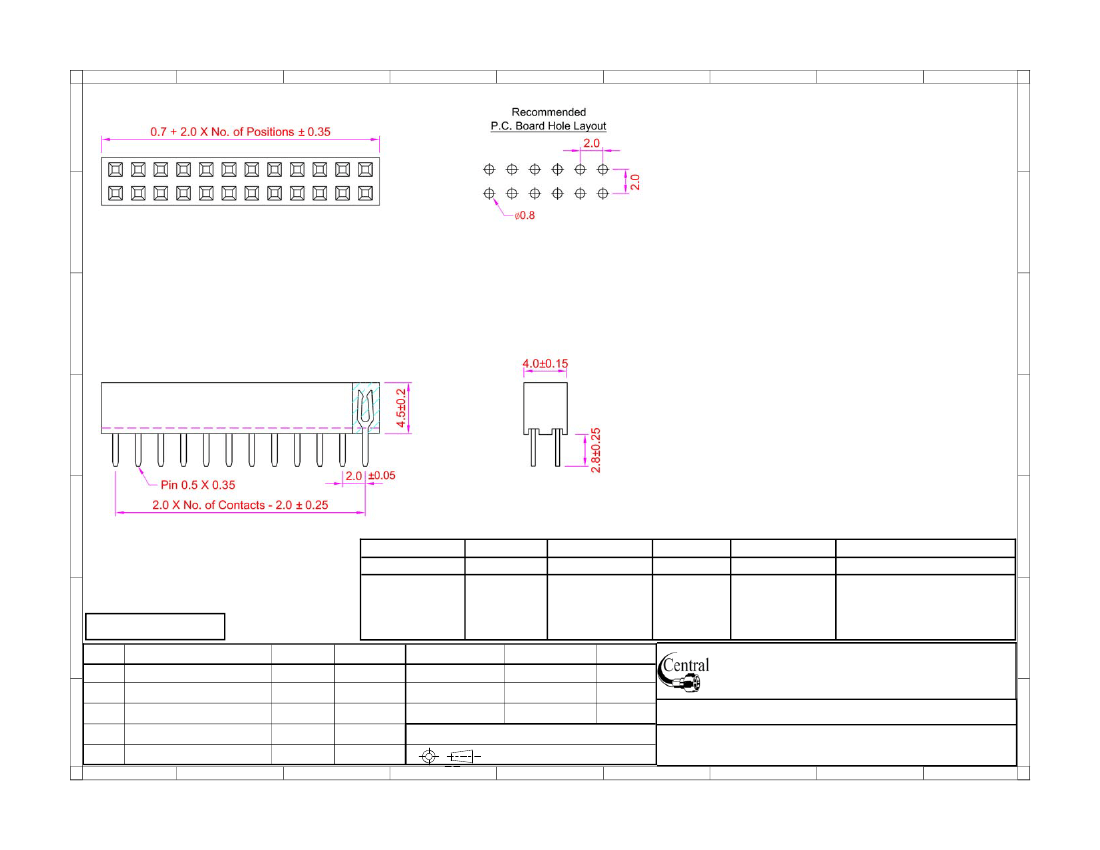

Description: Female Header 2.0 x 2.0mm Dual Row, Straight
