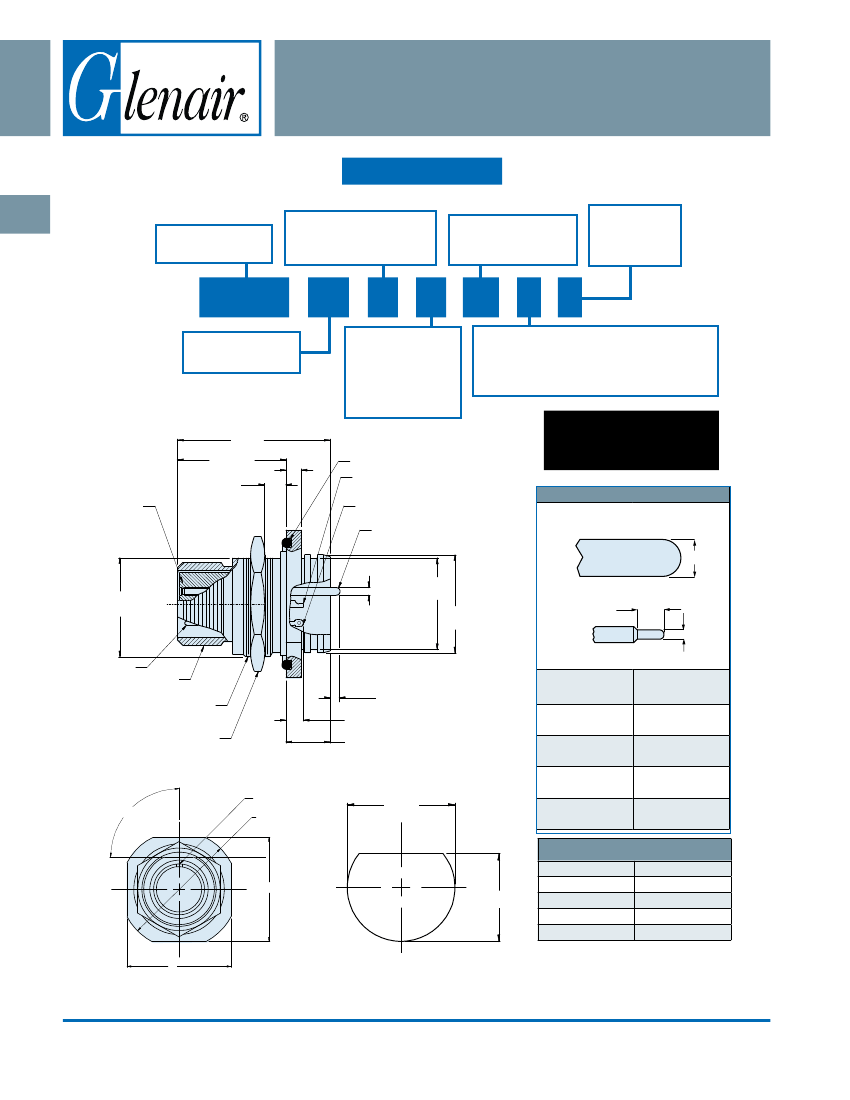

MIL-DTL-38999
Hermetic Connectors
D38999/23
Jam Nut Mount Hermetic Receptacle
MIL-DTL-38999 Series III
How To Order:
MS
B
Basic Specification
D38999
Connector Material / Finish
N
- CRES, Nickel
Y
- CRES, Passivated
Insert Arrangement
Per MIL-STD-1560;
See Pages B2 - B4
Alternate Key
Position
A, B, C, D, E
(N = Normal)
D38999
Shell Style
/23
-
Jam Nut Mount
/23
A
B
C
D
E
Y
B
35
P
N
Shell Size
- 9
F
- 19
- 11
G
- 21
- 13
H
- 23
- 15
J
- 25
- 17
Contact Termination
P
- Pin, Solder Cup
S
- Socket, Solder Cup
X
- Pin, Eyelet
Z
- Socket, Eyelet
C
- Pin, PCB
D
- Socket, PCB
Flex Feedthrough
Flex Feedthrough
L
Max
.889
Max
Socket
Face
H
Panel
Thickness
J
O-Ring
Solder Cup
Contact (P & S)
Eyelet
Contact (X & Z)
Feedthrough
Contact (C & D)
Non-Environmental
Rear Accessory Thread Adapter
Available for this Receptacle
See P/N 980-002 on Page B-90
TABLE ll: CONTACT SIZE
PRINTED CIRCUIT TAIL CONFIGURATIONS
CONTACT STYLE C AND D
P
D
Flat
E
DIA
P
(See Table II)
F
DIA
SIZE 12 AND SIZE 16
.050 ± .015
(1.27 ± 0.38)
SIZE 22D AND SIZE 20
Contact
Size
22D
20
16
Pin Face
A Thread
G Thread
Nut
Per D38999/28
Master
Keyway
B
DIA
.175/.125
M Max
.358 Max Size 9-17
.382 Max Size 19-25
P
ø P
.011 (0.28)
.015 (0.38)
.024 (0.61)
.028 (0.71)
.0635 (1.61)
.0615 (1.56)
.095 (2.41)
.093 (2.36)
90°/85°
K DIA
12
WIRE ACCOMODATION
C
Contact Size
22D
20
16
12
Wire Guage
#22 - #28
#20 - #24
#16 - #20
#12 - #14
N
C
© 2013 Glenair, Inc.
Recommended Panel
Cut-Out
Dimensions in Inches (millimeters) are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-50
E-Mail: sales@glenair.com
