C Male Connector Clamp/Solder Attachment For RG218
TECHNICAL DATA SHEET
C Male Connector Clamp/Solder Attachment For RG218
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
C Male
RG218
Clamp/Solder
Straight
PE4954
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
2.3 [58.42]
1.312 [33.32]
0.316 [143.34]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
C Male
Silver
Brass, Nickel
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
C Male Connector Clamp/Solder Attachment For RG218 from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
C Male Connector Clamp/Solder Attachment For RG218 PE4954
URL:
http://www.pasternack.com/c-male-standard-rg218-connector-pe4954-p.aspx
PE4954 REV 01
1
ASSEMBLY PROCEDURES
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
1.
PE4954

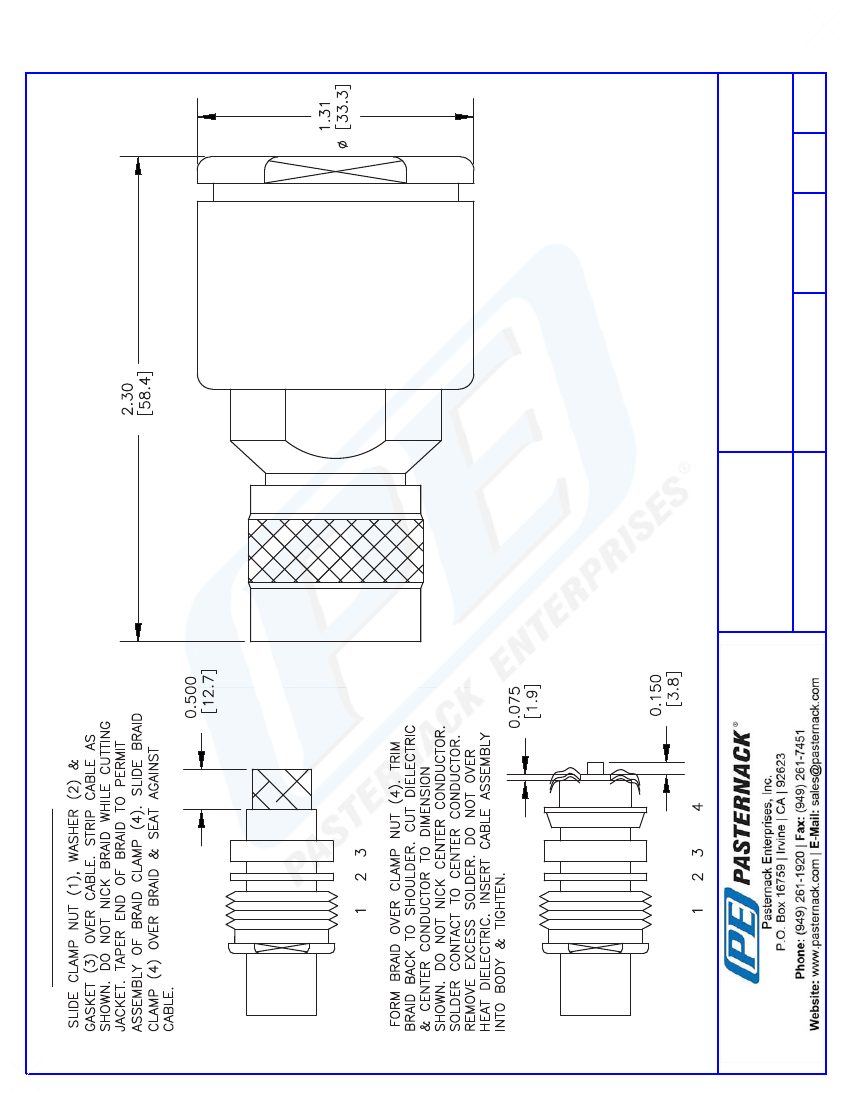

CAD Drawing
C Male Connector Clamp/Solder Attachment For RG218
PE4954 REV 01
2.
PE4954
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
061402
SCALE N/A
SIZE A
127
2
