BUZ84: DescriptionPower Field-Effect Transistor, 5.3A I(D), 800V, 2ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA; CategoryDiscrete semiconductor The transistor; File Size196KB，5 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BUZ84 Overview

Power Field-Effect Transistor, 5.3A I(D), 800V, 2ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA

BUZ84 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIEMENS
package instruction	FLANGE MOUNT, O-MBFM-P2
Reach Compliance Code	unknown
Shell connection	DRAIN
Configuration	SINGLE
Minimum drain-source breakdown voltage	800 V
Maximum drain current (Abs) (ID)	5.3 A
Maximum drain current (ID)	5.3 A
Maximum drain-source on-resistance	2 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	140 pF
JEDEC-95 code	TO-204AA
JESD-30 code	O-MBFM-P2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	125 W
Maximum power dissipation(Abs)	125 W
Maximum pulsed drain current (IDM)	21 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	570 ns
Maximum opening time (tons)	230 ns

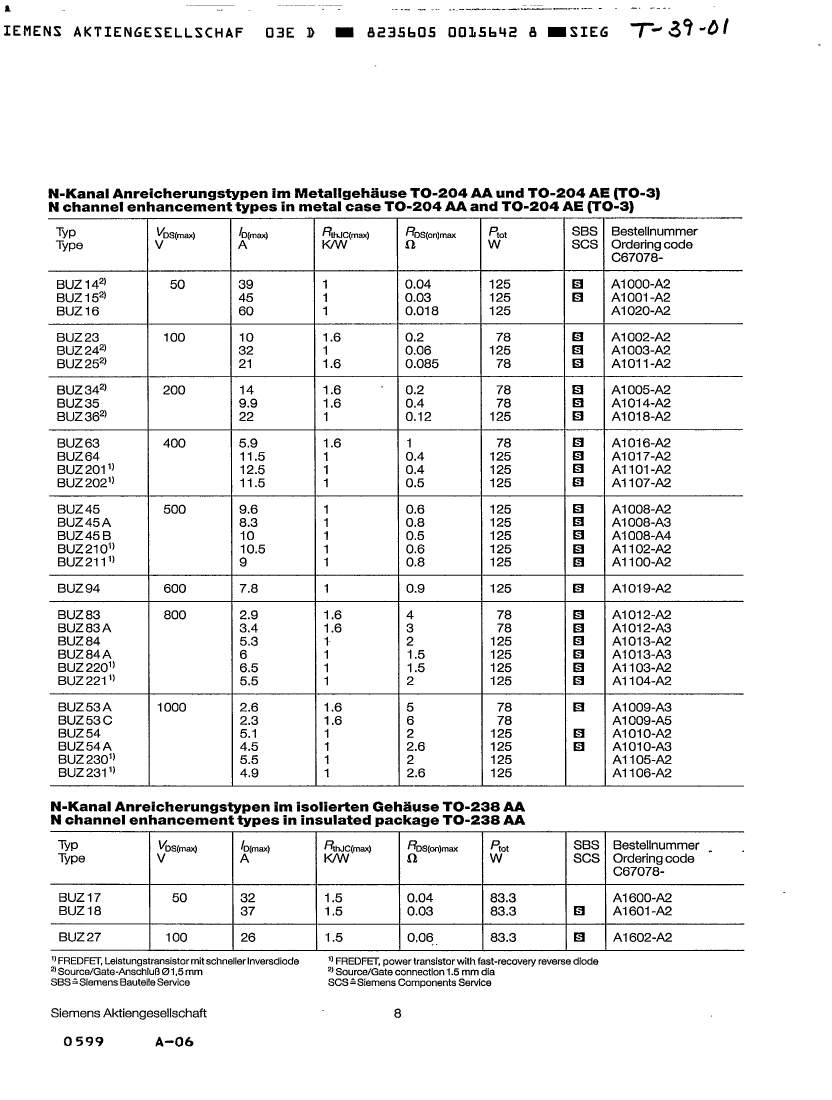

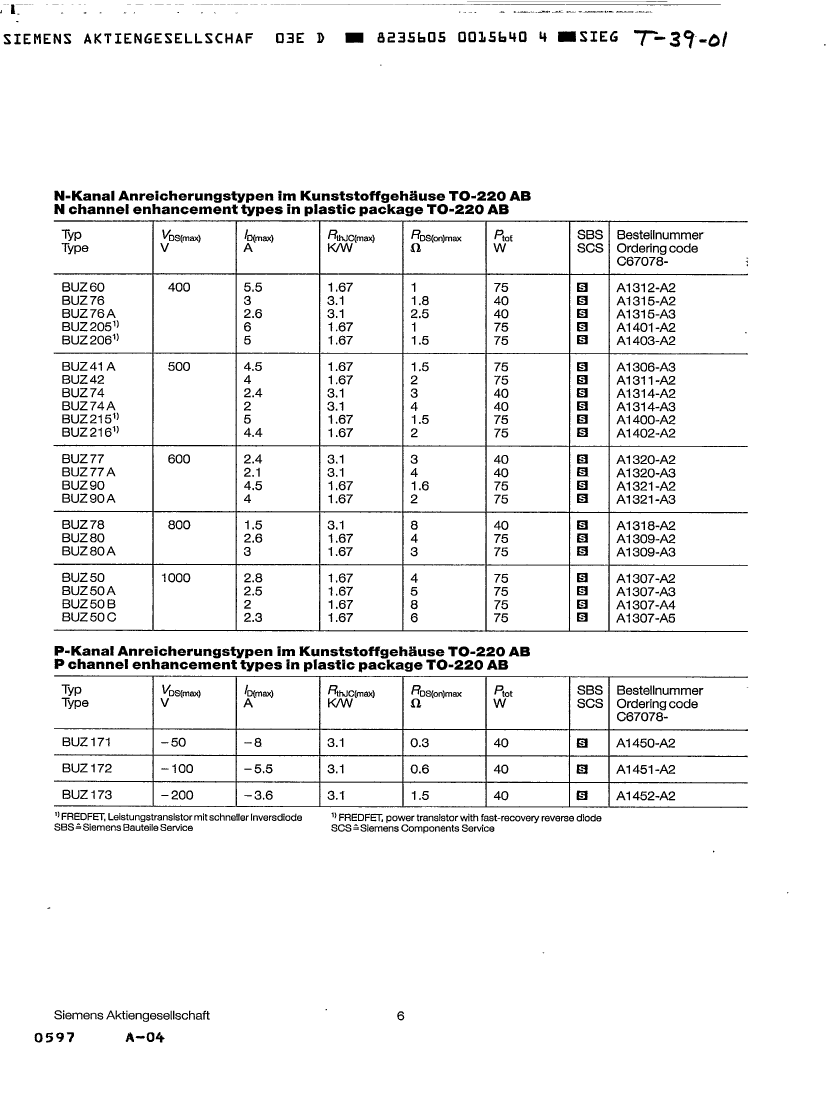

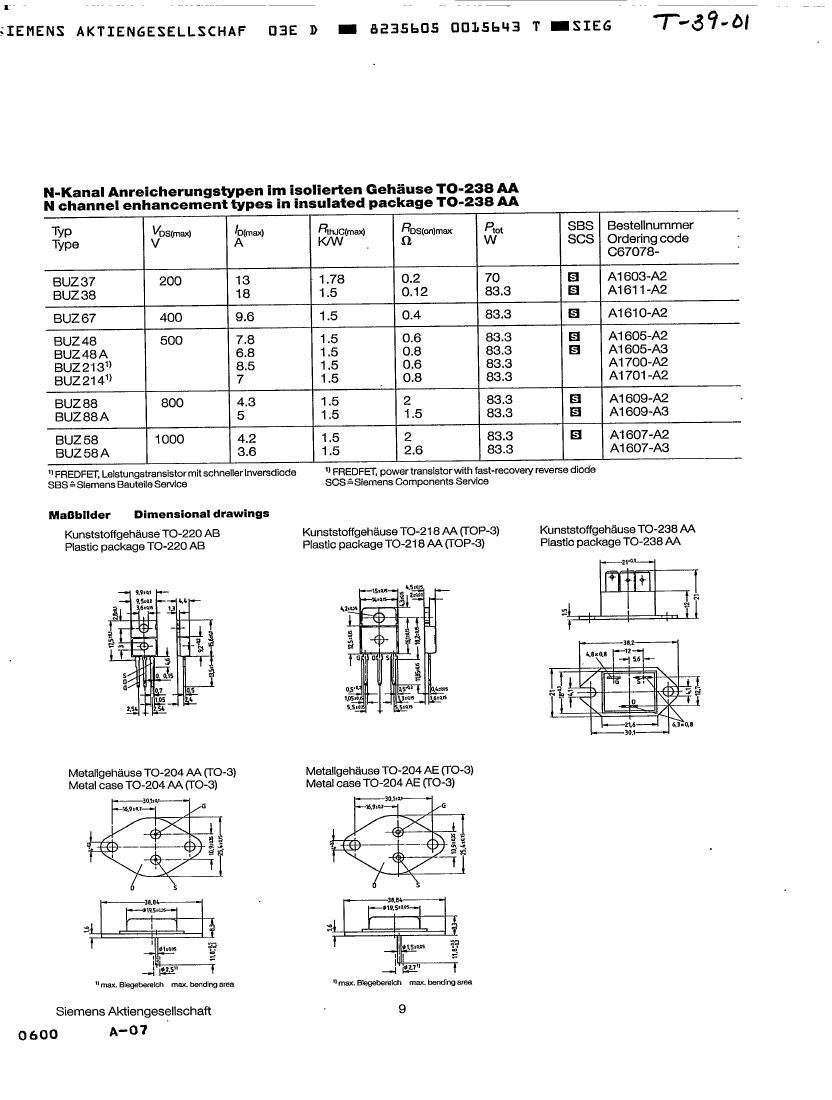

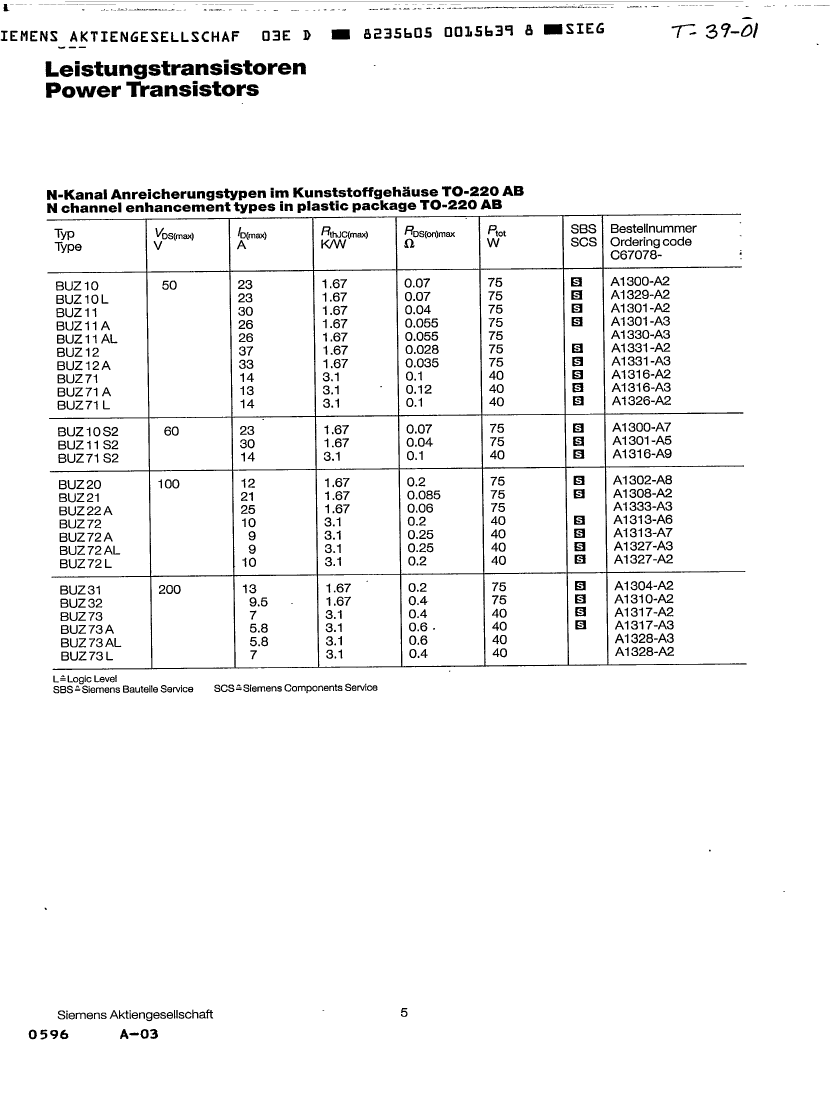

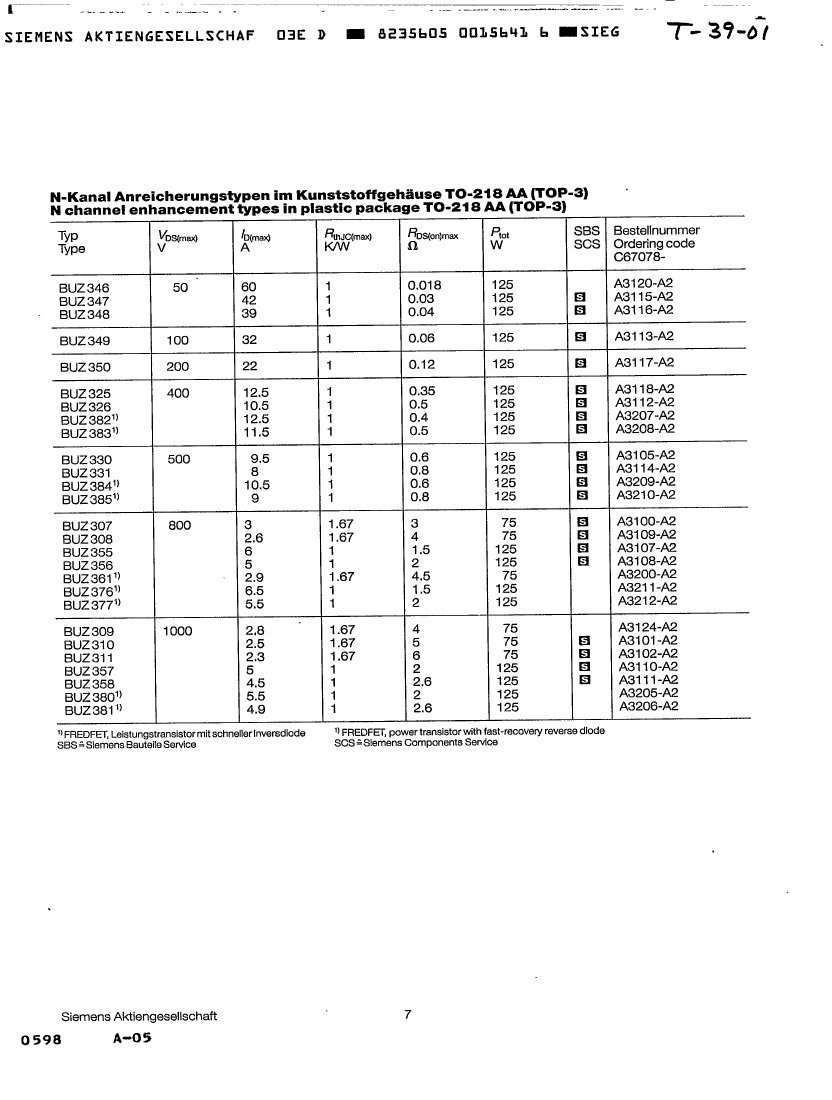

Preview

Download Datasheet

View All

BUZ84 Related Products

	BUZ84	BUZ45	BUZ45B	BUZ45A	BUZ84A	BUZ53A	BUZ36	BUZ16	BUZ54	BUZ54A
Description	Power Field-Effect Transistor, 5.3A I(D), 800V, 2ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA	Power Field-Effect Transistor, 9.6A I(D), 500V, 0.6ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA	Power Field-Effect Transistor, 10A I(D), 500V, 0.5ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA	Power Field-Effect Transistor, 8.3A I(D), 500V, 0.8ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA	Power Field-Effect Transistor, 6A I(D), 800V, 1.5ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA	Power Field-Effect Transistor, 2.6A I(D), 1000V, 5ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA	Power Field-Effect Transistor, 22A I(D), 200V, 0.12ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AE	Power Field-Effect Transistor, 48A I(D), 50V, 0.018ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA	Power Field-Effect Transistor, 5.1A I(D), 1000V, 2ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA	Power Field-Effect Transistor, 4.5A I(D), 1000V, 2.6ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-204AA
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Shell connection	DRAIN	DRAIN	DRAIN	DRAIN	DRAIN	DRAIN	DRAIN	DRAIN	DRAIN	DRAIN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum drain-source breakdown voltage	800 V	500 V	500 V	500 V	800 V	1000 V	200 V	50 V	1000 V	1000 V
Maximum drain current (Abs) (ID)	5.3 A	9.6 A	10 A	8.3 A	6 A	2.6 A	22 A	60 A	5.1 A	4.5 A
Maximum drain current (ID)	5.3 A	9.6 A	10 A	8.3 A	6 A	2.6 A	22 A	48 A	5.1 A	4.5 A
Maximum drain-source on-resistance	2 Ω	0.6 Ω	0.5 Ω	0.8 Ω	1.5 Ω	5 Ω	0.12 Ω	0.018 Ω	2 Ω	2.6 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	140 pF	170 pF	170 pF	170 pF	140 pF	55 pF	200 pF	750 pF	40 pF	40 pF
JEDEC-95 code	TO-204AA	TO-204AA	TO-204AA	TO-204AA	TO-204AA	TO-204AA	TO-204AE	TO-204AA	TO-204AA	TO-204AA
JESD-30 code	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum power consumption environment	125 W	125 W	125 W	125 W	125 W	75 W	125 W	125 W	125 W	125 W
Maximum power dissipation(Abs)	125 W	125 W	125 W	125 W	125 W	75 W	125 W	125 W	125 W	125 W
Maximum pulsed drain current (IDM)	21 A	38 A	40 A	33 A	24 A	10 A	88 A	192 A	20 A	18 A
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum off time (toff)	570 ns	570 ns	570 ns	570 ns	570 ns	220 ns	440 ns	890 ns	690 ns	690 ns
Maximum opening time (tons)	230 ns	195 ns	195 ns	195 ns	230 ns	105 ns	155 ns	290 ns	205 ns	205 ns
Maker	SIEMENS	SIEMENS	SIEMENS	SIEMENS	-	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS
